3000x3000px 20220210DM
PackageWarranty 25
ItemIPRating IP66
ItemRating 13

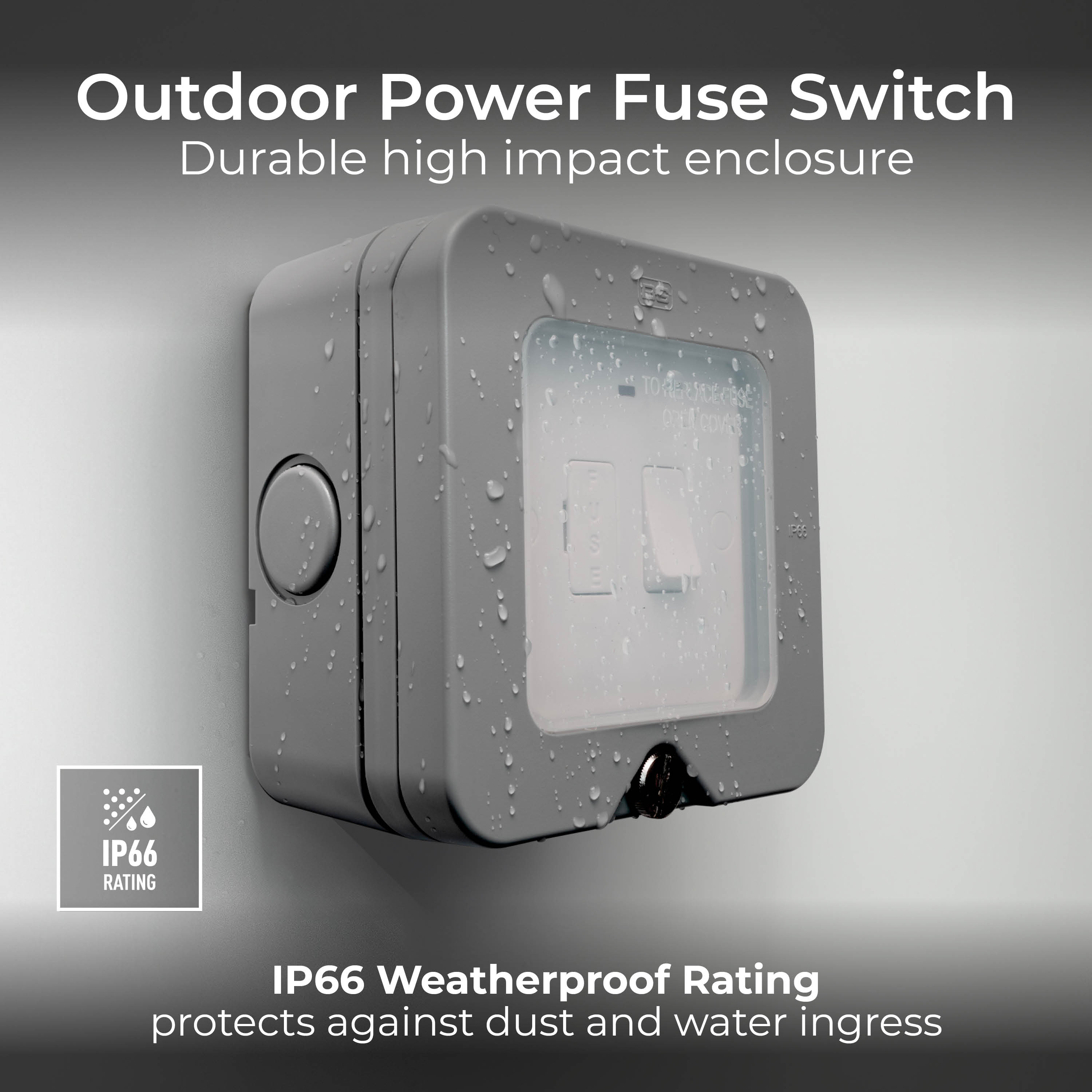

Weather and dust protection - IP66 (with cover closed)

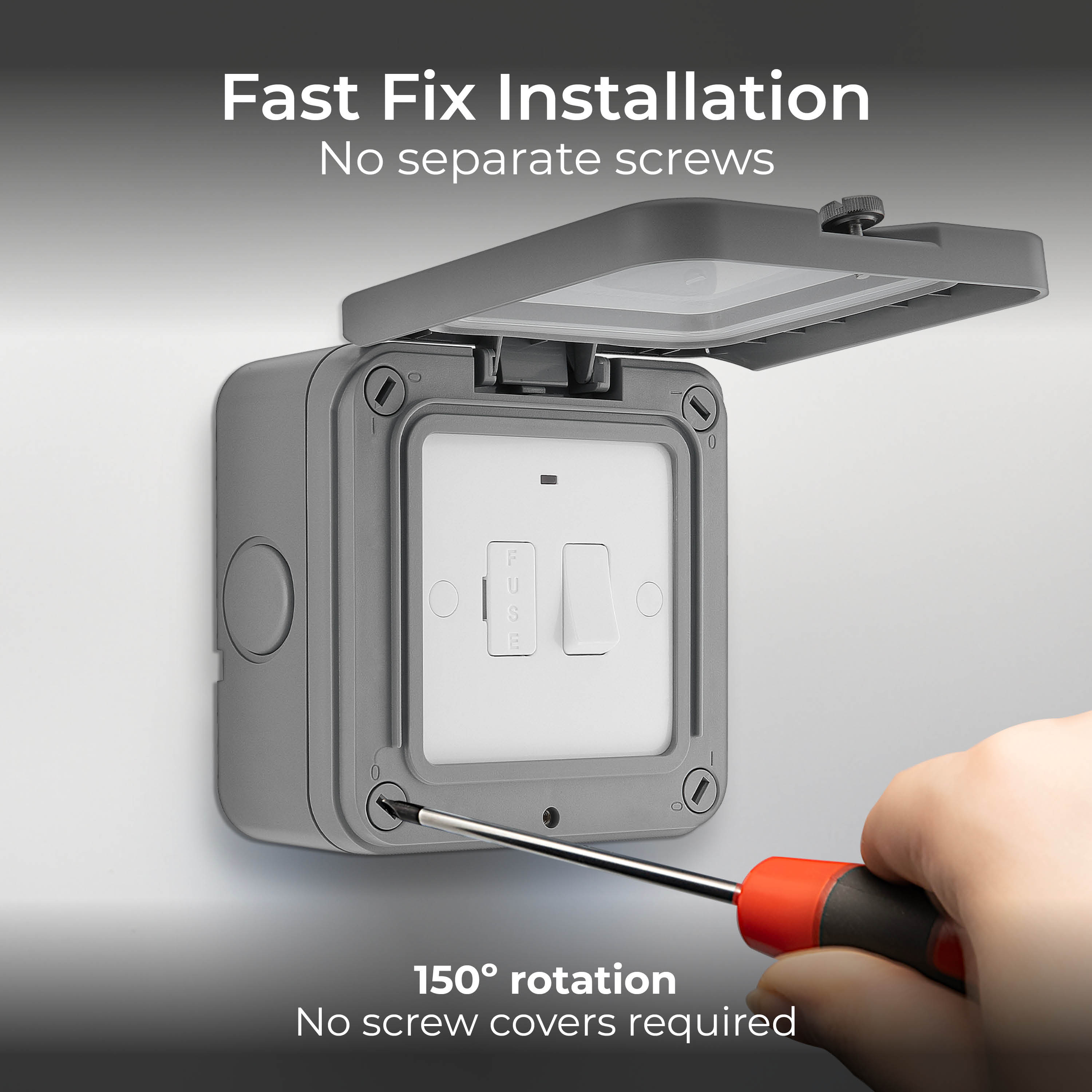

Fast fix - no separate screws no screw covers, 150ยบ rotation

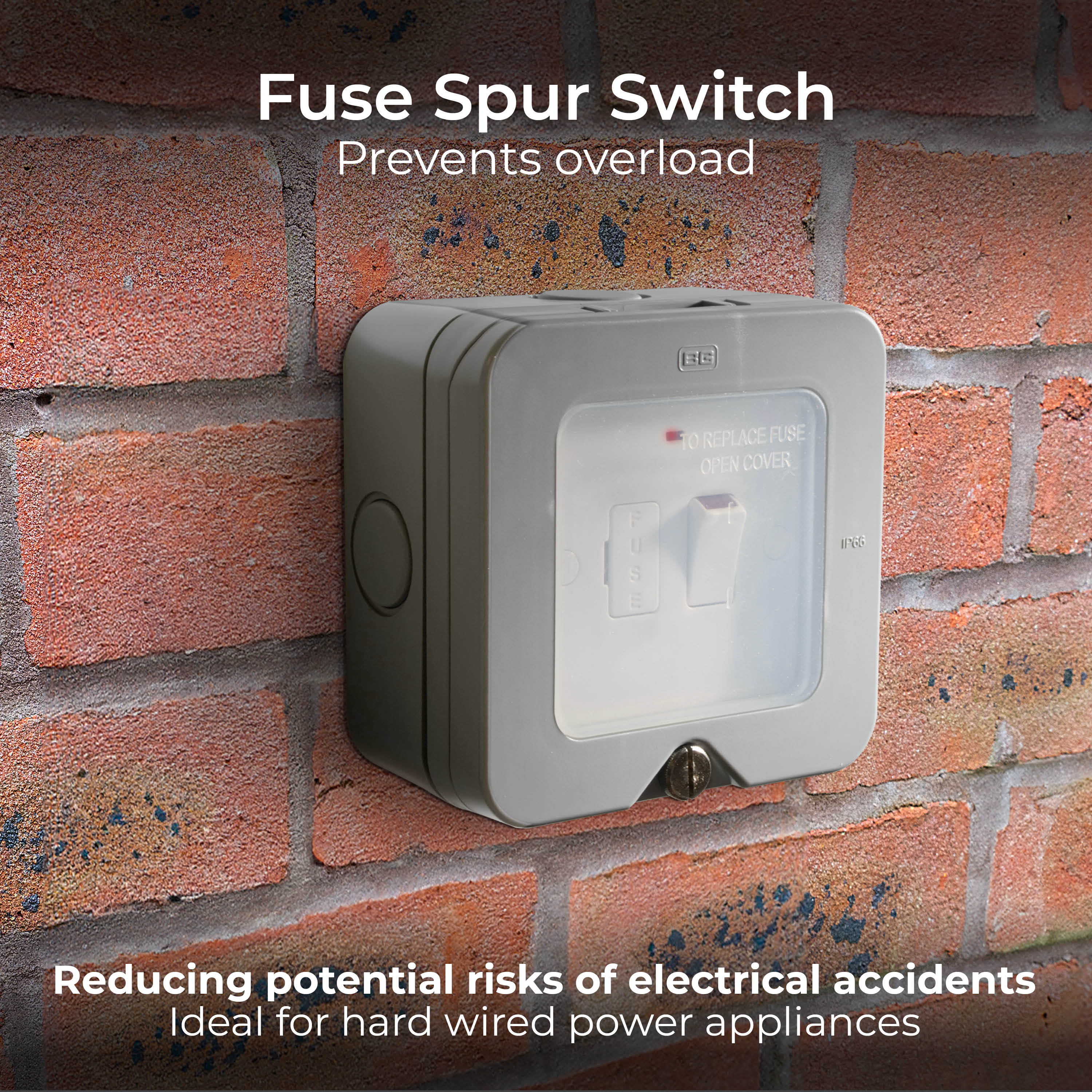

Ideal for spur circuits and hard wired power appliances

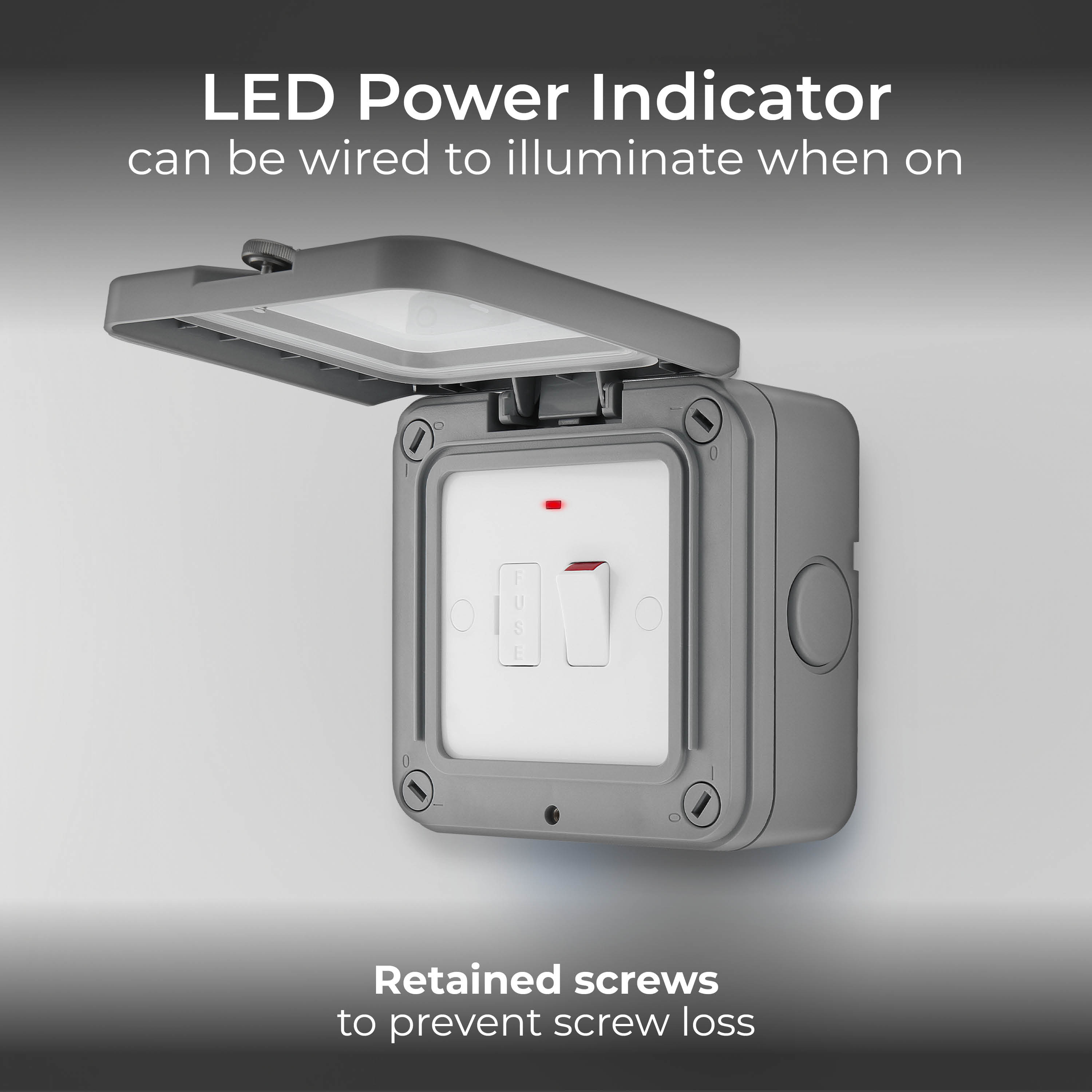

Flexible membrane - allows easy switch and power status indication without compromising IP rating

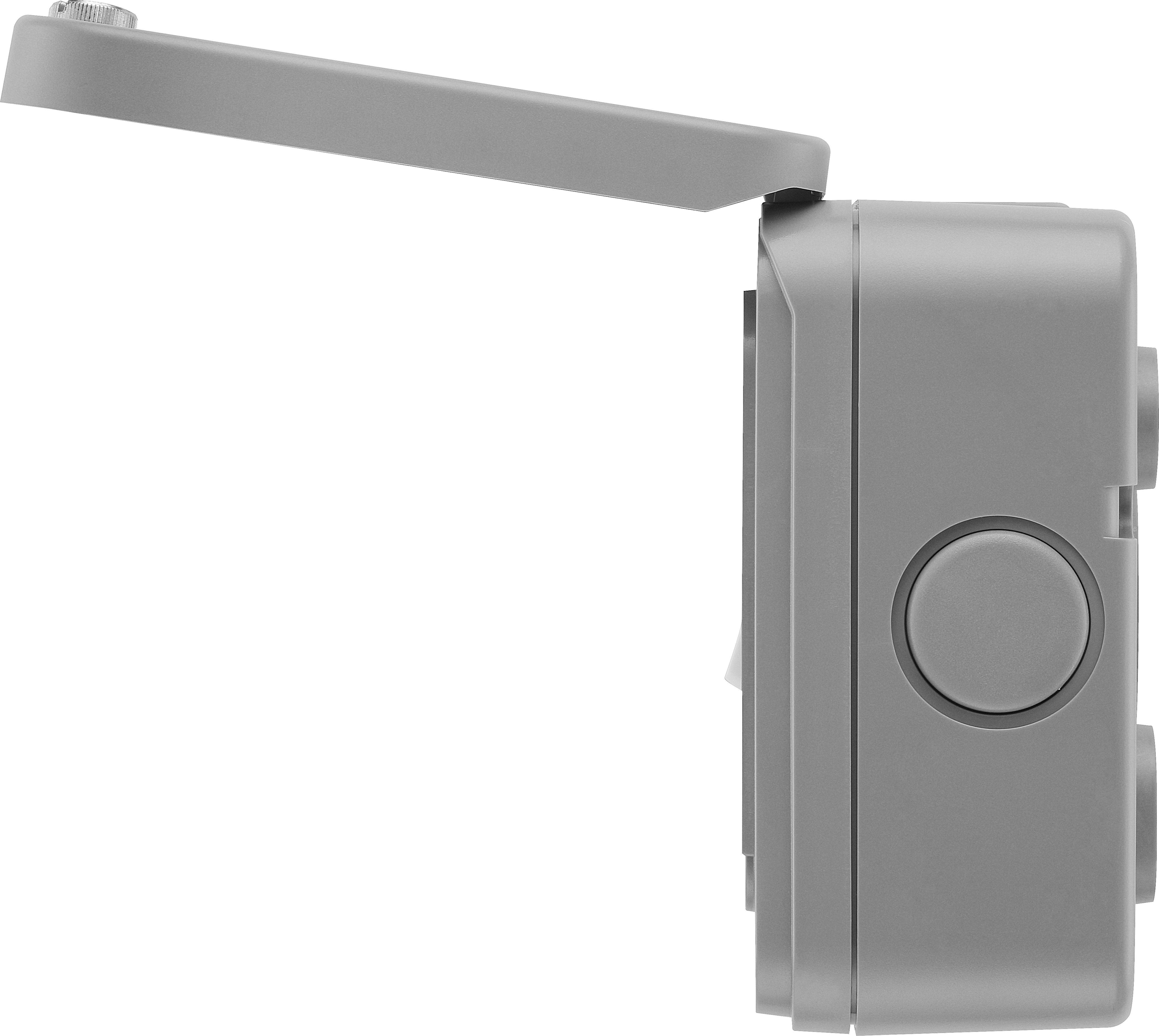

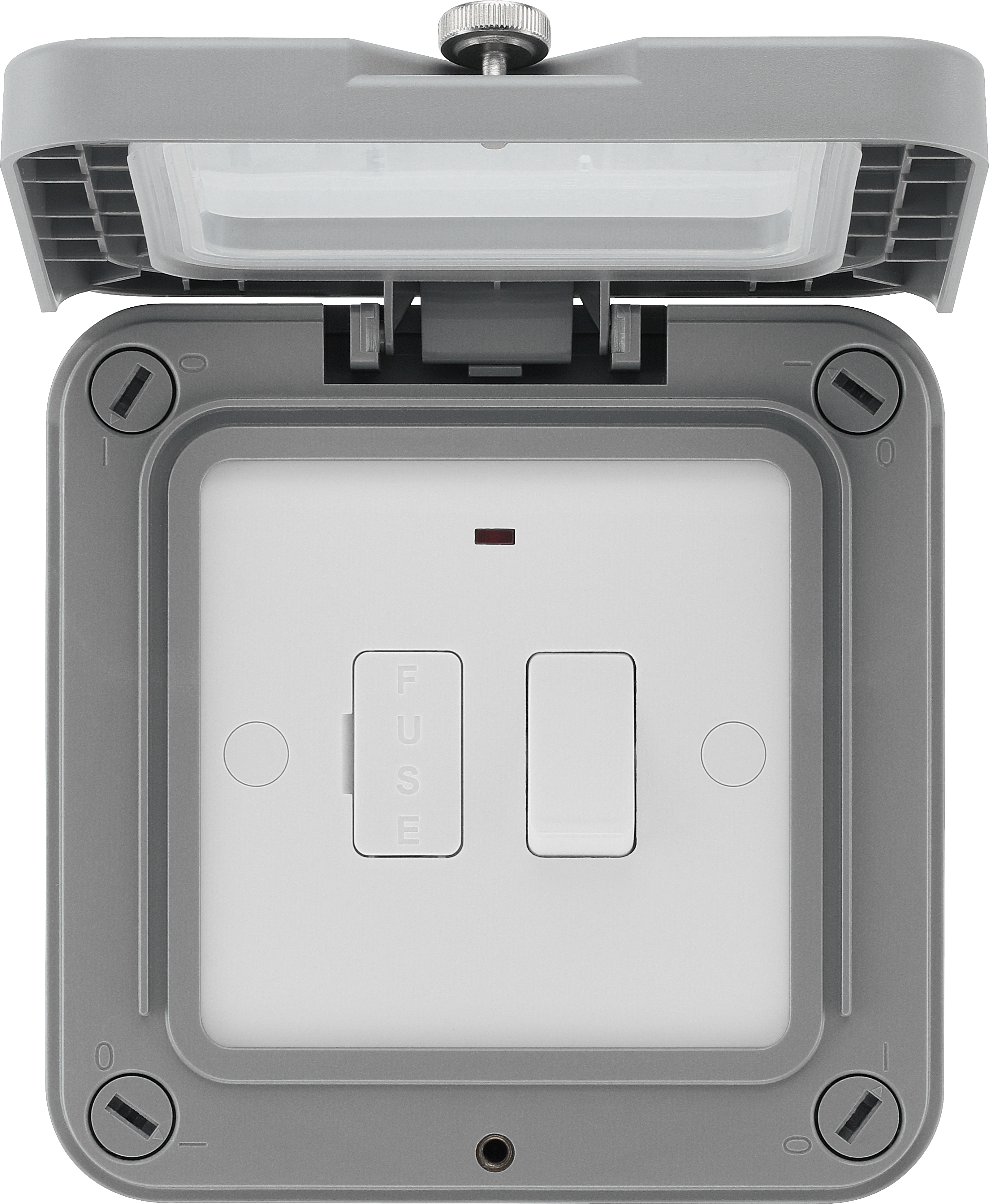

Hinged cover - with fixing screw provides access to the fuse

Robust and high impact outdoor unit for safe electricity supply outdoors

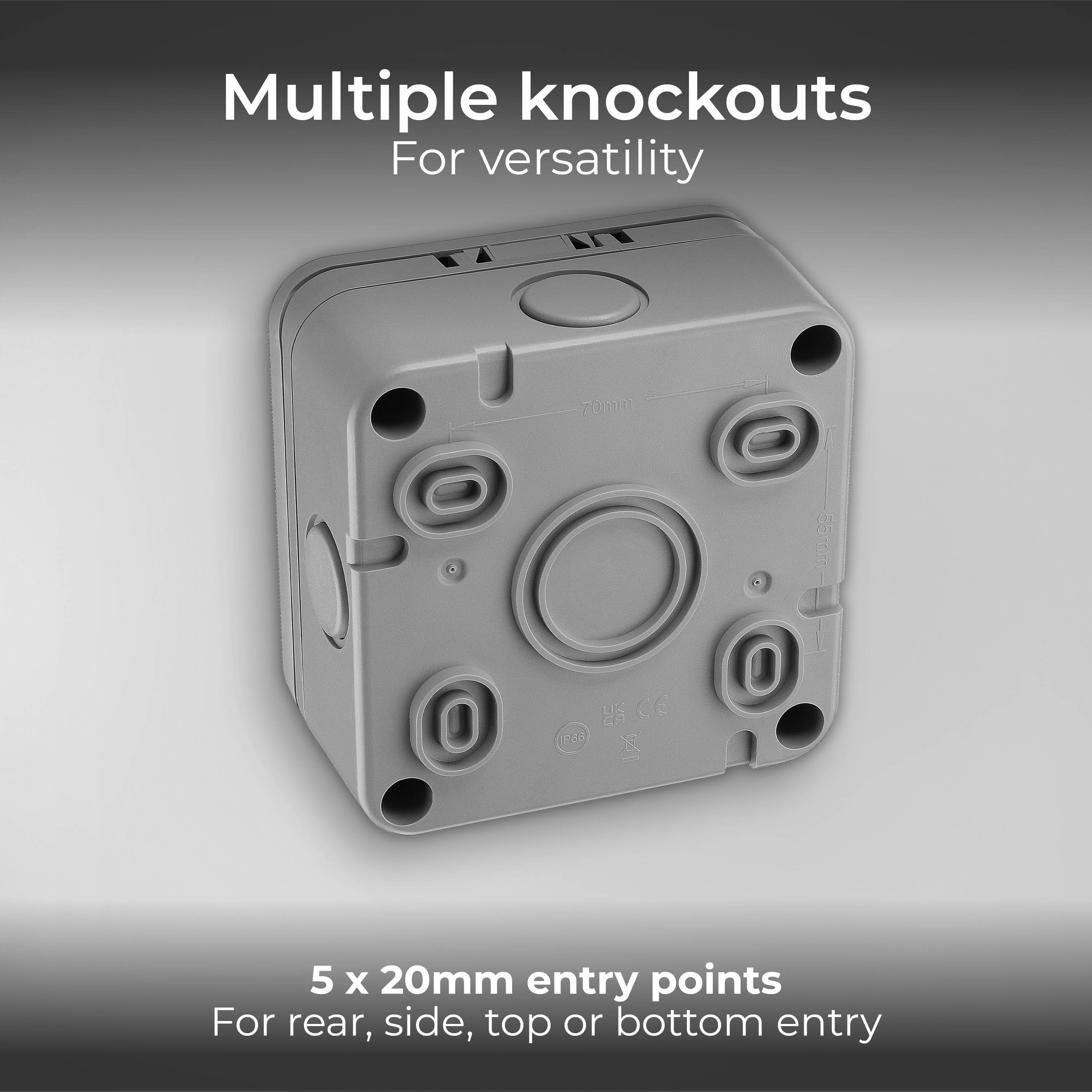

Multiple knockouts for versatility when installing - 5 x 20mm

Pre-fitted with 13A fuse

Double pole for peace of mind and safer installation

Angled in-line colour coded terminals with captive screws - for quick and easy installation

BG Electrical are confident in the quality of our workmanship and materials, the guarantee stated applies from the date of delivery. Please see our terms and conditions for more details

Dimensions

Unpacked Height (mm) 136.7
Unpacked Width (mm) 115.4
Unpacked Depth (mm) 75.6
Minimum Box Depth (mm) N/A

Pack

Packed Width (mm) 122
Packed Depth (mm) 72
Packed Height (mm) 147
Packed Gross Weight (kg) 0.392
Package Pack Type Printed Box
Package Hanging Yes
Package EAN 5050765022330

Case Inner

Unpacked Height (mm) 136.7
Unpacked Width (mm) 115.4
Unpacked Depth (mm) 75.6
Minimum Box Depth (mm) N/A

Case Outer

Packed Width (mm) 122
Packed Depth (mm) 72
Packed Height (mm) 147
Packed Gross Weight (kg) 0.392
Package Pack Type Printed Box
Package Hanging Yes
Package EAN 5050765022330

Container

Packed Width (mm) 122
Packed Depth (mm) 72
Packed Height (mm) 147
Packed Gross Weight (kg) 0.392
Package Pack Type Printed Box
Package Hanging Yes
Package EAN 5050765022330

Technical Line Drawing
