WP21-02
BG Nexus Storm, 13A Single Switched Socket, IP66
Weather and dust protection - IP66 (with cover closed)

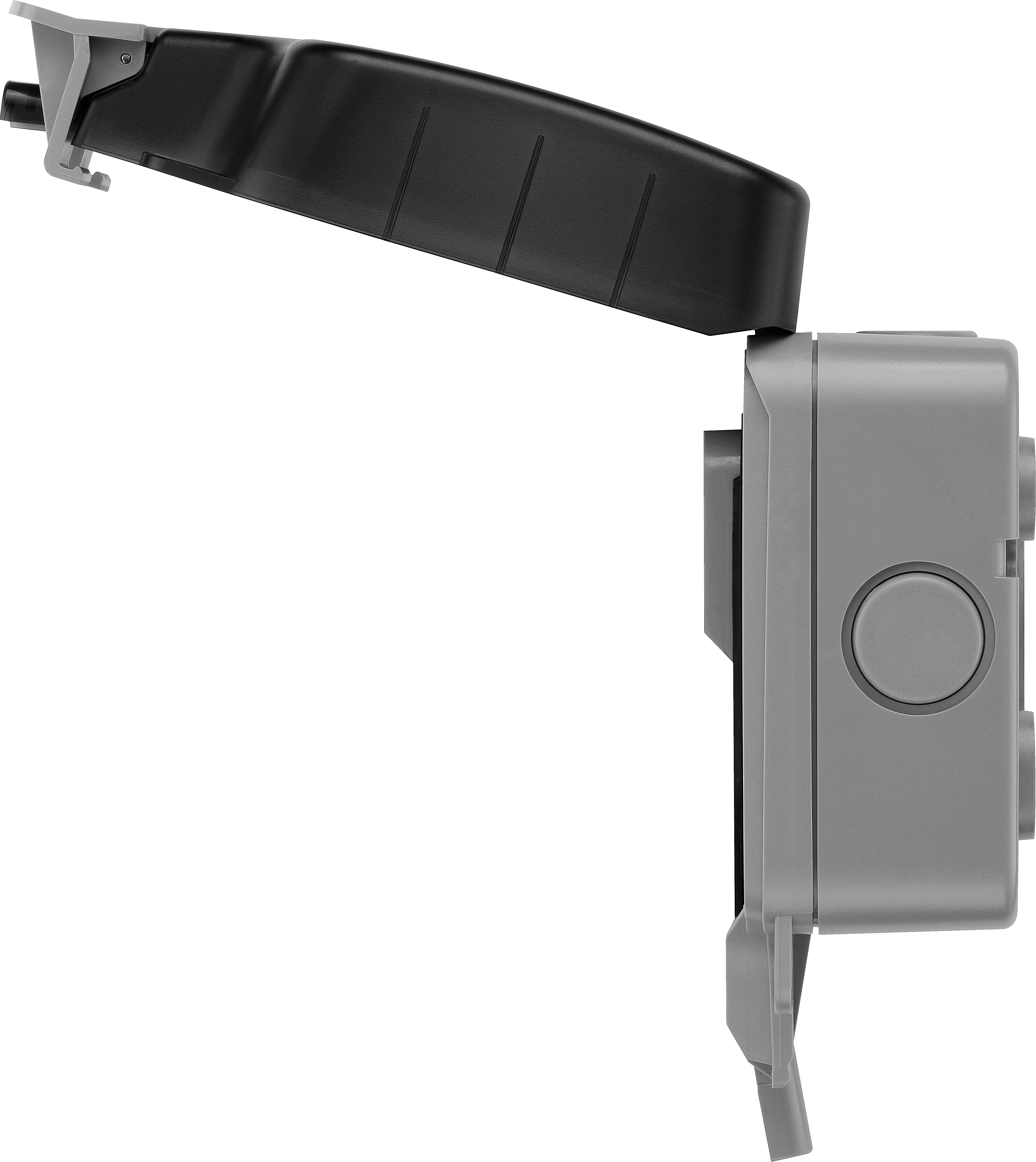

Fast fix - no separate screws, no screw covers, 150ยบ rotation

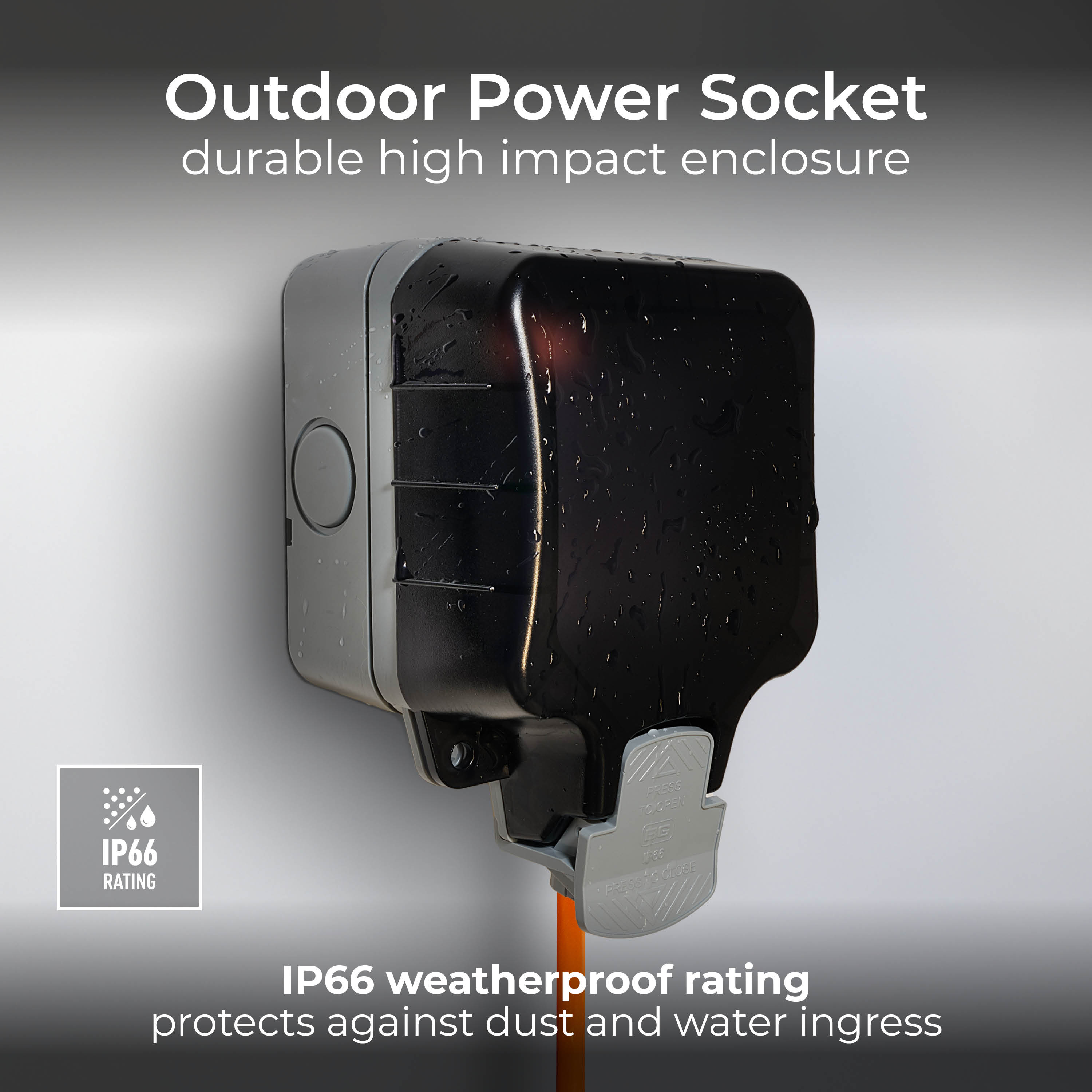

Robust and high impact outdoor power socket, for safe electricity supply outdoors

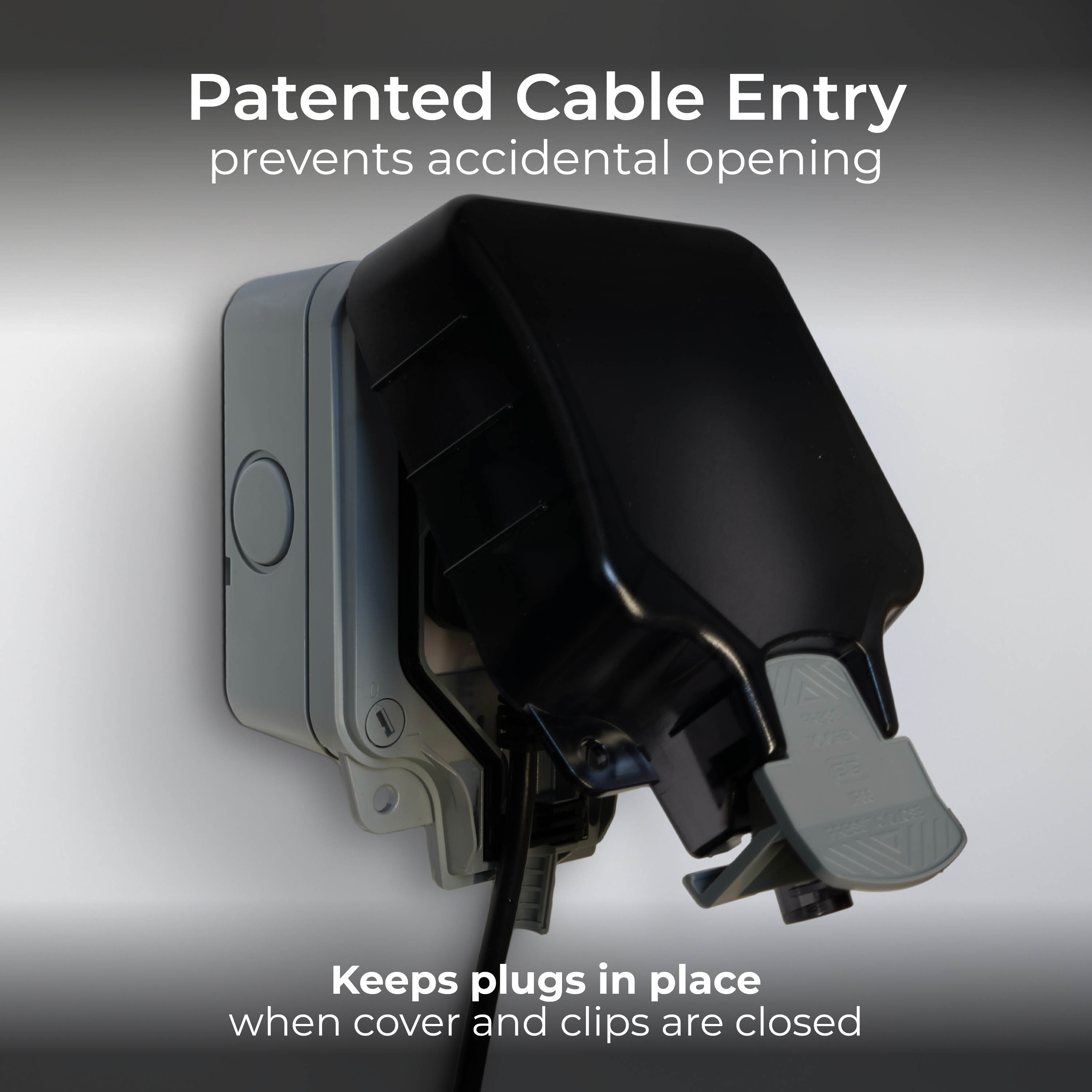

Patented cable entry - prevents accidental opening

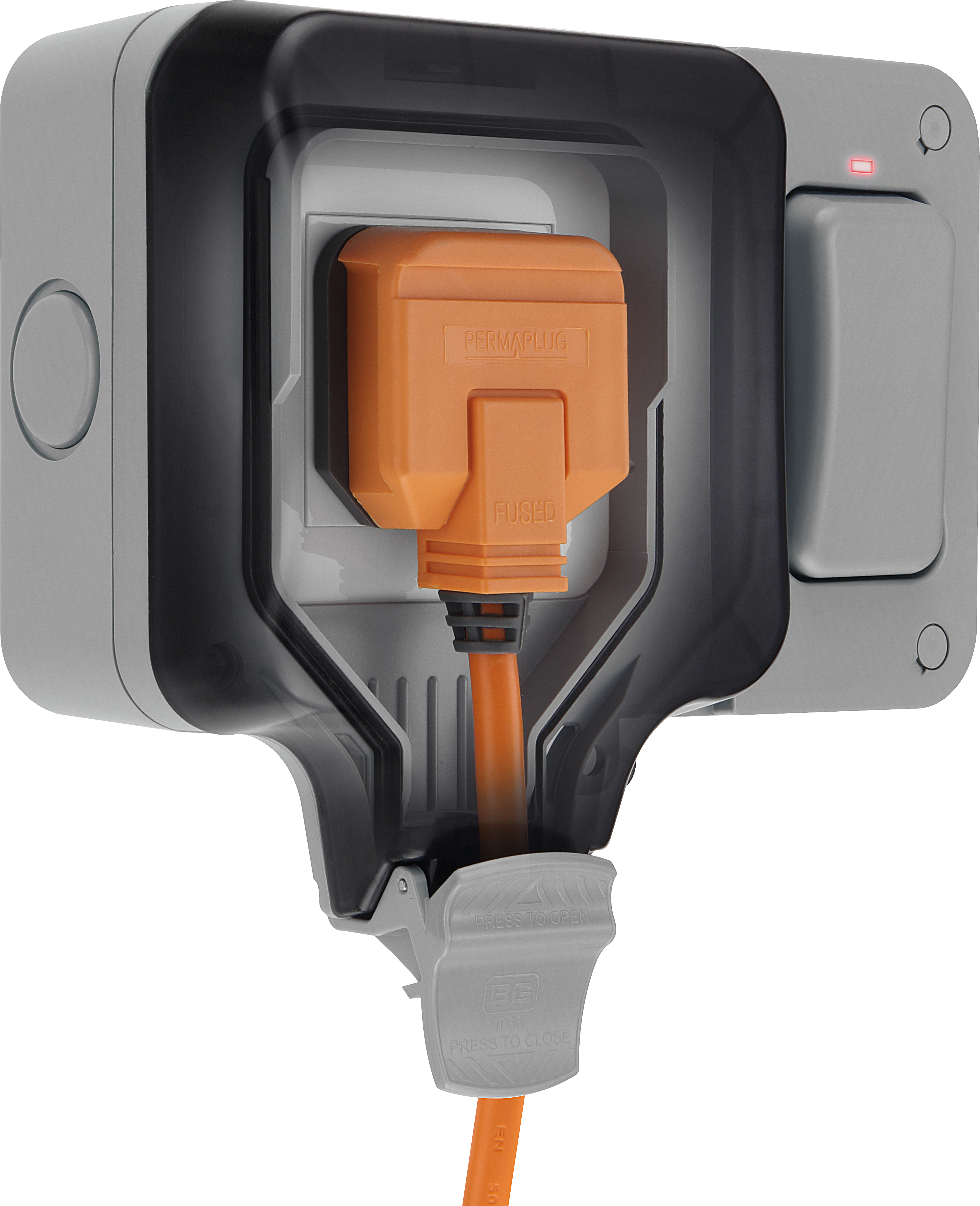

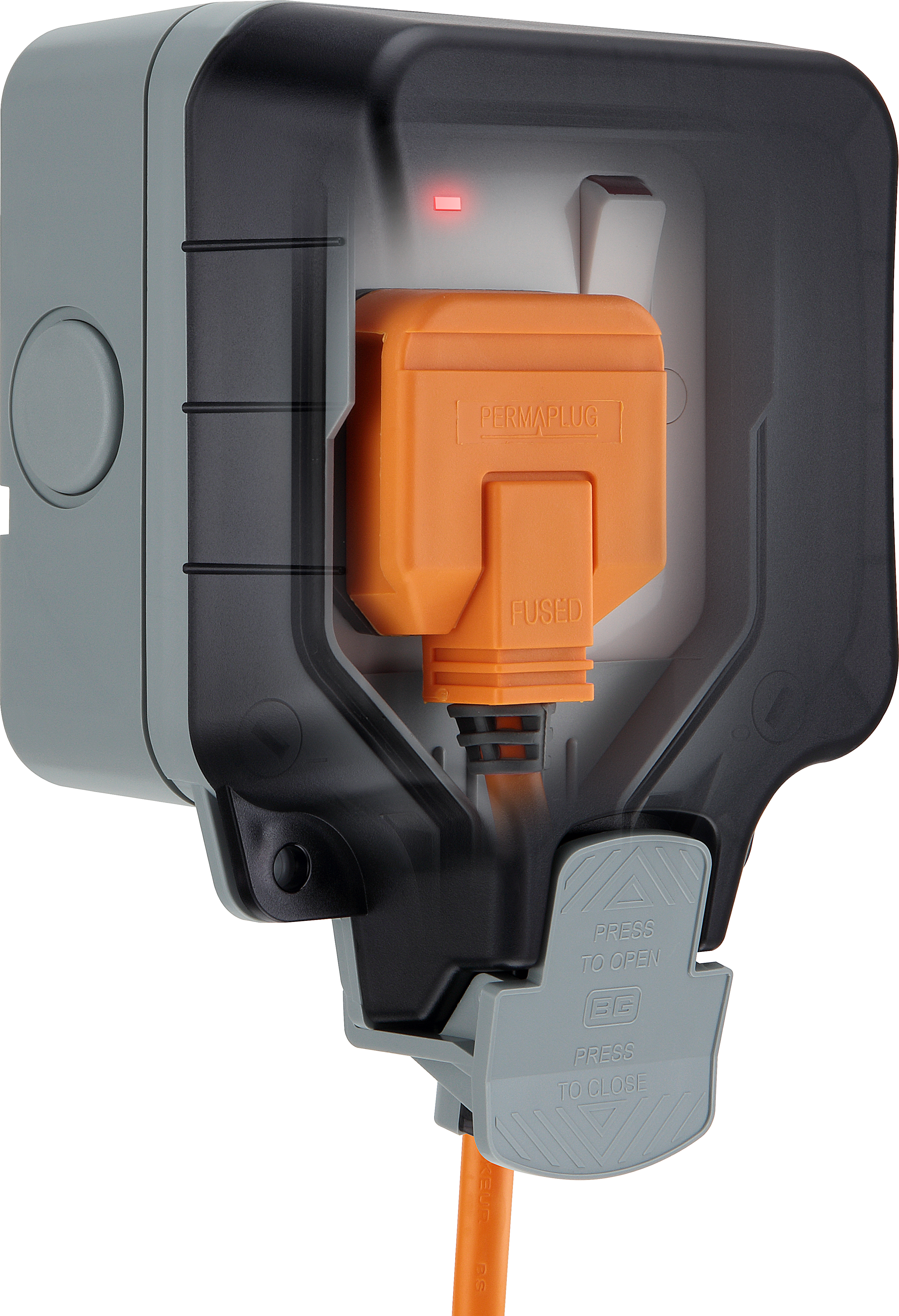

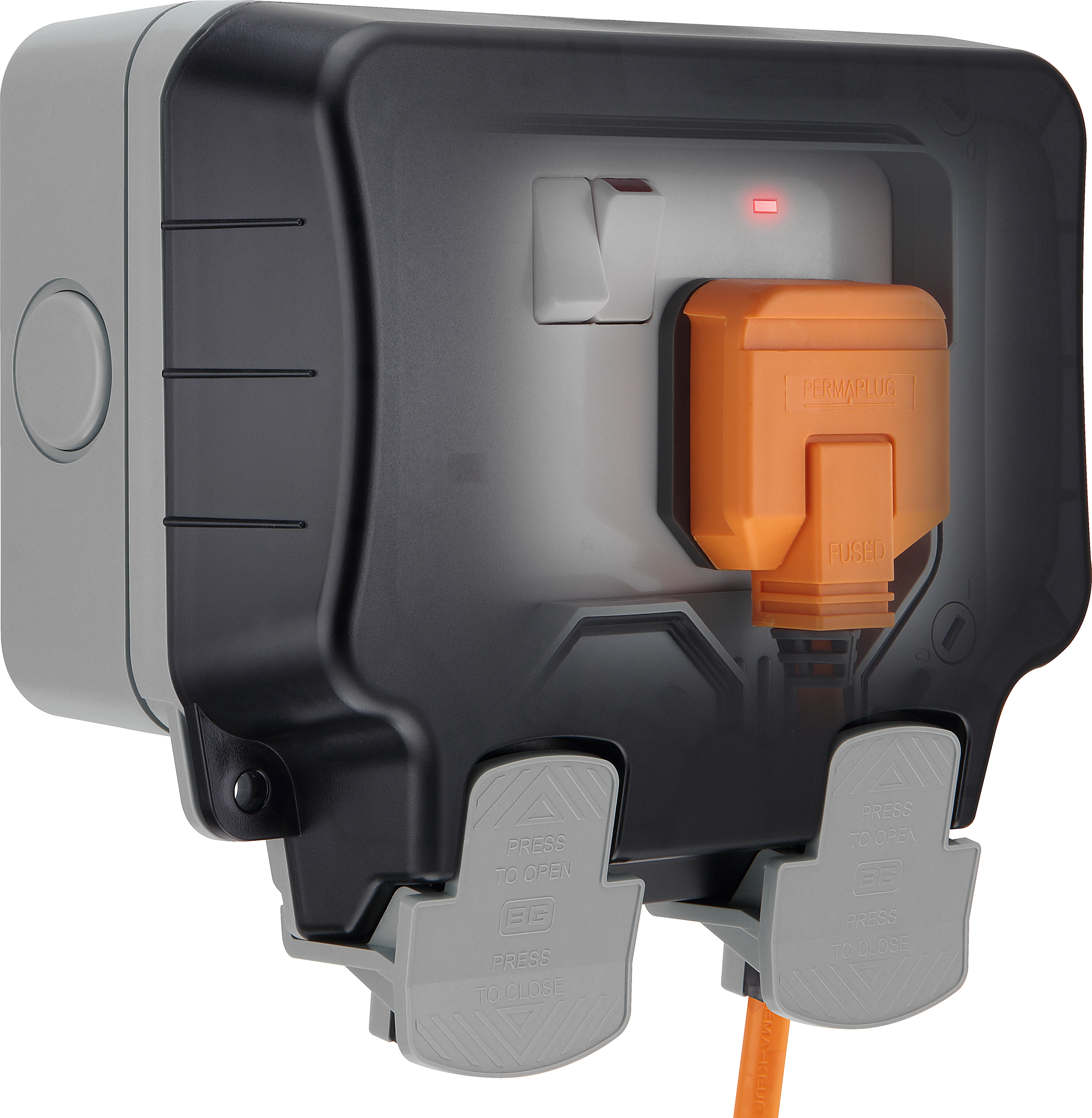

LED power indicators mean the power status is visible even when the cover is down.

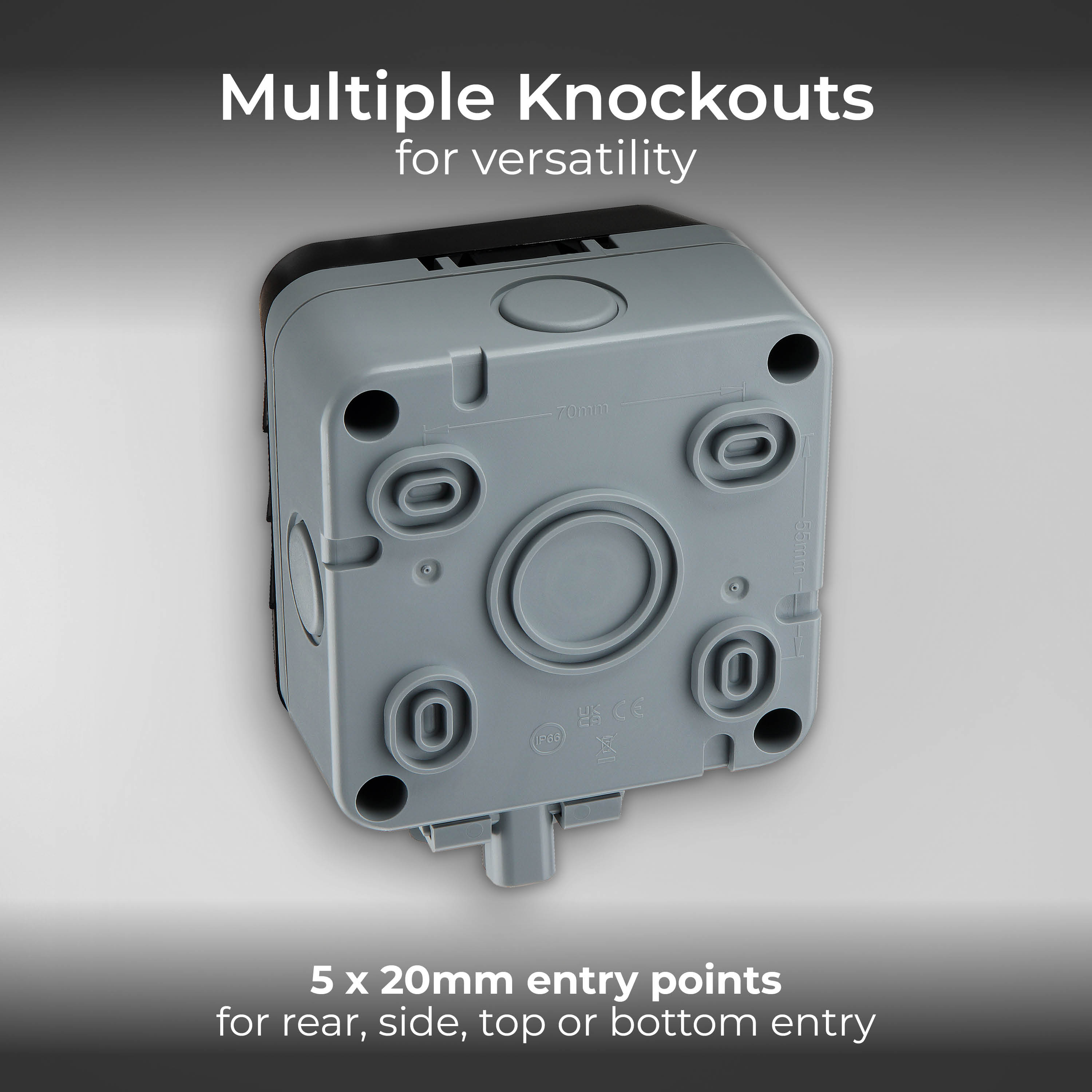

Multiple knockouts for versatility when installing - 5 x 20mm

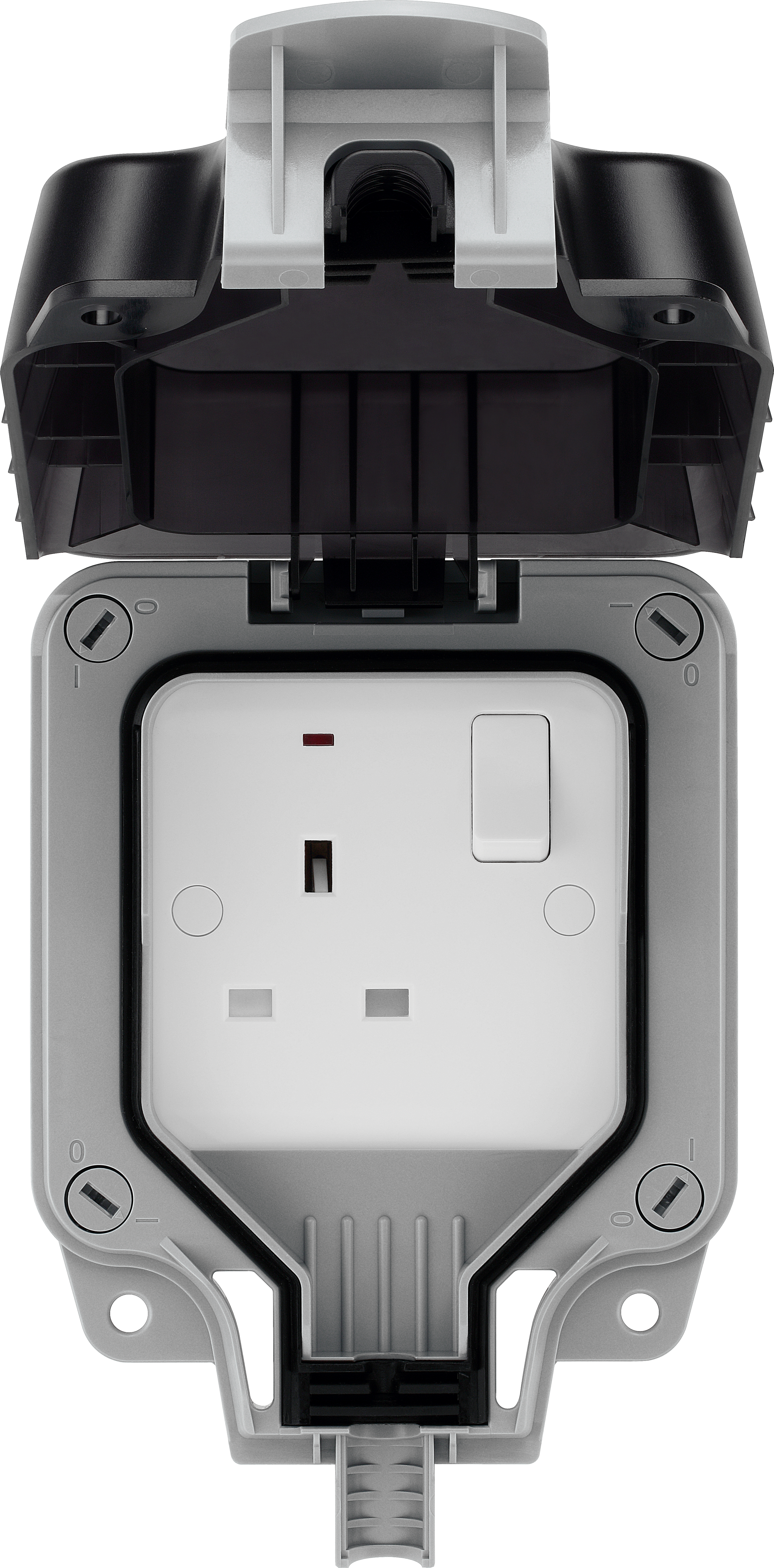

Angled in-line colour coded terminals with captive screws provide easy access for quick installation

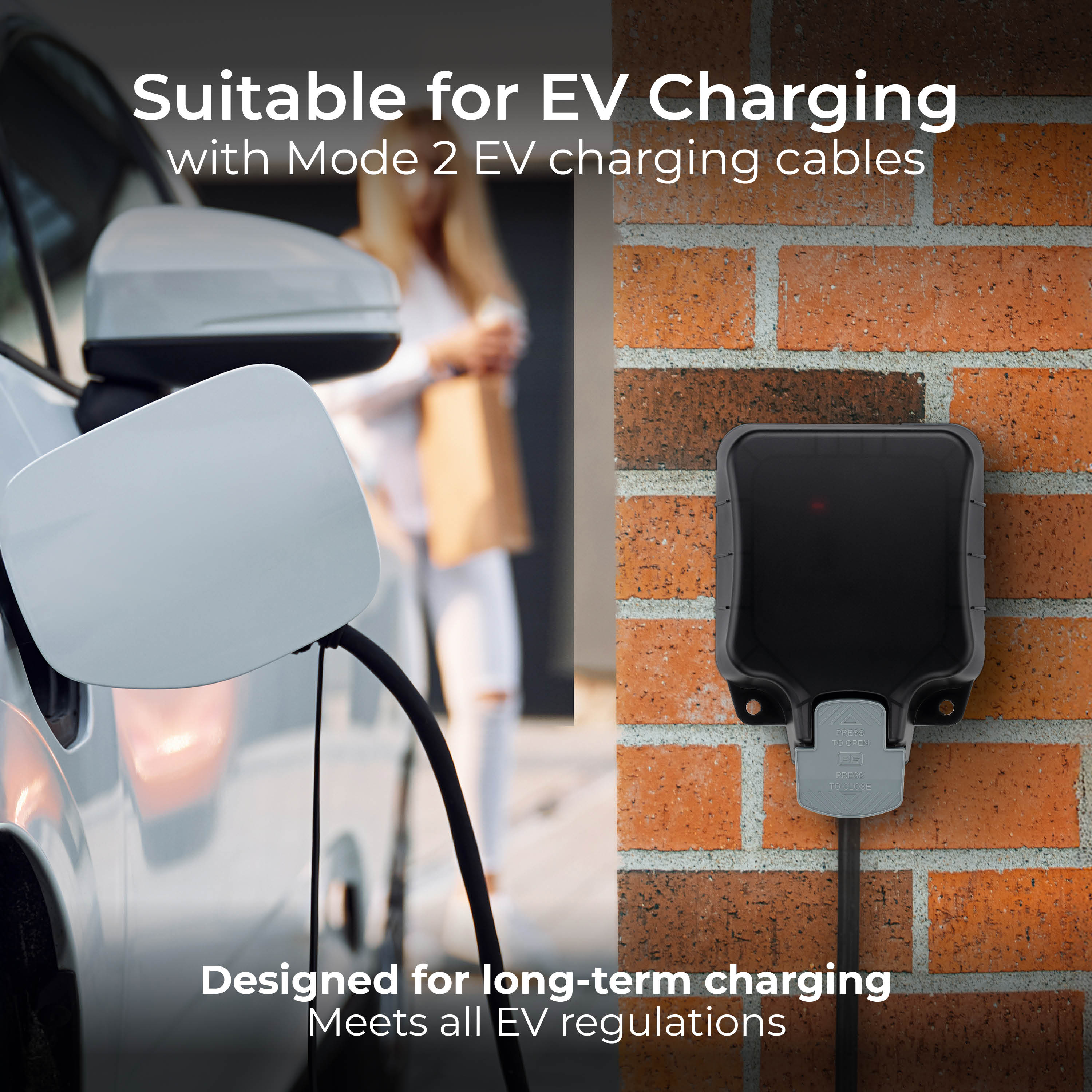

Suitable for use with Mode 2 EV charging cables - certified to BS1363/EV
Twin earth fitted as standard for high integrity circuits

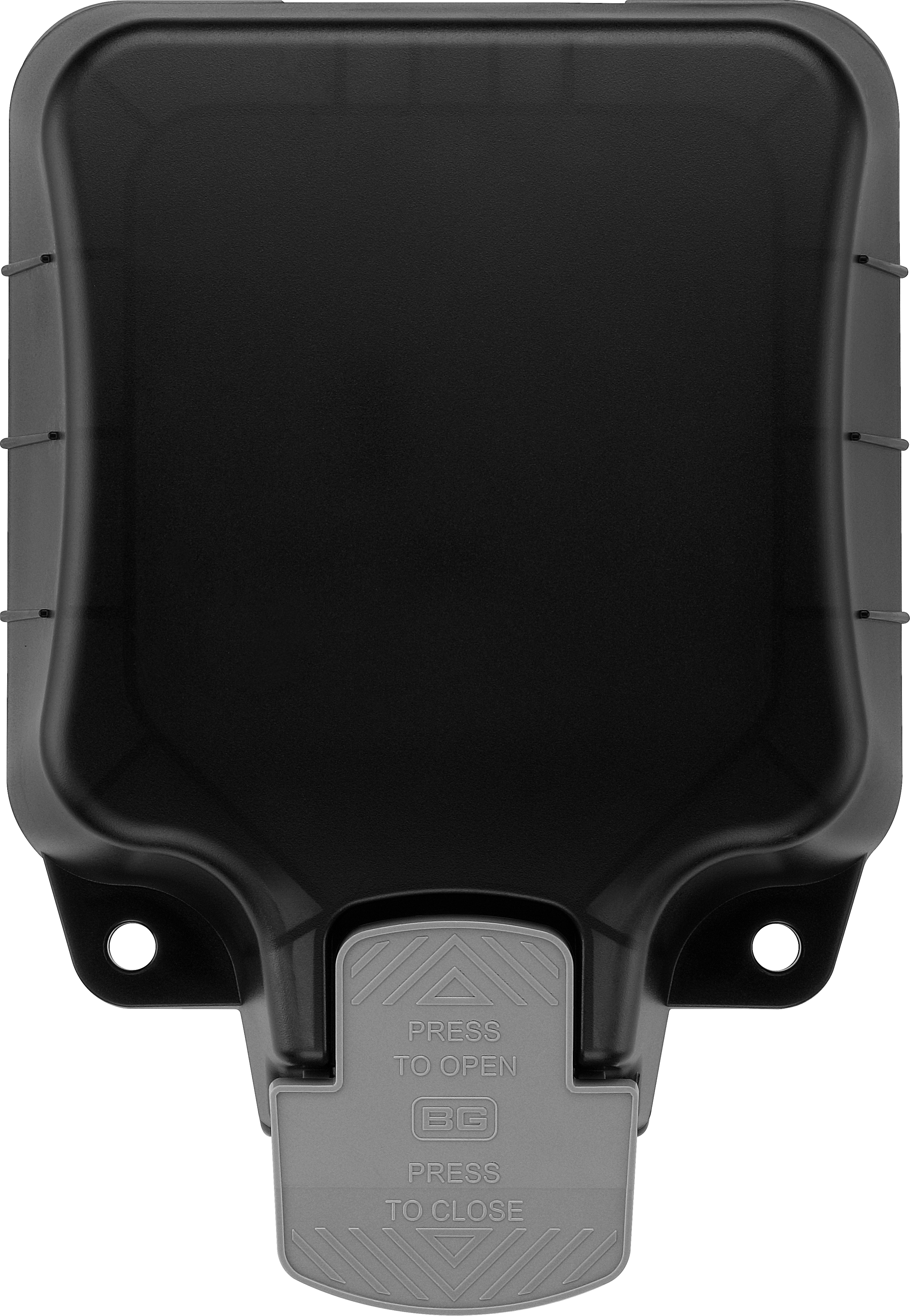

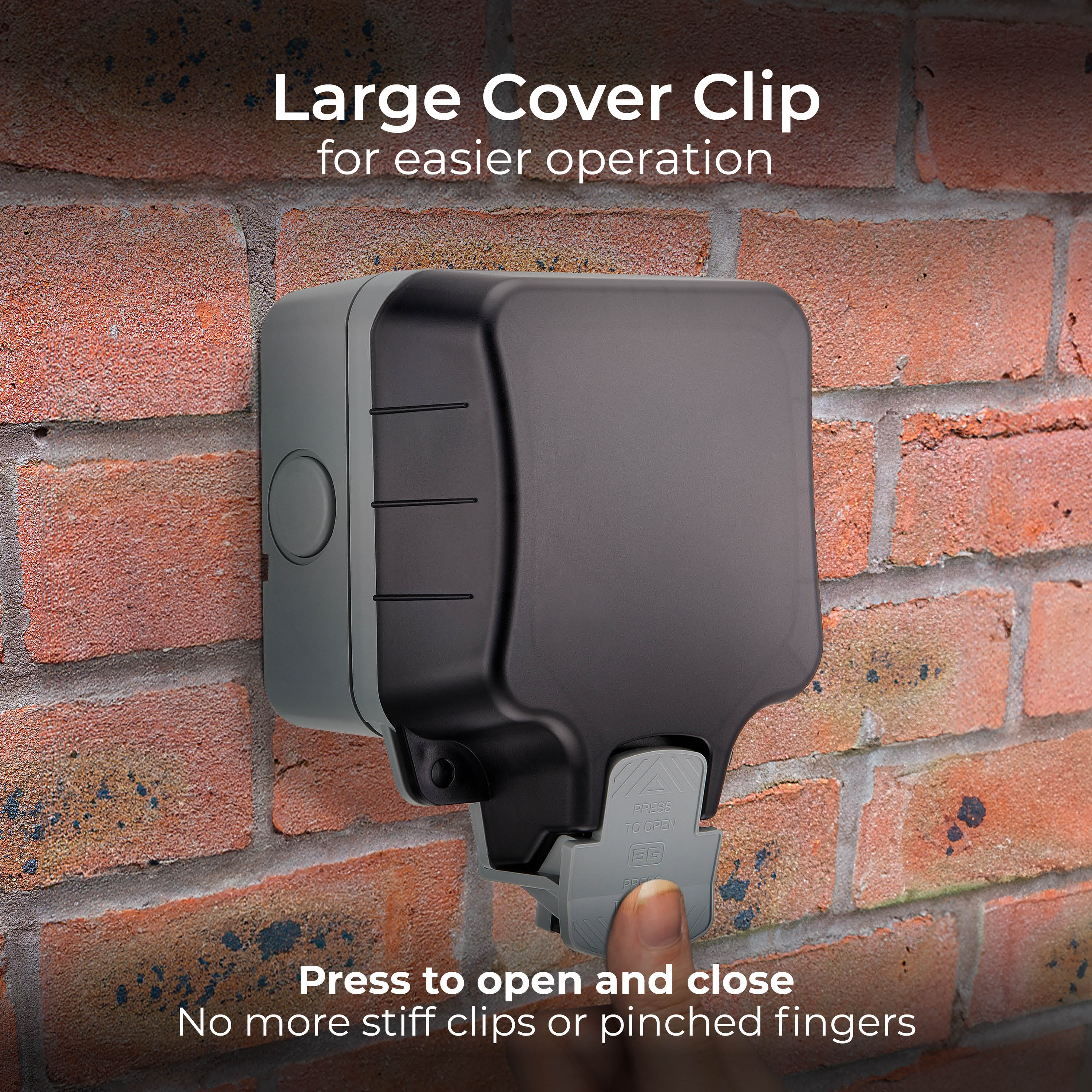

Large open/closer paddles for easier operation
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (mm²) | 2 x 6.0mm², 3 x 2.5mm², 3 x 4mm² |
| Front Plate Insert Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled-in line terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 1 |
| Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Single Pole |
| IP Rating | IP66 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
