NBN50-01

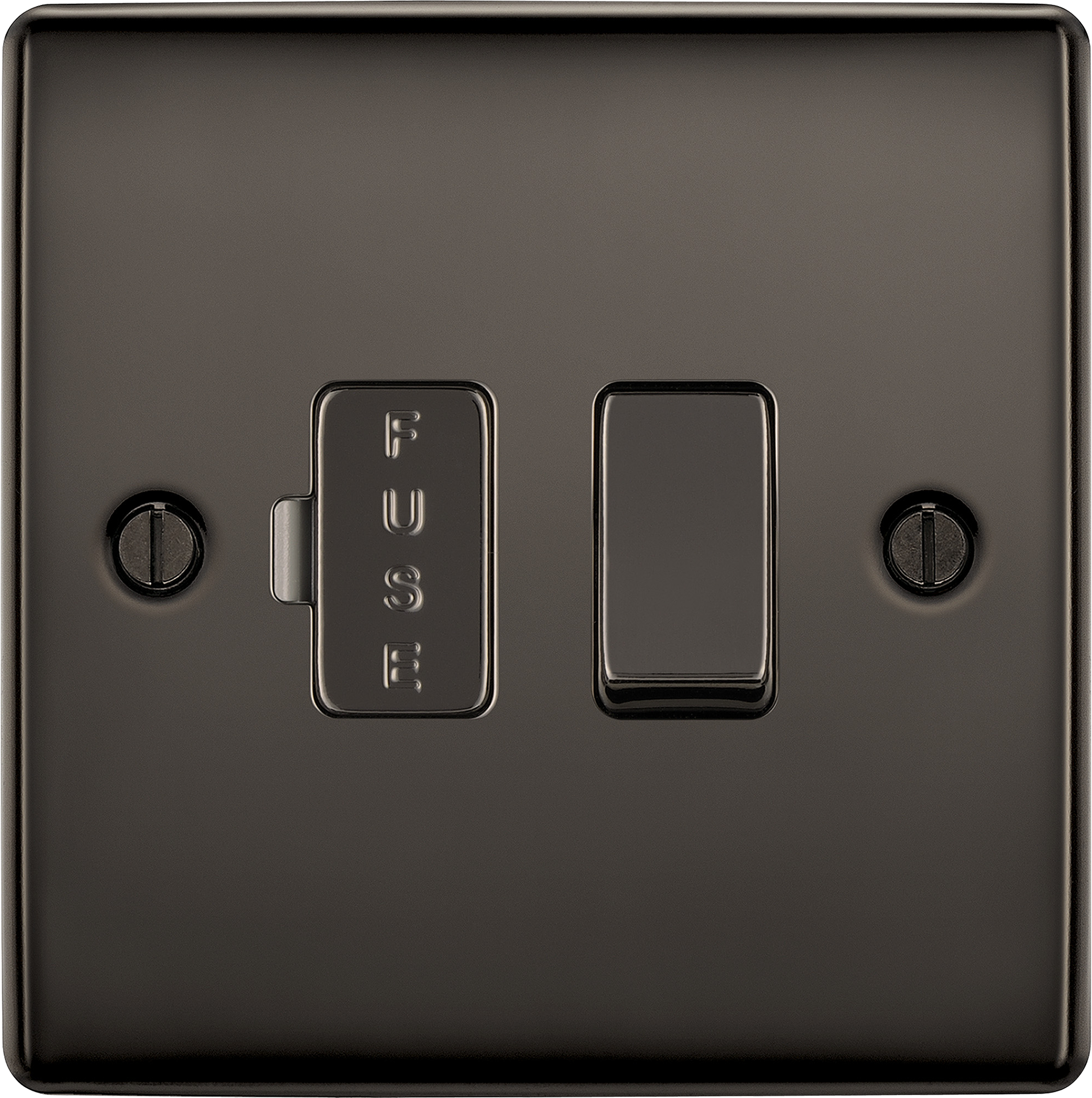

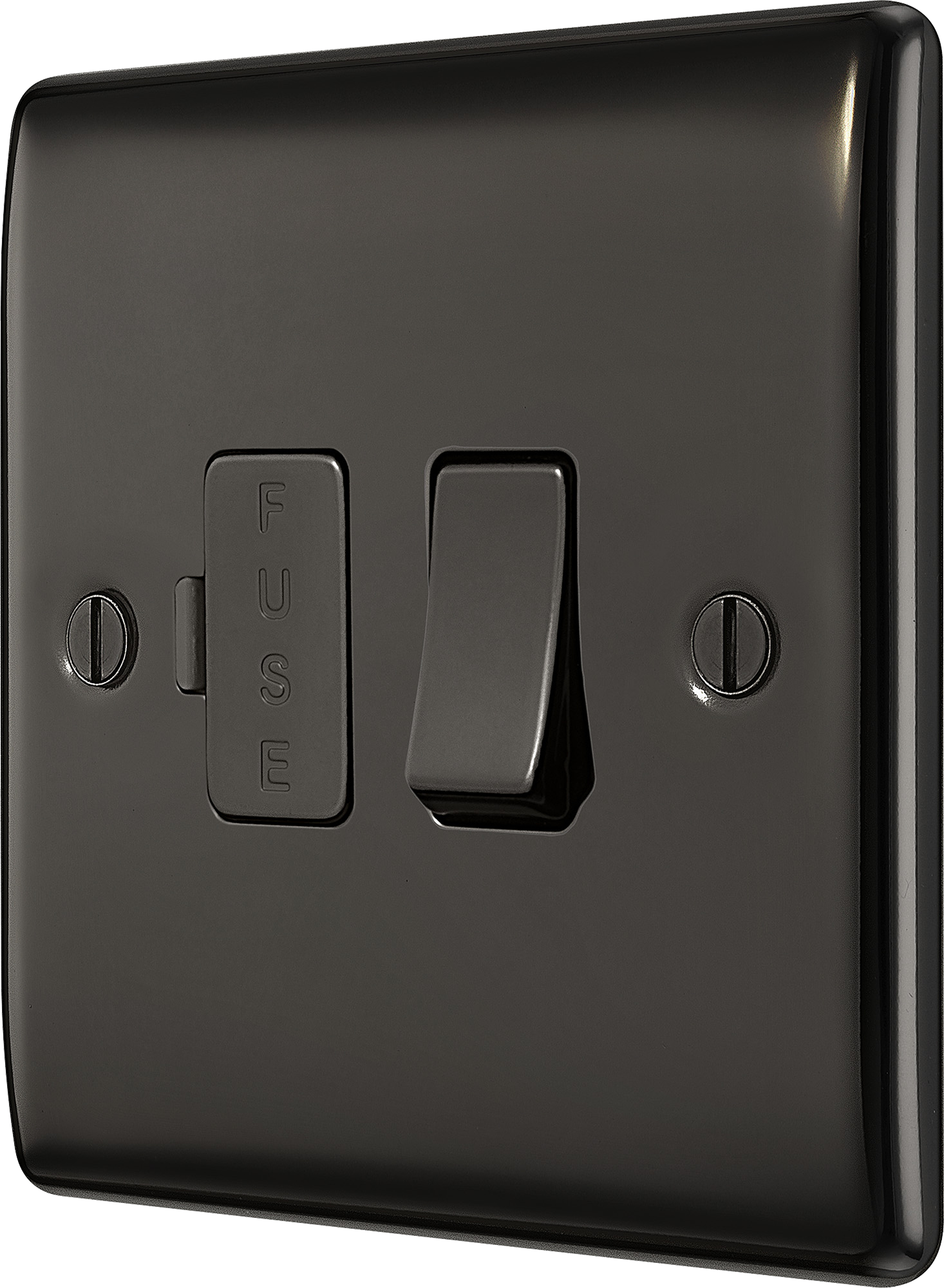

BG Nexus Metal Black Nickel, 13A Switched Fused Connection Unit
13A Rated
Easy to install supplied with fixing screws and installation instructions

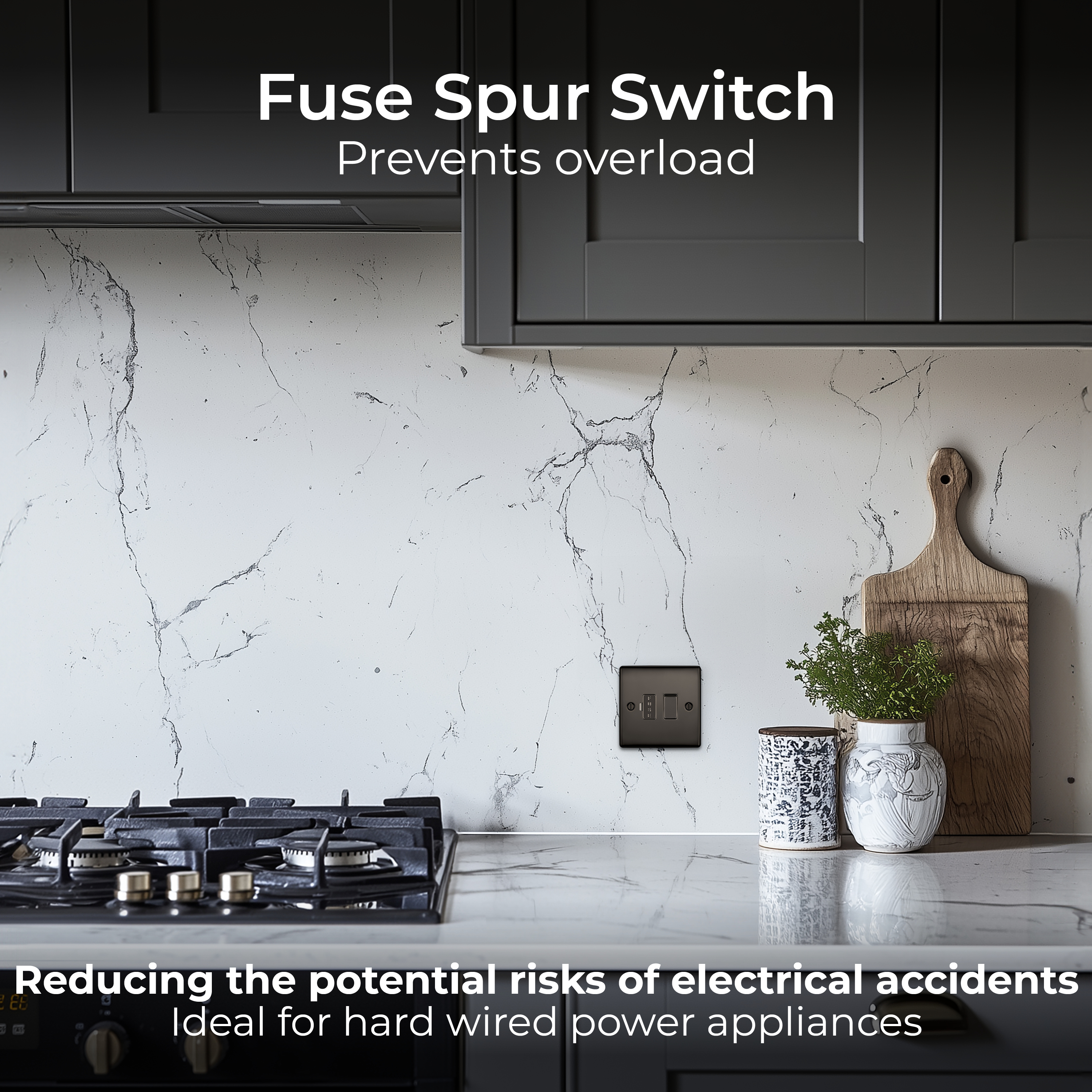

Ideal for spur circuits and hard wired power appliances

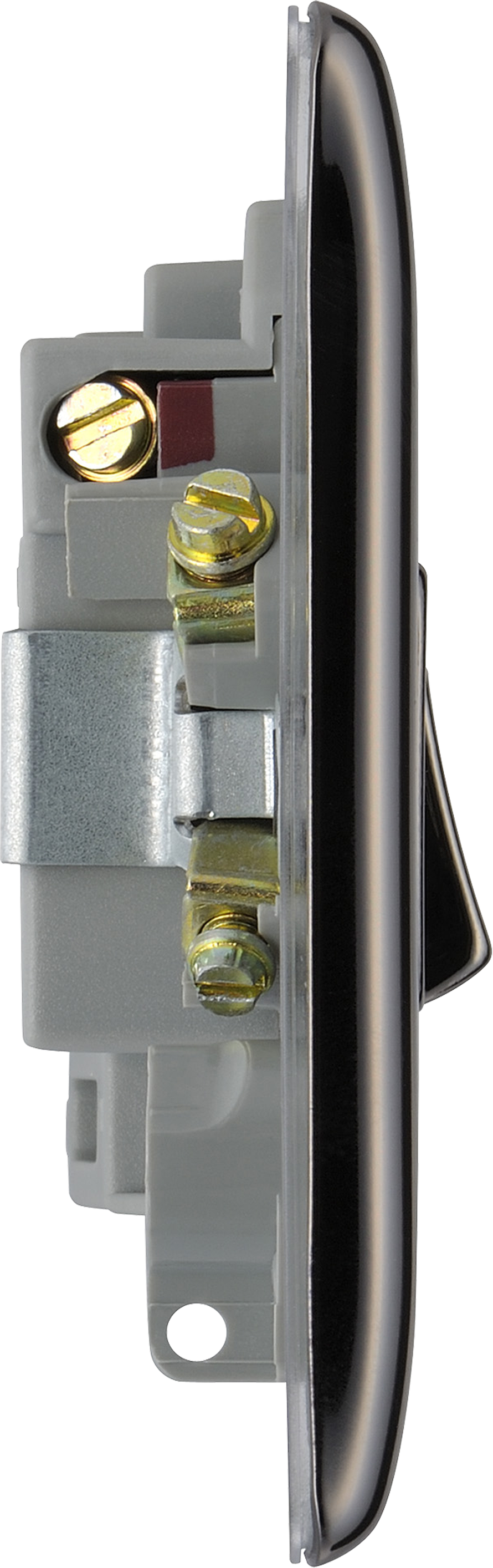

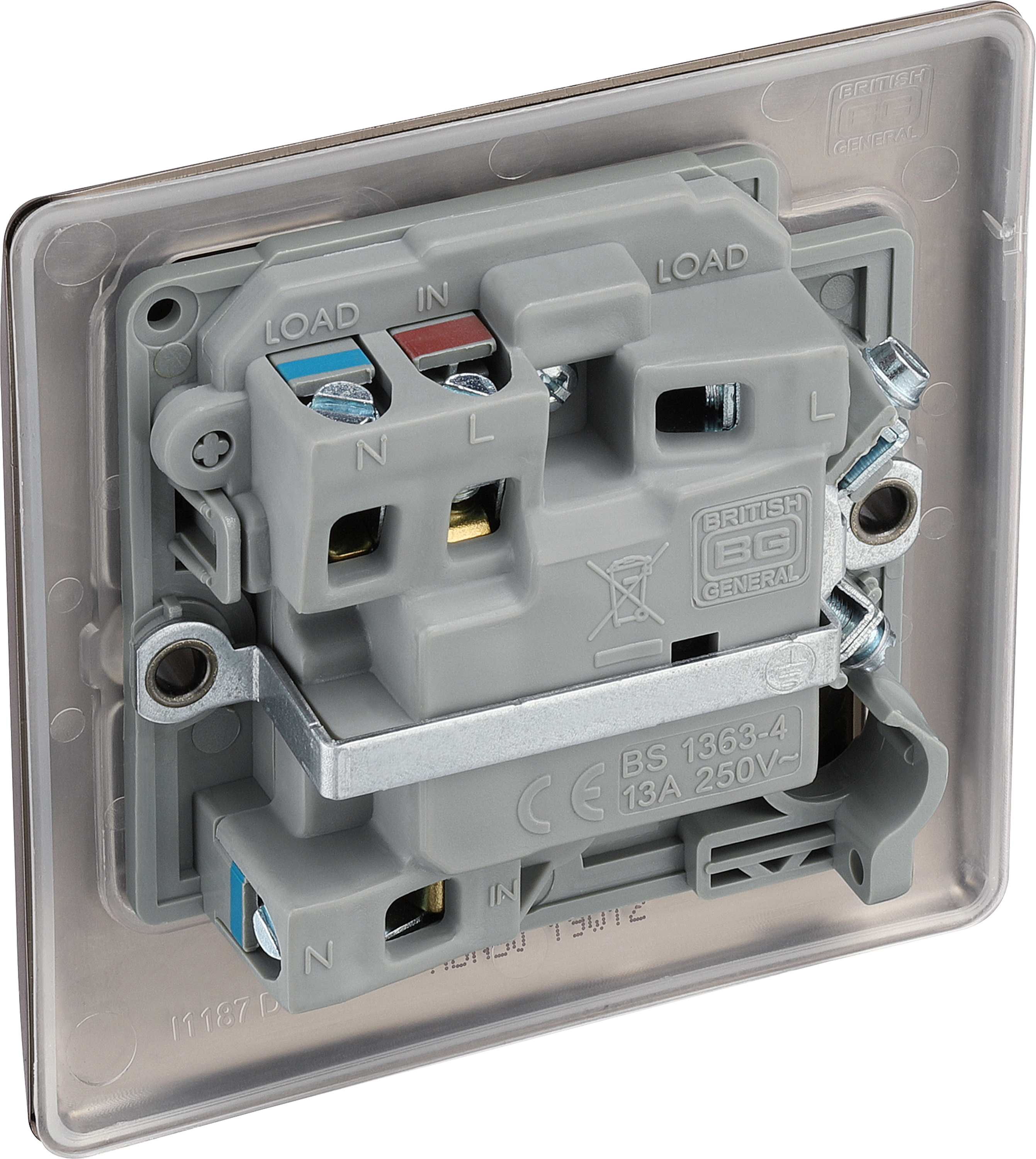

Angled colour coded terminals provide easy access for quick installation
Captive screws prevent screw loss

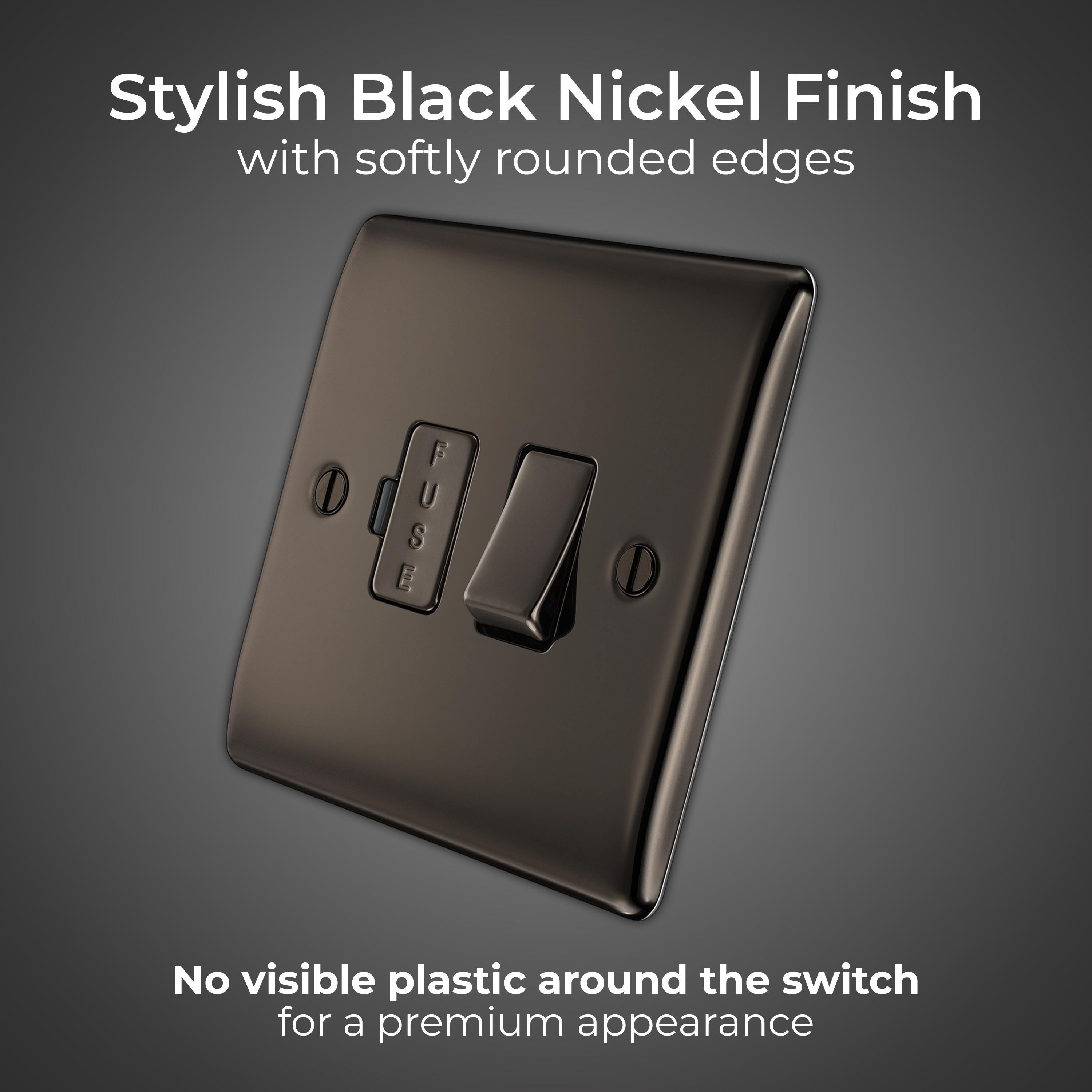

Sleek and slim premium metal with softly rounded edges
No visible plastic around switch

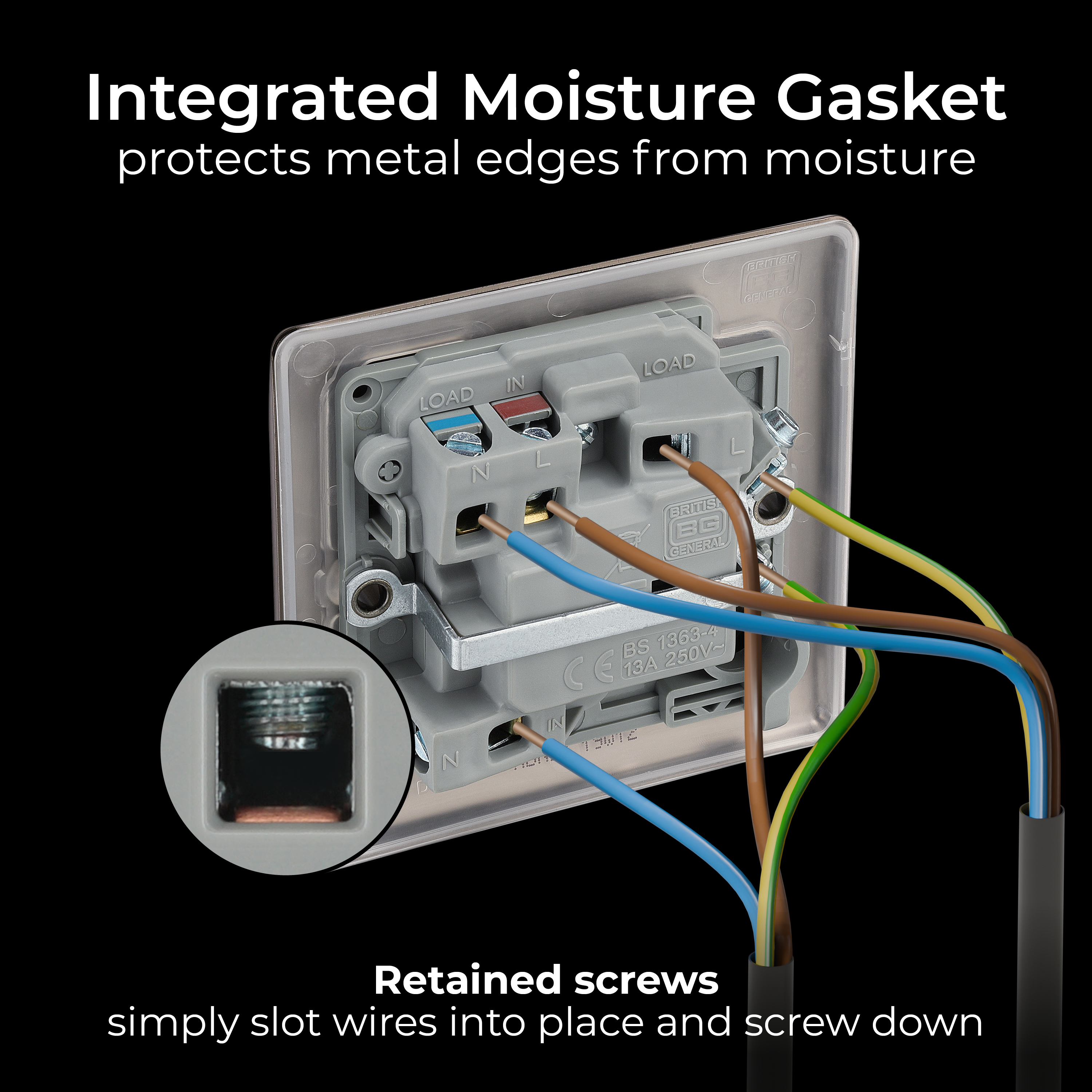

Moisture control gasket prevents tarnishing from new plaster
Embossed with 'Fuse' on the fuse cover
Certified to BS 1363 Part 4
| General Colour | Black Nickel |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | No |

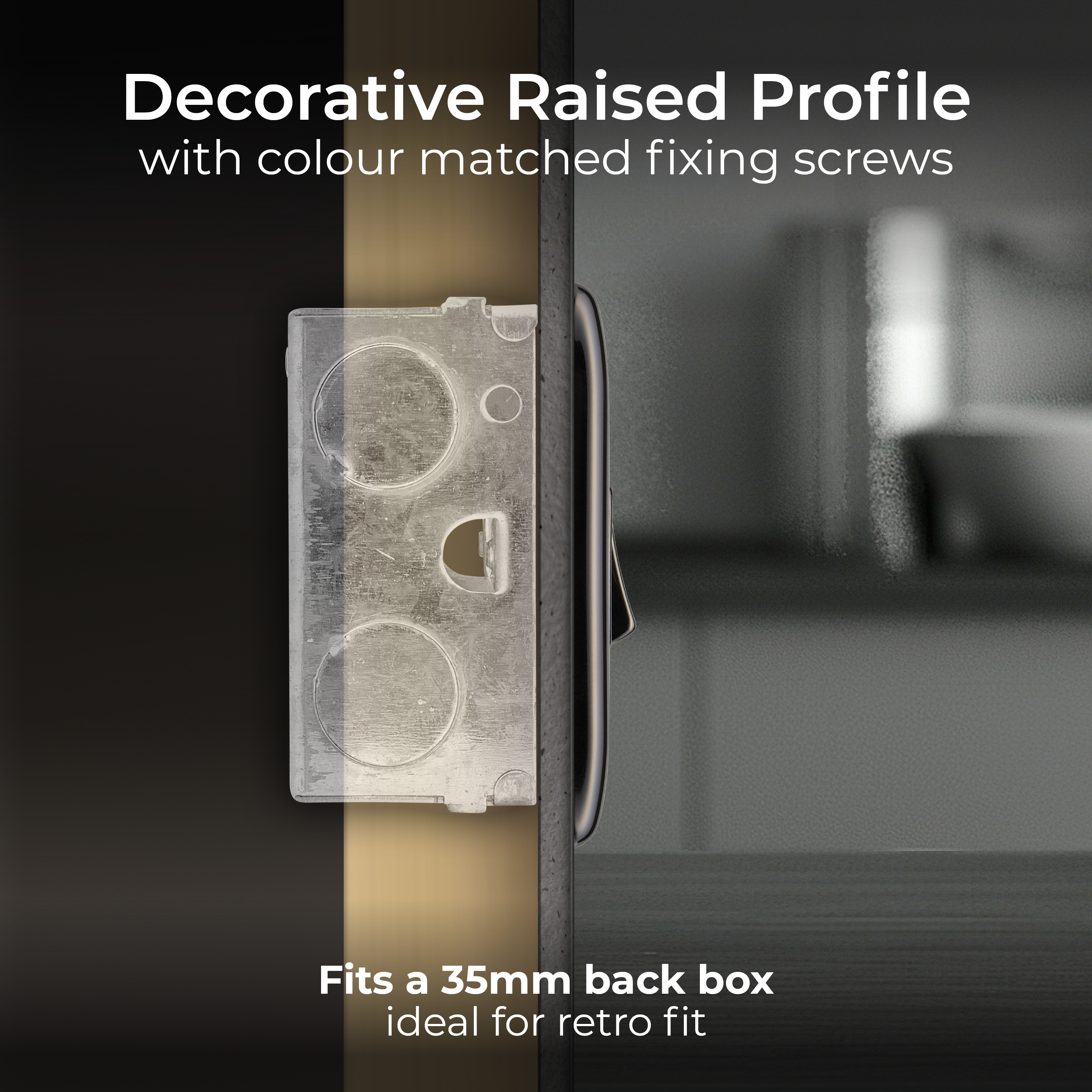

| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Fused | Yes |
| Fused Holder Colour | Black Nickel - RAL9004 (Signal Black) |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | No |
| Flex Out Position | None |
| Supplied with Mounting Box | No |
| Cable Outlet | No |
| Fixing Screws Supplied | Yes |

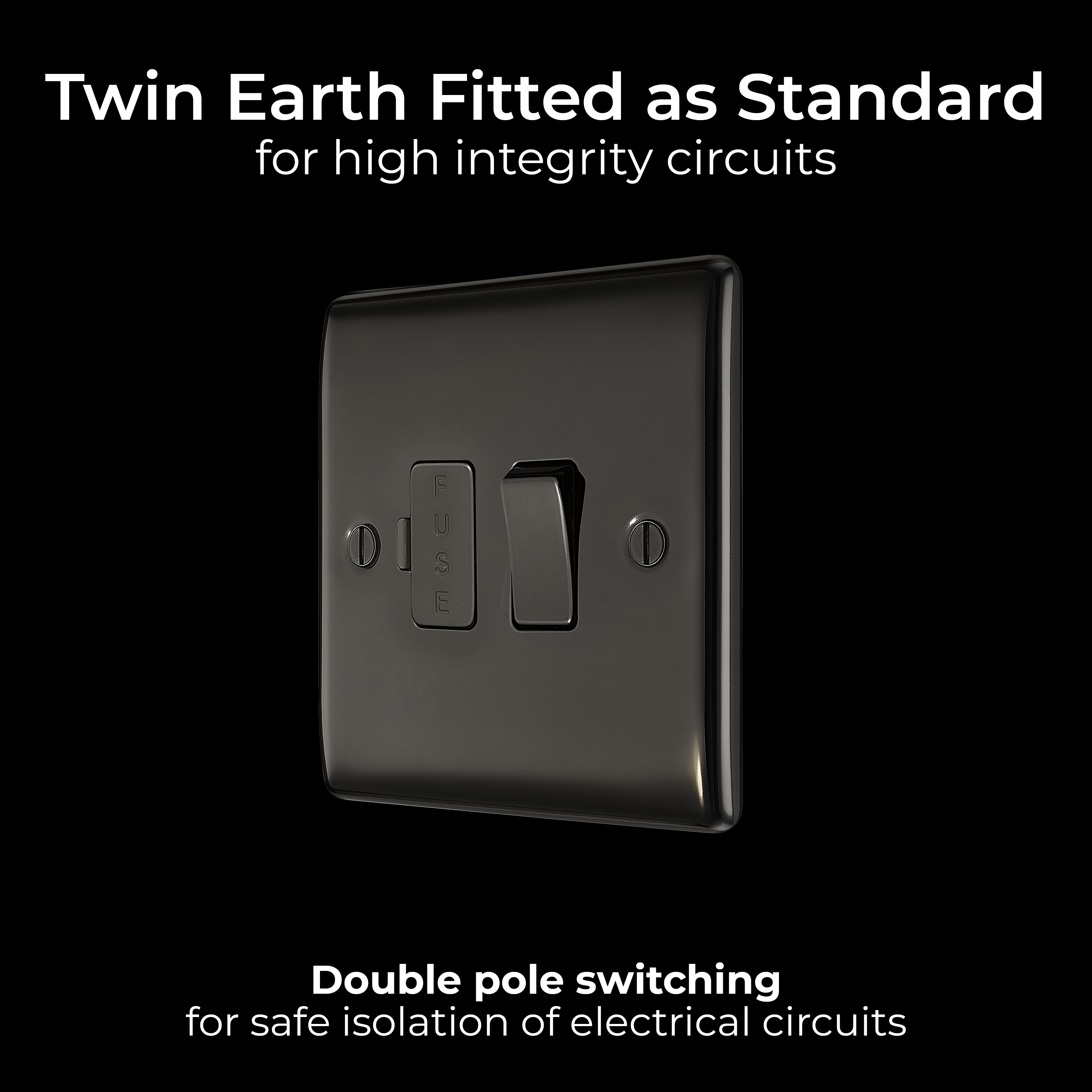

| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
