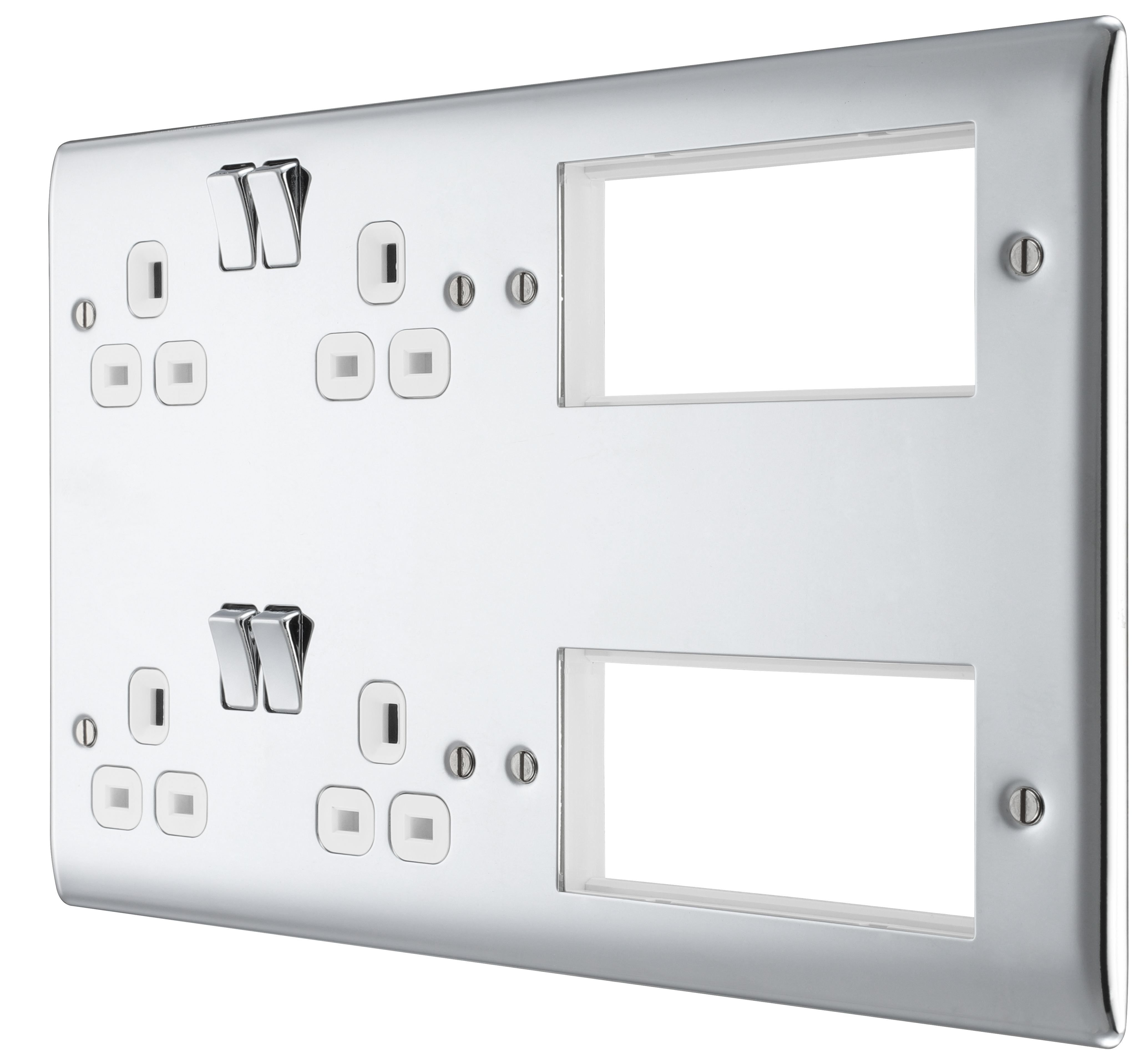

NPC222EM8W-01
BG Nexus Metal Polished Chrome, Combination Plate, 2 x 13A Switched Socket + 8 Module Aperture, White Inserts
13A Rated
Easy to install, supplied with fixing screws and installation instructions
Allows customisation of socket combinations including power, telecom, data and co-axial solutions
For use with the BG Electrical Euro Module range

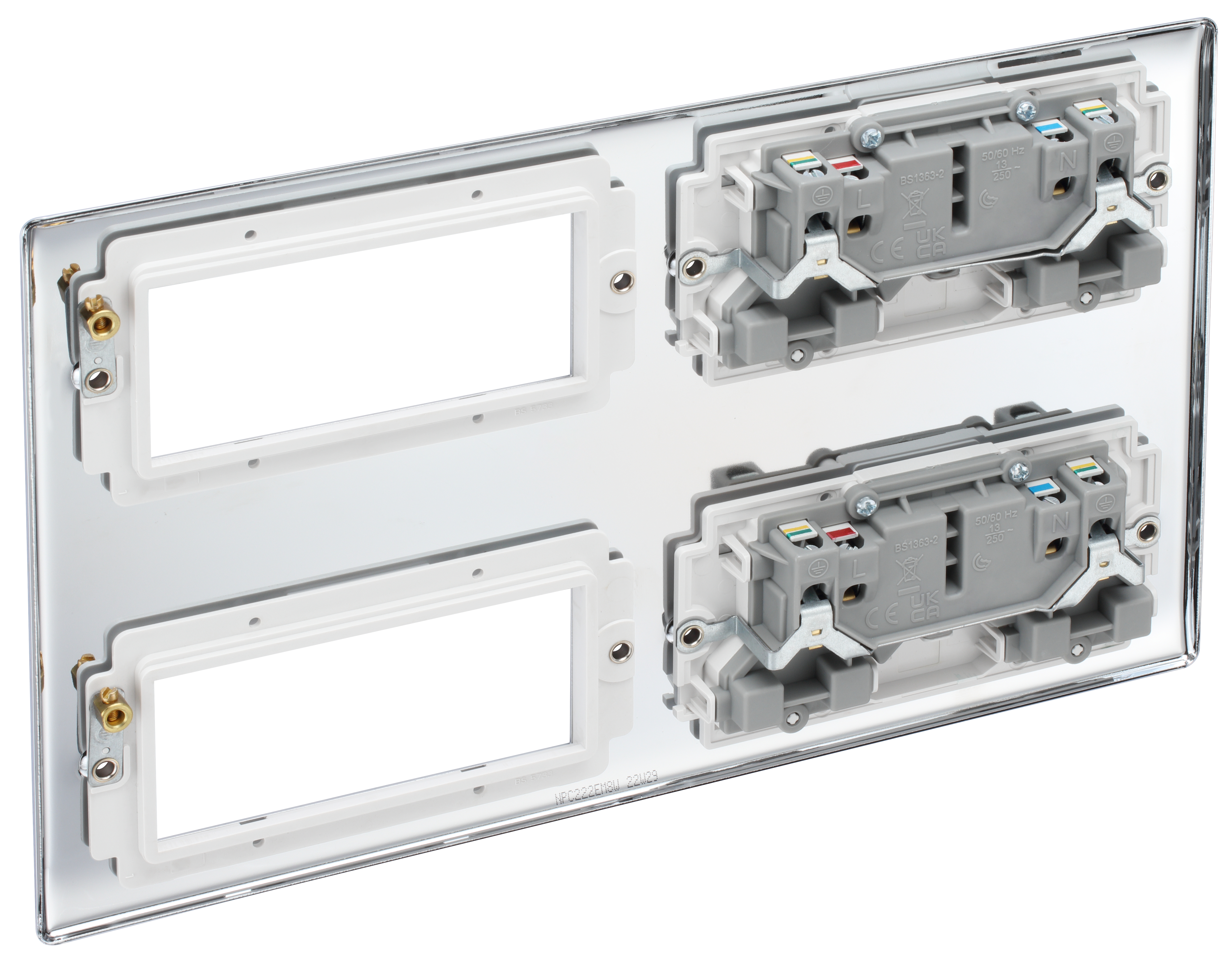

Angled in-line colour coded terminals provide easy access for quick installation
Captive screws prevent screw loss
Sleek and slim premium metal with softly rounded edges
No visible plastic around switch
Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
Minimum mounting box depth 47mm
| General Colour | Polished Chrome |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 47 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Front Plate Insert Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled-in line terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 2 |
| Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
| Number of Switches | 4 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | H-120.6 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
