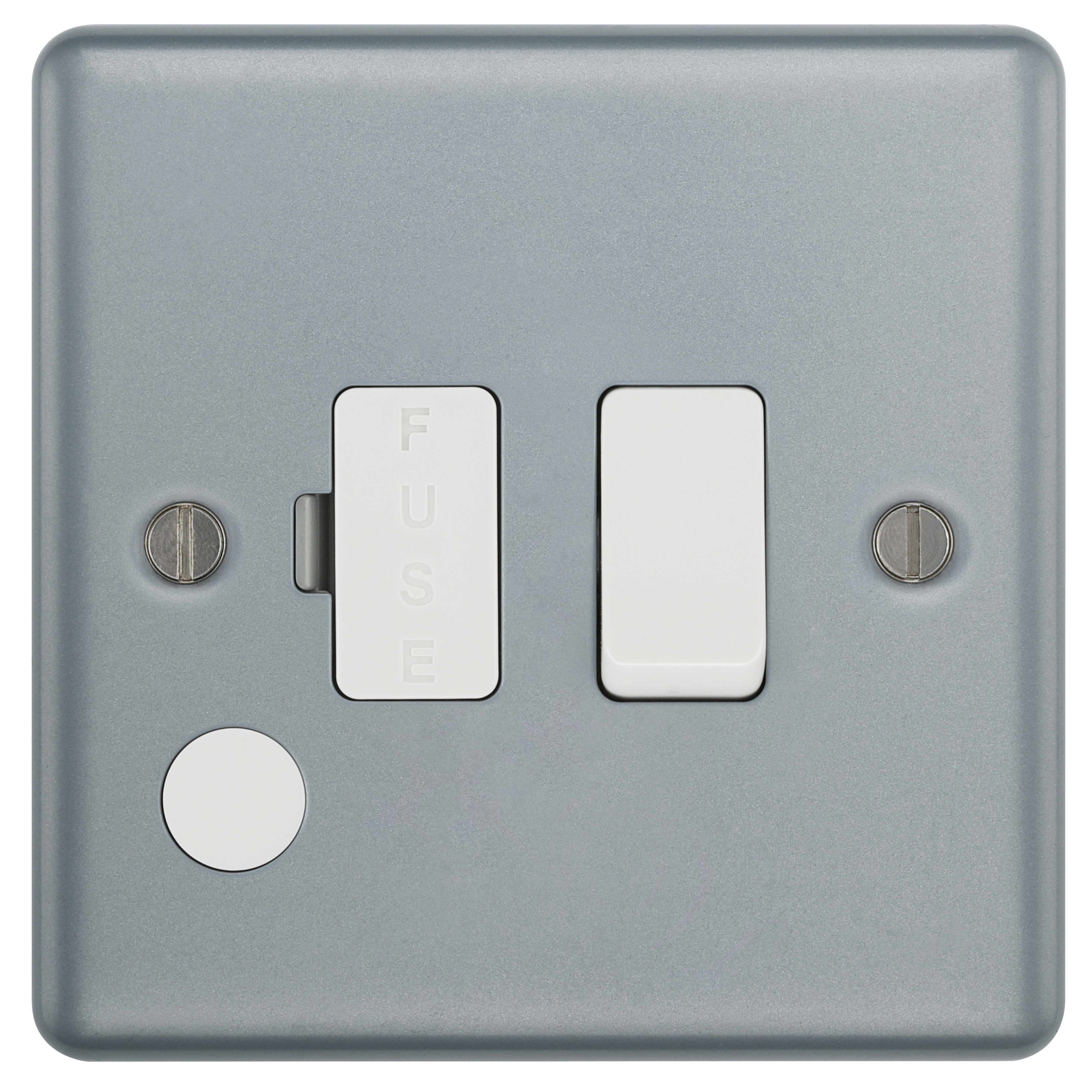

MC550F-01

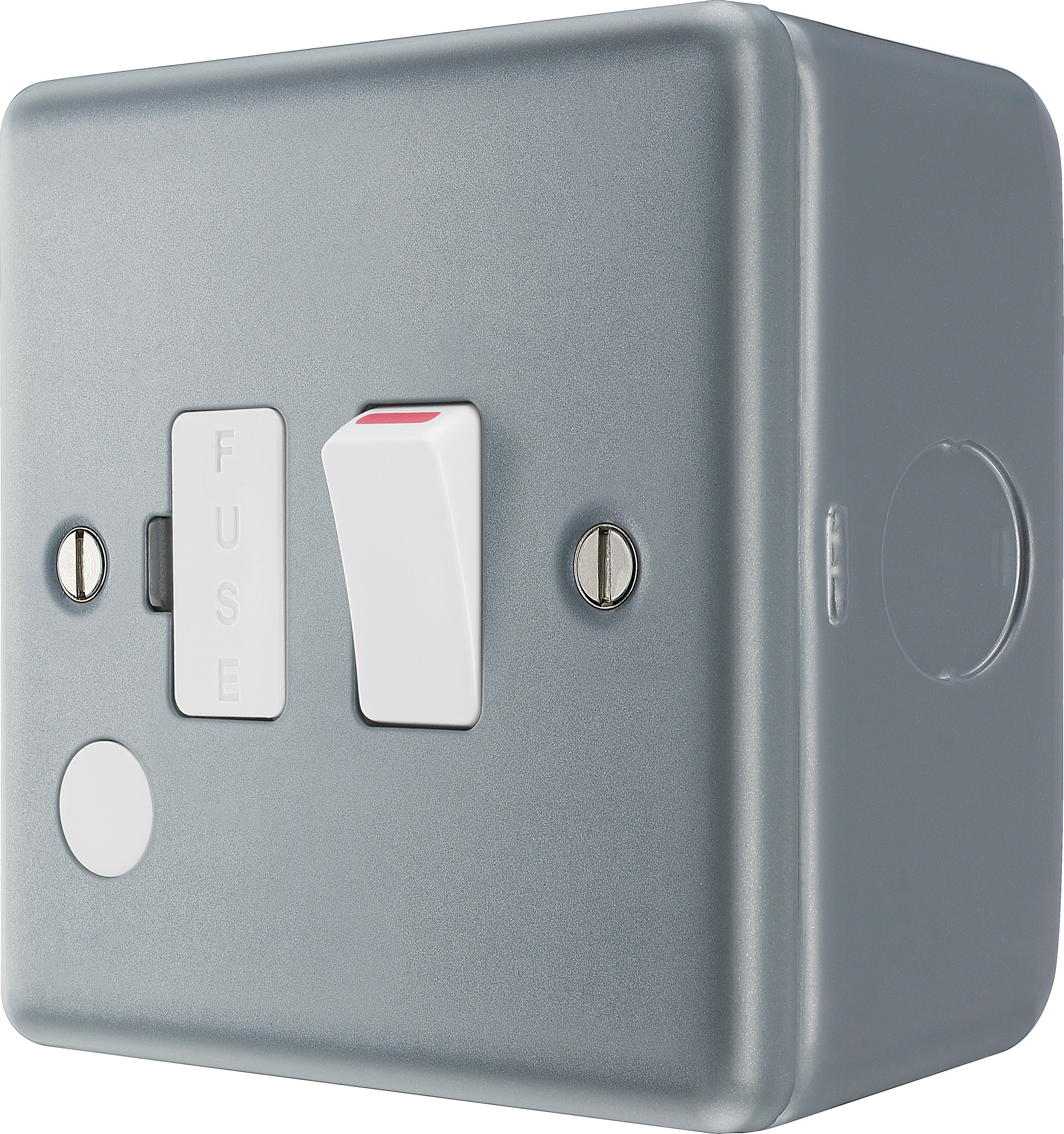

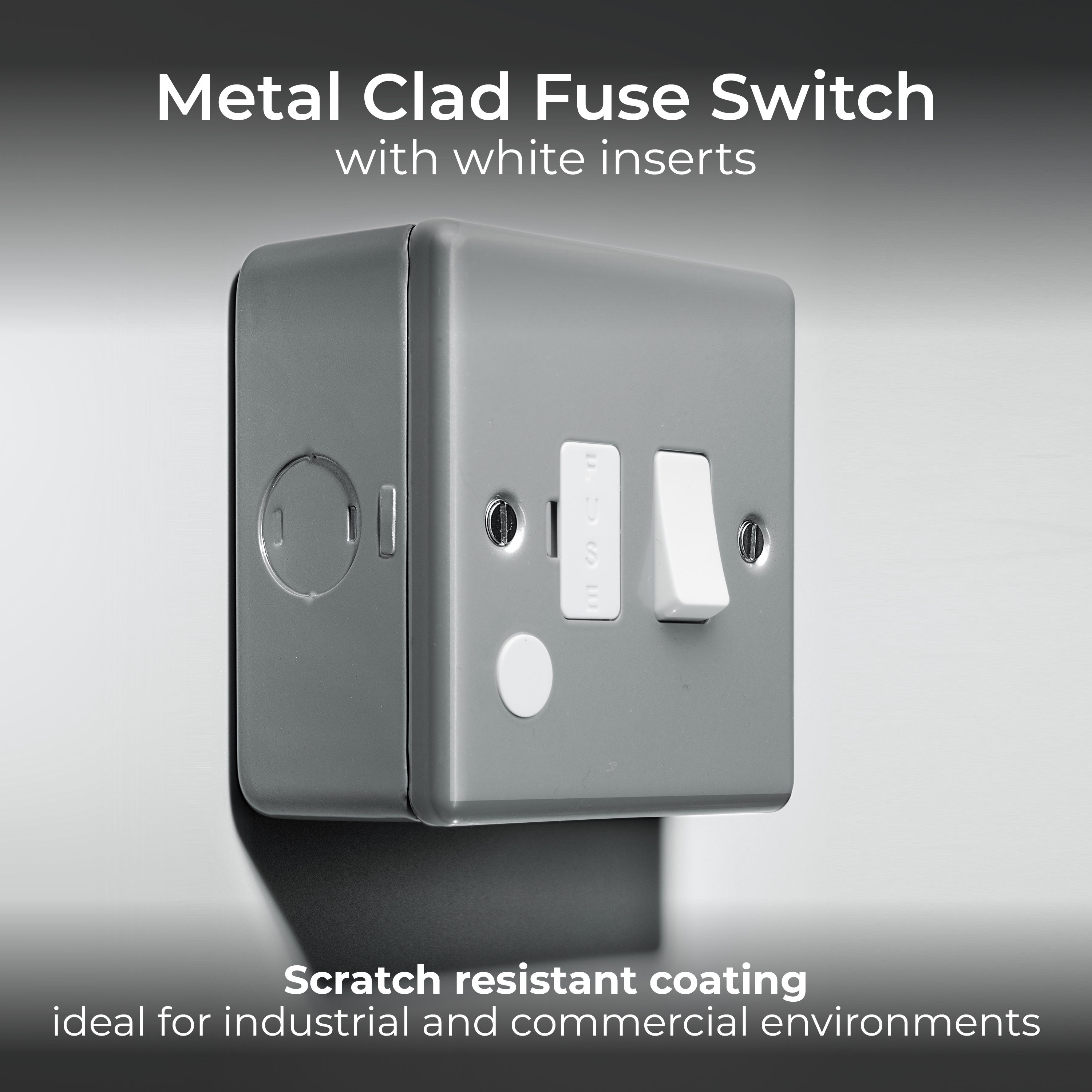

BG Metal Clad 13A Switched Fused Connection Unit with Optional Flex Outlet
13A Rated
Easy to install supplied with fixing screws and installation instructions

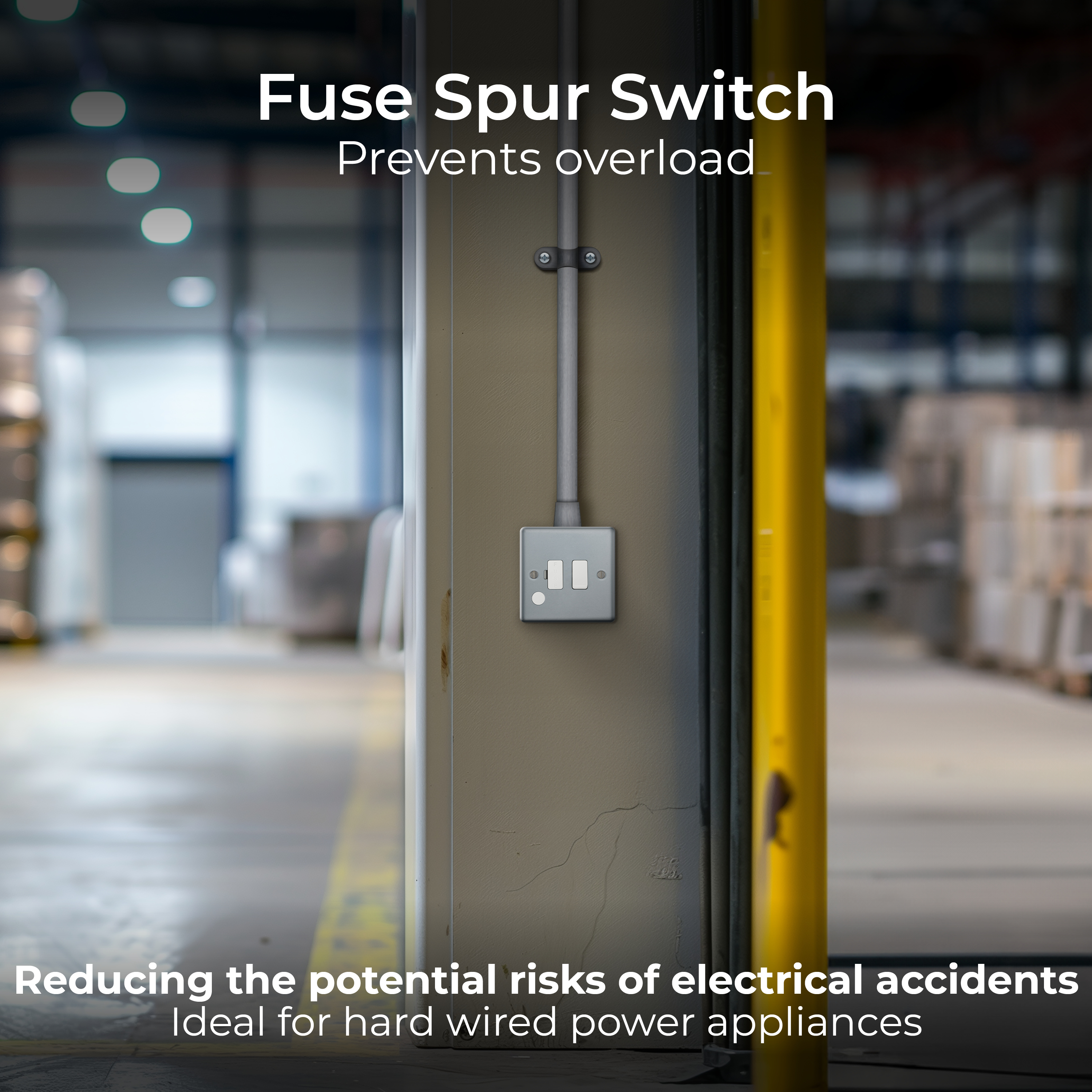

Ideal for spur circuits and hard wired power appliances
Twin earth for high integrity circuits

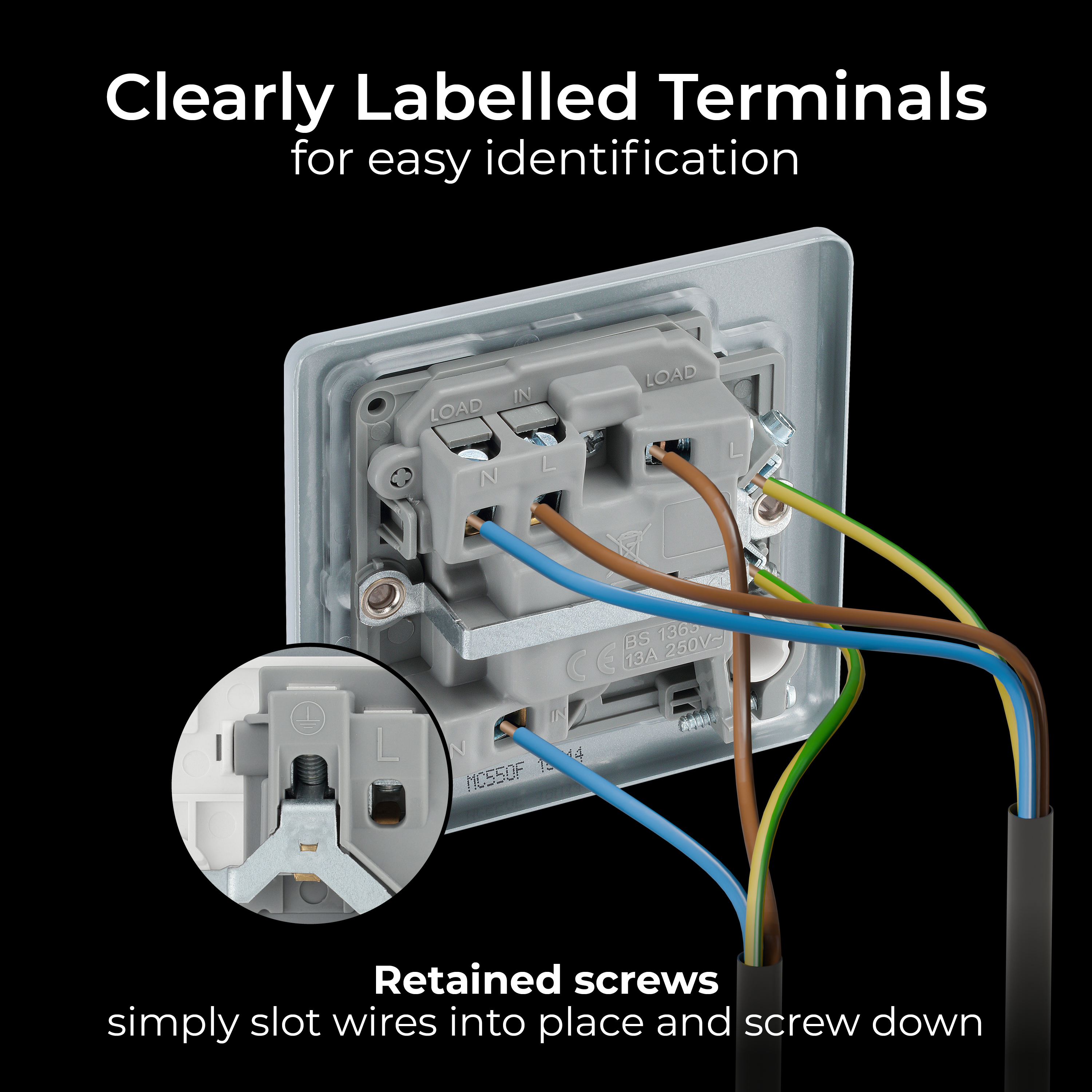

Captive screws prevent screw loss

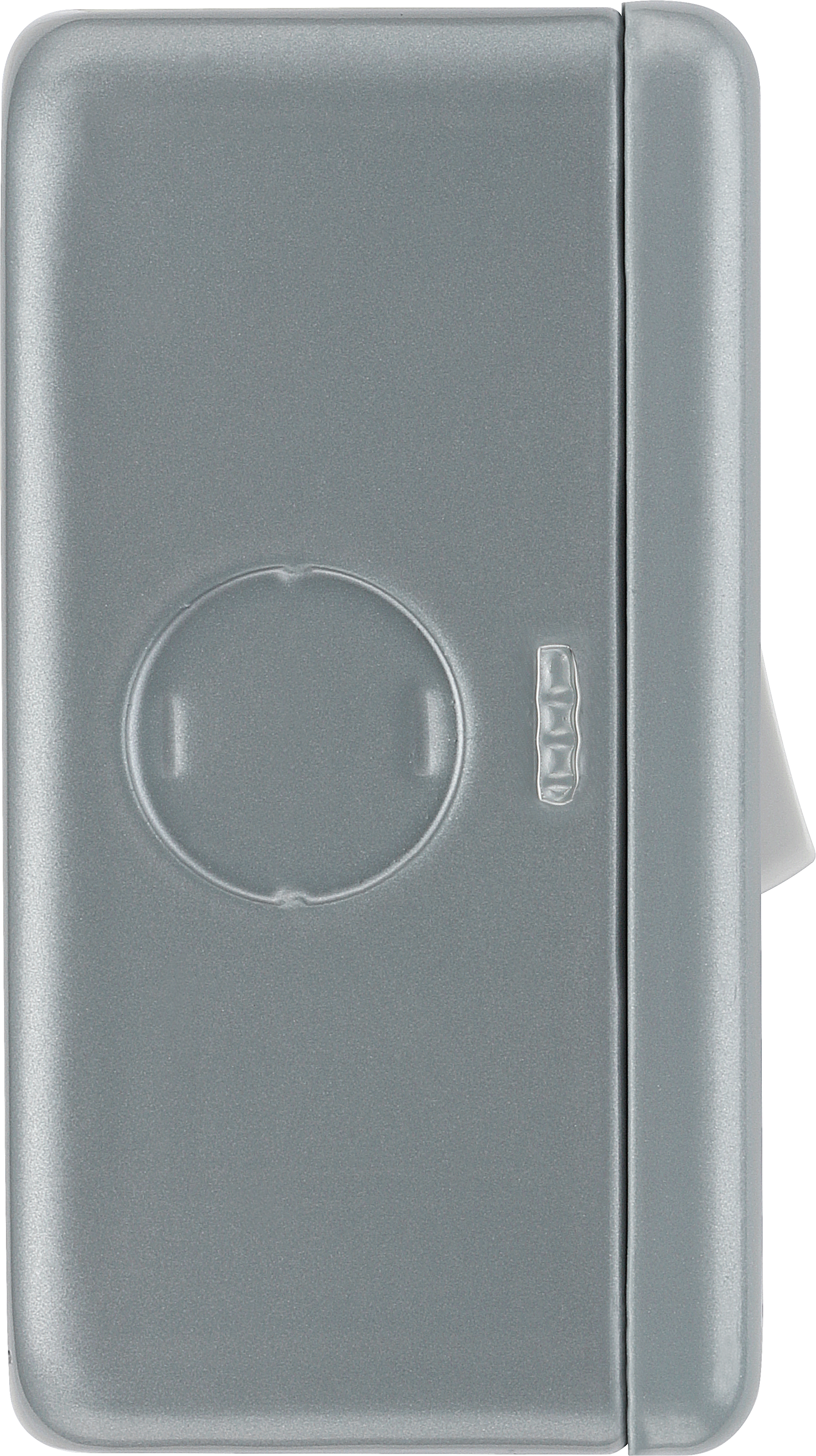

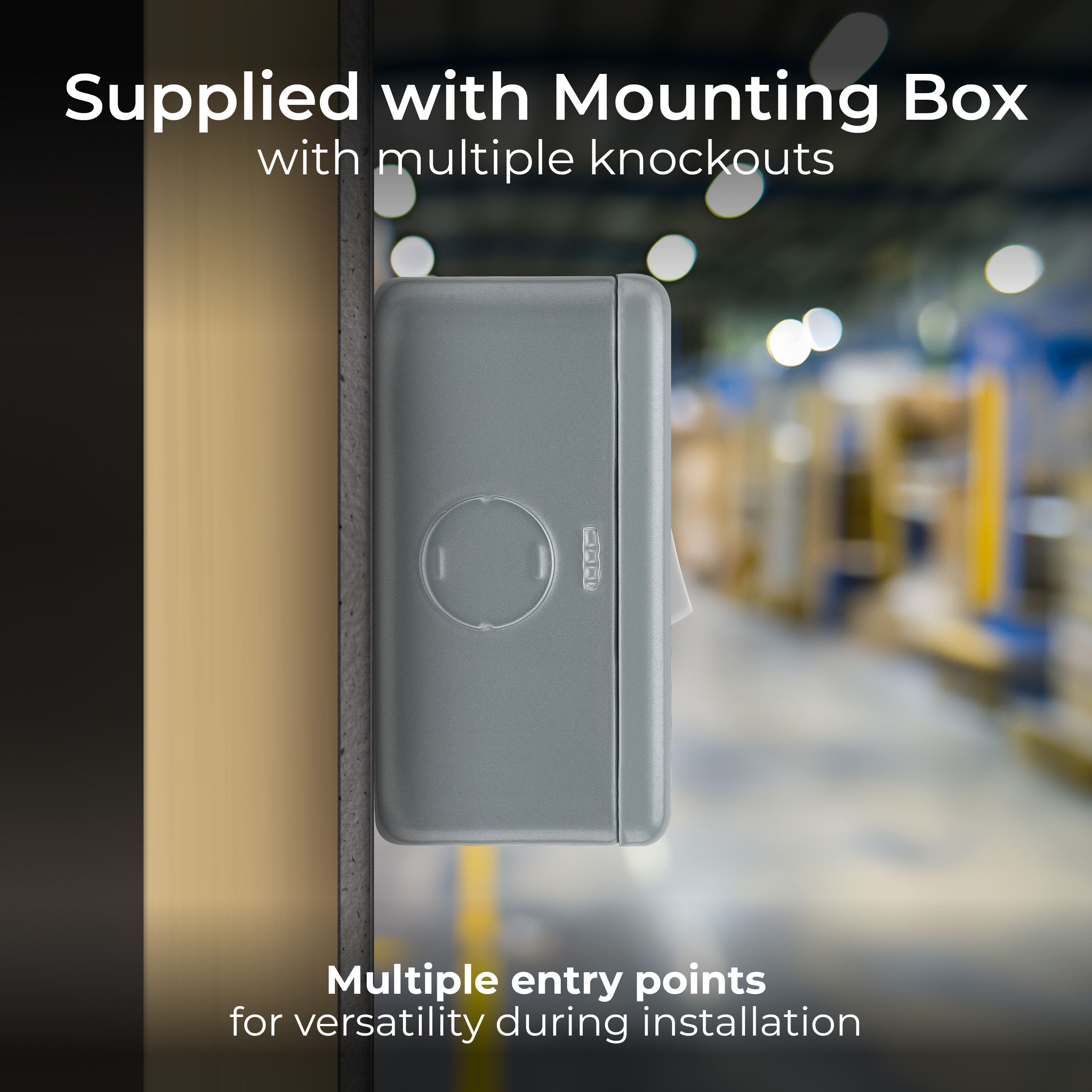

Multiple knock out metal box
Durable scratch resistant powder coated finish

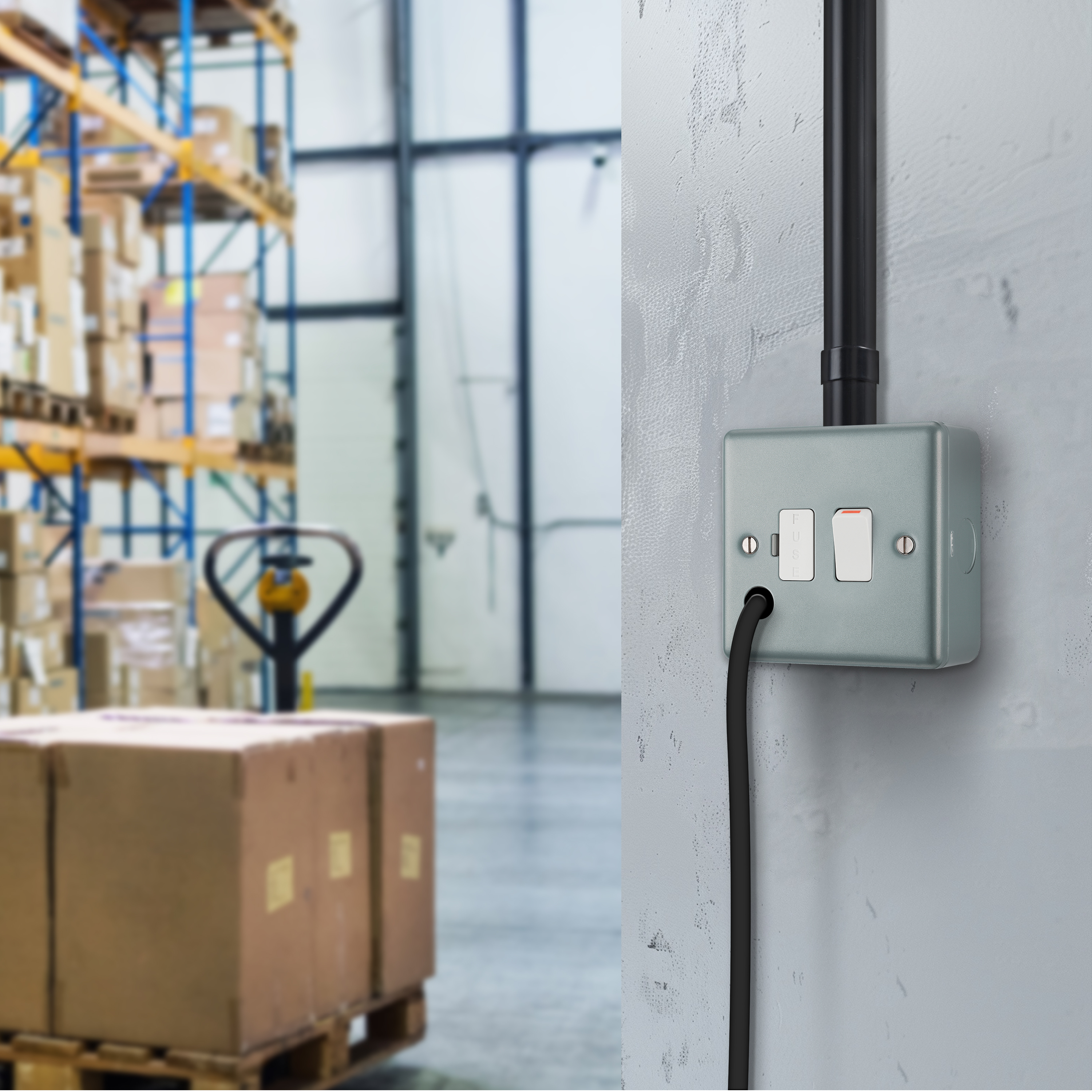

Ideal for commercial and industrial environments
Embossed with 'Fuse' on the fuse cover
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | No |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Fused | Yes |
| Fused Holder Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | Yes |
| Flex Out Position | Front Face |
| Supplied with Mounting Box | Yes |
| Cable Outlet | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |

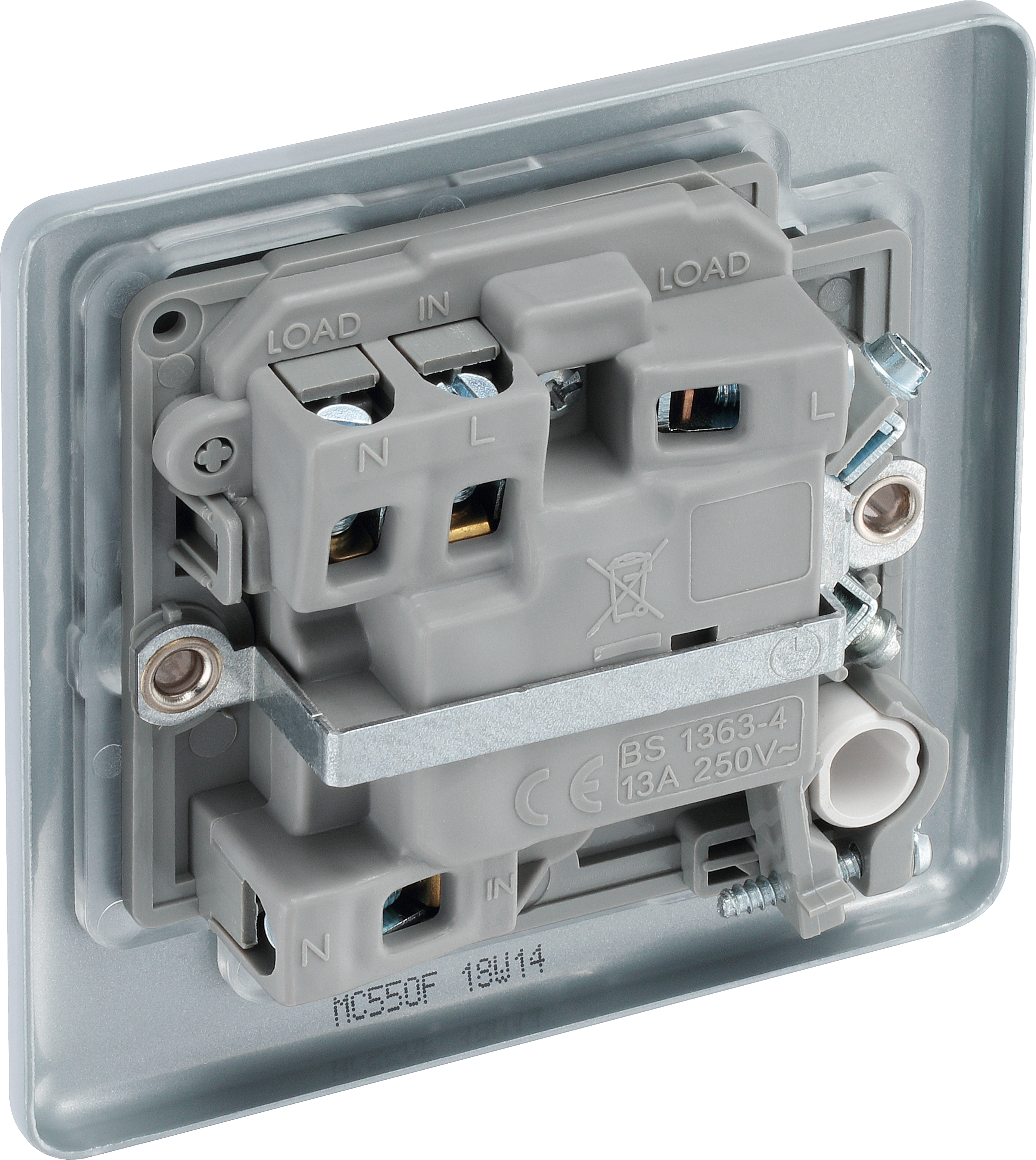

| Terminal Arrangement | Angled terminals |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 X H-44.5 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
