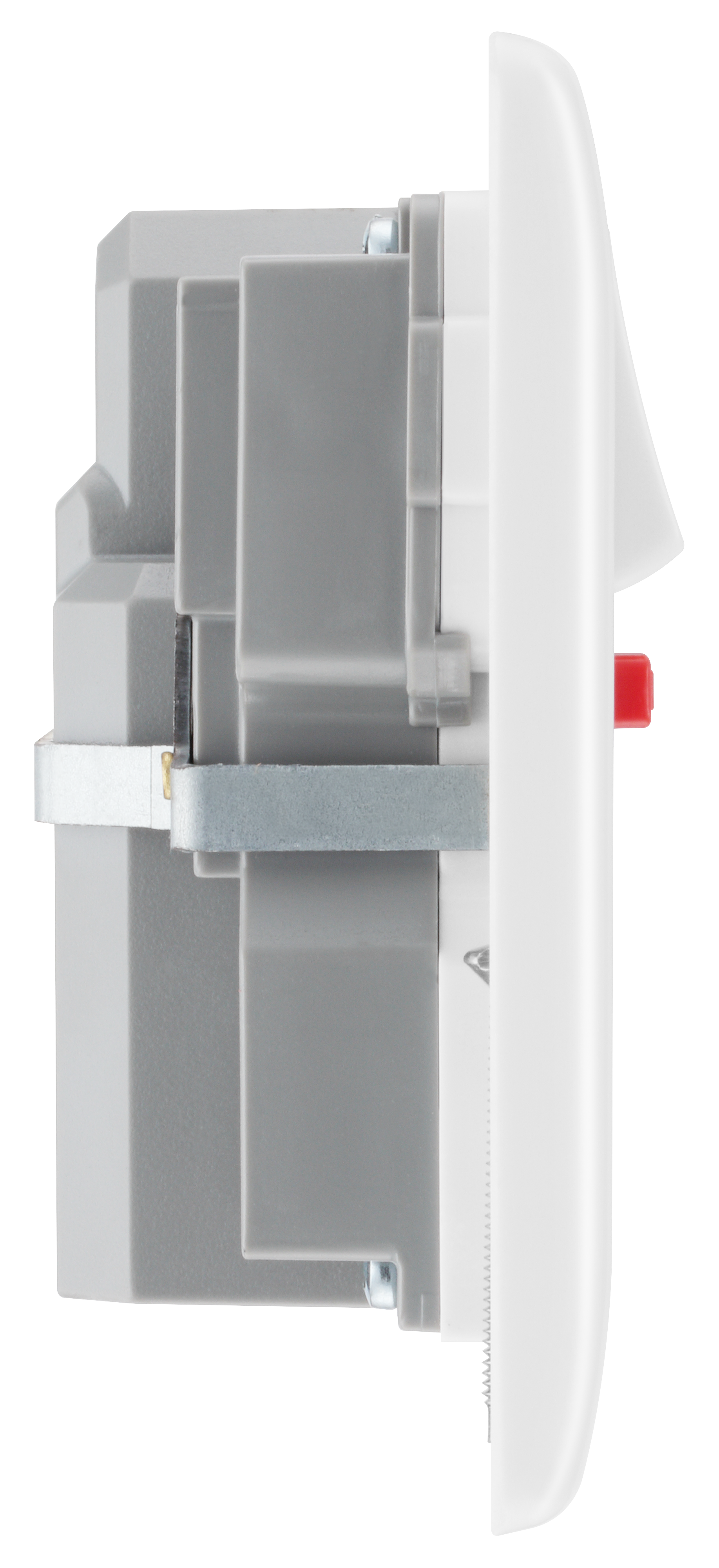

822ARCD-01
Double switched, with RCD
13A Rated
Easy to install supplied with fixing screws and installation instructions
Integrated RCD to prevent the leakage of electrical current
Latched (passive) version if set, will retain closed contacts if the mains supply is interrupted – essential for appliances like fridge freezers
No need to reset after a loss of power
In-line terminals with captive screws for ease of installation
Screw covers for sleek appearance
Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
Minimum mounting box depth: 35mm. 10mm spacer provided for shallower boxes
Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
BG Electrical are confident in the quality of our workmanship and materials, the guarantee stated applies from the date of delivery. Please see our terms and conditions for more details
Dimensions
| Unpacked Height (mm) | 86 |
| Unpacked Width (mm) | 146 |
| Unpacked Depth (mm) | 39.4 |
| Minimum Box Depth (mm) | 35 |
| Front Plate Material Thickness (mm) | 3 |
| Front Plate Height (mm) | 6.9 |
Pack
| Packed Width (mm) | 120 |
| Packed Depth (mm) | 41 |
| Packed Height (mm) | 230 |
| Packed Gross Weight (kg) | 0.245 |
| Package Pack Type | Printed Bag |
| Package Hanging | Yes |
| Package EAN | 5050765236003 |
Case Inner
| Unpacked Height (mm) | 86 |
| Unpacked Width (mm) | 146 |
| Unpacked Depth (mm) | 39.4 |
| Minimum Box Depth (mm) | 35 |
| Front Plate Material Thickness (mm) | 3 |
| Front Plate Height (mm) | 6.9 |
Case Outer
| Packed Width (mm) | 120 |
| Packed Depth (mm) | 41 |
| Packed Height (mm) | 230 |
| Packed Gross Weight (kg) | 0.245 |
| Package Pack Type | Printed Bag |
| Package Hanging | Yes |
| Package EAN | 5050765236003 |
Container
| Packed Width (mm) | 120 |
| Packed Depth (mm) | 41 |
| Packed Height (mm) | 230 |
| Packed Gross Weight (kg) | 0.245 |
| Package Pack Type | Printed Bag |
| Package Hanging | Yes |
| Package EAN | 5050765236003 |
