858-01

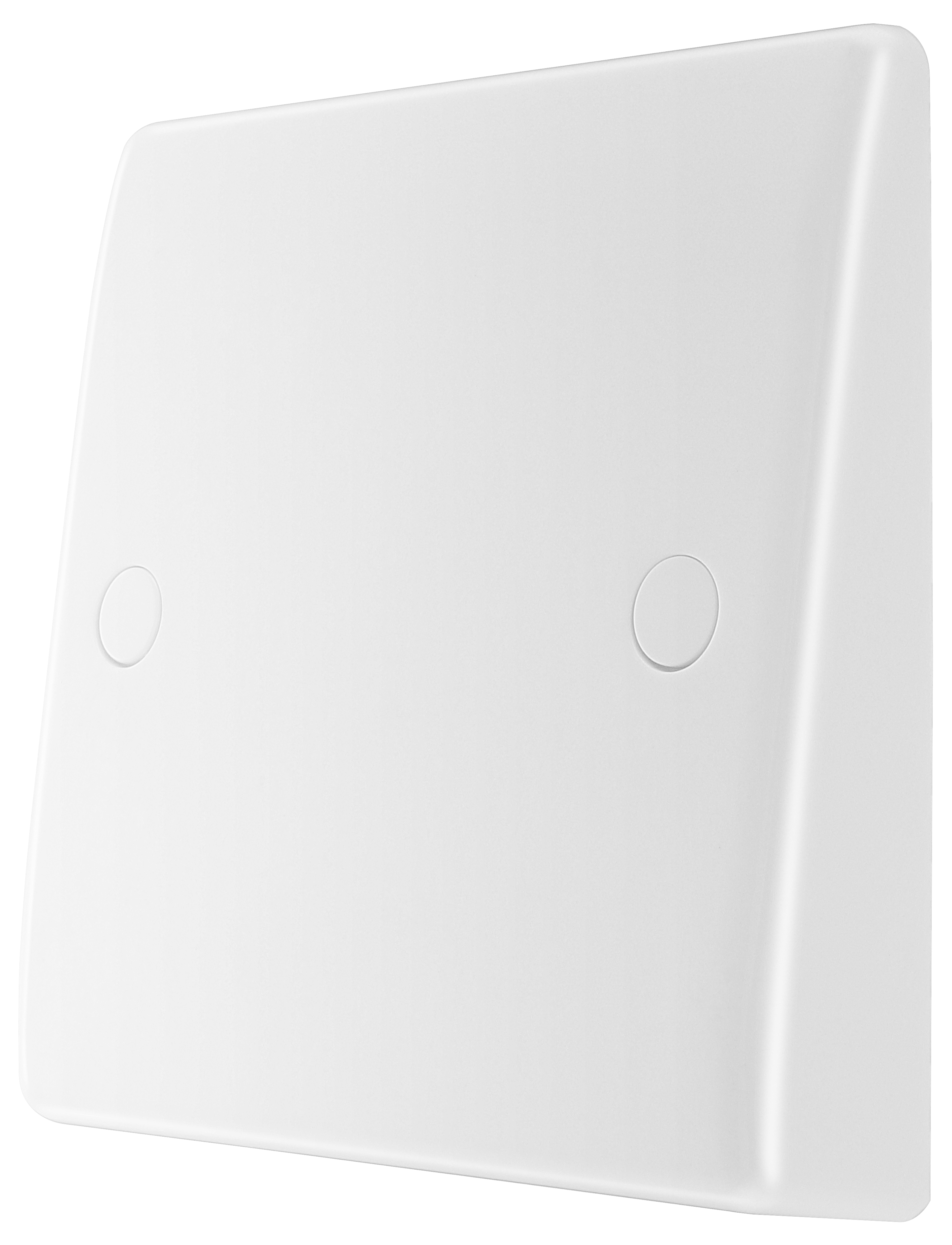

BG Nexus Series White Moulded 25A Single Flex Outlet Plate Bottom Entry
25A Rated
Easy to install supplied with fixing screws and installation instructions
Suitable for the connection of refrigerators water heaters, central heating and other fixed appliances

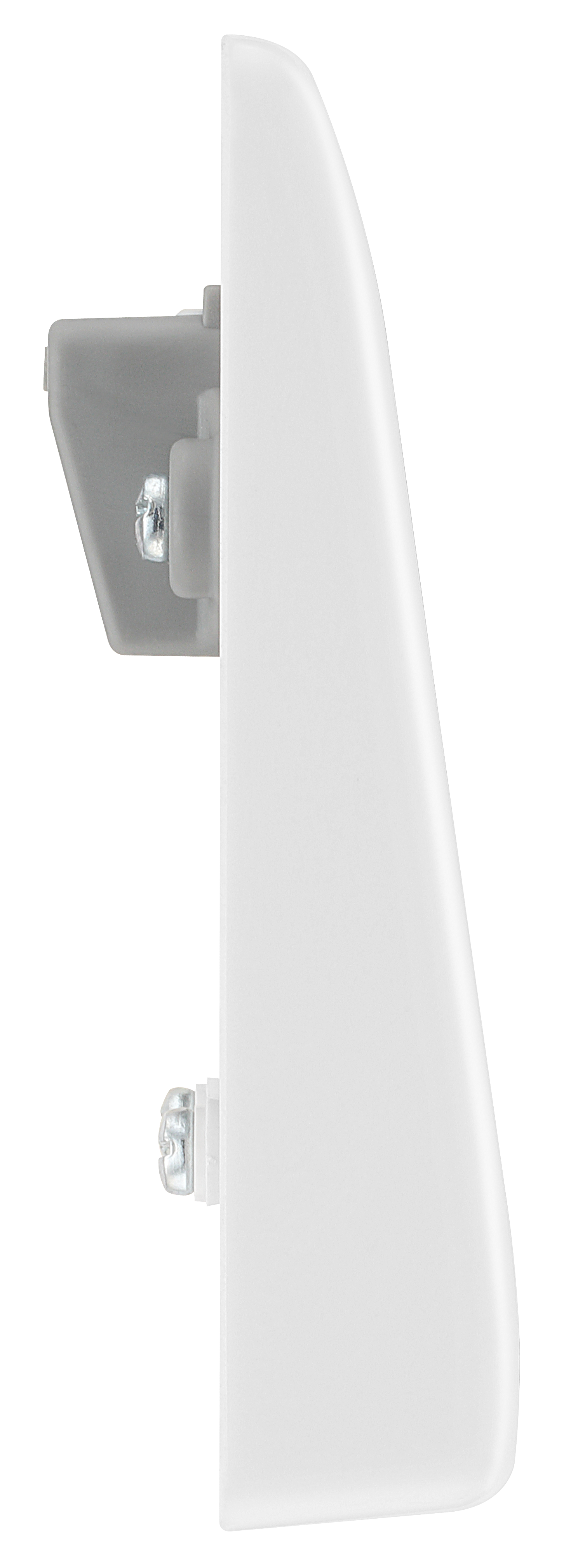

cable entry slot at the lower edge of the faceplate
Reversible cord grip and removable reducer to accommodate different flex sizes
Angled in-line colour coded terminals with captive screws provide easy access for quick installation
Screw covers for sleek appearance
Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
Minimum mounting box depth 35mm
Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled terminals |
| Terminals with Colour Coding Print | No |
| Number of Switches | 0 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 30 |
