CUCRB32A-01

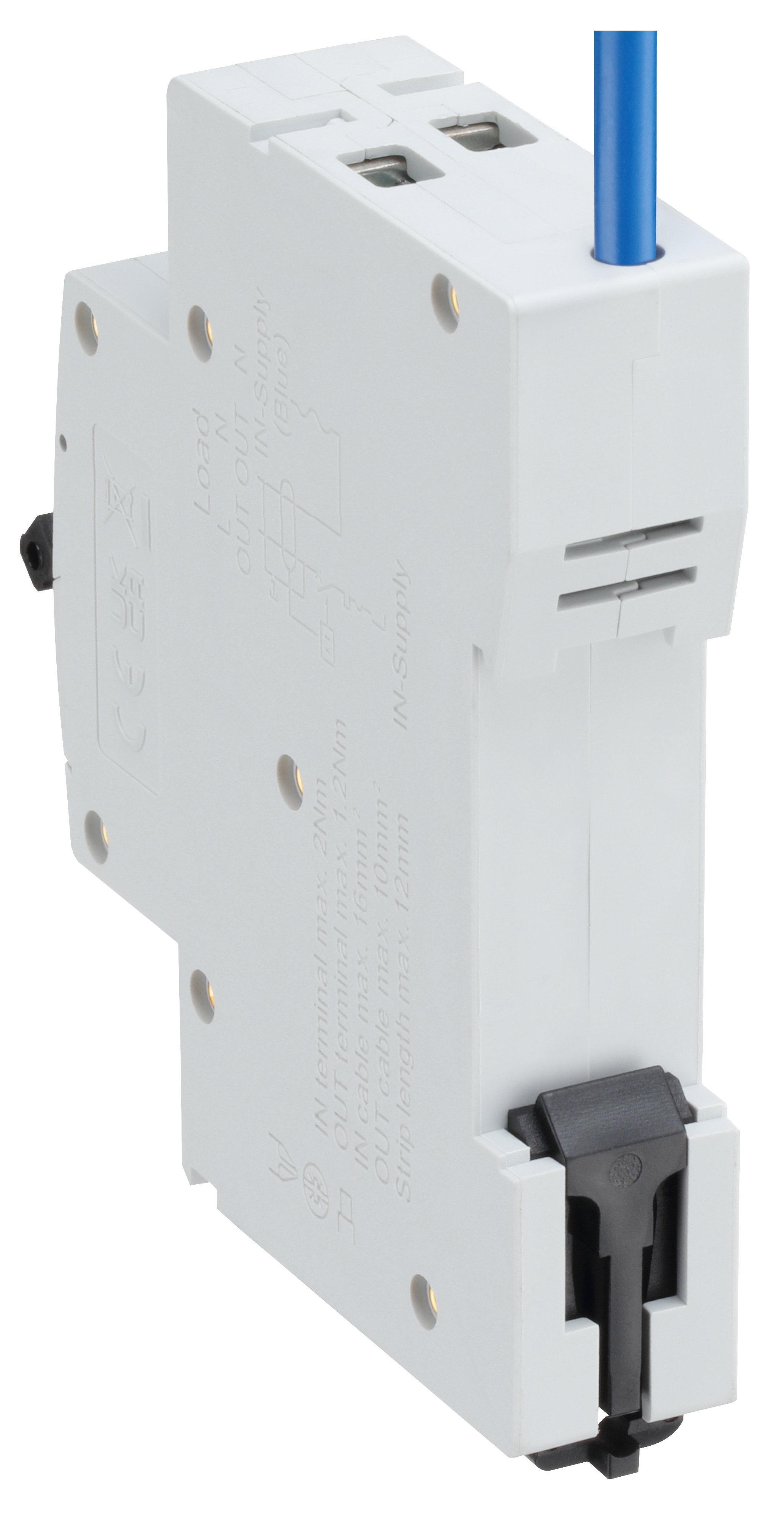

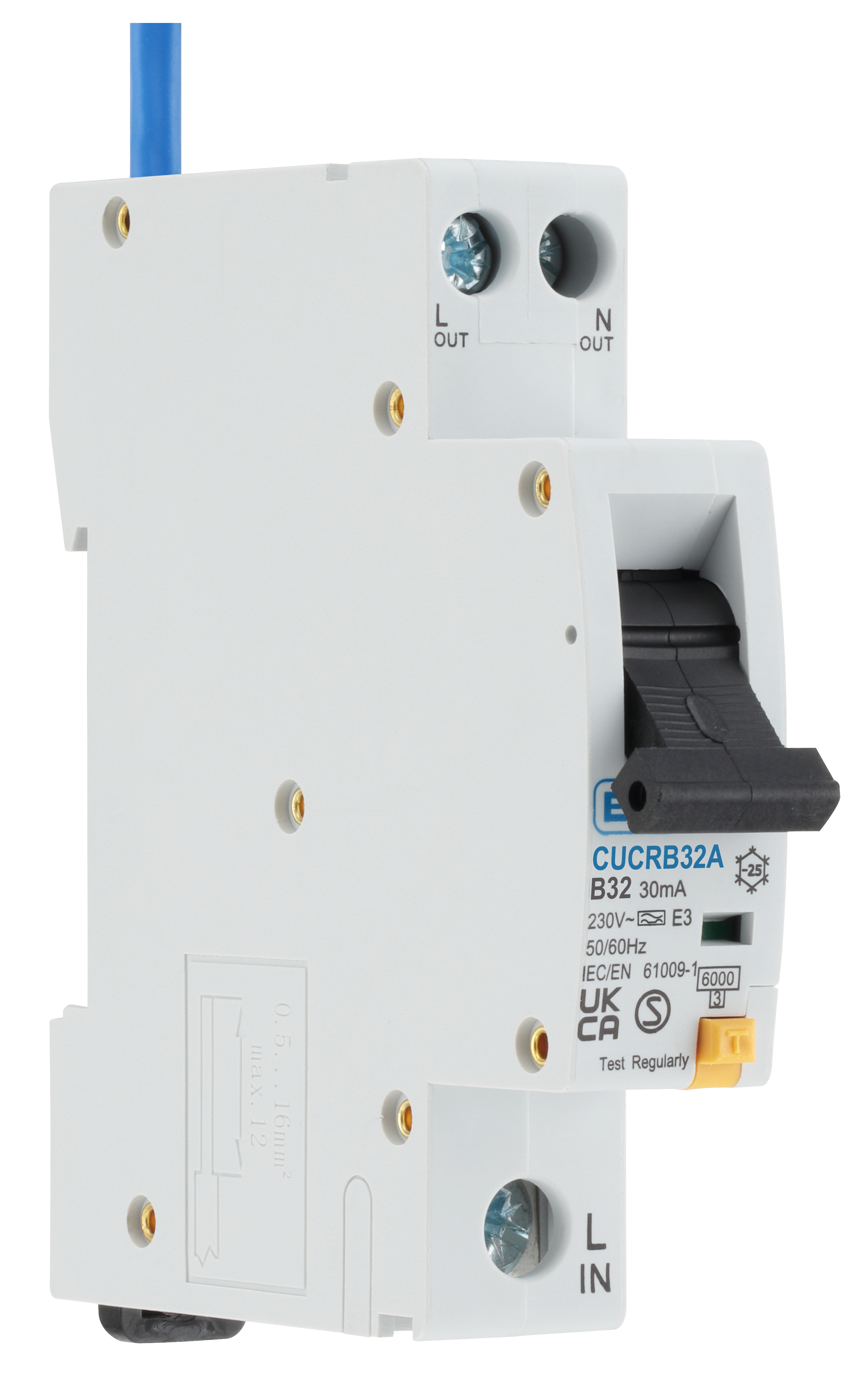

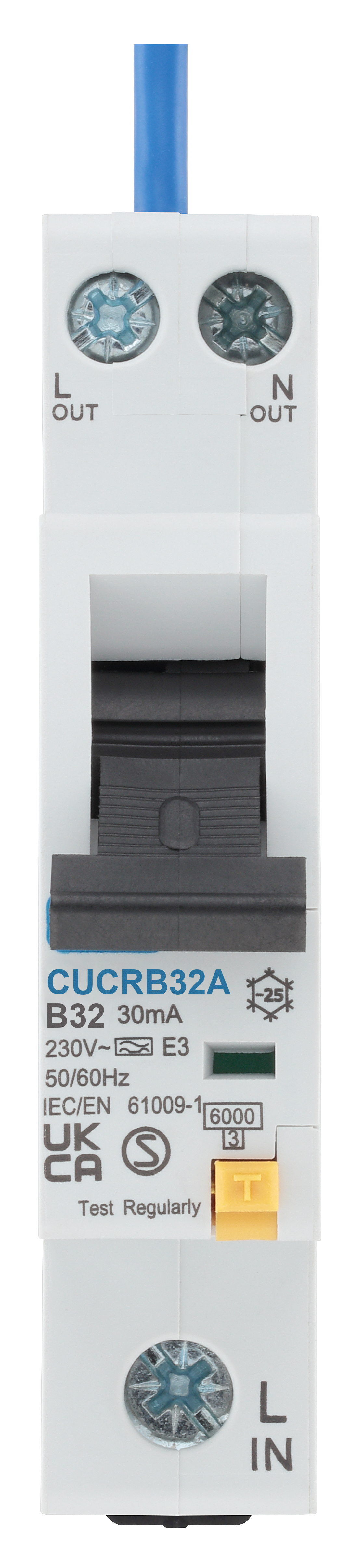

BG Compact RCBO 30mA Type A 32A B curve
For Use with BG Fortress consumer units
Positive contact status indication
B curve
Device capable of being locked in 'ON' or 'OFF' position using a device lock
Size of an MCB
DIN rail mountable
Type A
6kA breaking capacity
Integrated Blue neutral lead
Manual test button
| General Colour | Light Grey |
| Timer Override | N/A |
| Timer Type | N/A |
| Endurance Operations - Electrical | 2000 |
| Endurance Operations - Mechanical | 2000 |
| Reponse Time (nS) | 0 |
| Surge Rating (kV) | N/A |
| Surge Uc | 0 |
| Surge Uoc | N/A |
| Surge Up | N/A |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| RCD Type | Type A |
| Device | RCBO |
| Operating Voltage (V) | 230 |
| Current Rating (A) | 32 |
| Operating Temperature (C) | -5°C to +40°C |
| Rated Trip Current (mA) | 3-5 X In |
| Switch State | On/Off |
| Surge Device | No |
| Warranty (years) | 10 |
