CF19D8813-01

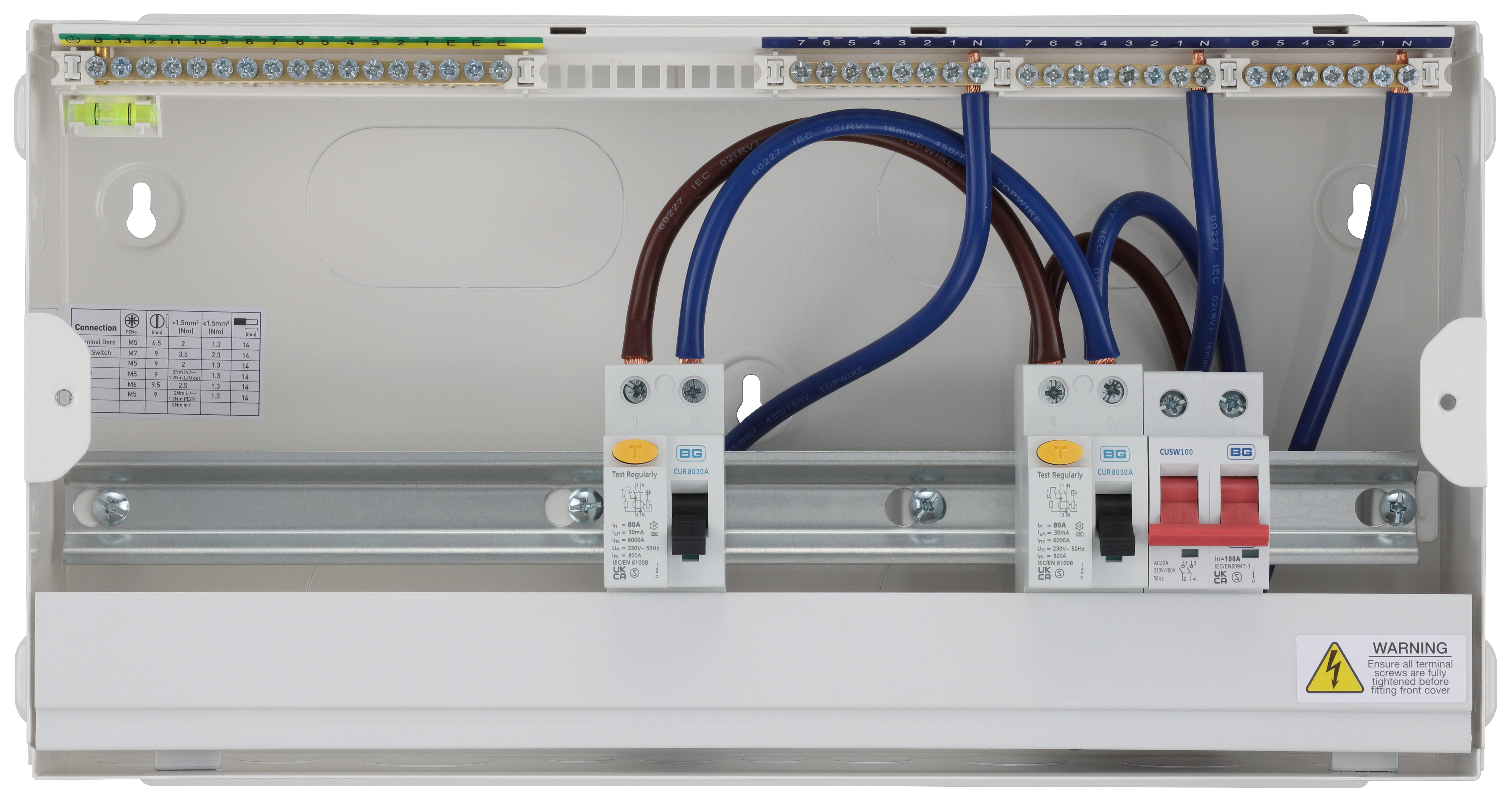

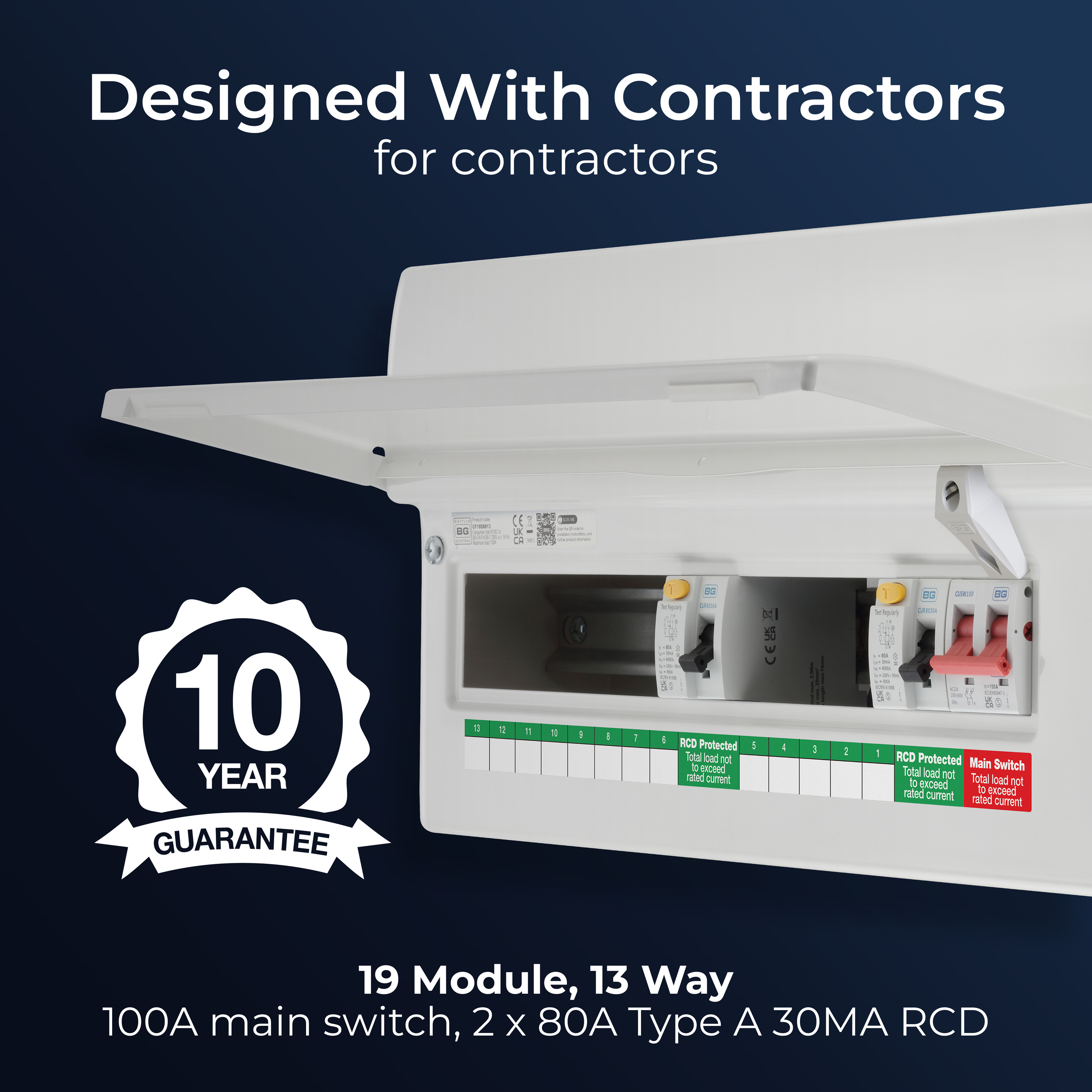

Consumer Unit 19 Module, 13 Way, Unpopulated, 2 x 80A 30mA Type A RCD
Integrated spirit Level
2 rows of rear knockouts
2 x 80A Type A RCD

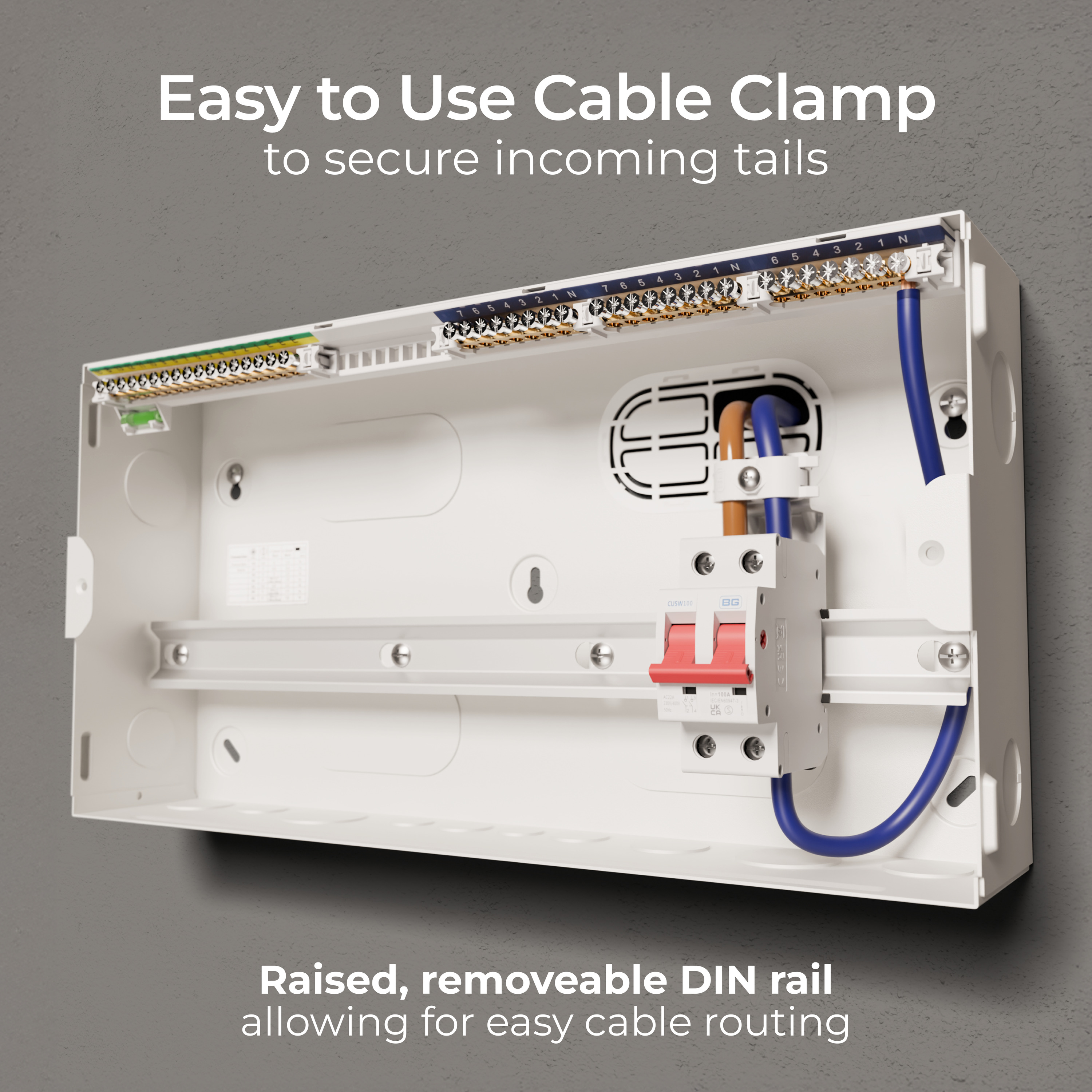

Optional cable clamp included

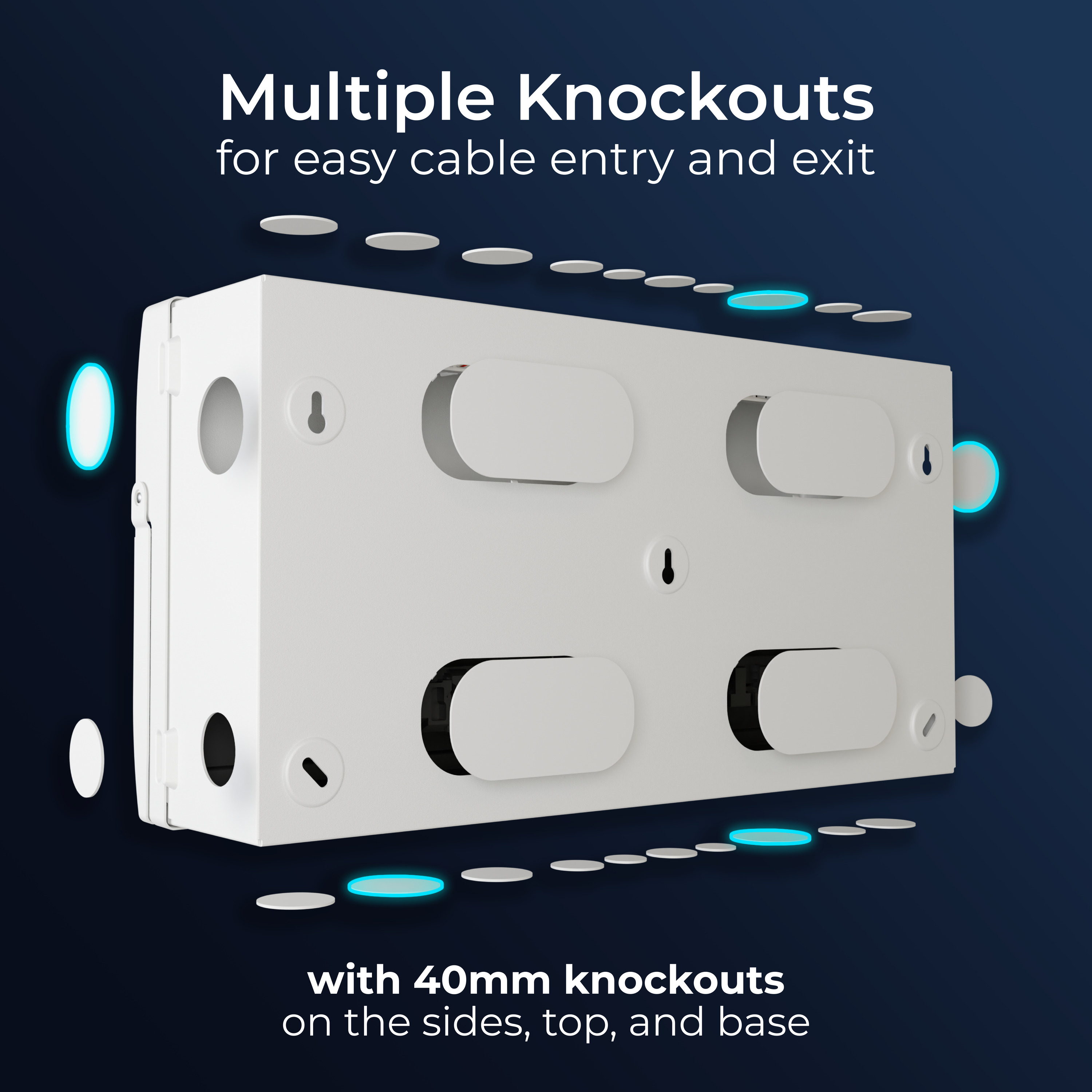

40mm knockouts in sides, top and bottom faces for incoming cables
10 Year Guarantee
40mm knockouts in sides, top and bottom faces for incoming cables

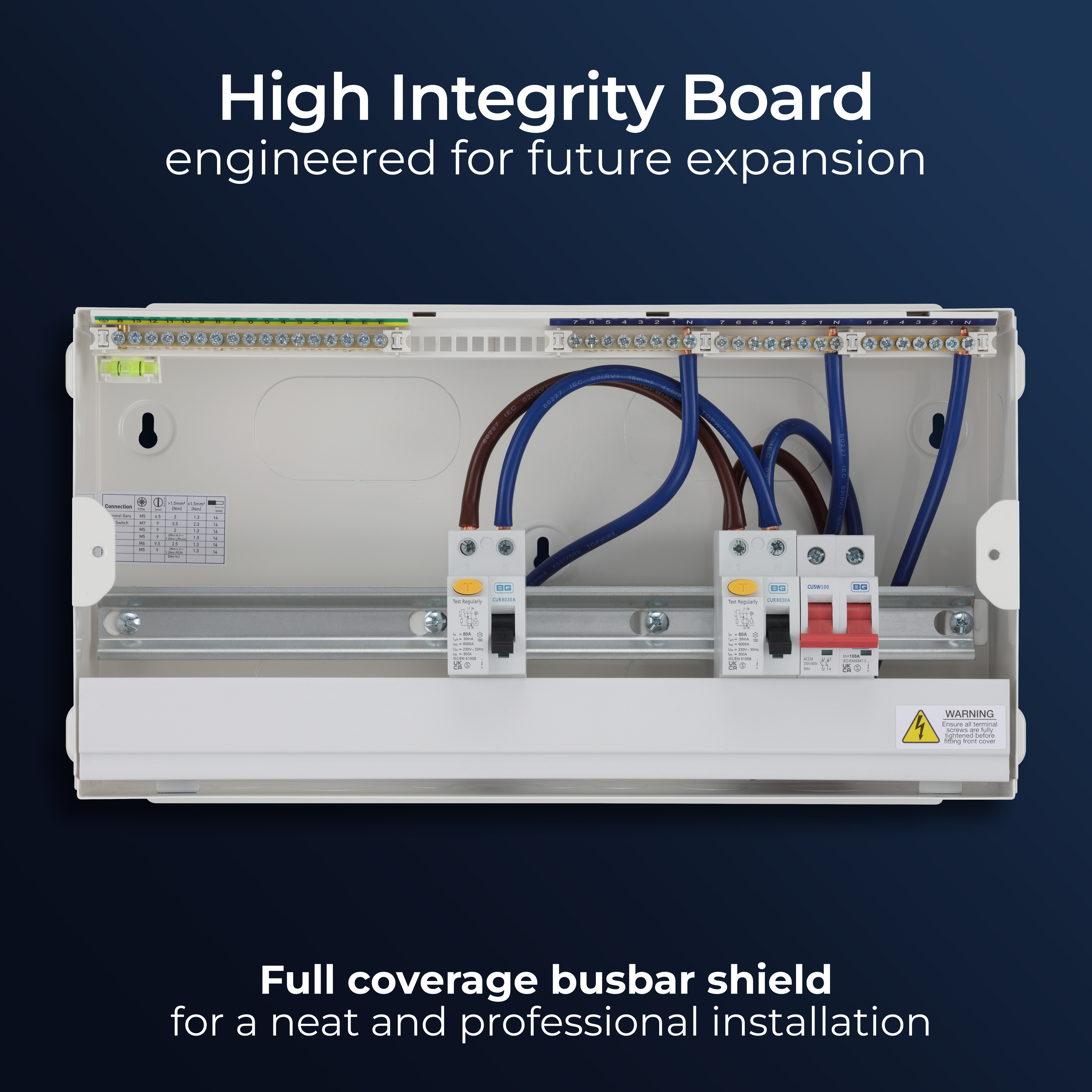

High integrity

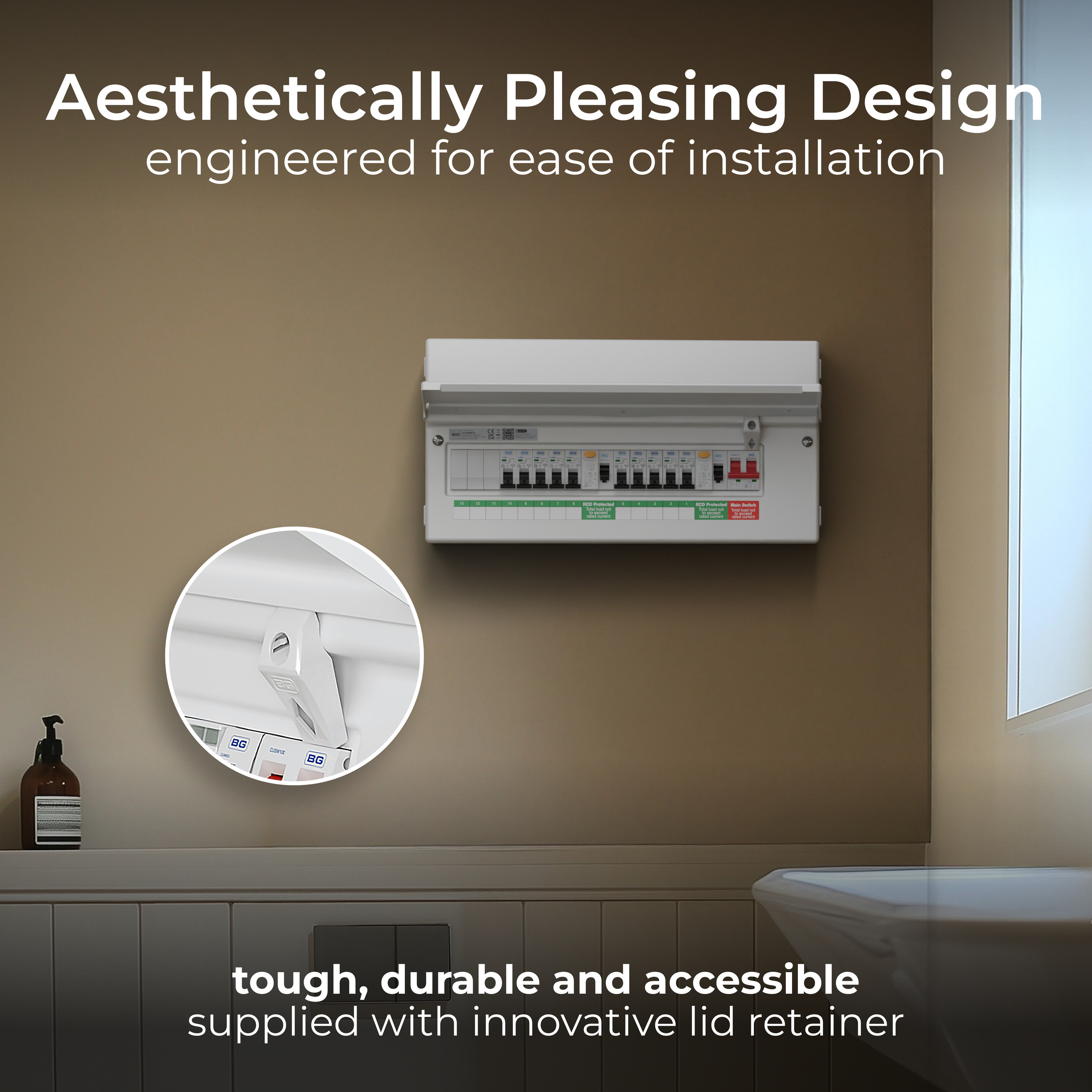

Supplied with 1 x lid retainer, 1 x rear clip in cable protector, 2 x grommet strip and 4 x cover blanks
Unpopulated
| Front Plate Material | Steel 1.0mm - ST16 |
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 19 |
| Number of Cable Entries | 28 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Details per face (Size/number) | Top - 3 x 20mm, 2 x 25mm, 4 x 32mm, 1 x 40mm, Bottom - 3 x 20mm, 2 x 25mm, 3 x 32mm, 2 x 40mm L-1 x 32mm, 1 x 40mm R - 1 x 32mm 1 x 40mm (sides) 4 x 100 x 50mm (Base) |

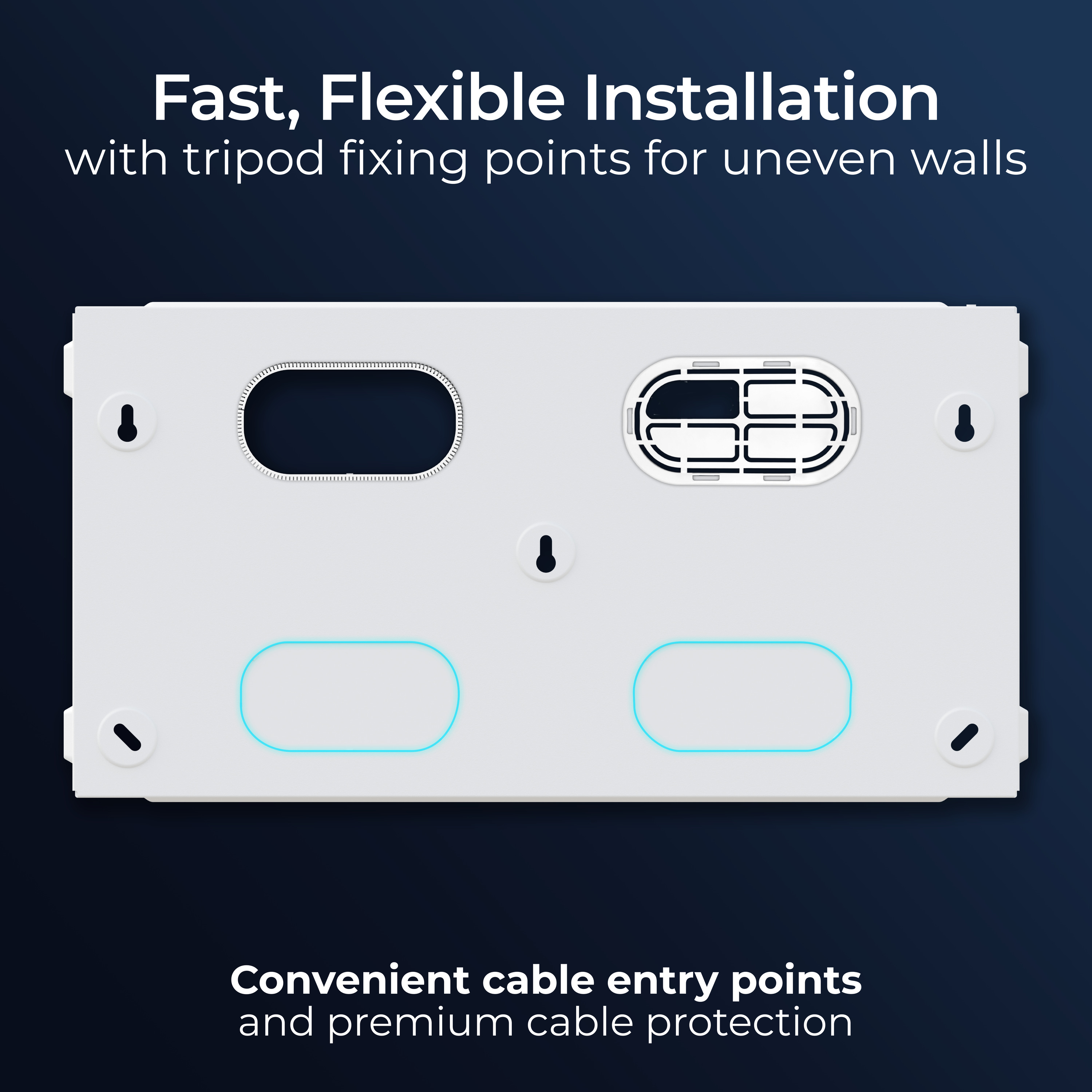

| Number Of Wall Fixing Positions | 5 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | Yes |
| Terminal Type | Screw |
| Ways | 13 |
| Knockouts | 28 |
| Mounting Type | Surface |
| IP Rating | IP2XC |
| Terminal Screw Type | Combi |
| Terminal Torque (Nm) | Earth/Neutral Terminals 2Nm, MS 2.5Nm, RCD 2.5Nm |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| Max Load (A) | 100 |
| MCB's | 0 |
| Frequency (Hz) | 50 |
| Warranty (years) | 10 |
