WP42-02

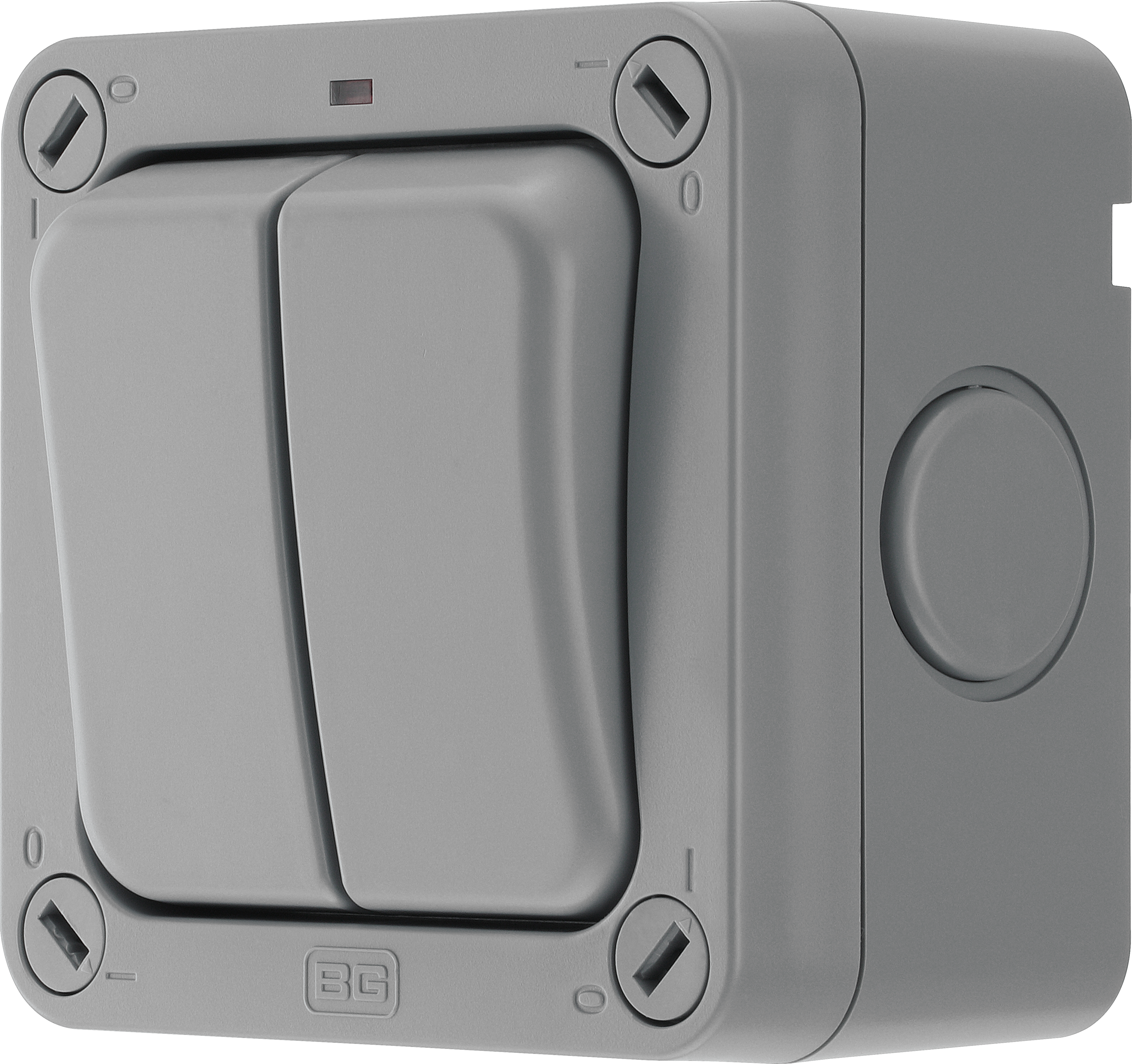

BG Weatherproof, 20A Double Switch, 2 Way, IP66

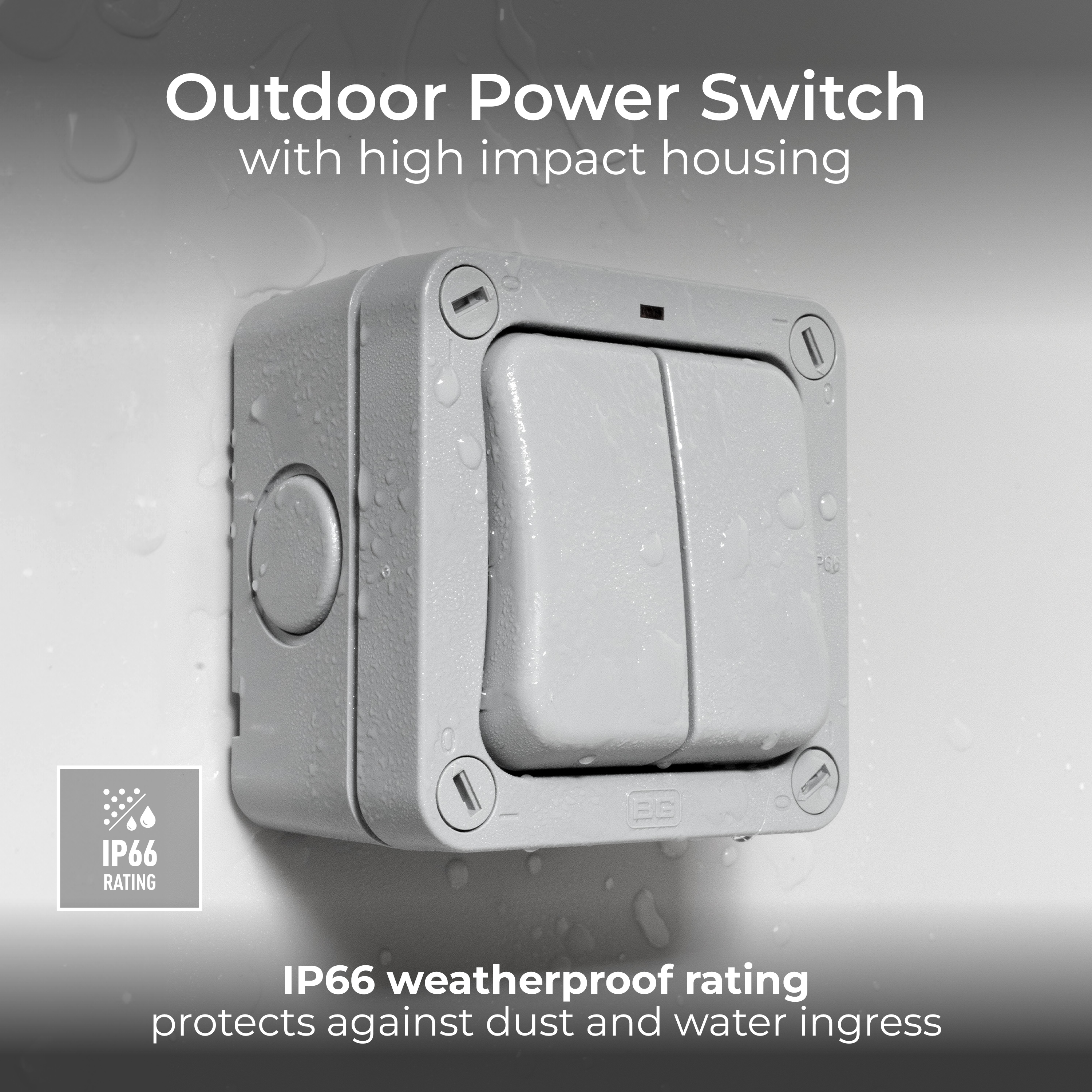

Weather and dust protection - IP66

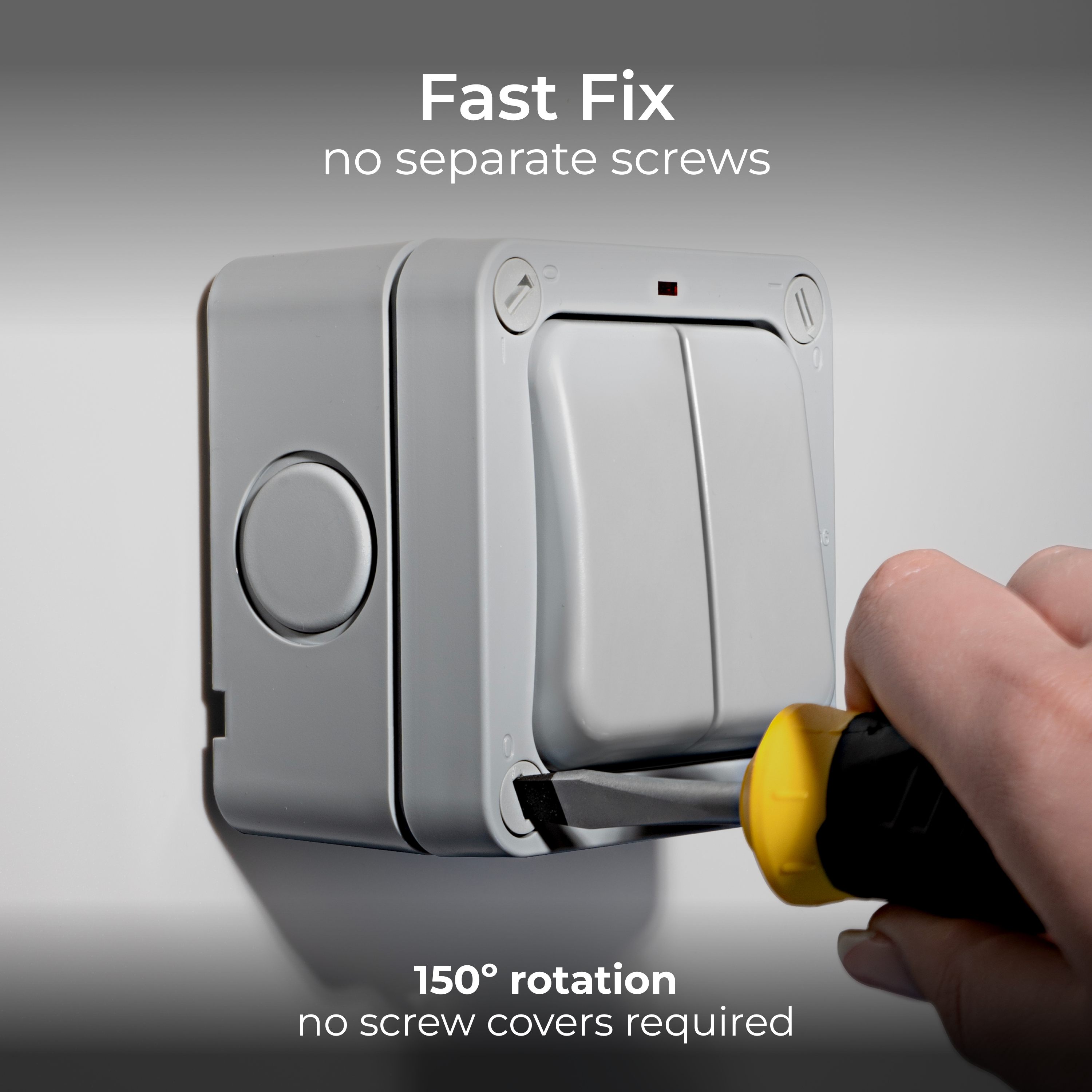

Fast fix - no separate screws, no screw covers, 150º rotation
Robust and high impact outdoor power switch, for safe electricity supply outdoors
2 way switching allows for a second switch position in a circuit

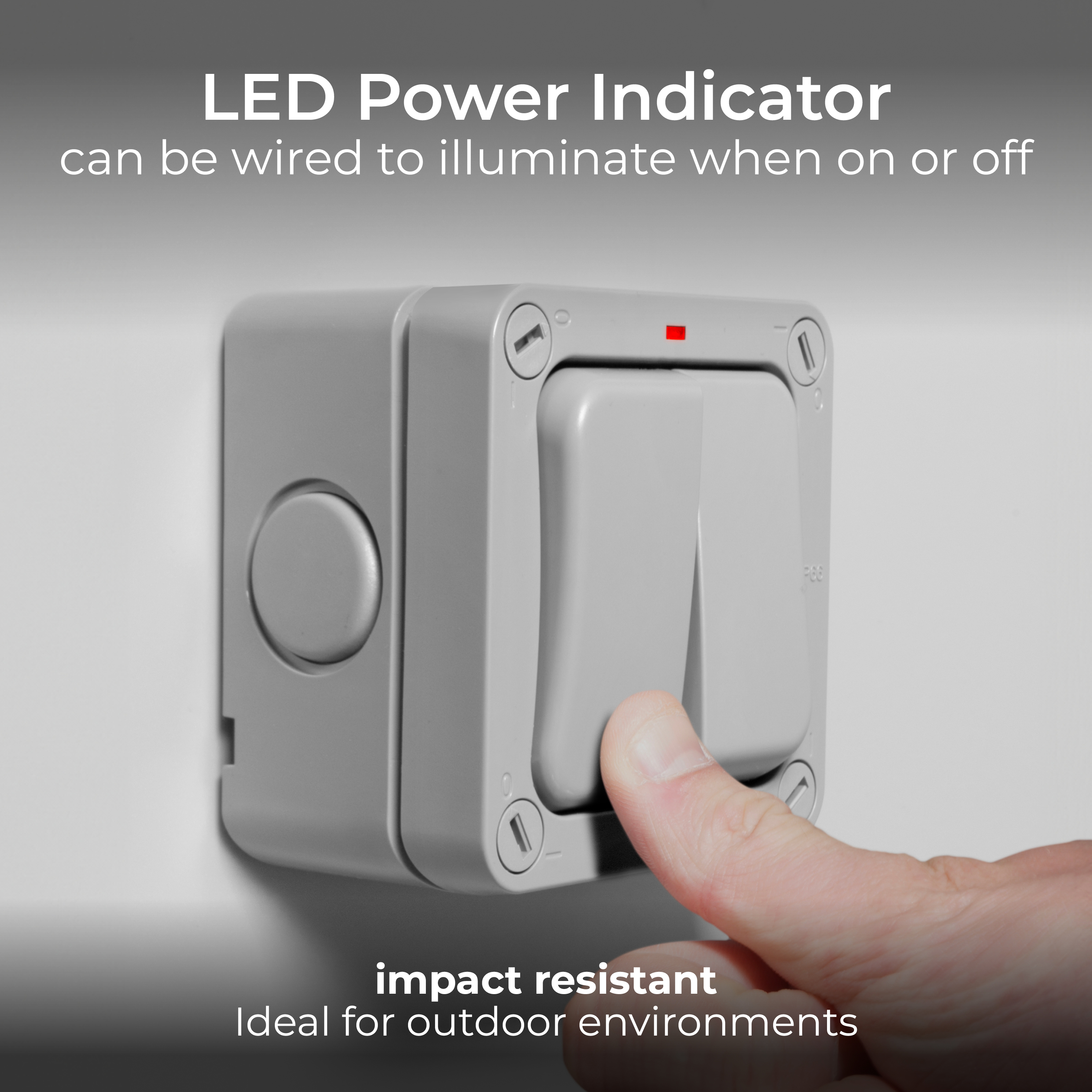

LED indicator that can be wired to illuminate when off or on
Multiple knockouts for versatility when installing - 5 x 20mm
Fast fix - no separate screws, no screw covers, 150º rotation
Clearly marked terminals with backed out captive screws for easy installation
Earth terminal in mounting box
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (mm²) | 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Terminal Arrangement | In Line Terminals |
| Terminals with Colour Coding Print | No |
| Number of Switches | 2 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |

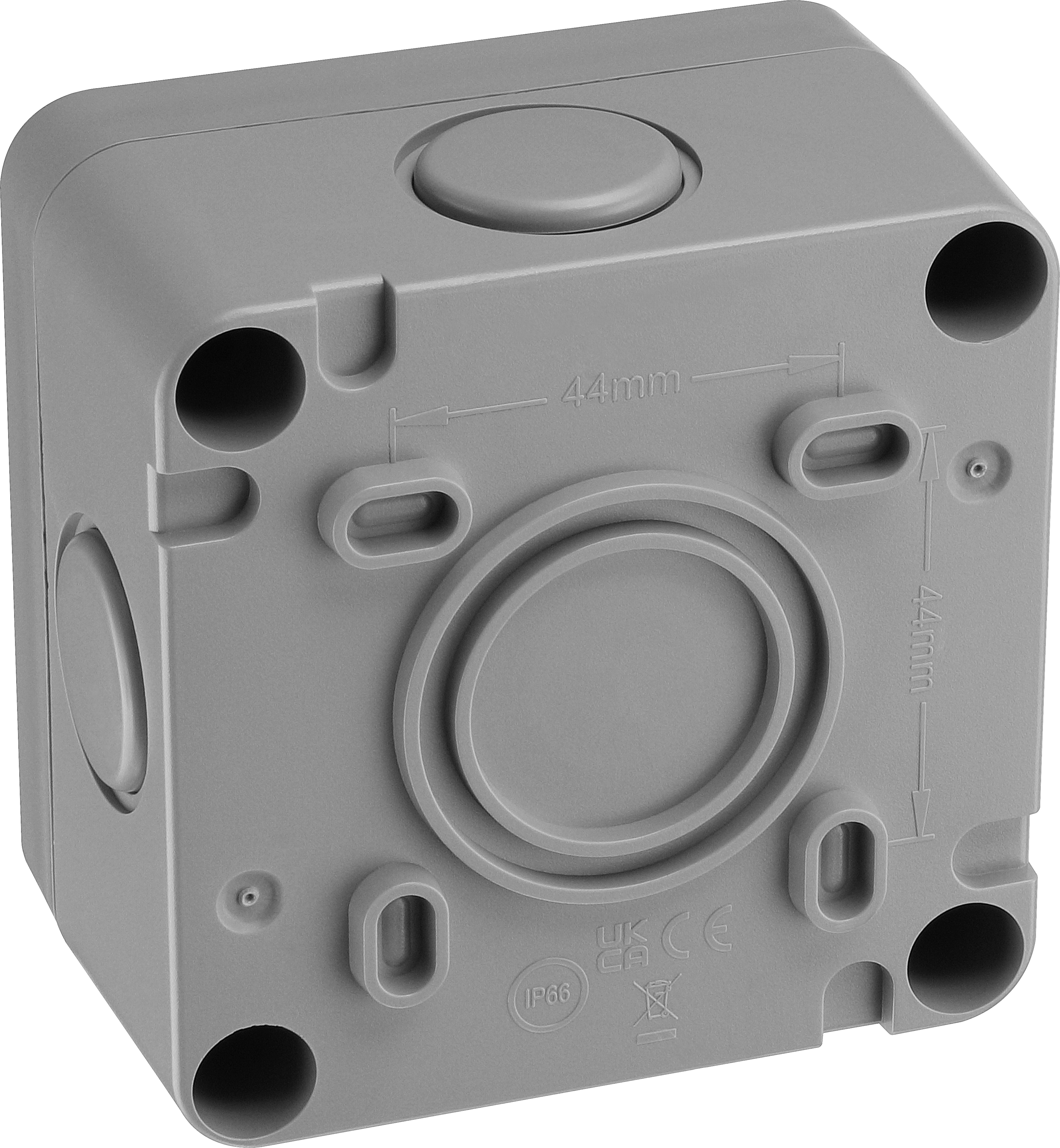

| Fixing Centres (mm) | W-44 x H-44 |
| IP Rating | IP66 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
