WP23L-01

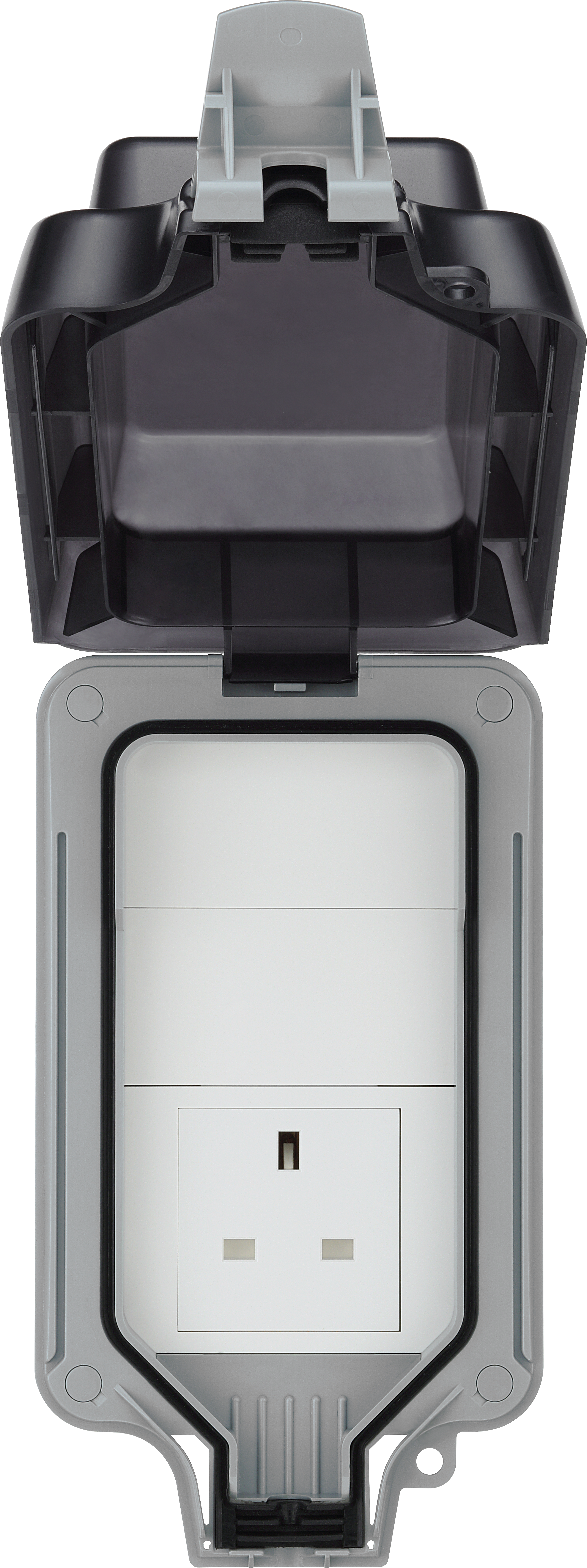

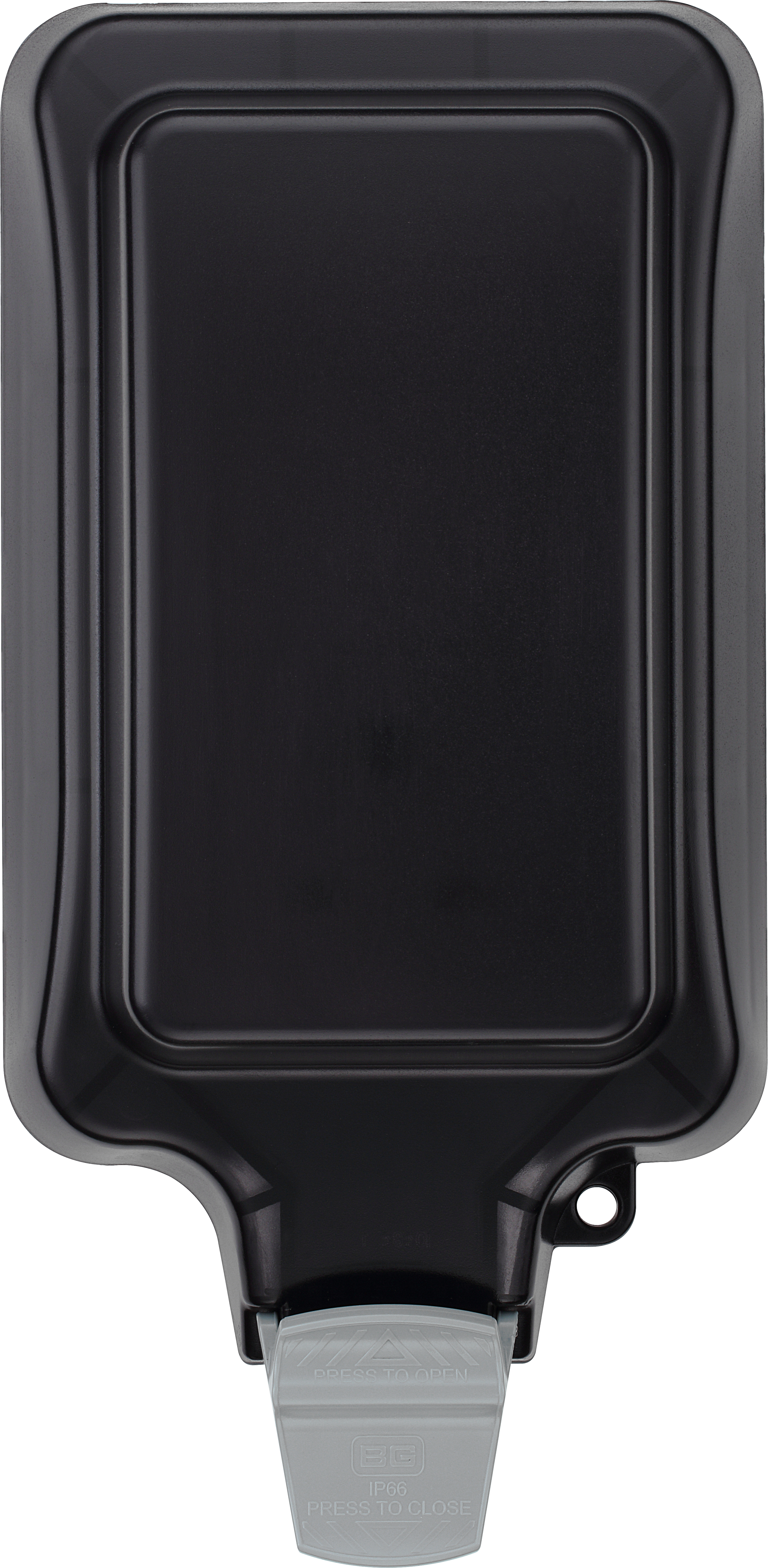

BG Nexus Storm 13A Single Unswitched Socket, Large Enclosure with Adjustable Positions, IP66
13A Rated
Easy to install supplied with fixing screws and installation instructions
Robust and high impact outdoor power socket for safe electricity supply outdoors
Weatherproof and dustproof rating of IP66
Large enclosure to fit large plug types transformers and adaptors
Supplied with multiple knock-out mounting box with multiple gland entry positions
Angled in-line colour coded terminals provide easy access for quick installation
Captive screws prevent screw loss
Twin earth fitted as standard for high integrity circuits
Durable see through cover clips securely in place
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (mm²) | 3 x 4mm² |
| Front Plate Insert Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Number of Earth Terminals | 1 |
| Terminal Arrangement | Angled-in line terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 1 |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-55 |
| IP Rating | IP66 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
