WP21ES-01

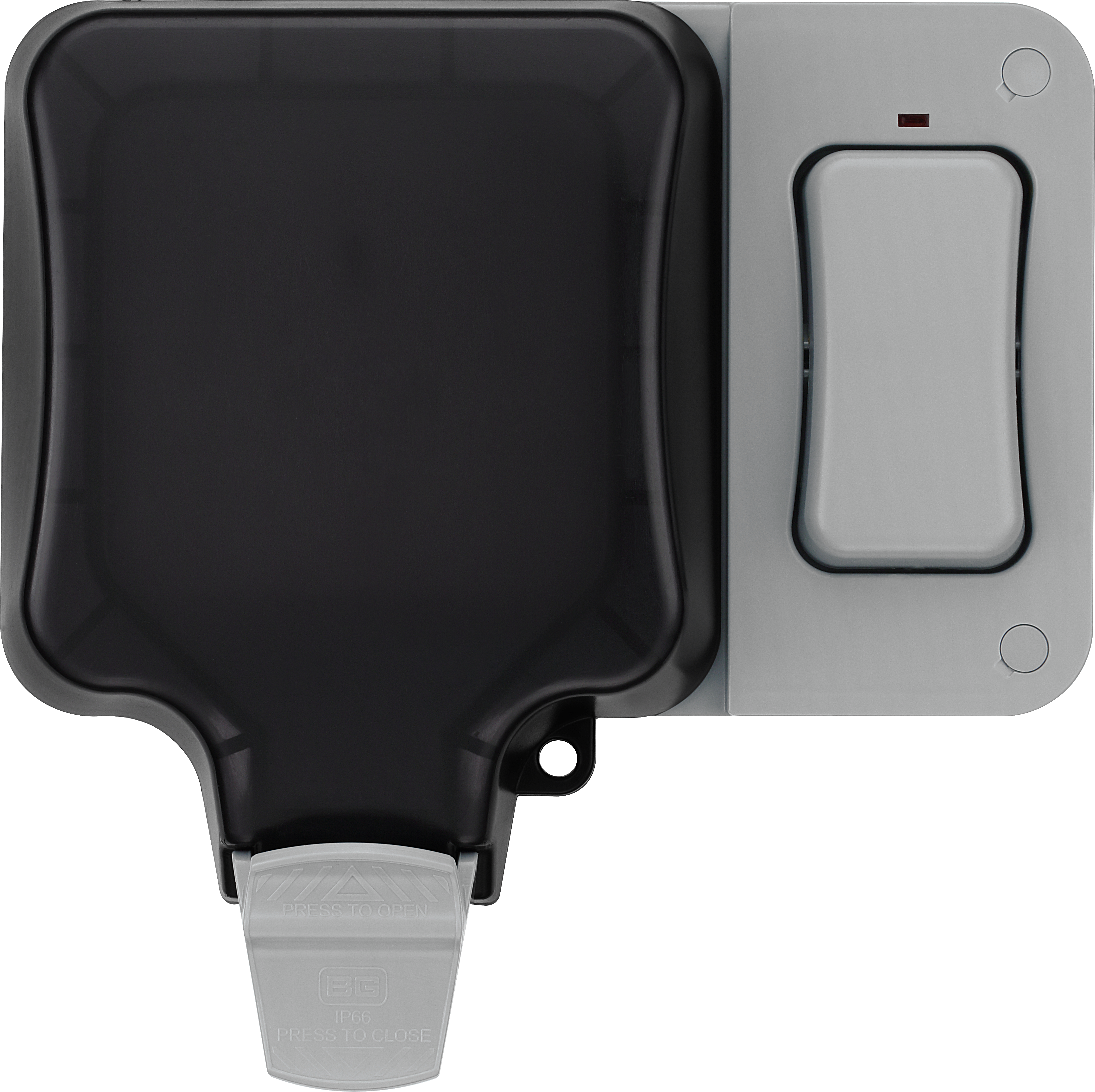

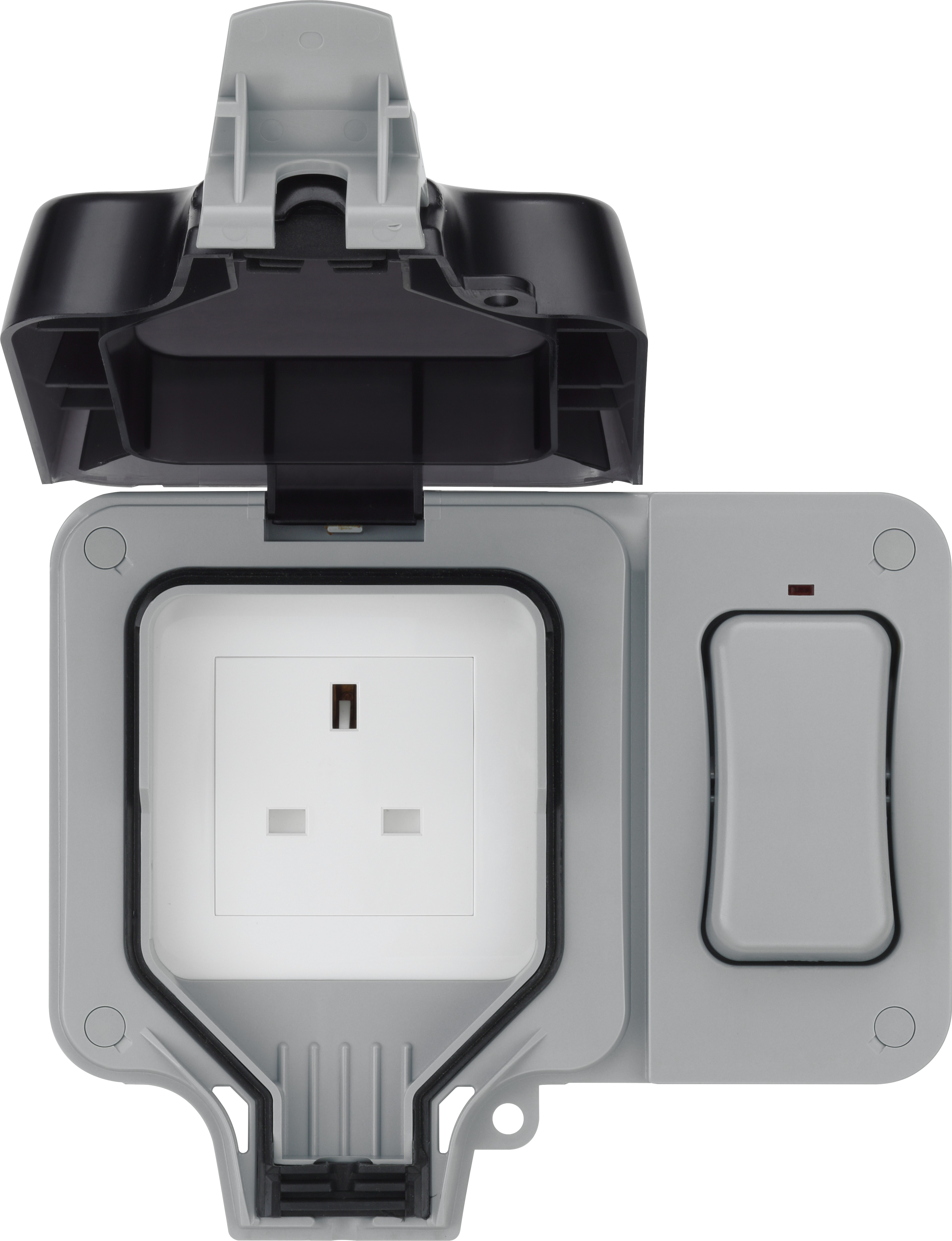

BG Nexus Storm 13A Single Switched Socket With Single External Switch, IP66
13A Rated
Easy to install, supplied with fixing screws and installation instructions
Robust and high impact outdoor power socket, for safe electricity supply outdoors

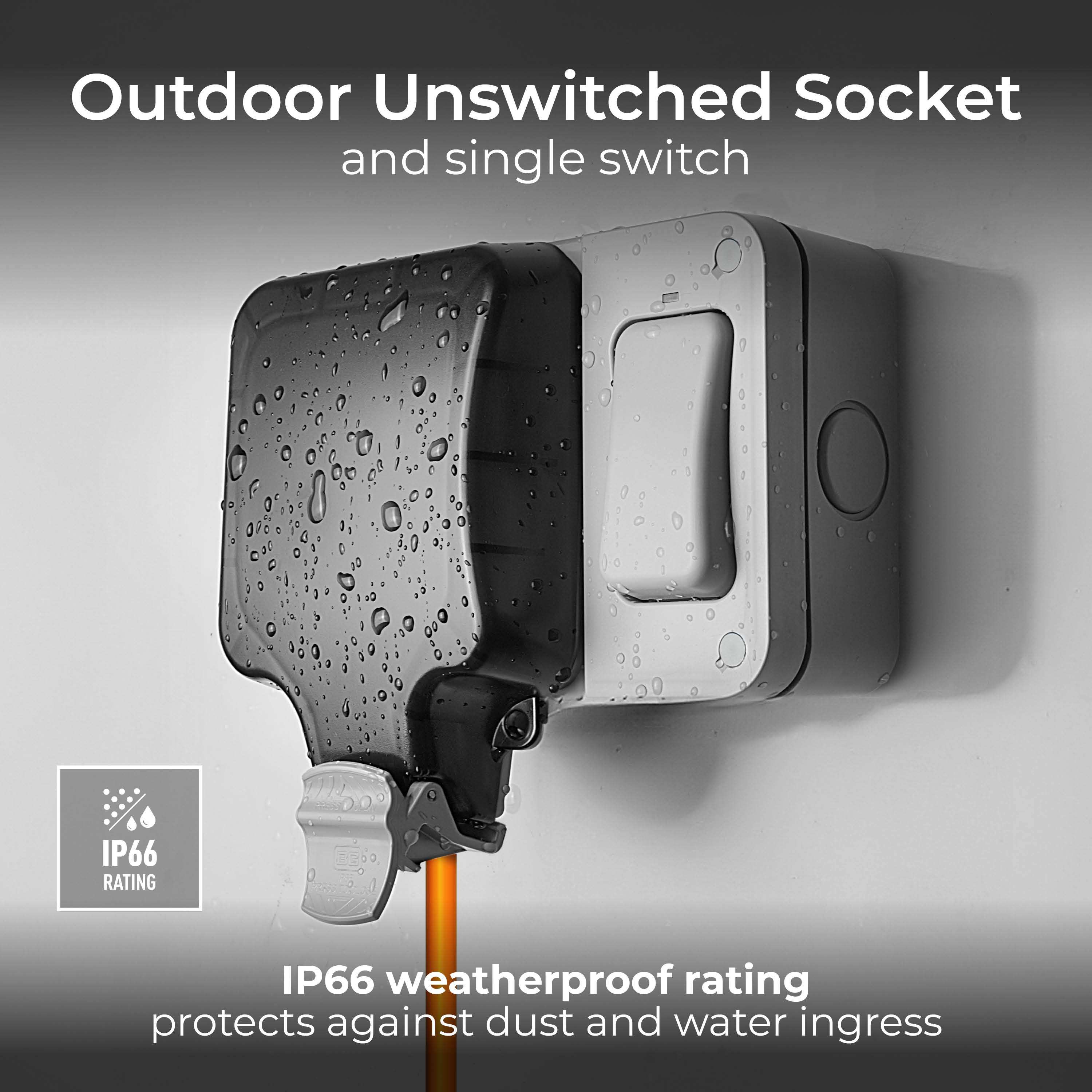

Weatherproof and dustproof rating of IP66, with external switch to operate devices that are permanently plugged in without the need to open the enclosure
LED power indicators mean the power status is visible even when the cover is down.

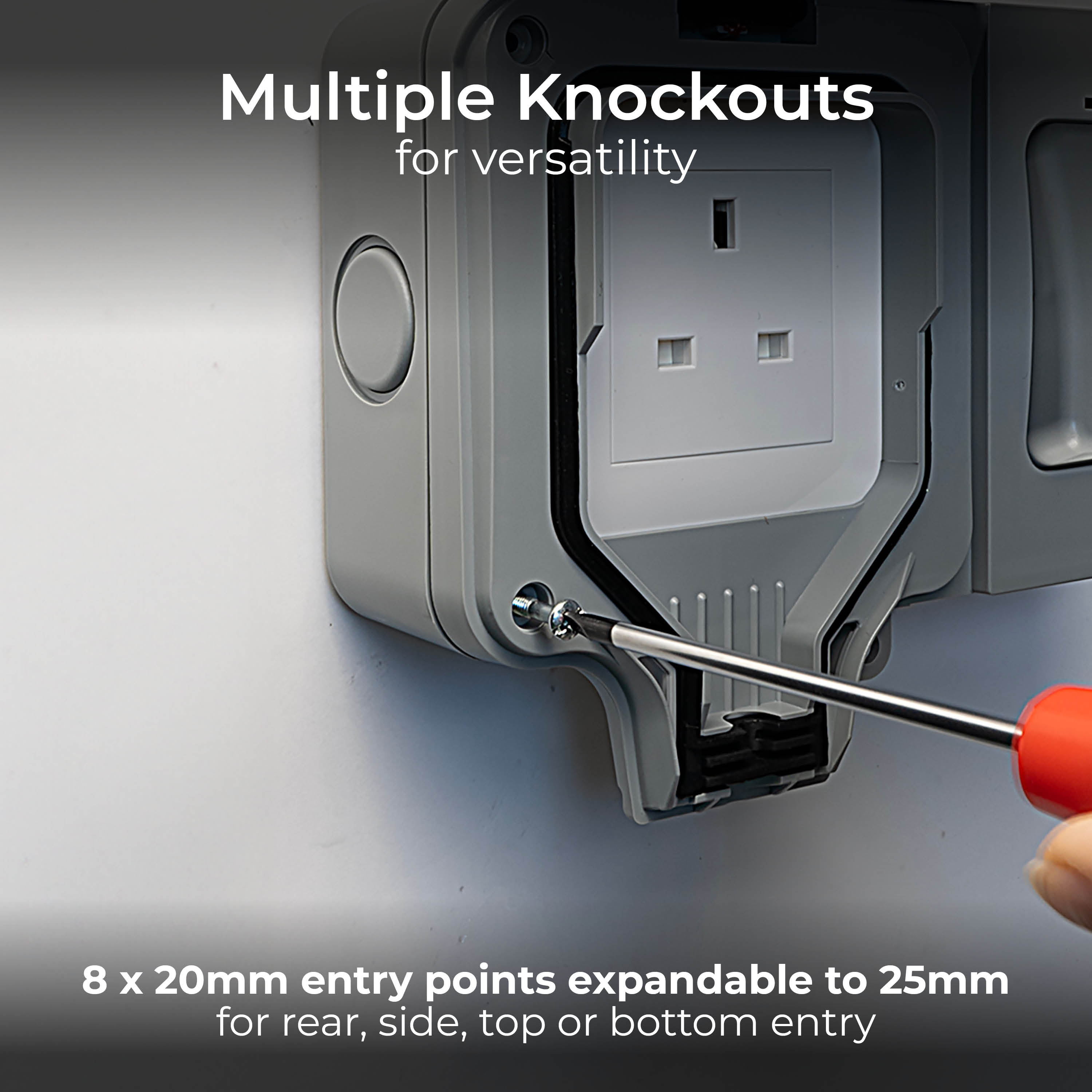

Supplied with multiple knock-out mounting box , with multiple gland entry positions
Angled in-line colour coded terminals provide easy access for quick installation
Captive screws prevent screw loss

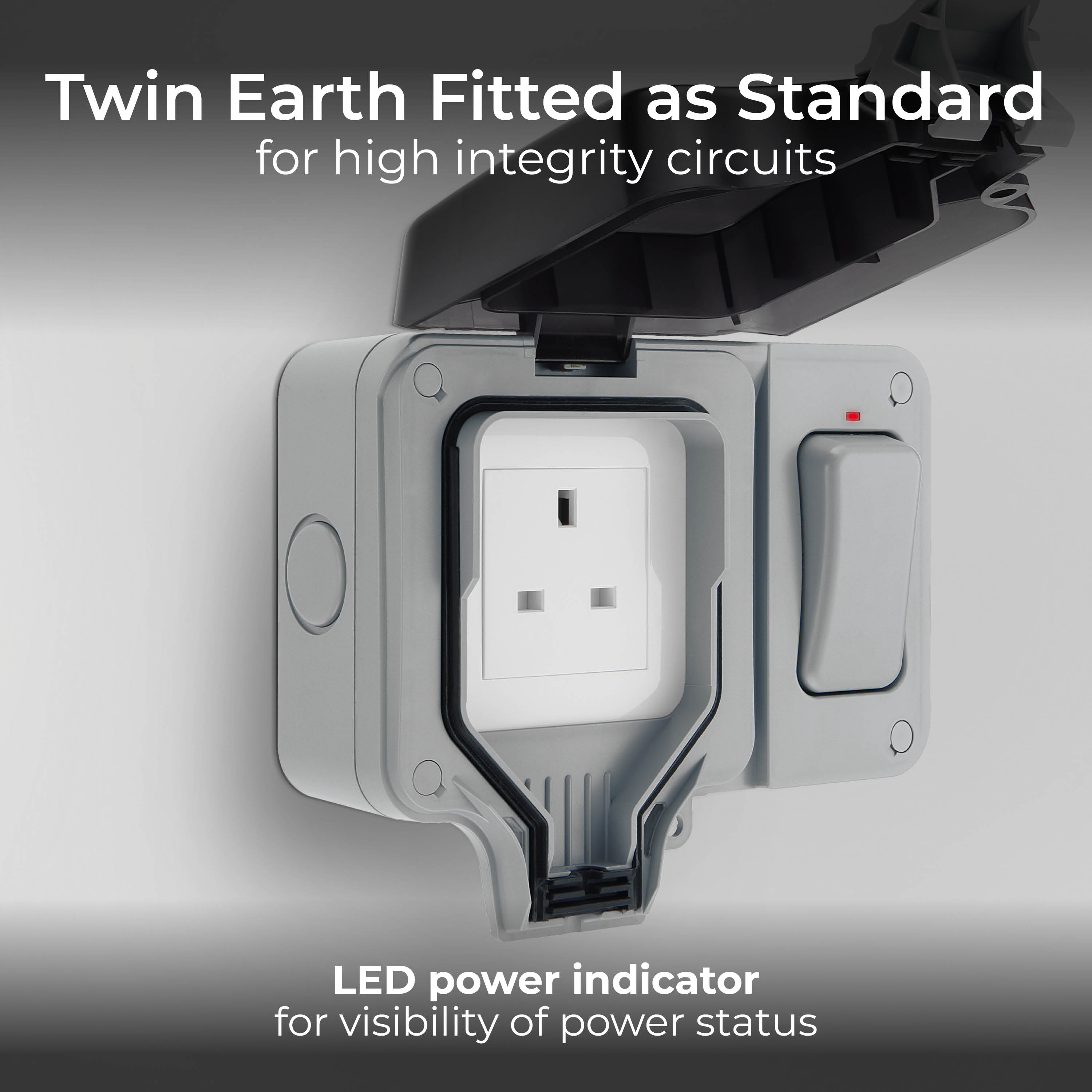

Twin earth fitted as standard for high integrity circuits

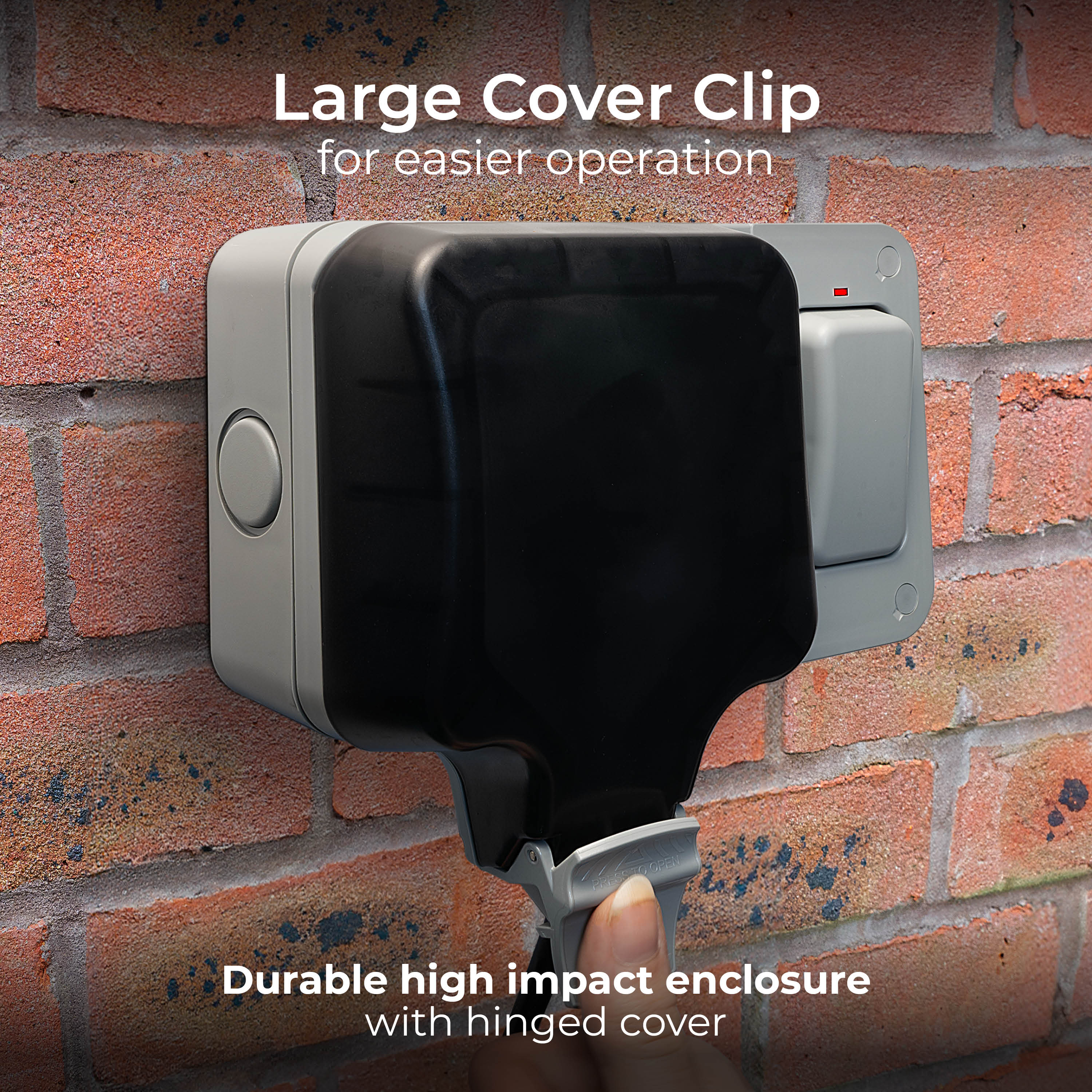

Durable see through cover clips securely in place
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Front Plate Insert Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled-in line terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 1 |
| Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
| Number of Switches | 1 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | H-55 |
| IP Rating | IP66 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
