WPB42-01

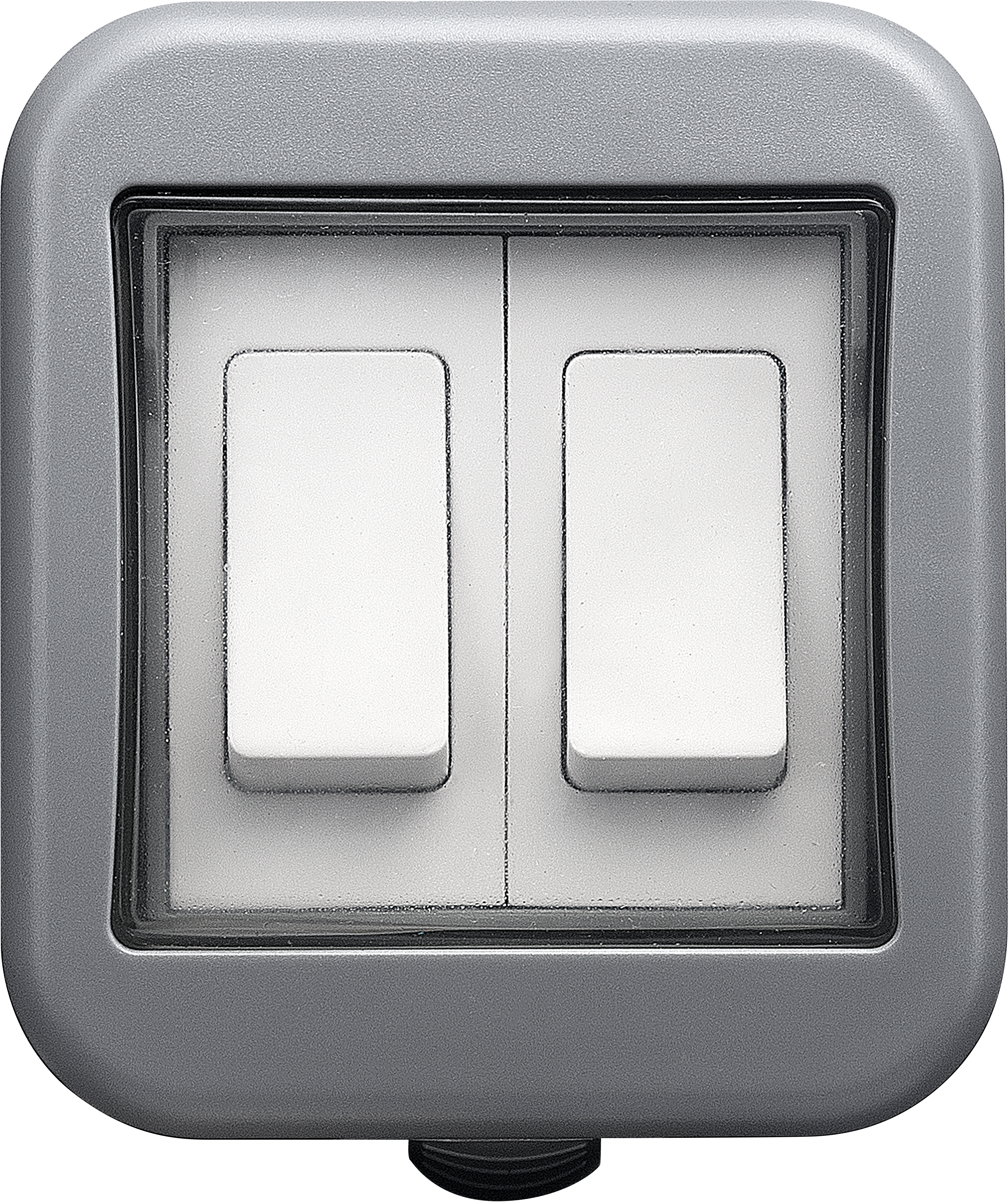

BG Weatherproof 20A 16AX Double Switch, 2 Way, IP55
20A 16AX Rated
Easy to install, supplied with fixing screws and installation instructions

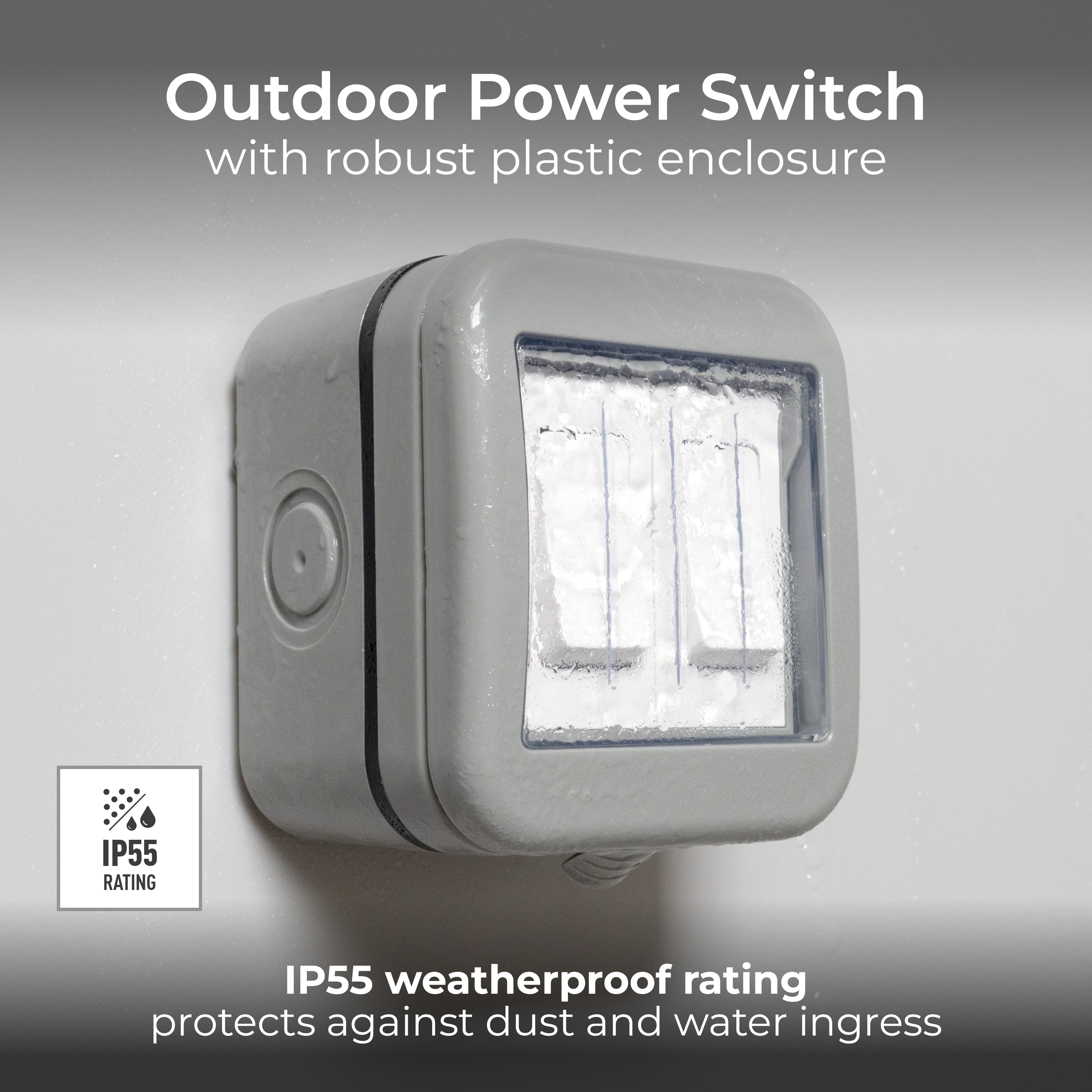

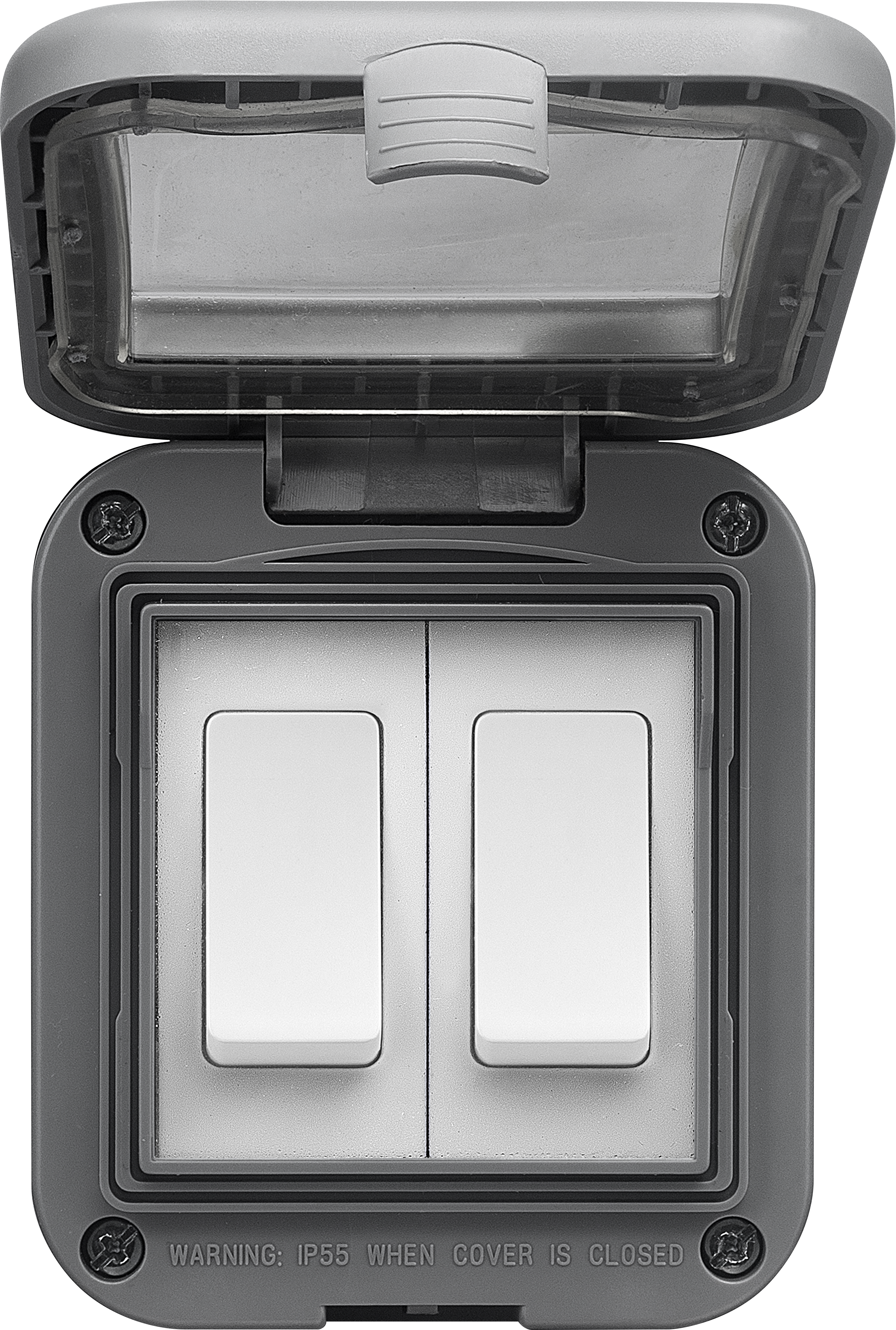

IP55 rated with the cover closed

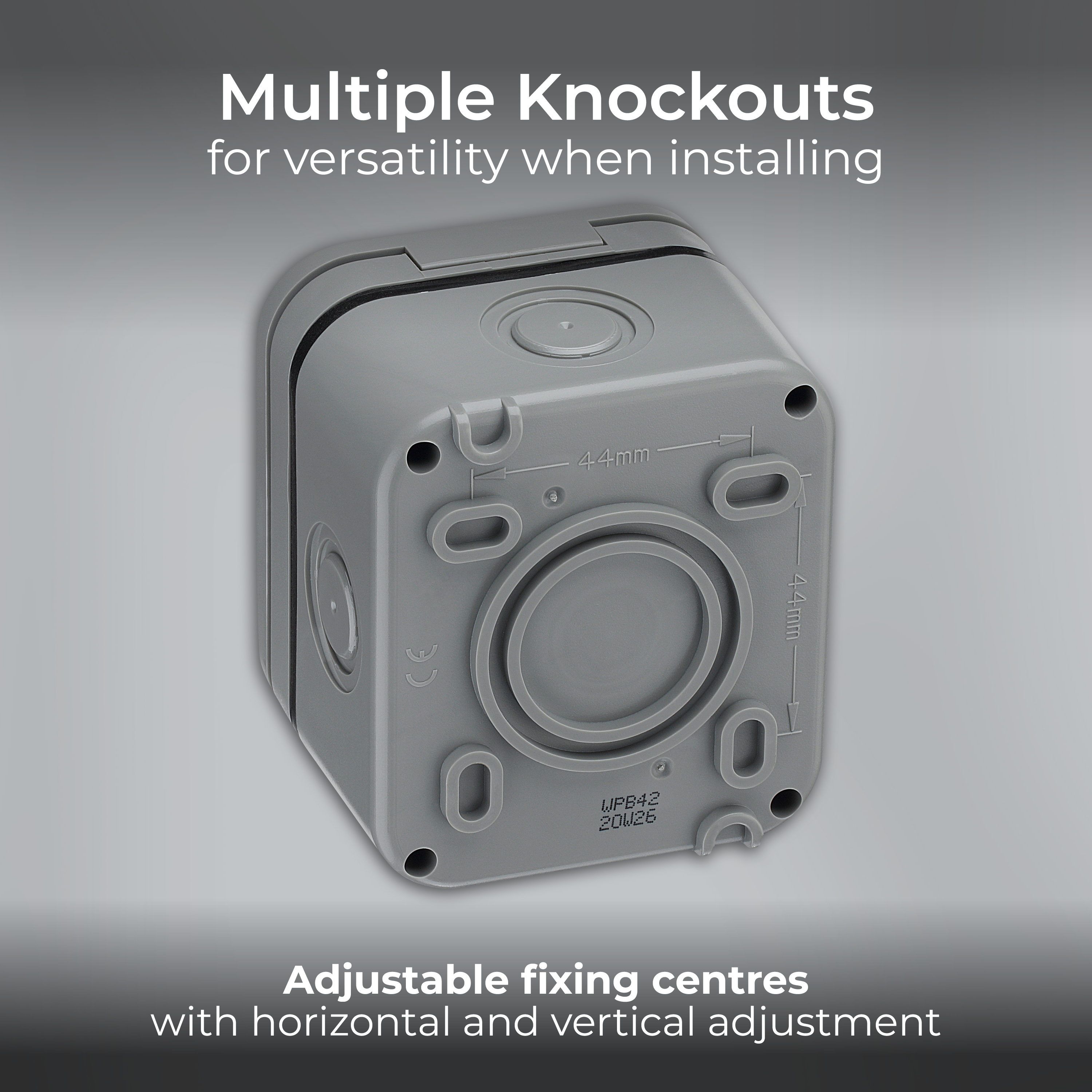

4 x M20 cut-outs(1 each side), 1 x M25 cut-out on rear with sealant ring

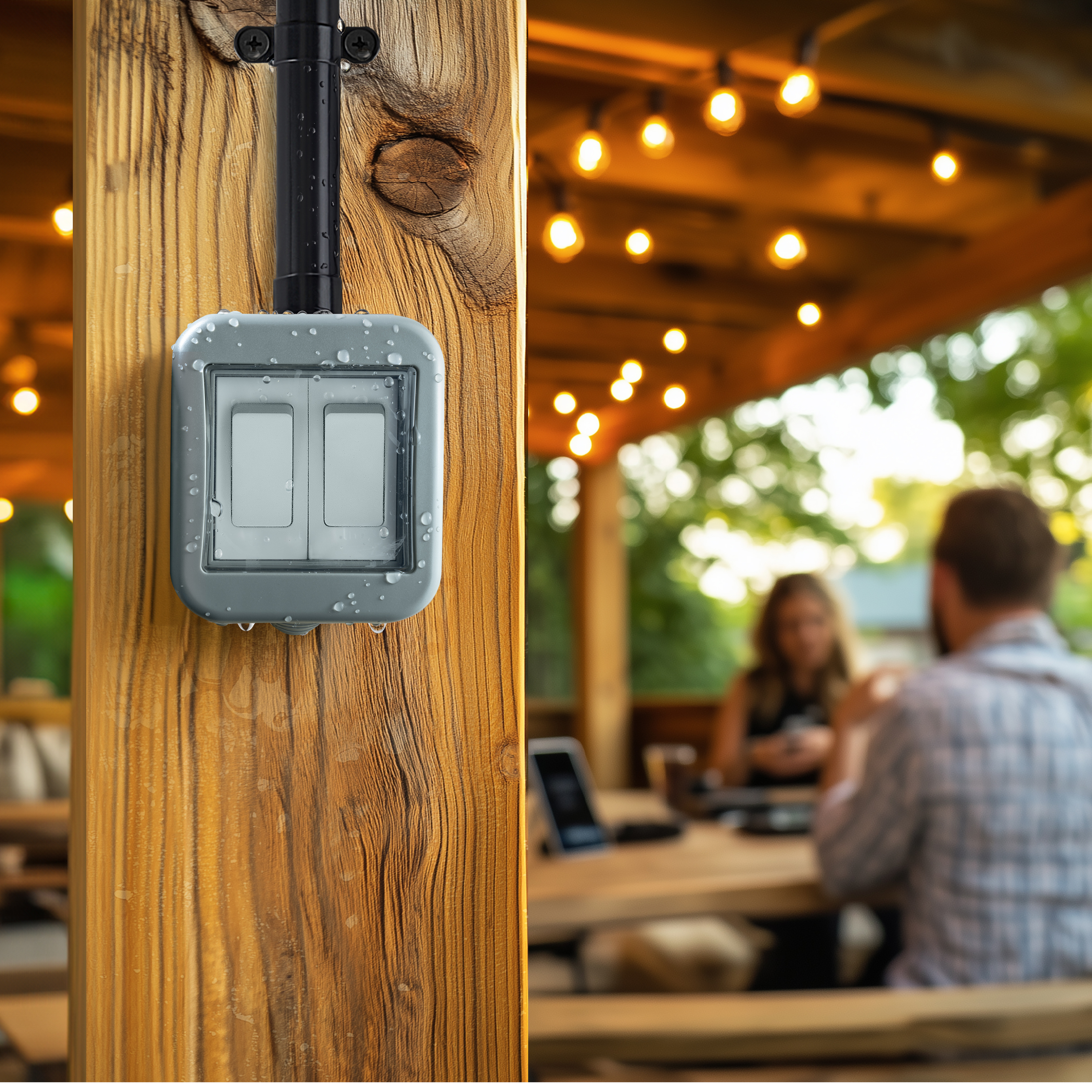

Suitable for installation in outdoor locations, garages and sheds
Fixing centres with horizontal and vertical adjustment

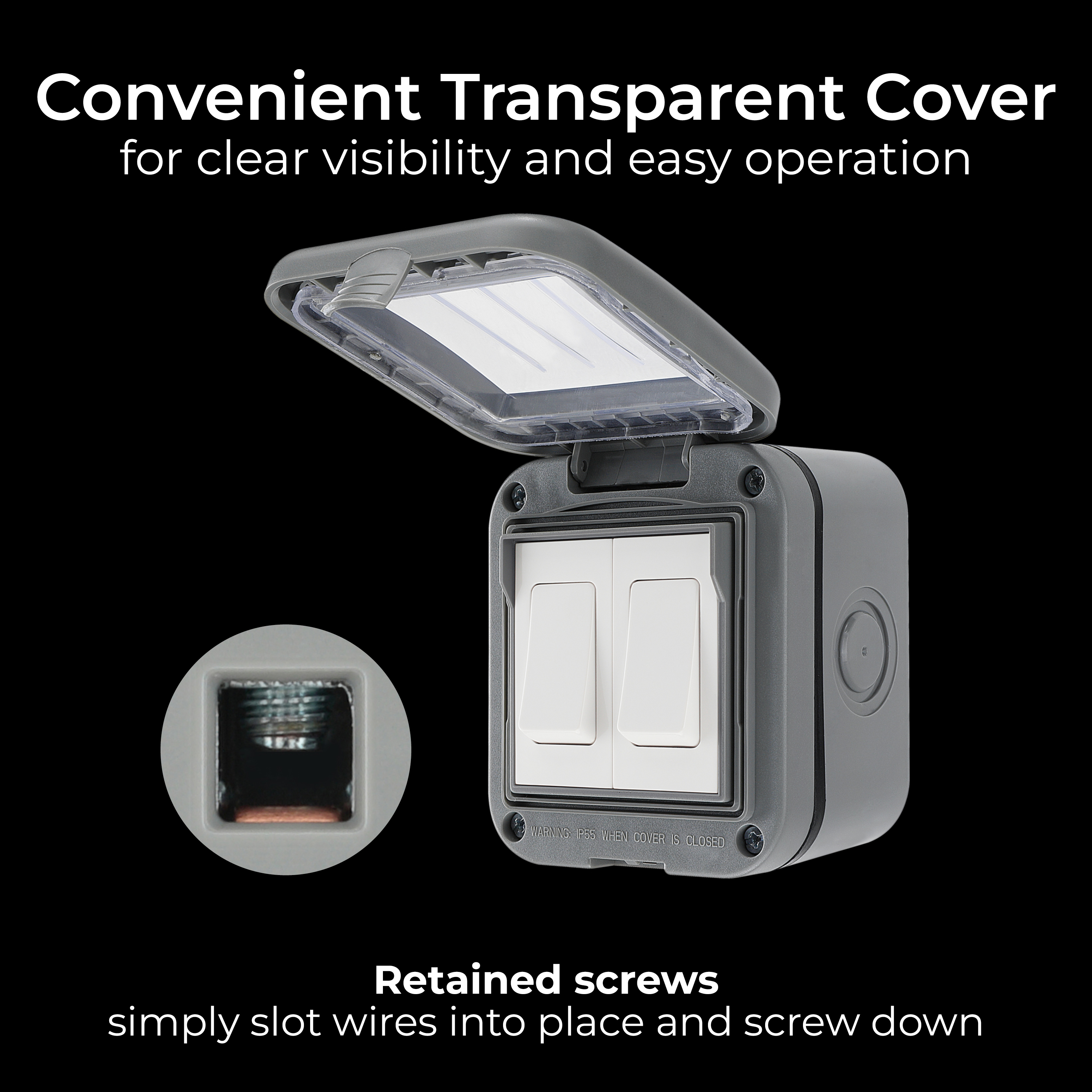

Clearly marked terminals with backed out captive screws for easy installation
| General Colour | Grey |
| Captive Terminal Screws | No |
| Backed-out Terminal Screws | No |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (mm²) | 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Switches | 2 |
| Screw Caps | Yes |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-44 x H-44 |
| IP Rating | IP55 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
