WPB14-01

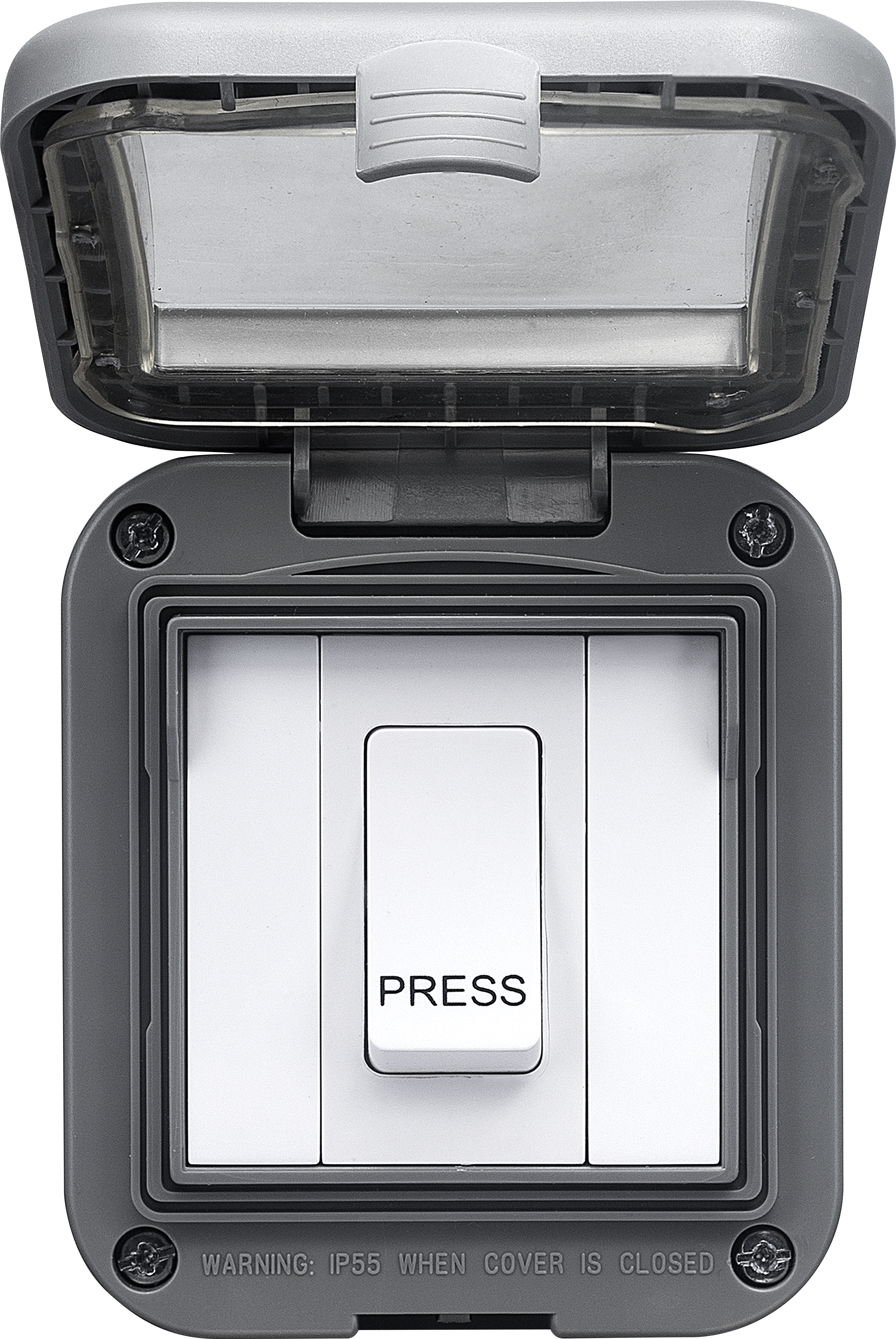

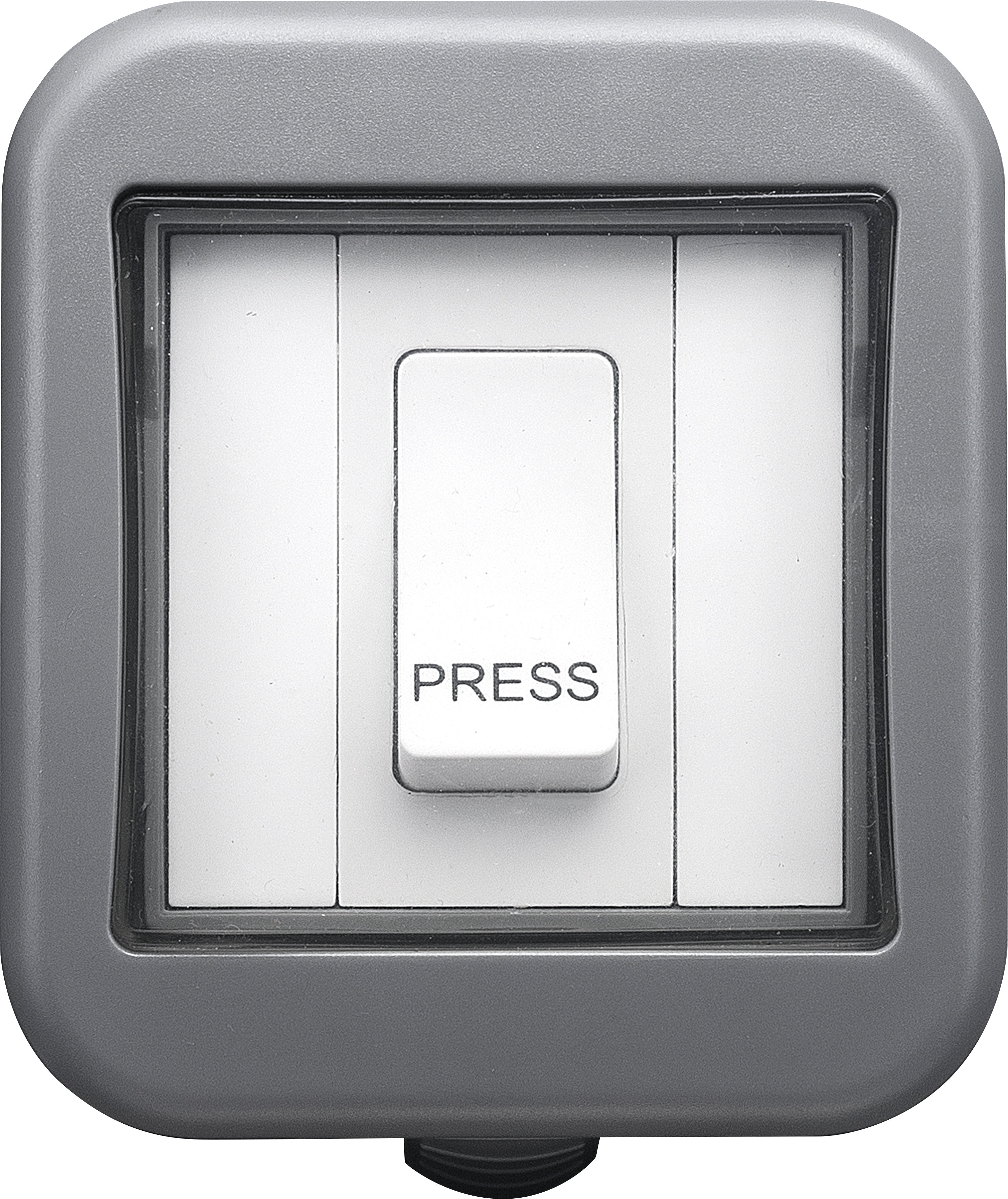

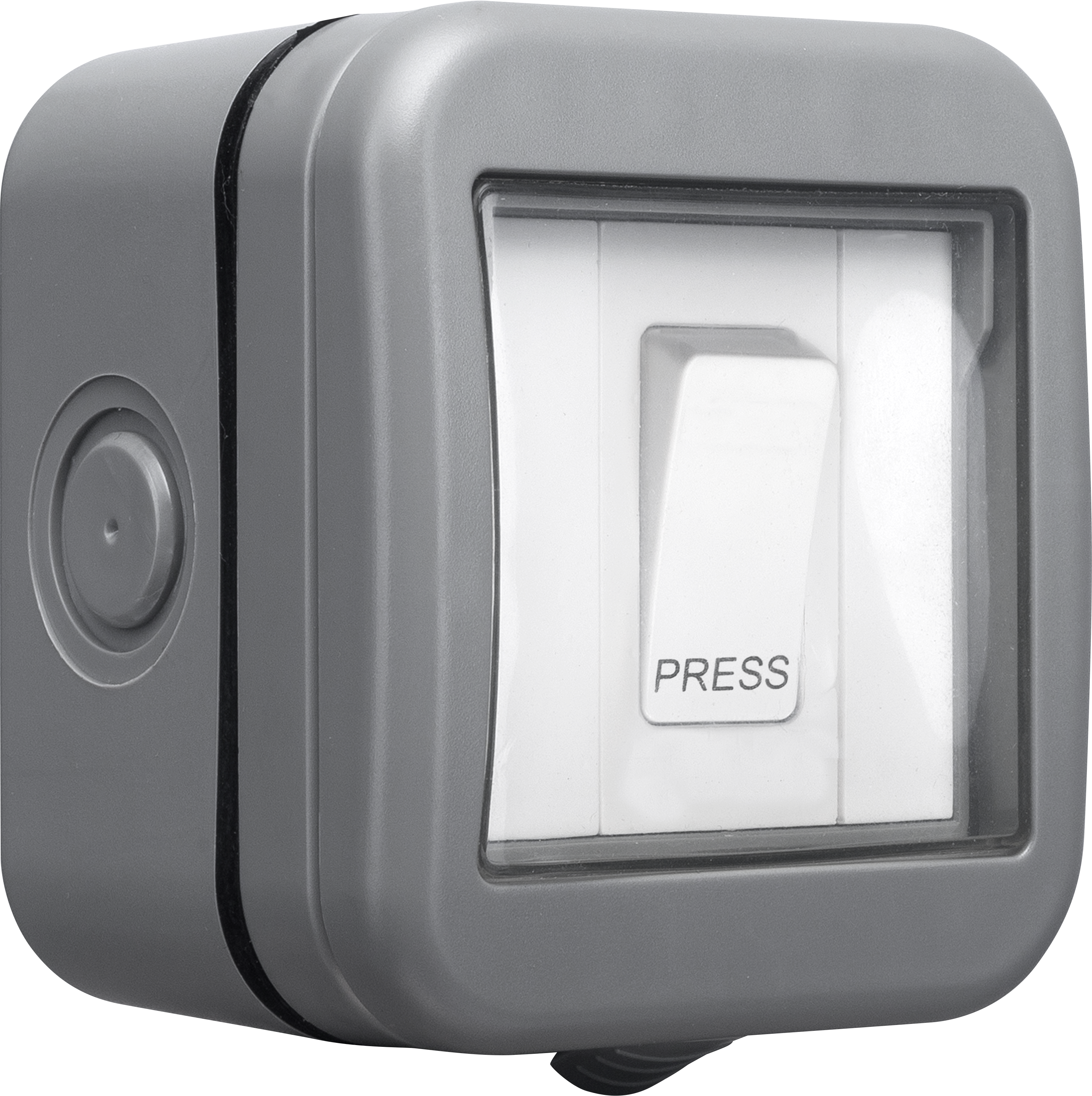

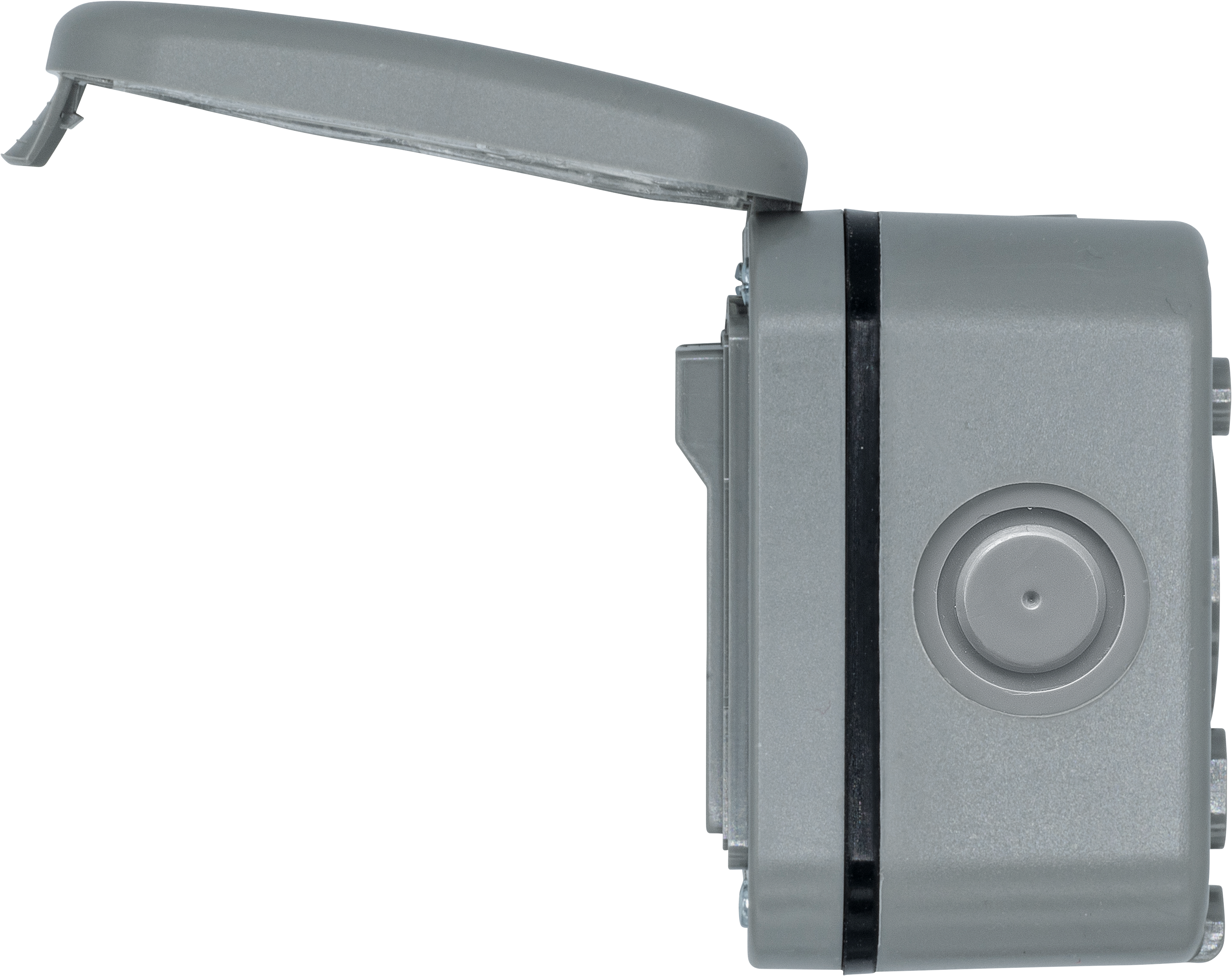

BG Weatherproof 10AX Bell Push Switch, IP55
10A Rated
Easy to install, supplied with fixing screws and installation instructions
1 way retractive switch with 'press' printed on the switch
IP55 rated with the cover closed
4 x M20 cut-outs(1 each side), 1 x M25 cut-out on rear with sealant ring
Suitable for installation in outdoor locations, garages and sheds
Fixing centres with horizontal and vertical adjustment
Clearly marked terminals with backed out captive screws for easy installation
| General Colour | Grey |
| Captive Terminal Screws | No |
| Backed-out Terminal Screws | No |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (mm²) | 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | Yes |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | One Way |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-44 x H-44 |
| IP Rating | IP55 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
