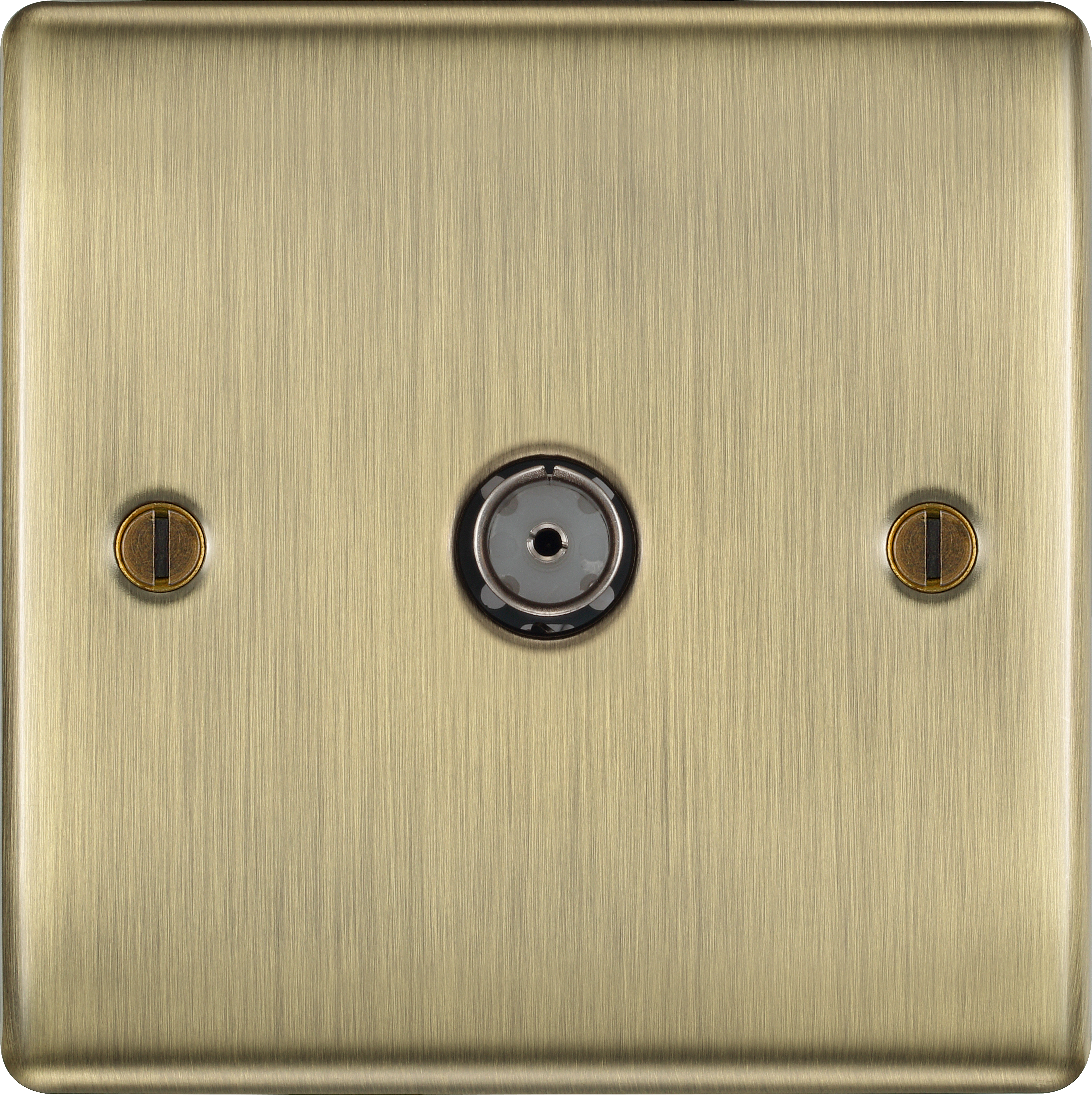

NAB60-01
Single, co-axial

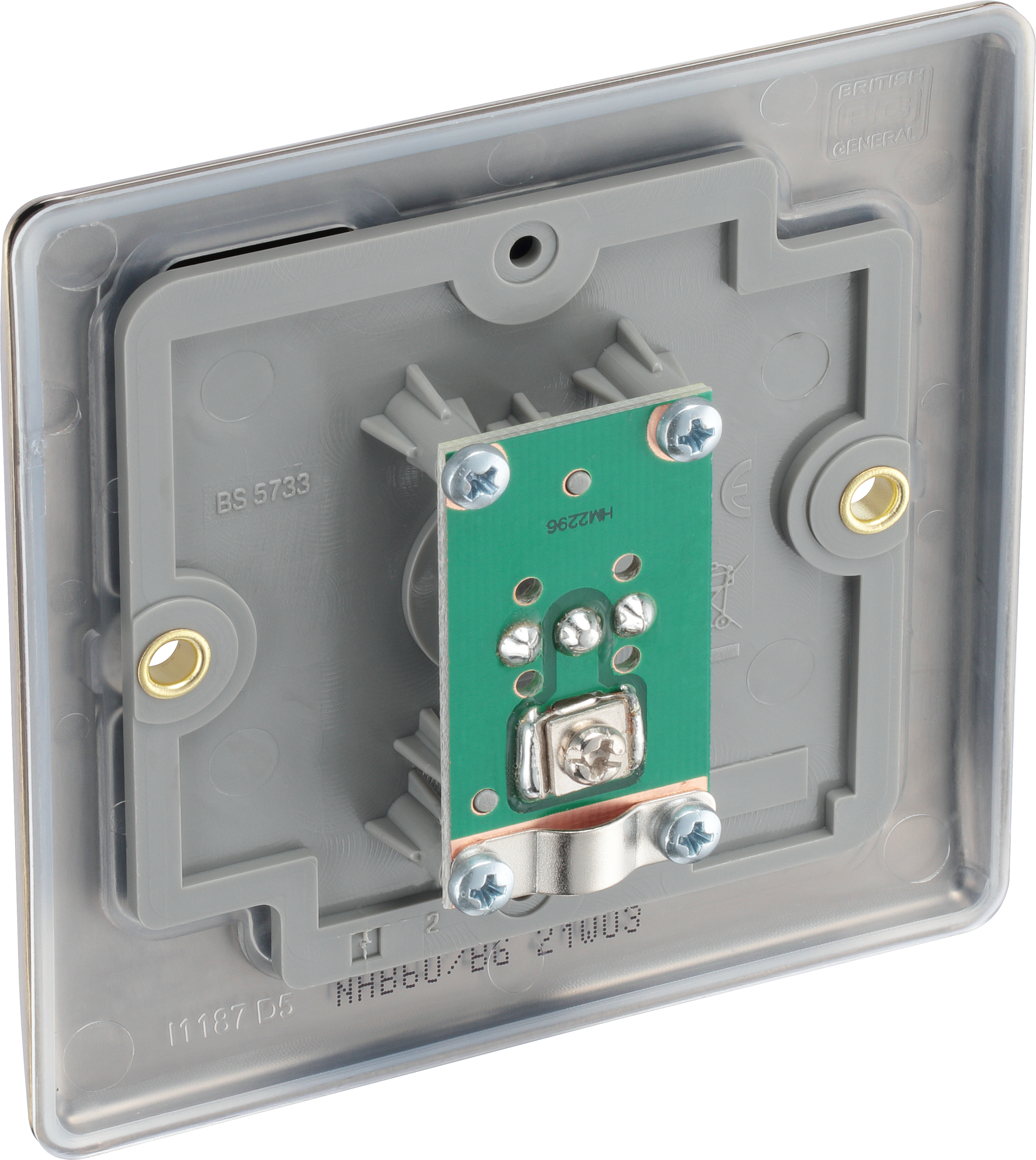

Screw terminals
Easy to install, supplied with fixing screws and installation instructions
Used for TV or FM coaxial aerial connection

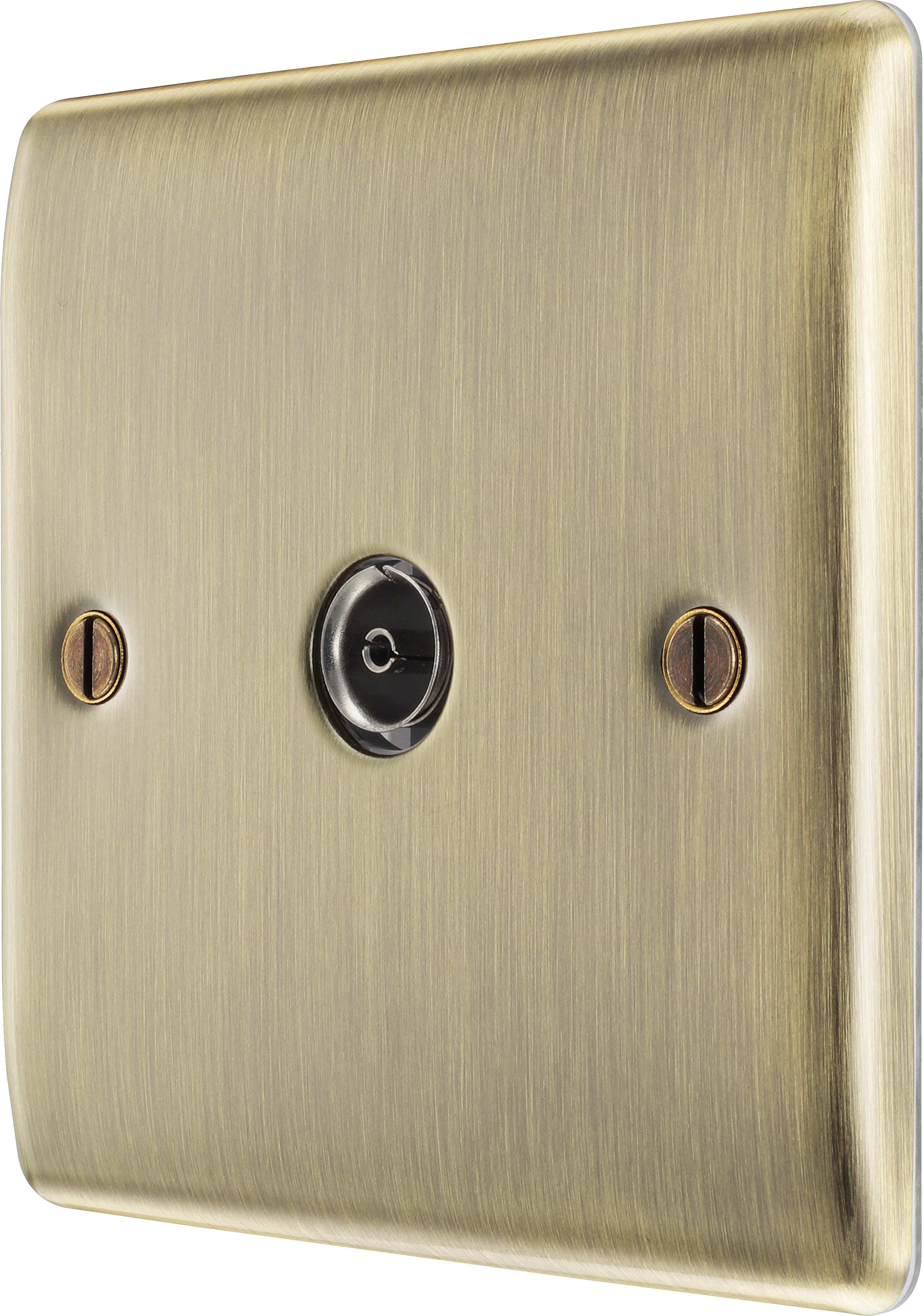

Sleek and slim premium metal with softly rounded edges
Moisture control gasket, prevents tarnishing from new plaster
Minimum mounting box depth 25mm
Certified to BS3041 and BS5733
BG Electrical are confident in the quality of our workmanship and materials, the guarantee stated applies from the date of delivery. Please see our terms and conditions for more details
Dimensions
| Unpacked Height (mm) | 86 |
| Unpacked Width (mm) | 86 |
| Unpacked Depth (mm) | 20 |
| Minimum Box Depth (mm) | 25 |
| Front Plate Material Thickness (mm) | 0.8 |
| Front Plate Height (mm) | 6.9 |
Pack
| Packed Width (mm) | 120 |
| Packed Depth (mm) | 27 |
| Packed Height (mm) | 153 |
| Packed Gross Weight (kg) | 0.106 |
| Package Pack Type | Eco Blister |
| Package Hanging | Yes |
| Package EAN | 5050765044448 |
Case Inner
| Unpacked Height (mm) | 86 |
| Unpacked Width (mm) | 86 |
| Unpacked Depth (mm) | 20 |
| Minimum Box Depth (mm) | 25 |
| Front Plate Material Thickness (mm) | 0.8 |
| Front Plate Height (mm) | 6.9 |
Case Outer
| Packed Width (mm) | 120 |
| Packed Depth (mm) | 27 |
| Packed Height (mm) | 153 |
| Packed Gross Weight (kg) | 0.106 |
| Package Pack Type | Eco Blister |
| Package Hanging | Yes |
| Package EAN | 5050765044448 |
Container
| Packed Width (mm) | 120 |
| Packed Depth (mm) | 27 |
| Packed Height (mm) | 153 |
| Packed Gross Weight (kg) | 0.106 |
| Package Pack Type | Eco Blister |
| Package Hanging | Yes |
| Package EAN | 5050765044448 |
