NBS13-01
BG Nexus Metal Brushed Steel, 20A 16AX Intermediate Switch
20A 16AX Rated
Easy to install, supplied with fixing screws and installation instructions
Intermediate switch allows for more than 2 switches in a circuit
Captive, backed out terminal screws for fast installation and to prevent screw loss

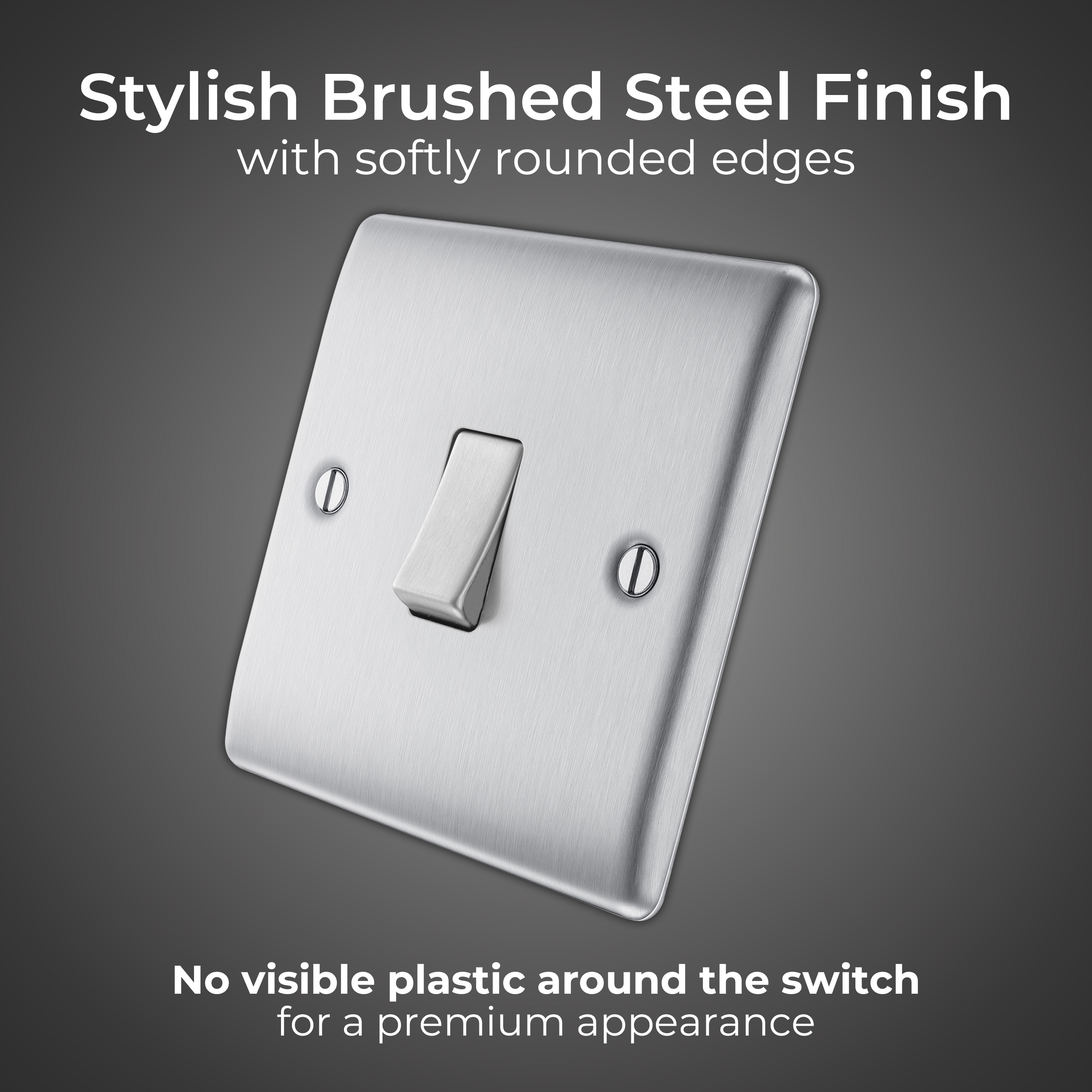

Sleek and slim premium metal with softly rounded edges
No visible plastic around switch
Moisture control gasket, prevents tarnishing from new plaster

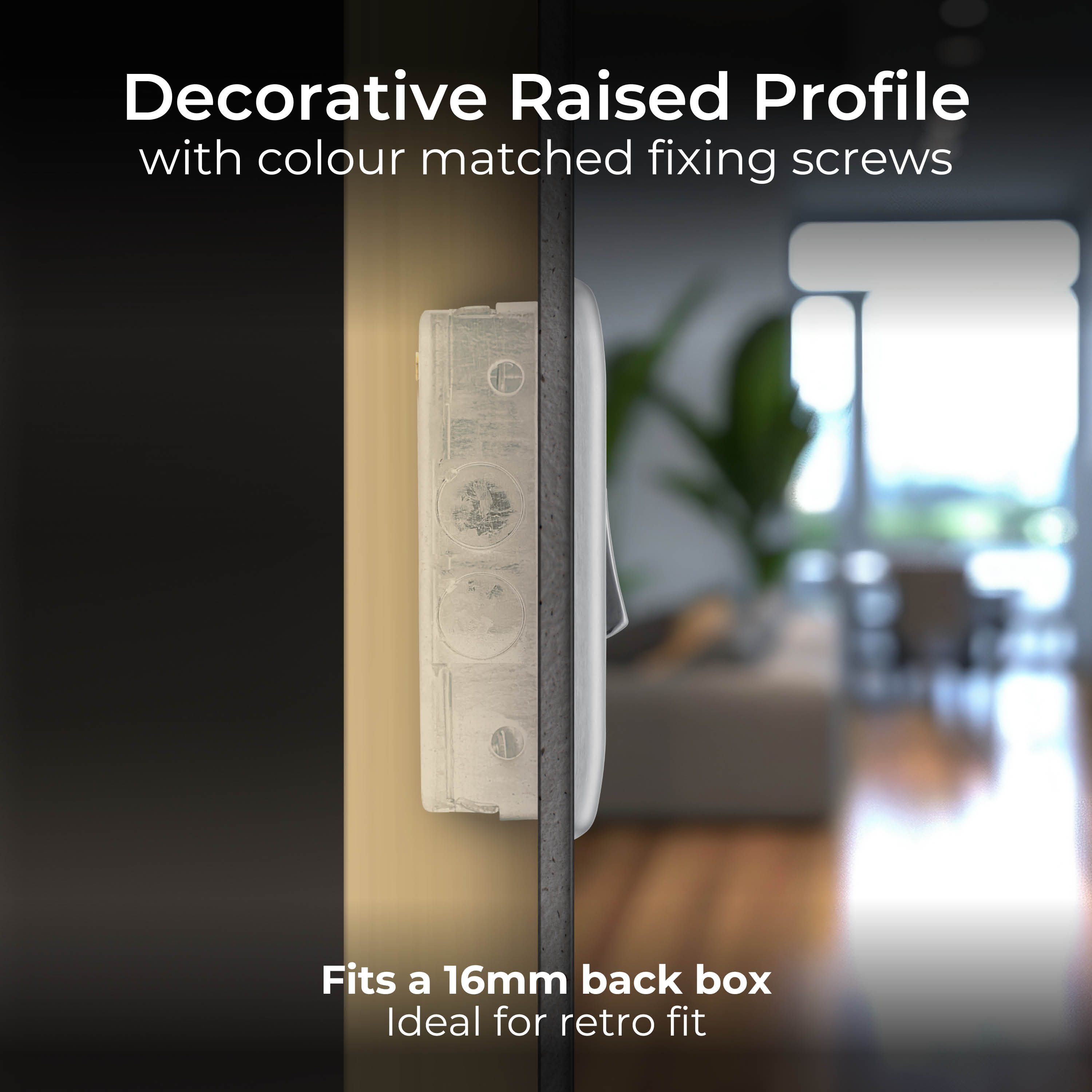

Minimum mounting box depth 16mm
Certified to BS60669-1
Certified to BS60669-1
| General Colour | Brushed Steel |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 16 |
| Terminal Capacity (mm²) | 2 x 2.5mm², 4 x 1.0mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | Yes |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Intermediate |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
