NBS15-01

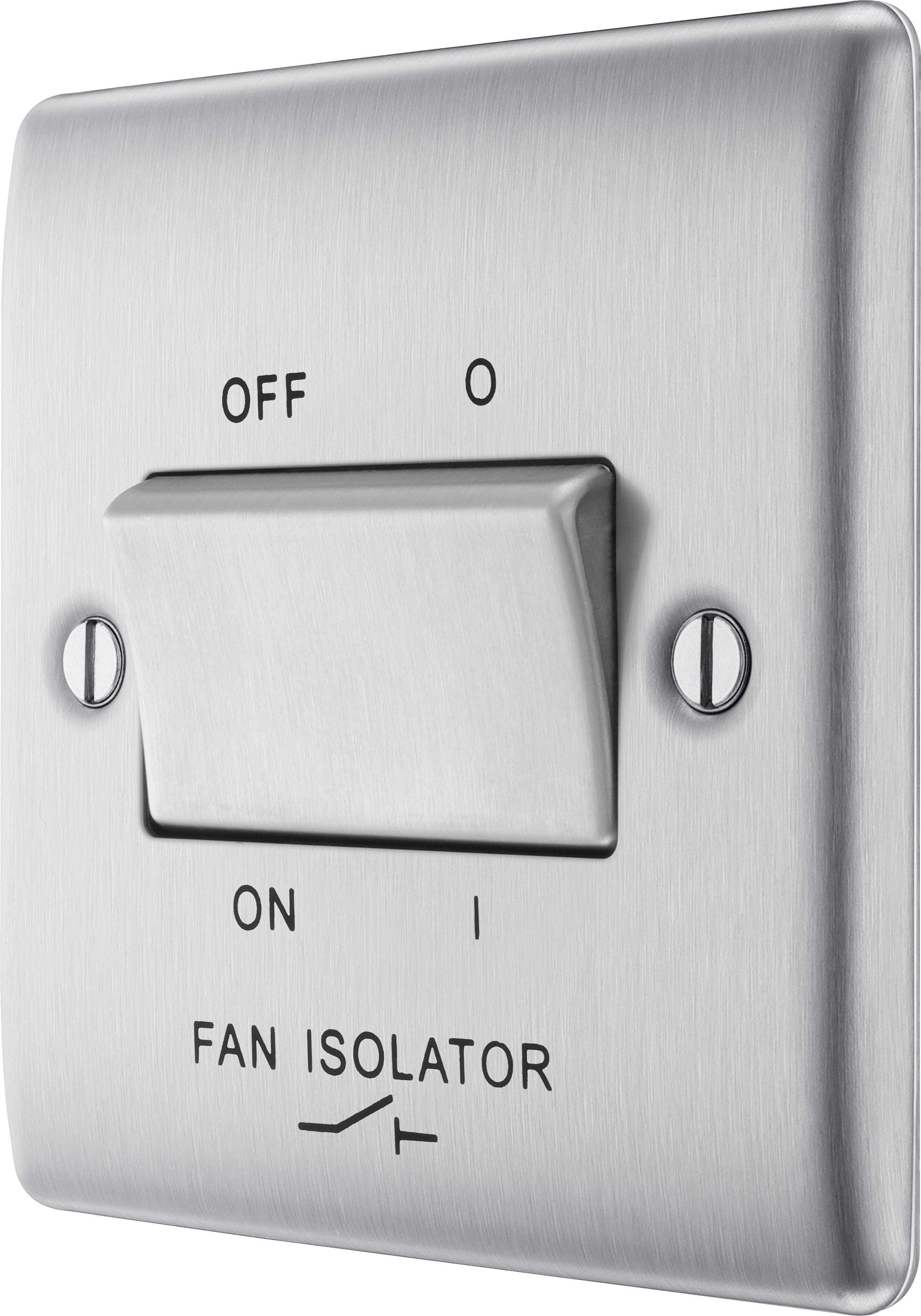

BG Nexus Metal Brushed Steel, 10AX Triple Pole Fan Isolator Switch
10A Rated
Easy to install, supplied with fixing screws and installation instructions
Triple pole switching design however can be used for double pole applications if required
Captive, backed out terminal screws for fast installation and to prevent screw loss
Sleek and slim premium metal with softly rounded edges
No visible plastic around switch
Moisture control gasket, prevents tarnishing from new plaster
Minimum mounting box depth 25mm
Certified to BS60669-1
Certified to BS60669-1
| General Colour | Brushed Steel |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | Yes |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | 3 Pole |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
