MC529-01

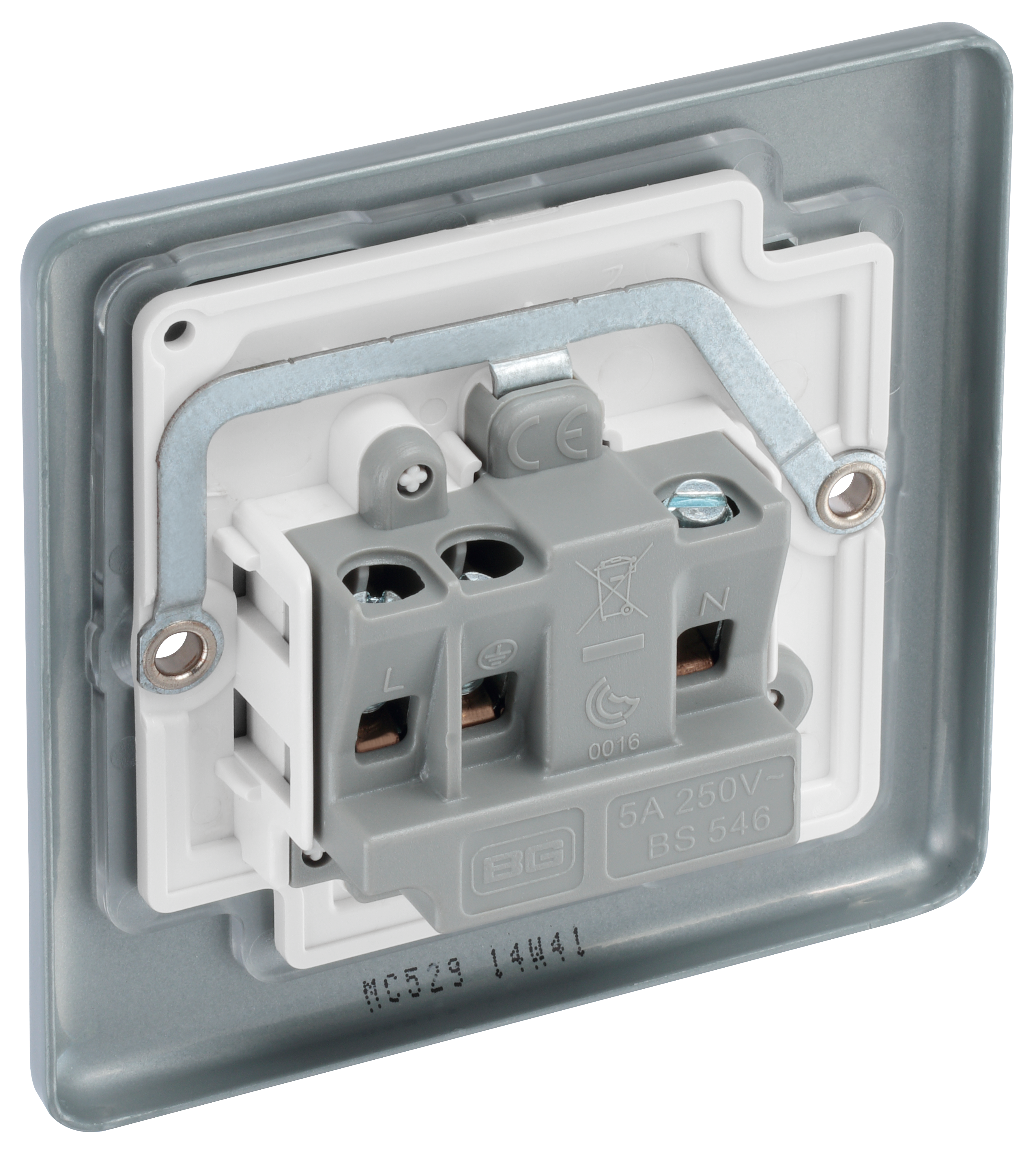

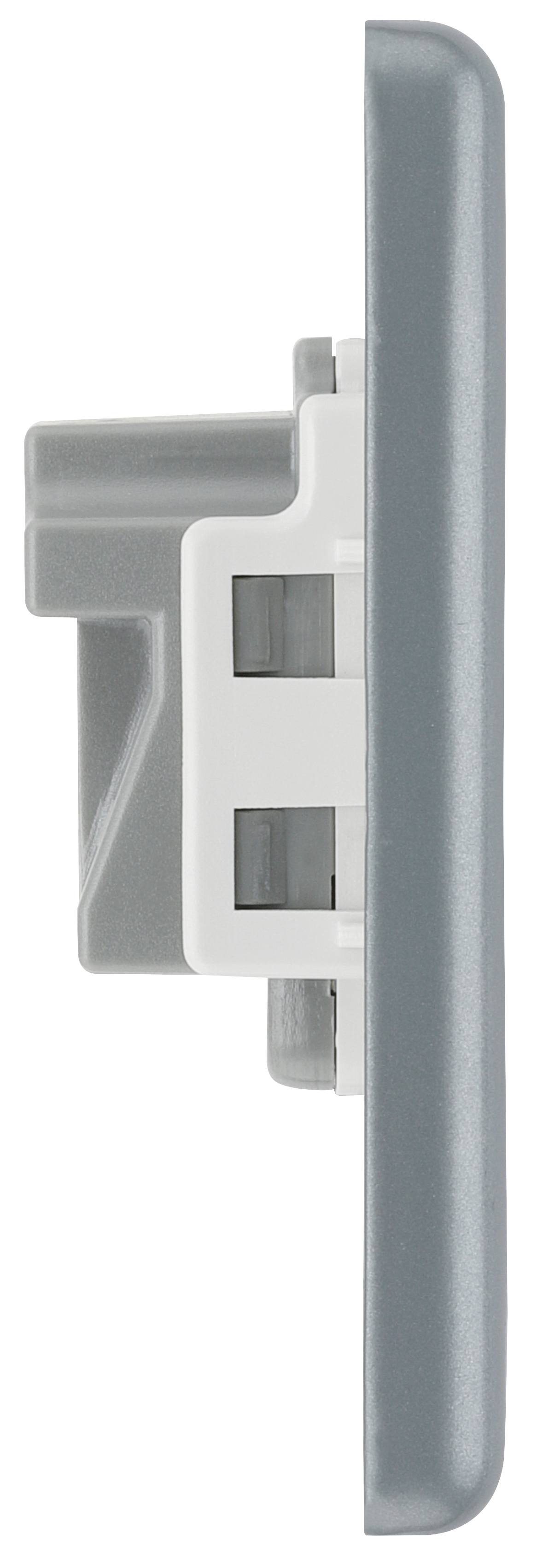

BG Metal Clad 5A Single Round Pin Unswitched Socket
5A Rated
Easy to install, supplied with fixing screws and installation instructions
A rugged, scratch resistant range, suitable for everyday use in commercial and industrial environments
Manufactured in heavy gauge steel for extra safety and finished with epoxy powder coating for added scratch resistance
Mounting box with 1 x 20mm knockout in each side, top face and rear face & 2 x 20mm knockouts in bottom face.
Earth terminal in mounting box
5 Amp unswitched socket
Captive screws prevent screw loss
Certified to BS 546
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 1 x 2.5mm² |
| Front Plate Insert Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 1 |
| Terminal Arrangement | Angled-in line terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 1 |
| Socket Type | D-3P 5A Round Pin India 220-240V 5A |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 X H-44.5 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
