MC543-01

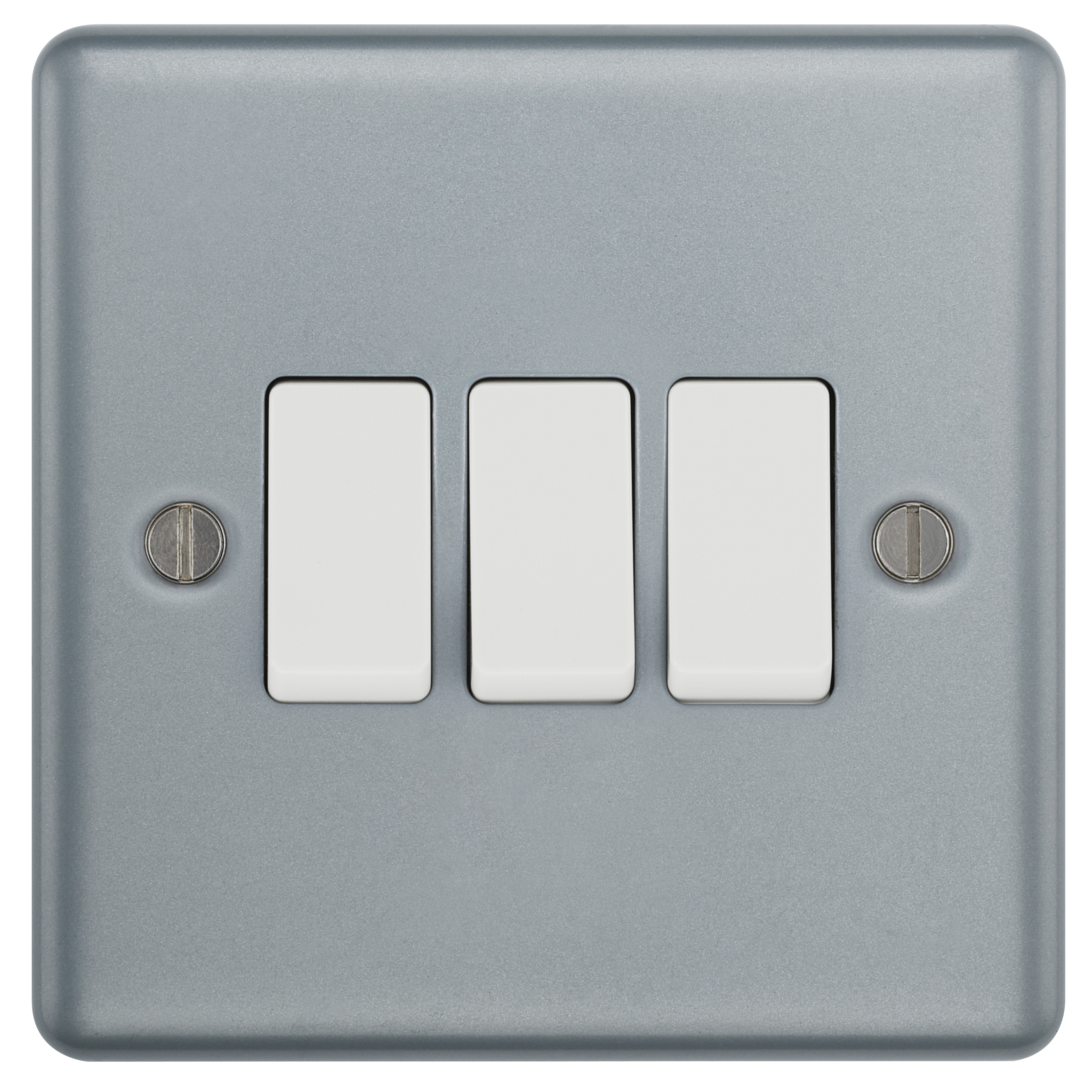

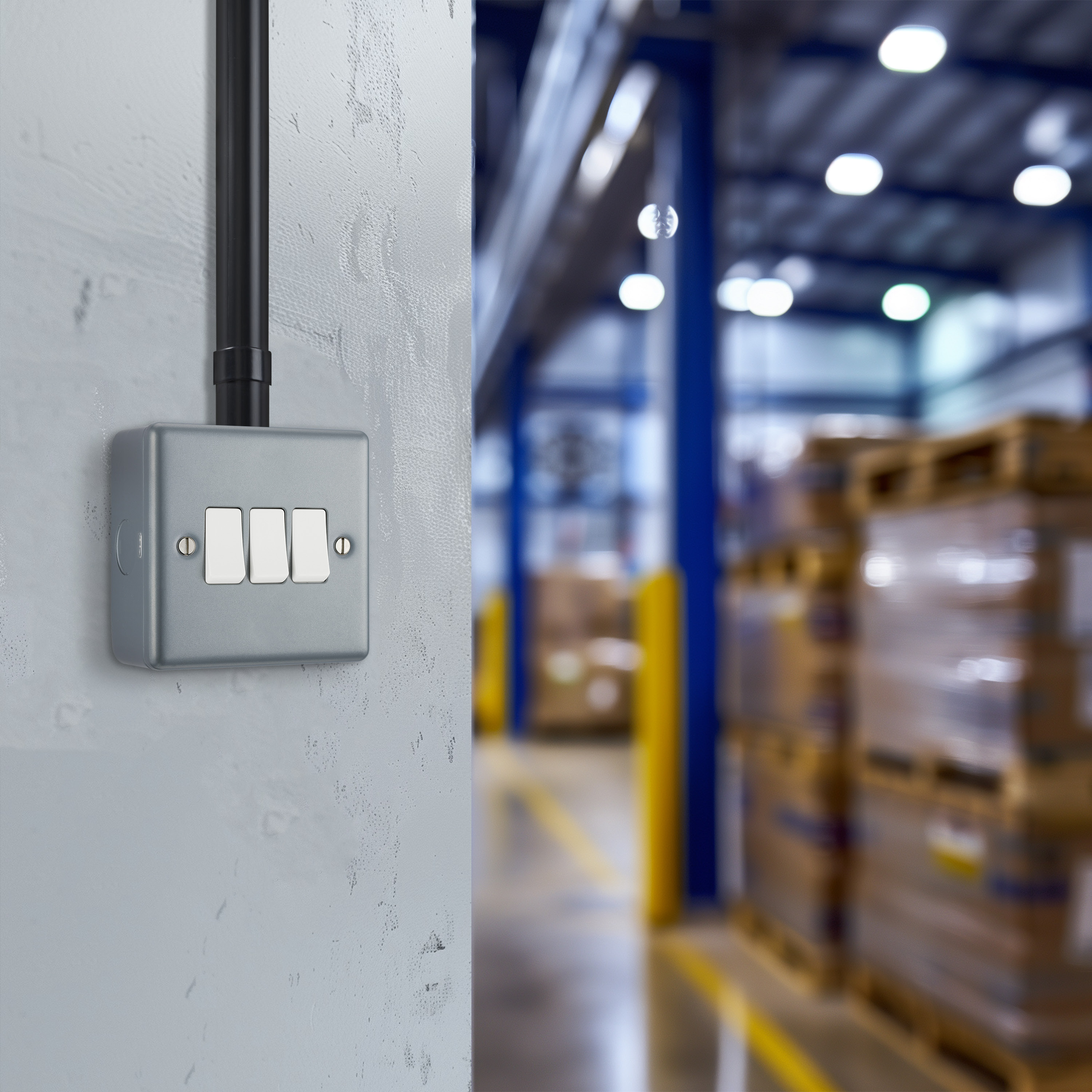

BG Metal Clad 20A 16AX Triple Switch, 2 Way
20A 16AX Rated
Easy to install, supplied with fixing screws and installation instructions

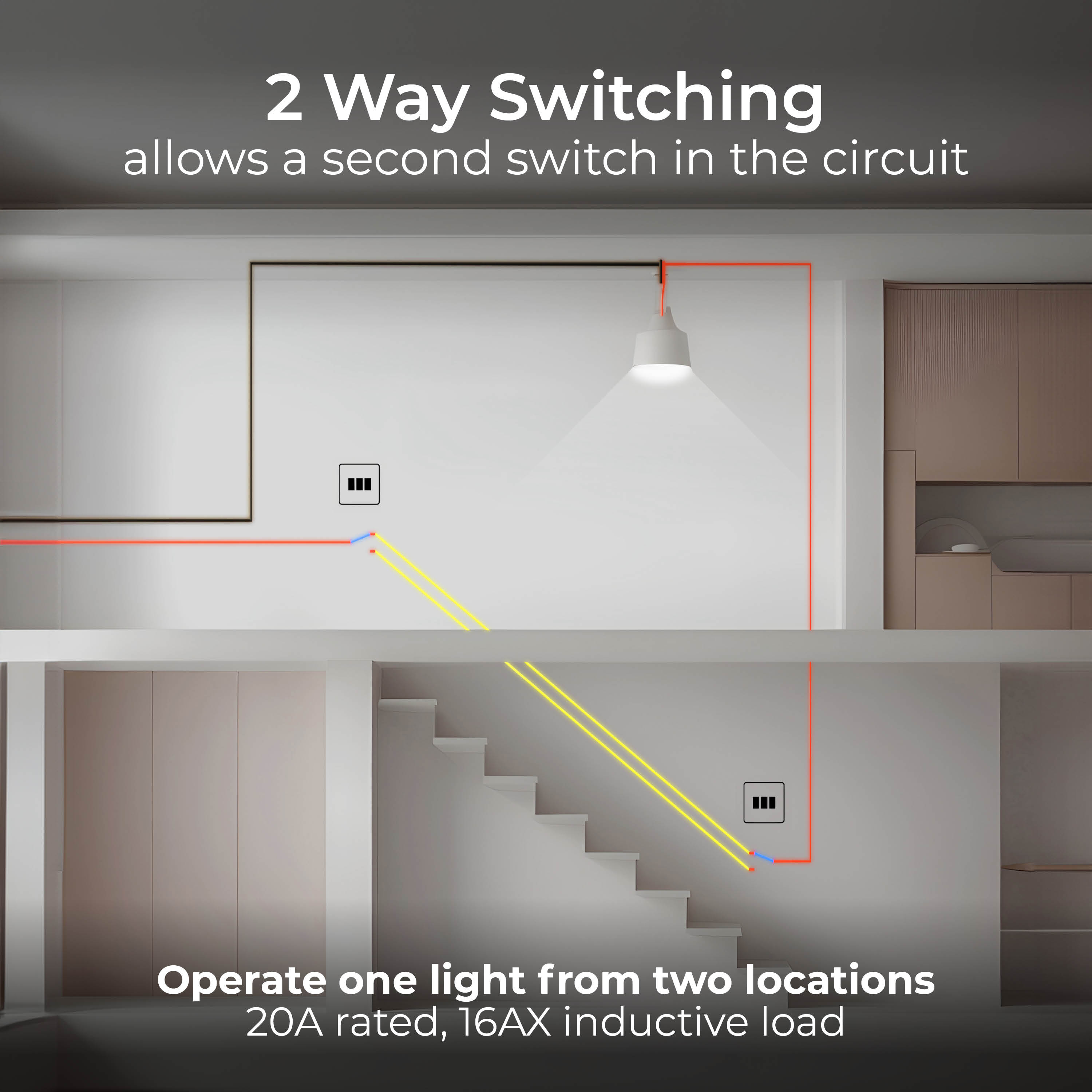

2 way switching allows for a second switch position in a circuit

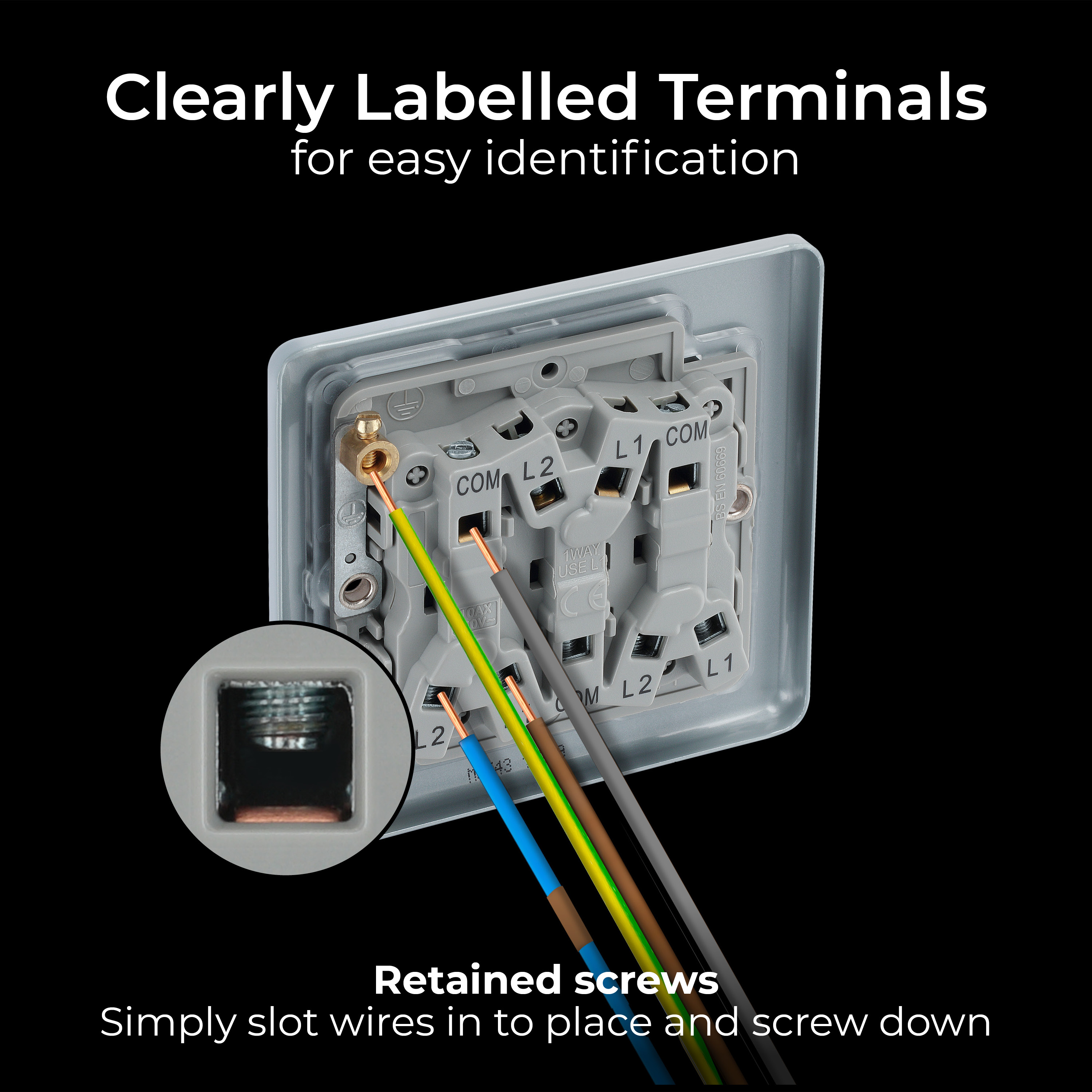

Captive, backed out terminal screws for fast installation and to prevent screw loss

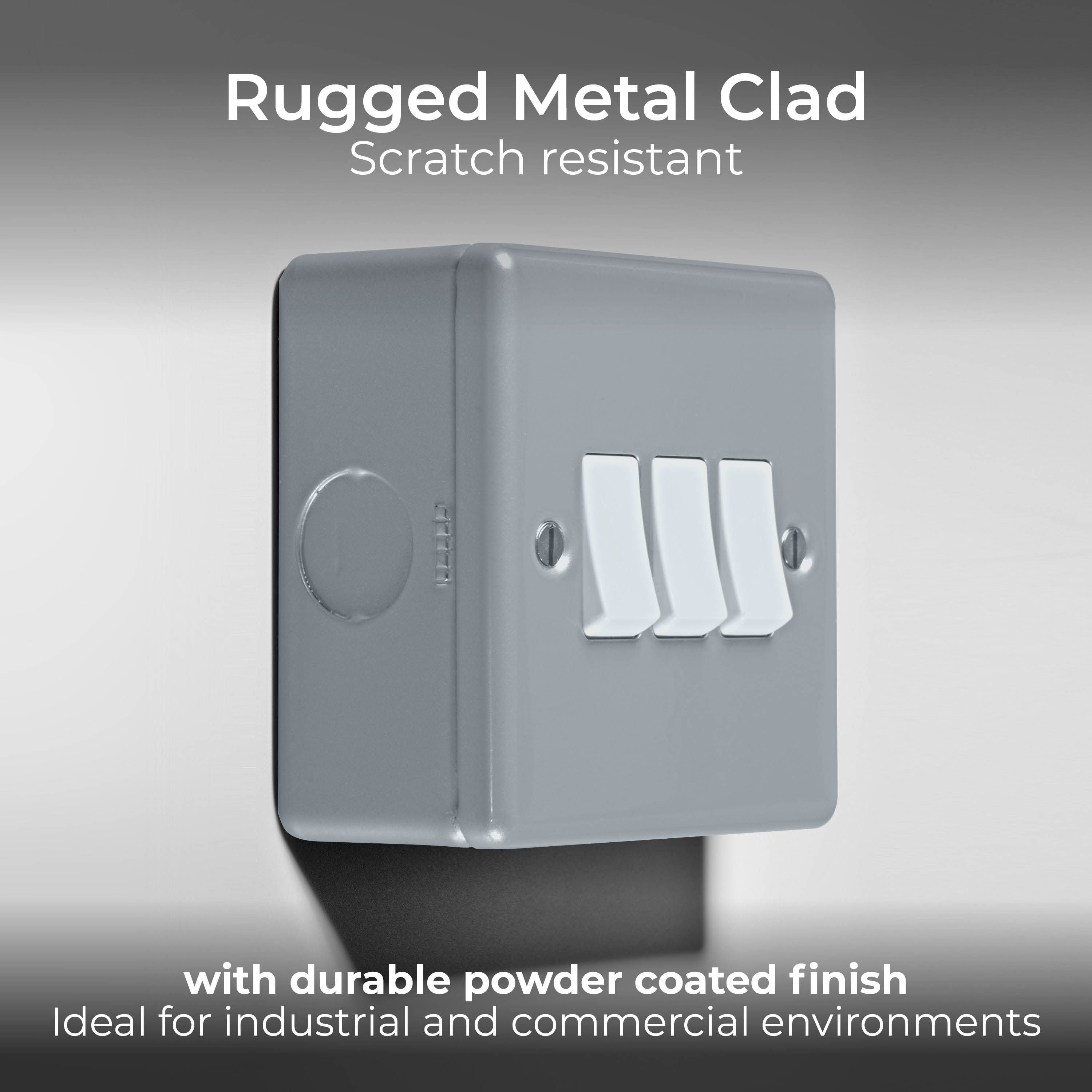

A rugged, scratch resistant range, suitable for everyday use in commercial and industrial environments

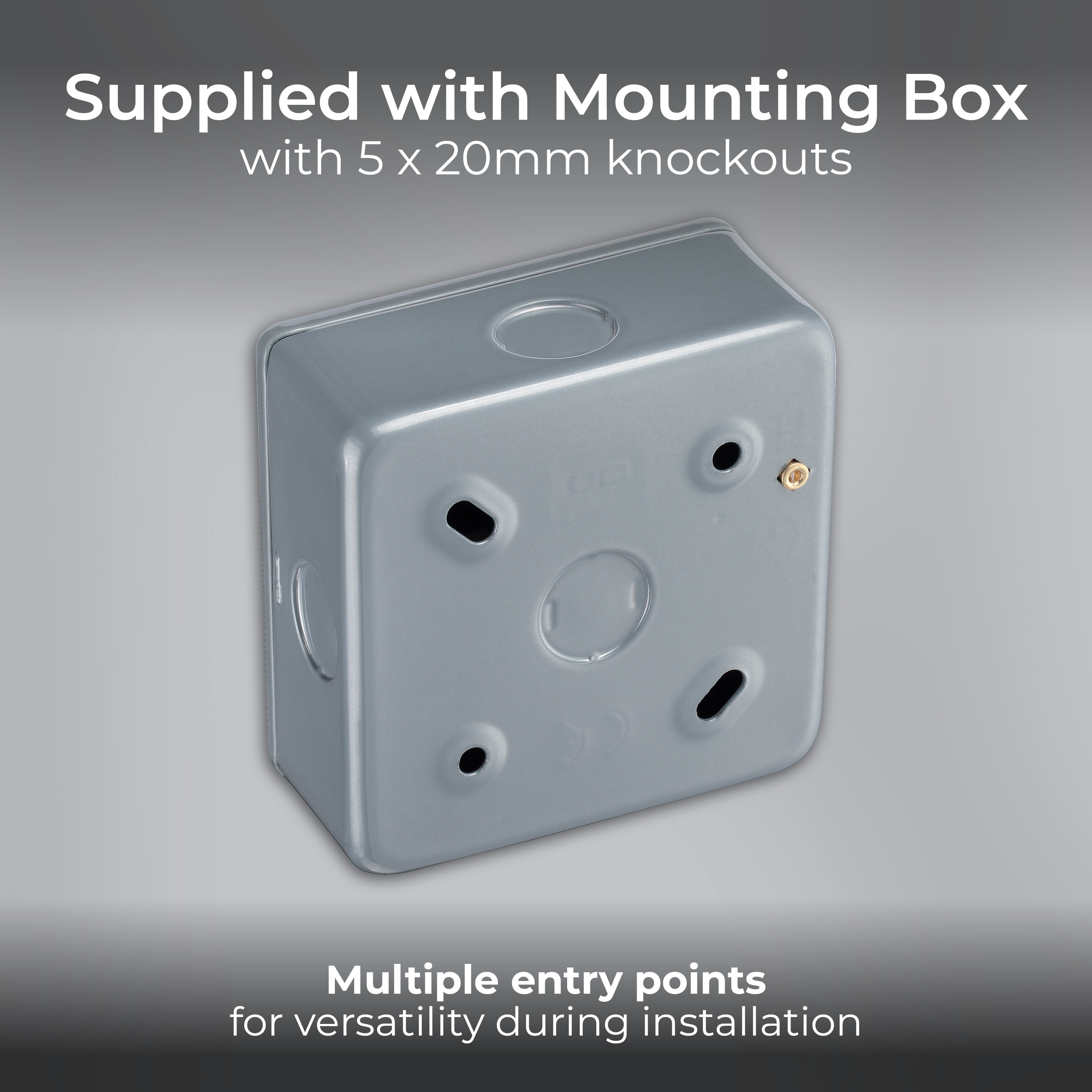

Mounting box with 1x 20mm knockouts in each side and rear face

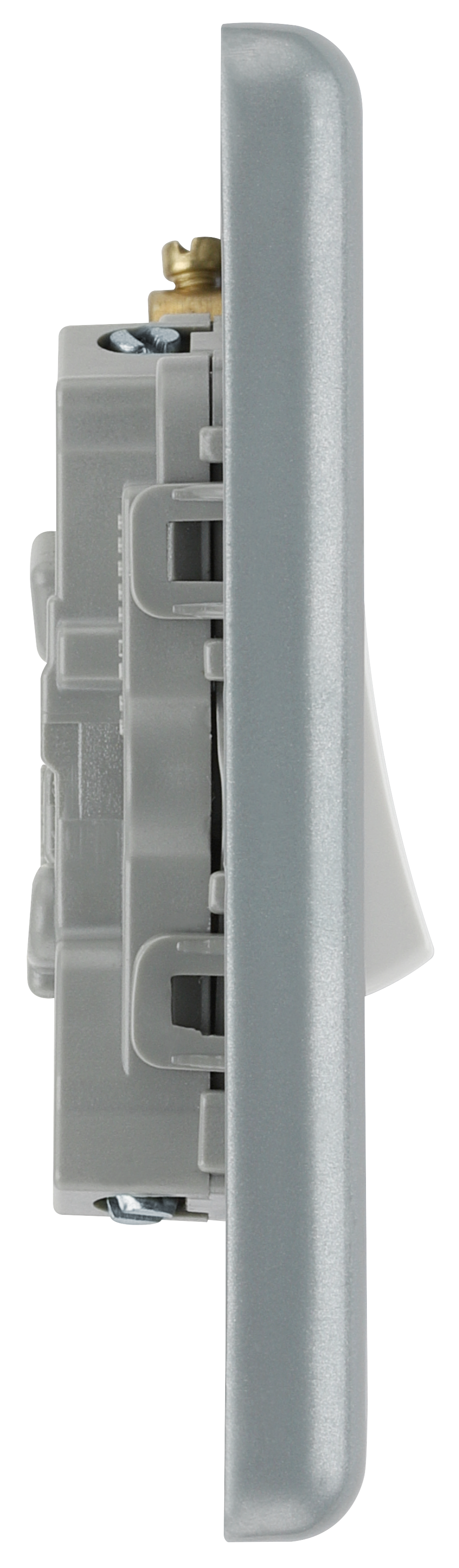

Flat profile with rounded edges
Certified to BS60669-1
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | N/A |

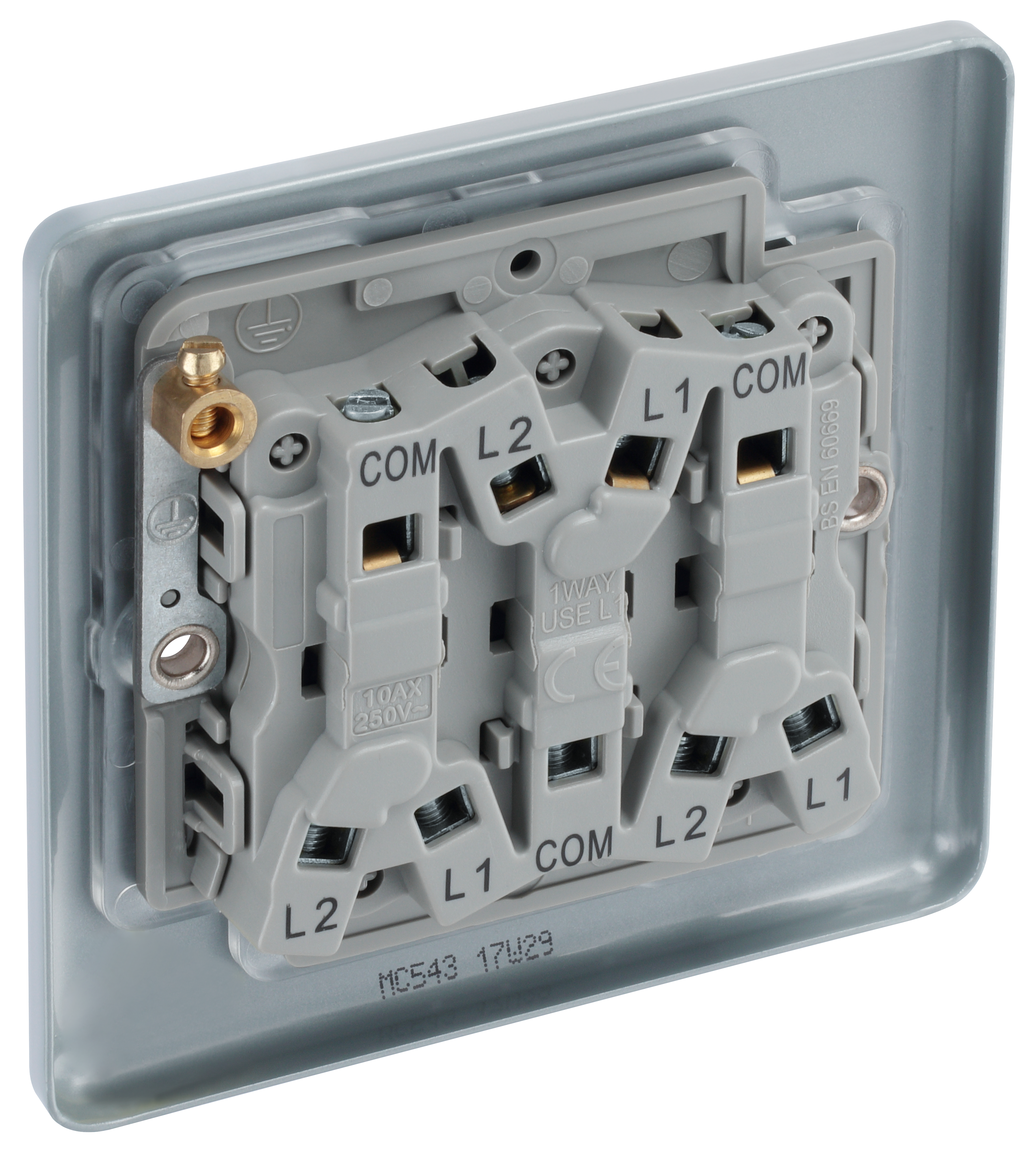

| Terminal Capacity (mm²) | 2 x 2.5mm², 4 x 1.0mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Switches | 3 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-44.5 X H-44.5 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
