RPCDB30-01

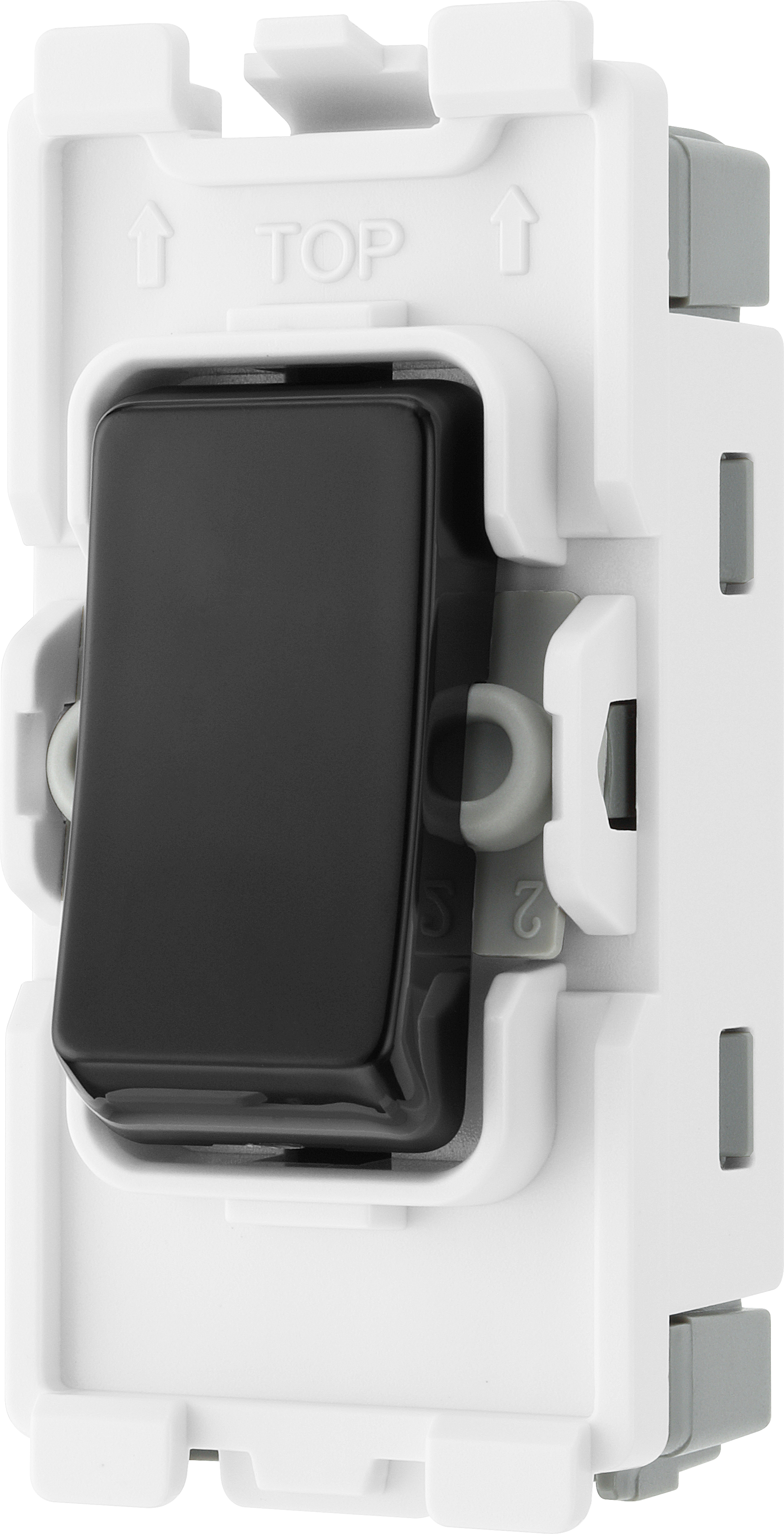

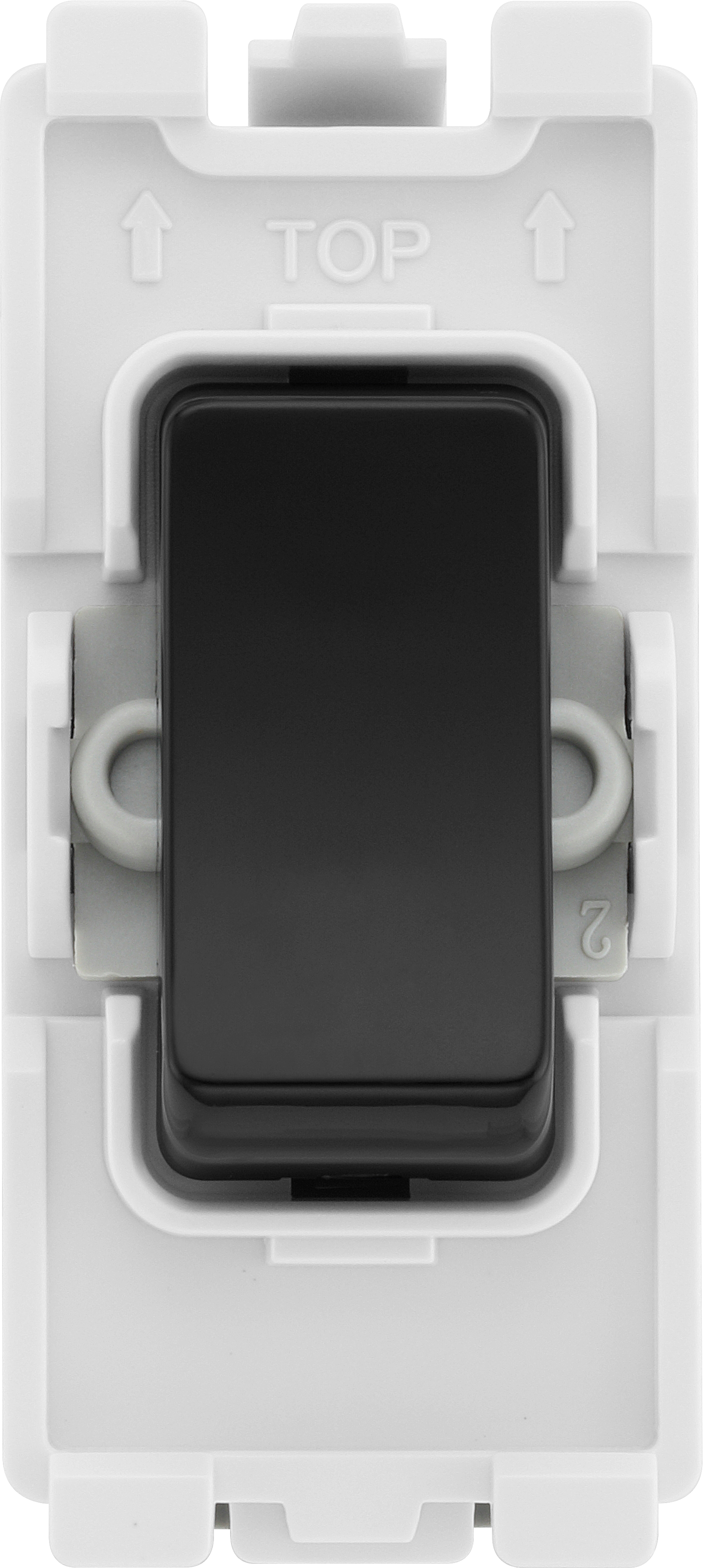

BG Grid 20A Switch Module, 2 Way, Double Pole, Evolve Black
Simple secure 'locate & clip' fitting to frame
Double Pole switching for the peace of mind of a safer installation
Captive backed out terminal screws for fast installation
Module to be installed with Grid frame and plate
Alternative printed rocker covers available
| General Colour | Black |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | N/A |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | N/A |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Double Pole |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
