RPCDB15-01

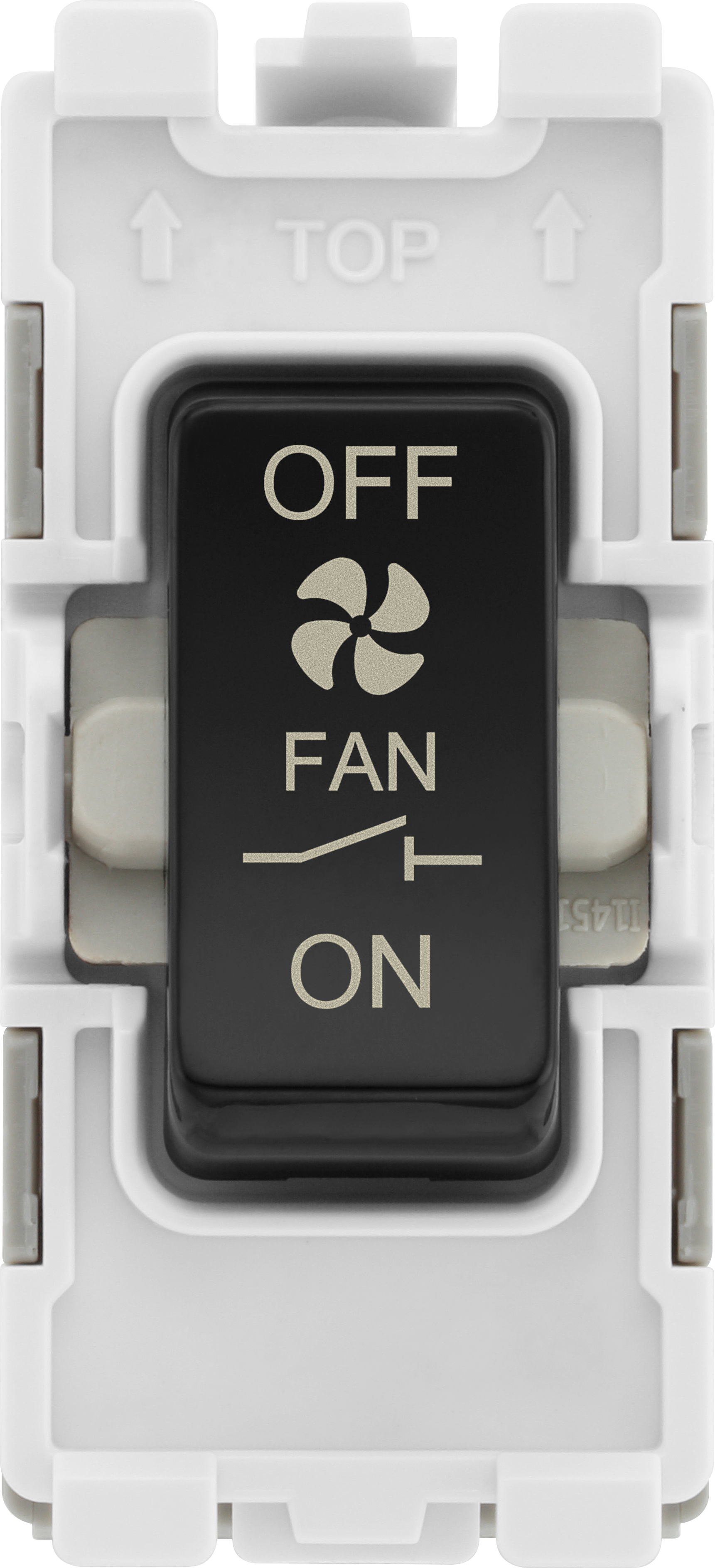

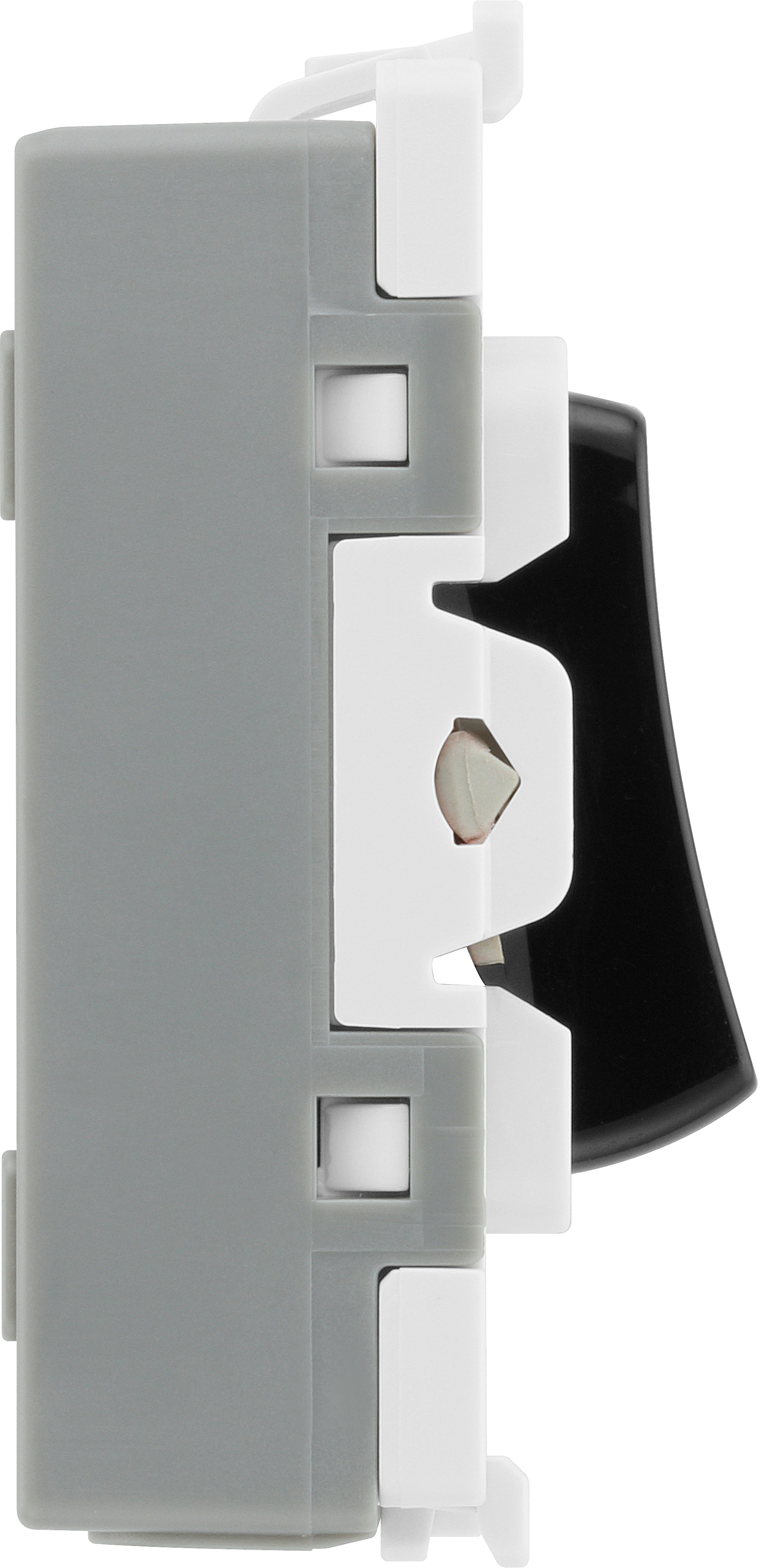

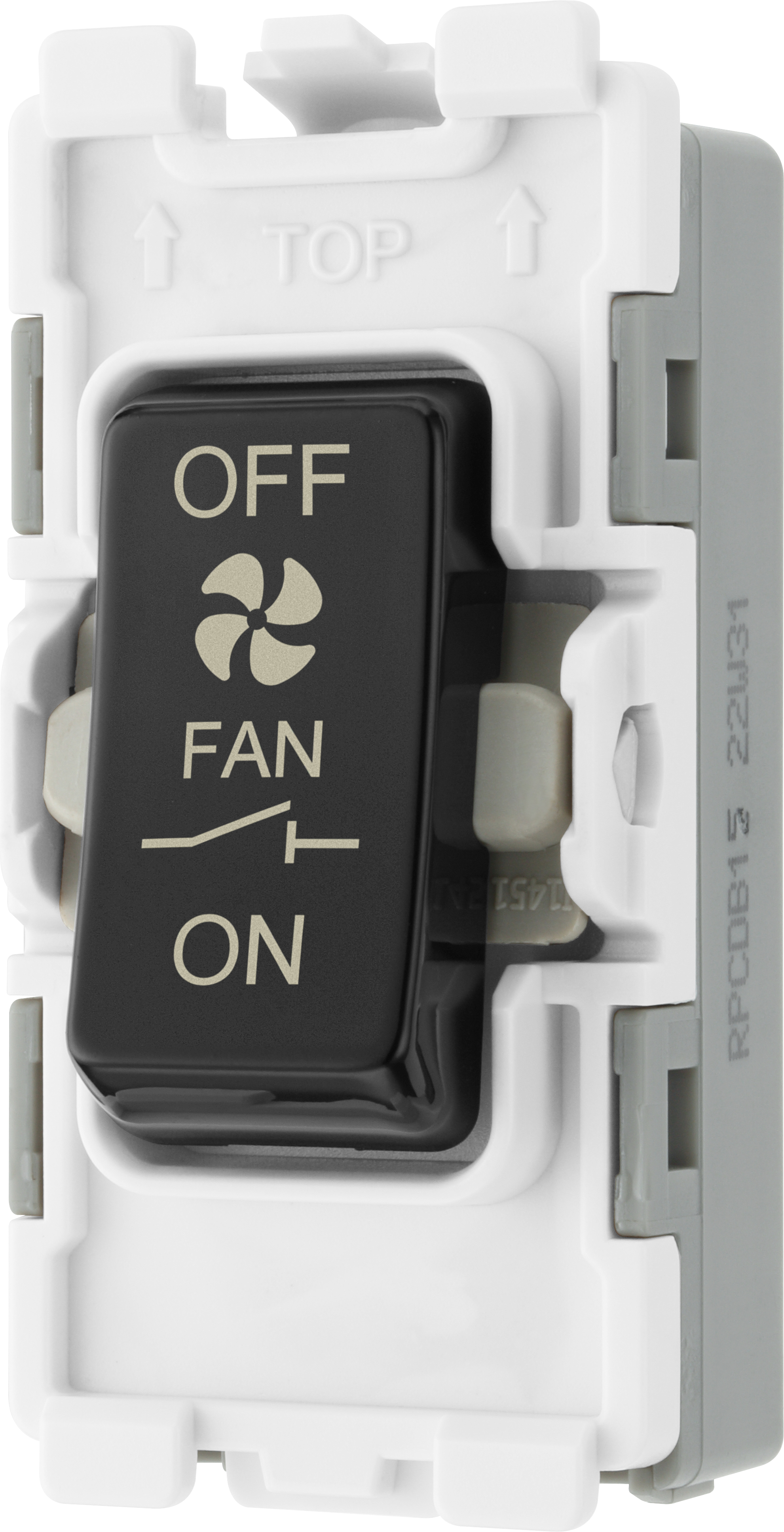

BG Grid 10A Fan Isolator Switch, Triple Pole, Evolve Black
Simple secure 'locate & clip' fitting to frame
Triple pole switching design, however can be used for double pole applications if required
Captive backed out terminal screws for fast installation
Module to be installed with Grid frame and plate
| General Colour | Black |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |

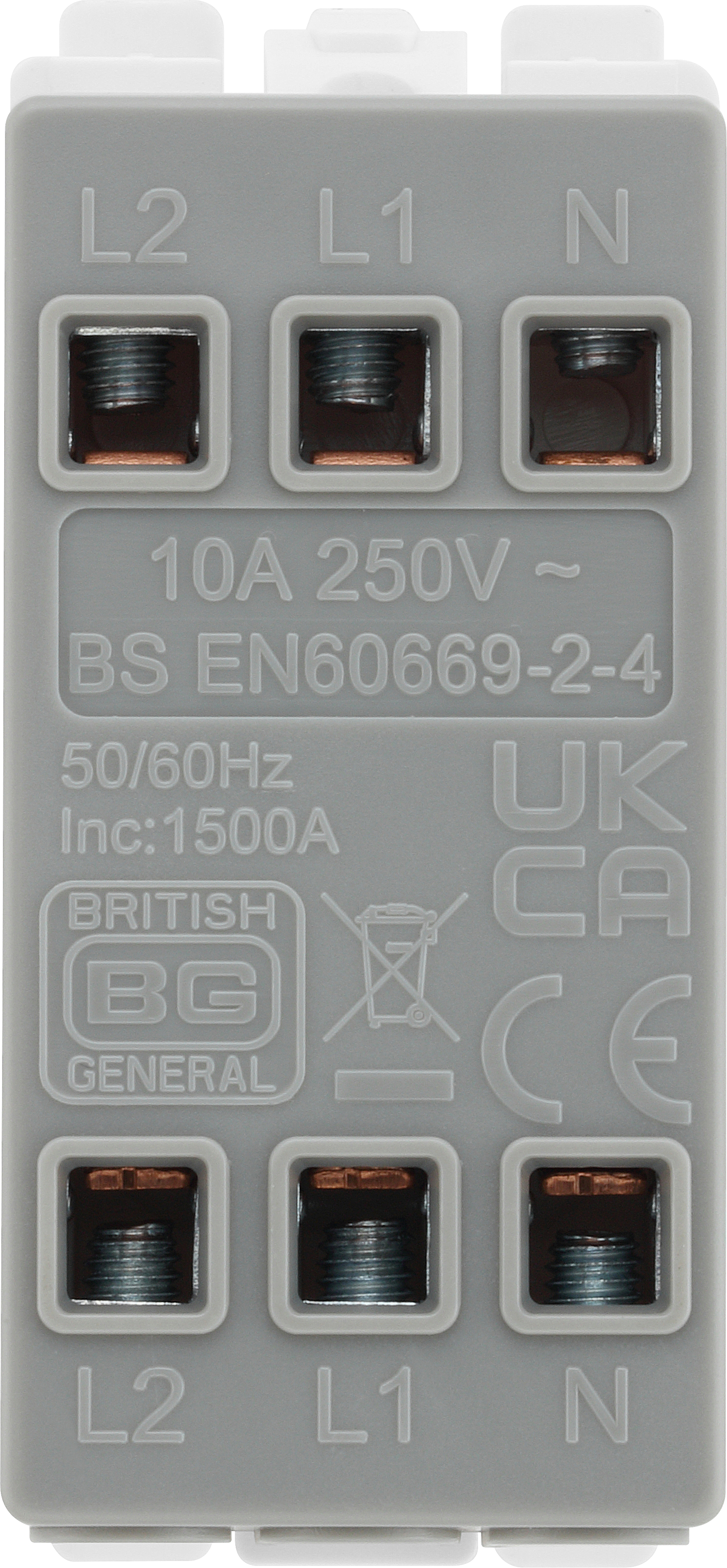

| Terminal Capacity (mm²) | 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | N/A |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | N/A |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | 3 Pole |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
