FBN74-01

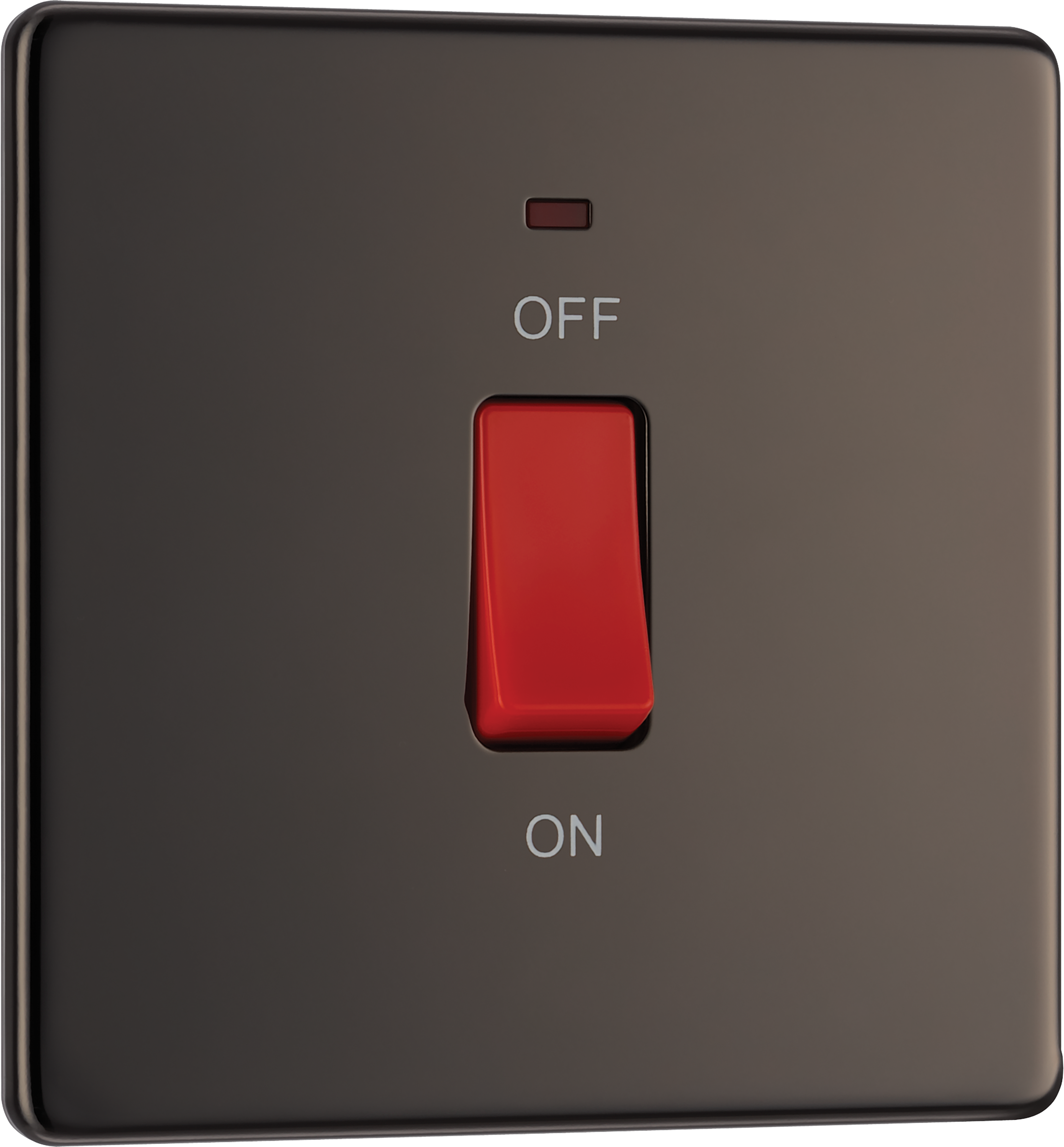

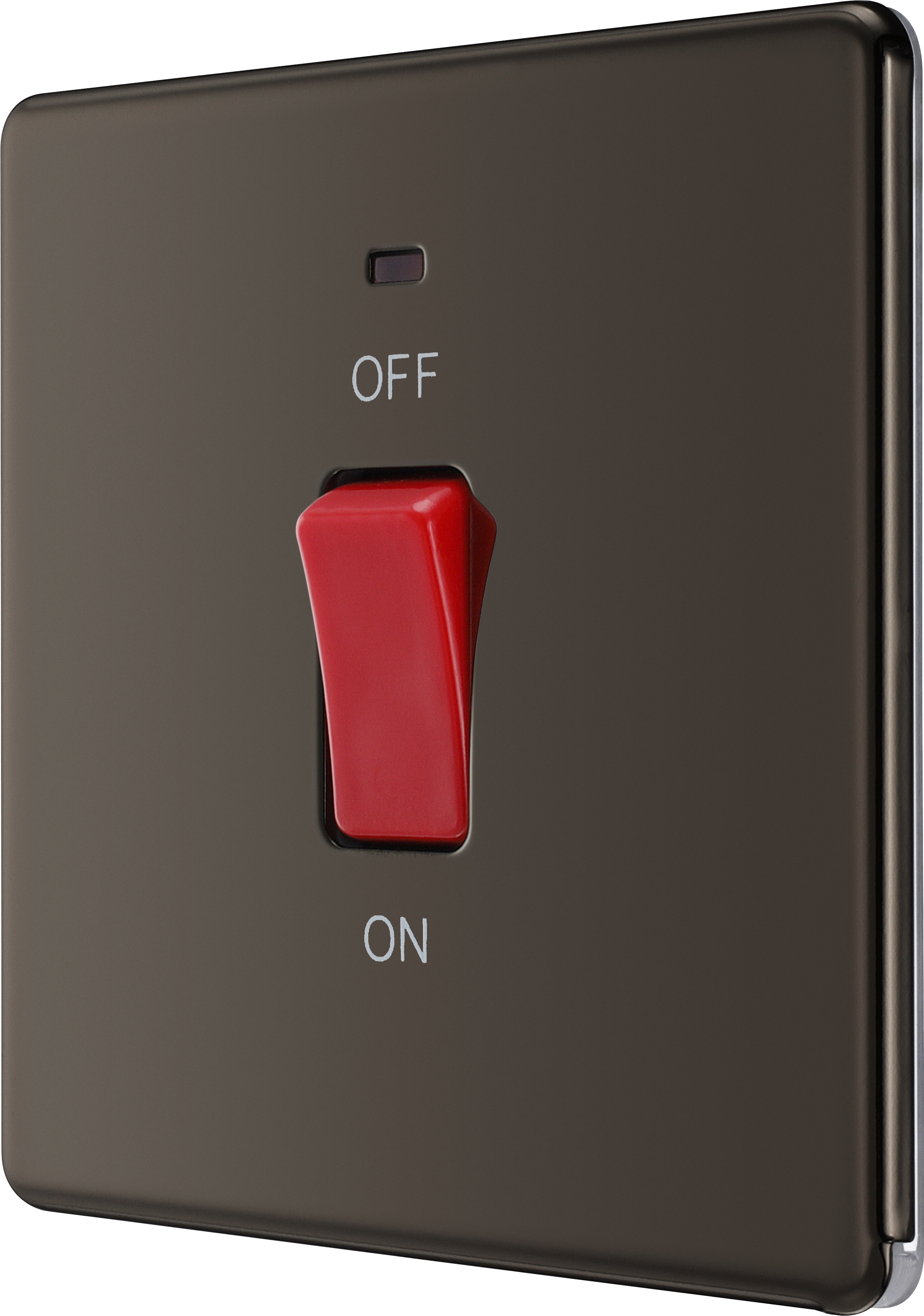

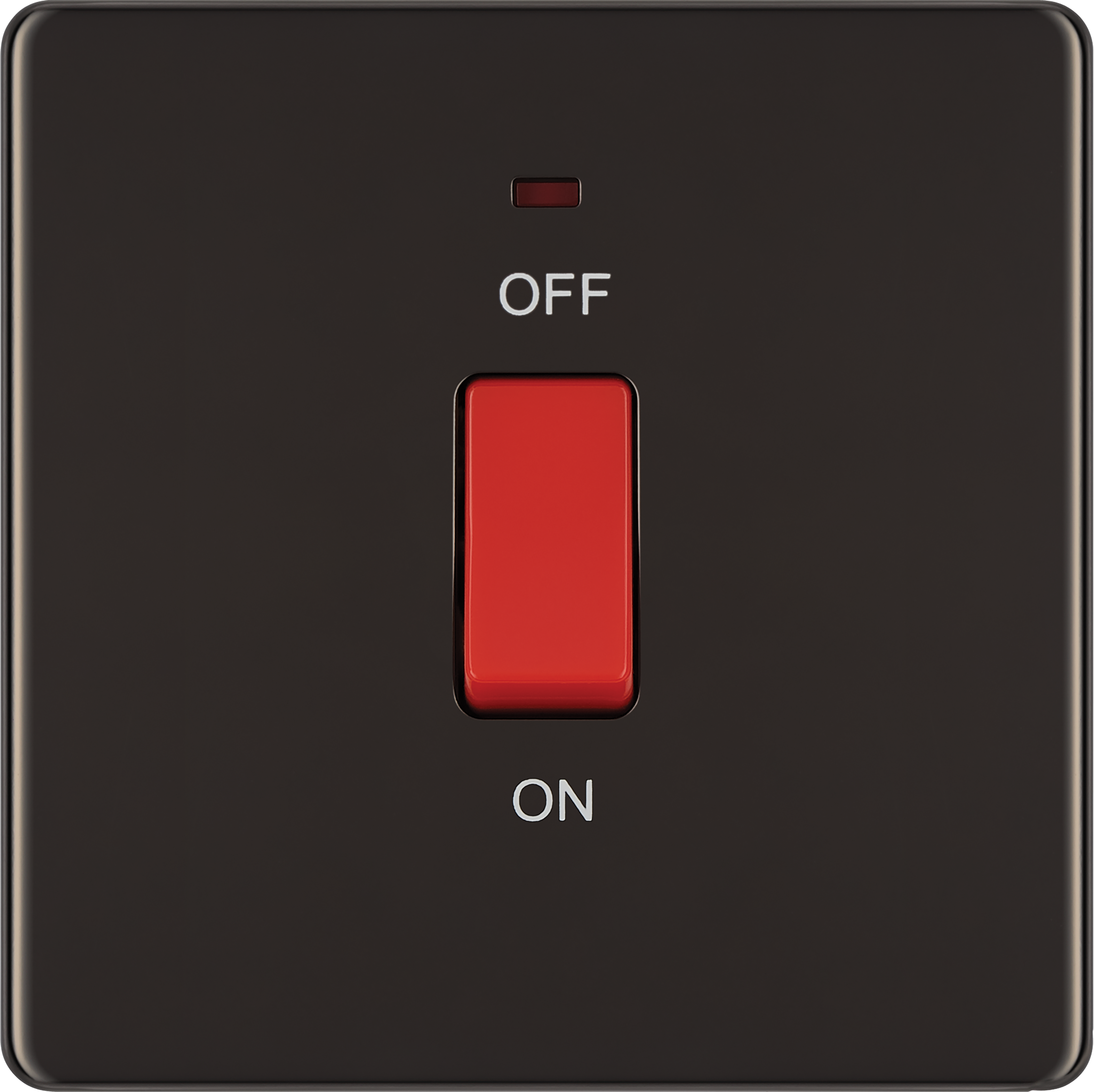

BG Screwless Flat plate Black Nickel, 45A Square Plate Double Pole Switch With LED Indicator
45A Rated
Easy to install supplied with fixing screws and installation instructions

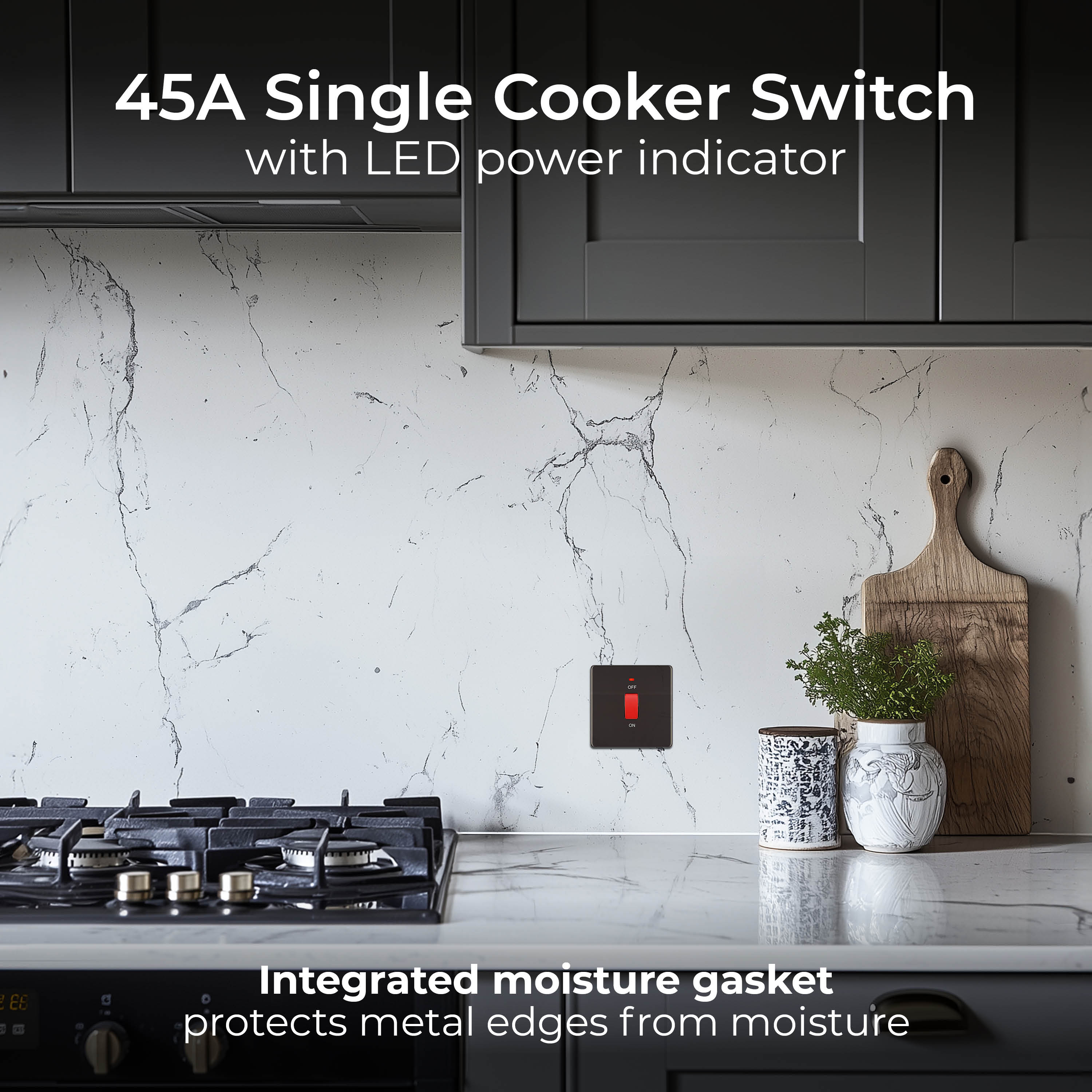

Ideal for cookers and ovens

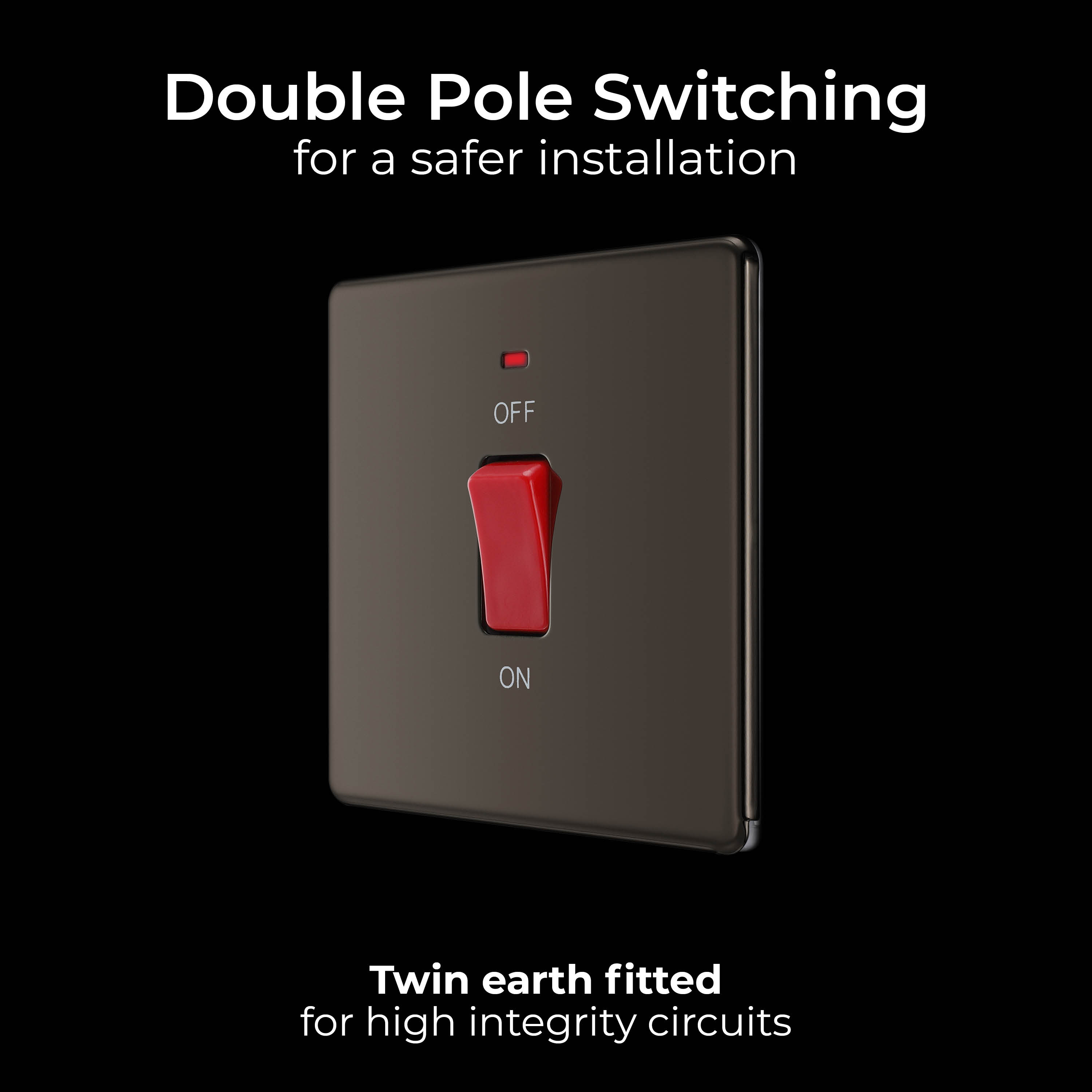

Double Pole switching for the peace of mind of a safer installation
Twin earth fitted as standard for high integrity circuits
Captive screws prevent screw loss
Flush power indicator

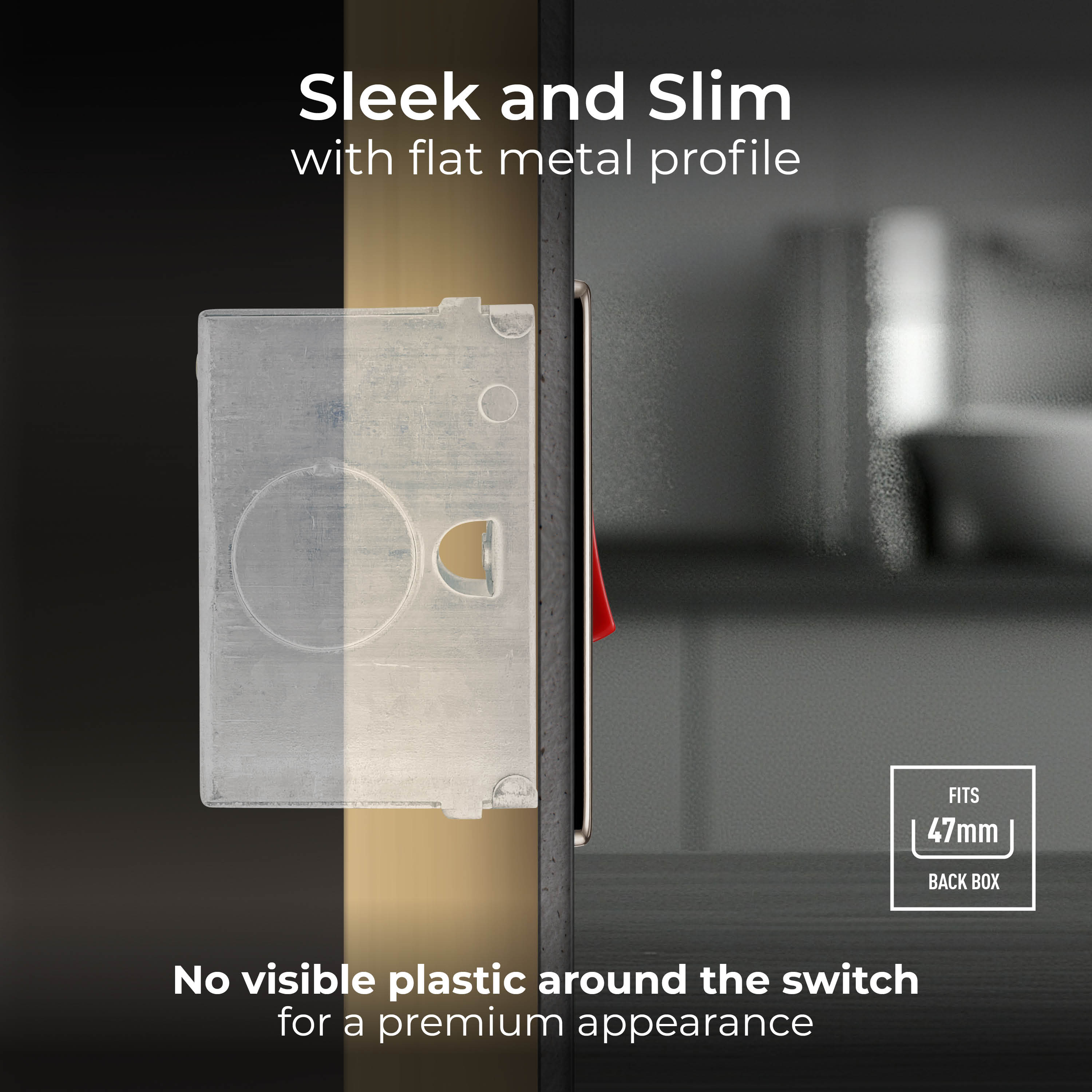

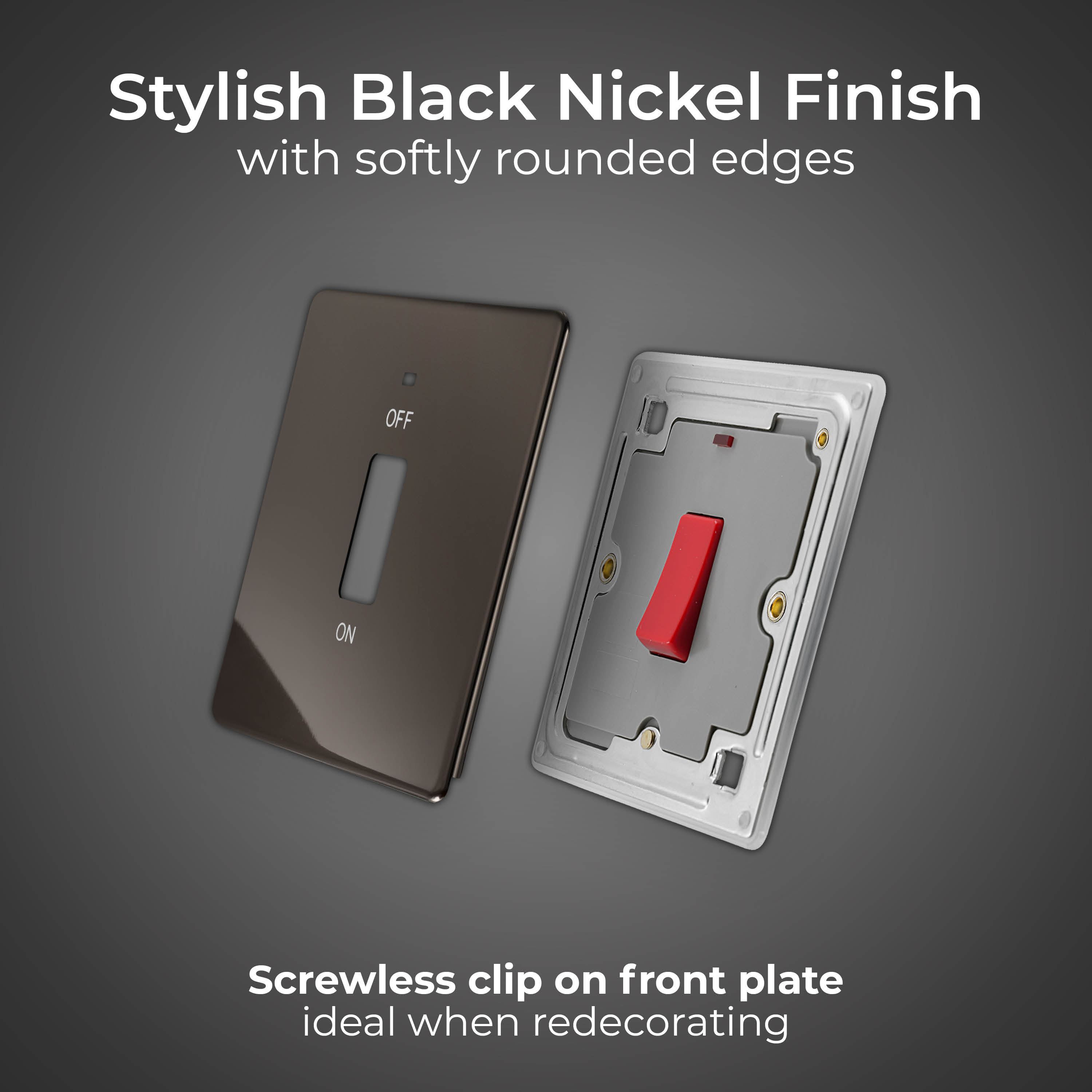

Screwless front plate clips on and off easily and has a sleek flat profile, with no visible plastic around the switch.
Moisture control gasket prevents tarnishing from new plaster
Minimum mounting box depth 47mm
| General Colour | Black Nickel |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | No |
| Minimum Box Depth (mm) | 47 |
| Terminal Capacity (mm²) | 4 x 4mm² , 3 x 6.0mm², 1 x 16mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | N/A |

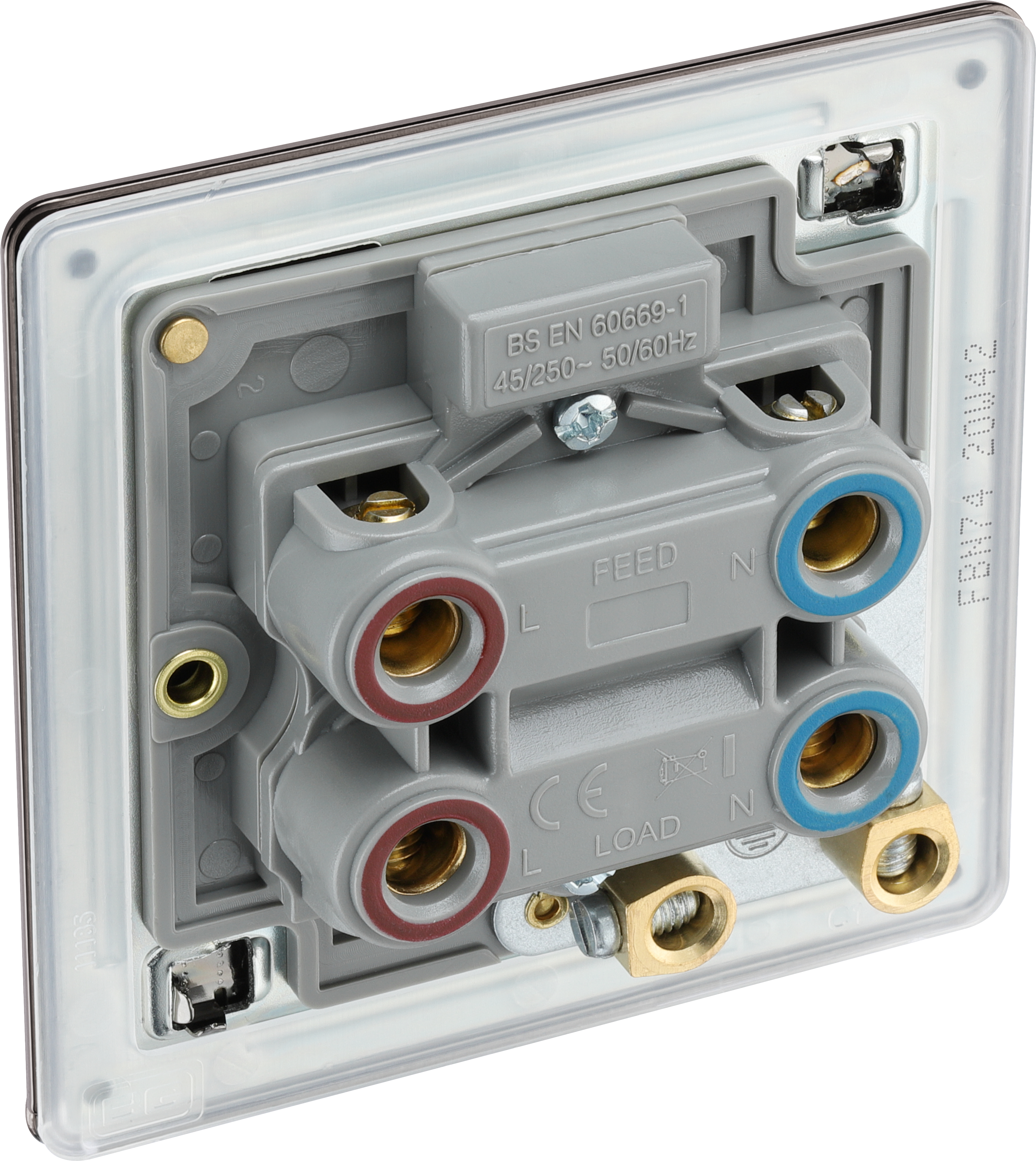

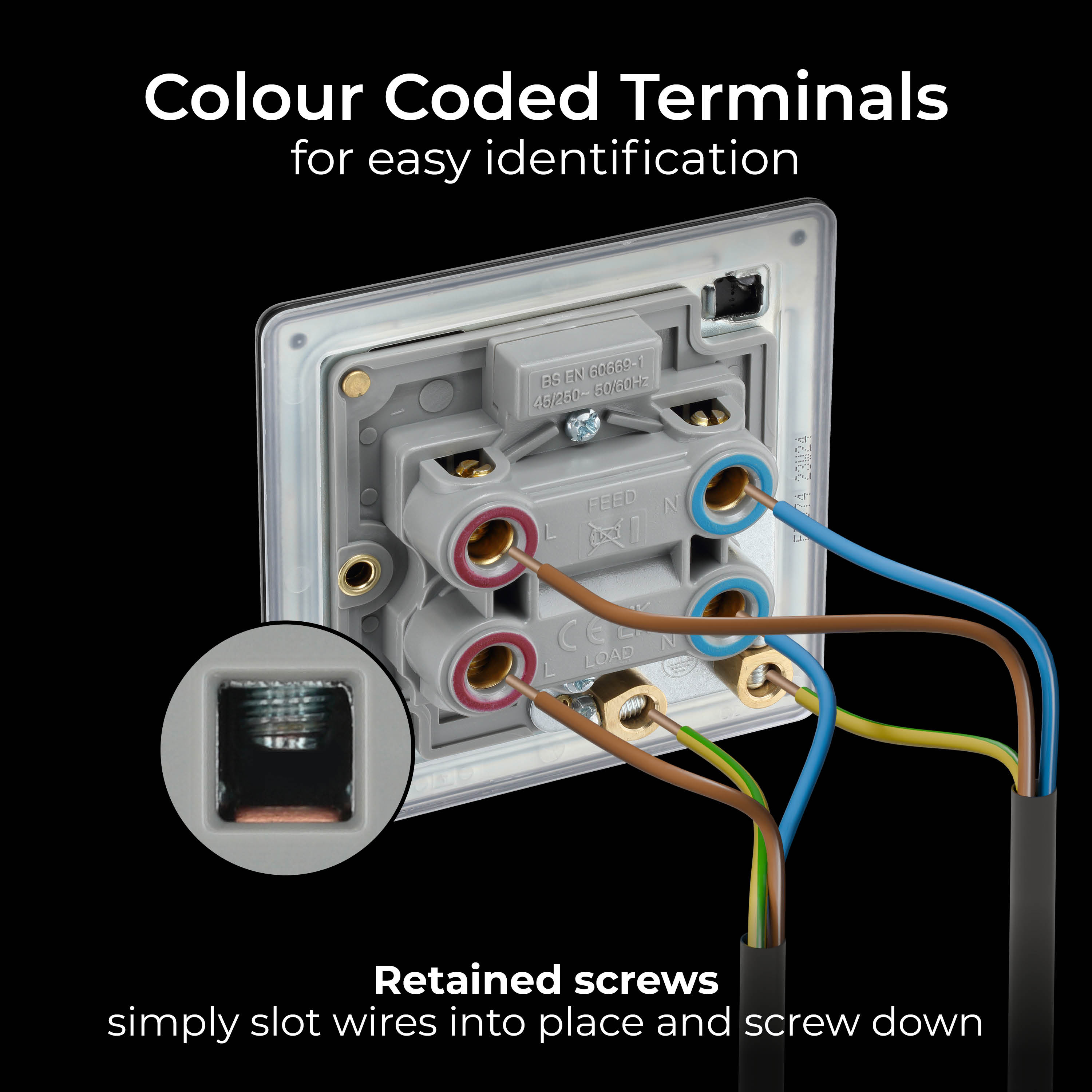

| Terminals with Colour Coding Print | Yes |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Double Pole |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
