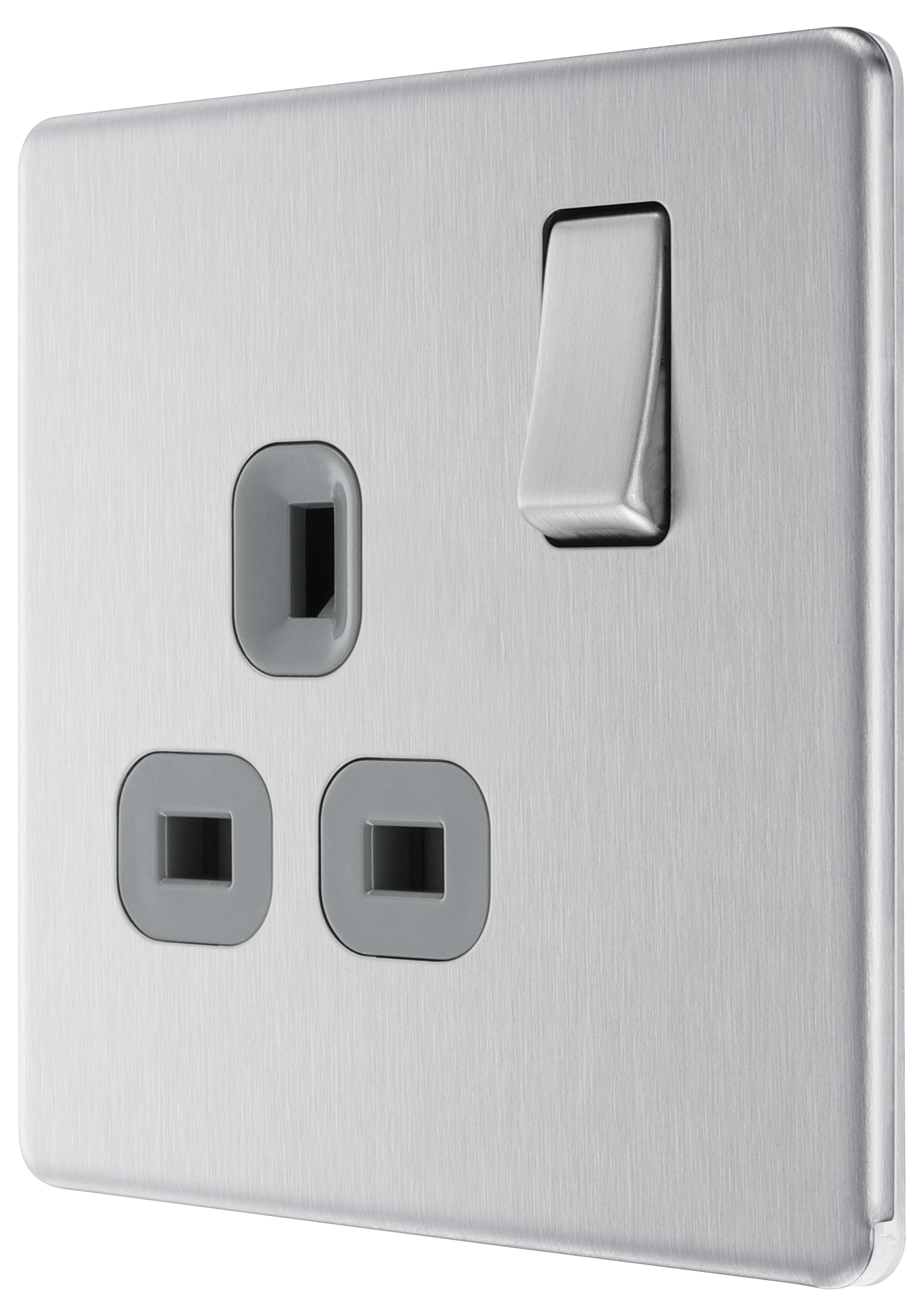

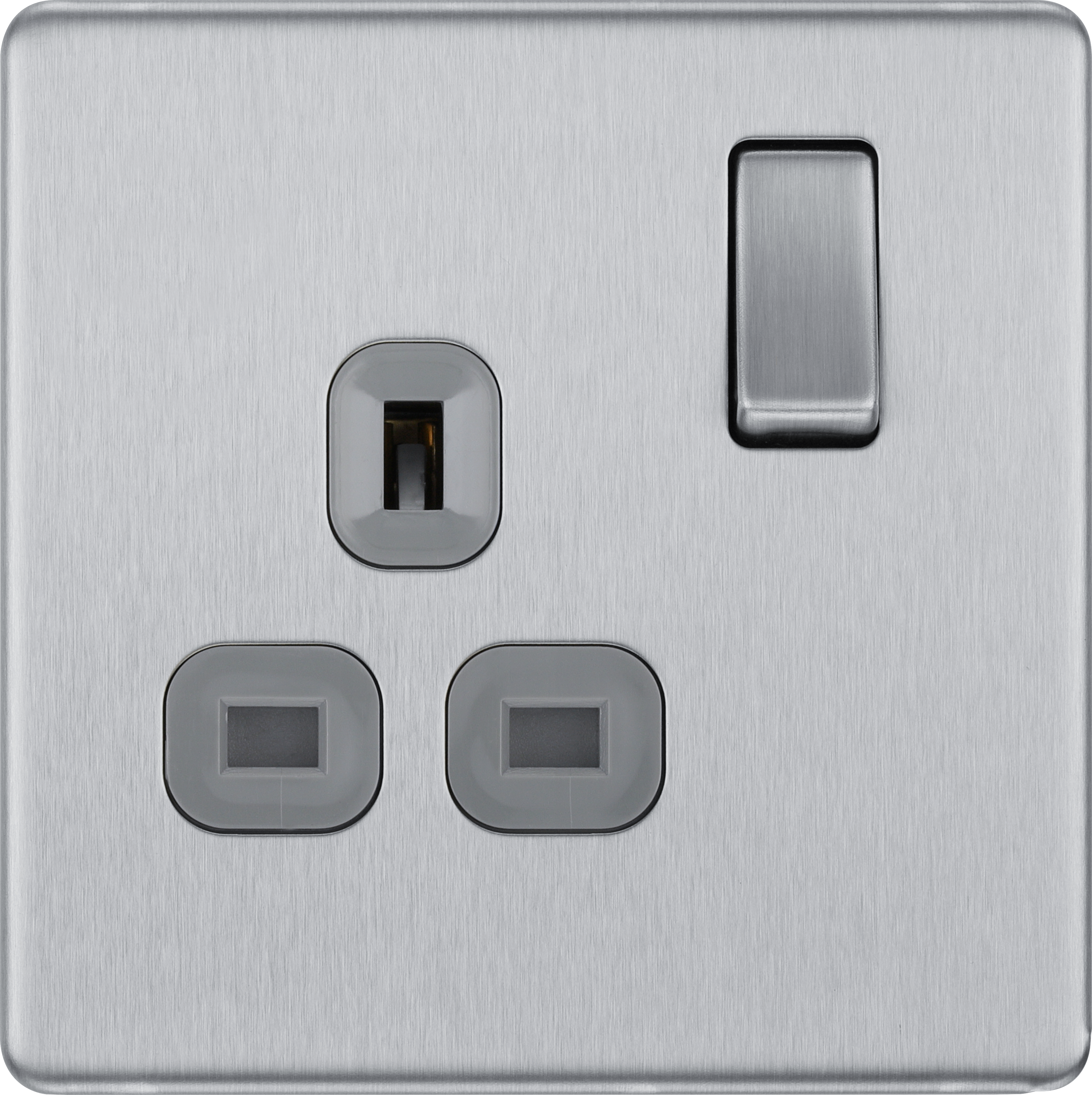

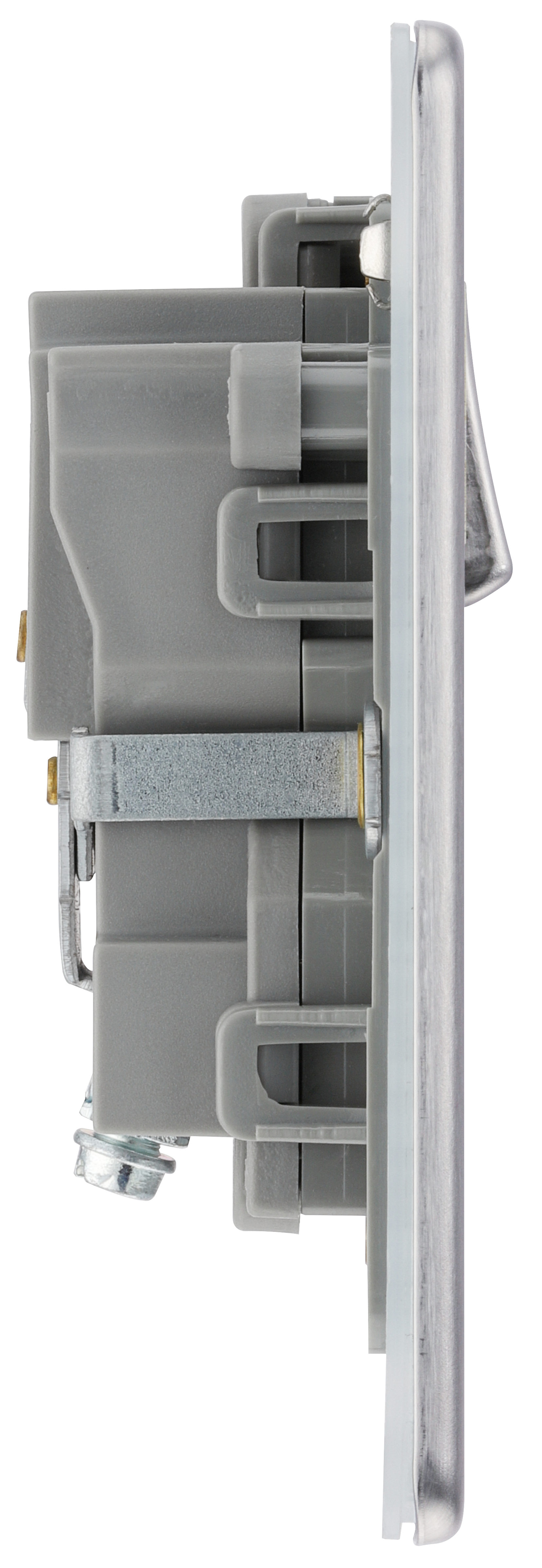

FBS21G-01
Single, switched, double pole
13A Rated
Easy to install, supplied with fixing screws and installation instructions
Angled, colour coded in-line terminals provide easy access for quick installation
Twin earth fitted as standard for high integrity circuits
Captive screws prevent screw loss

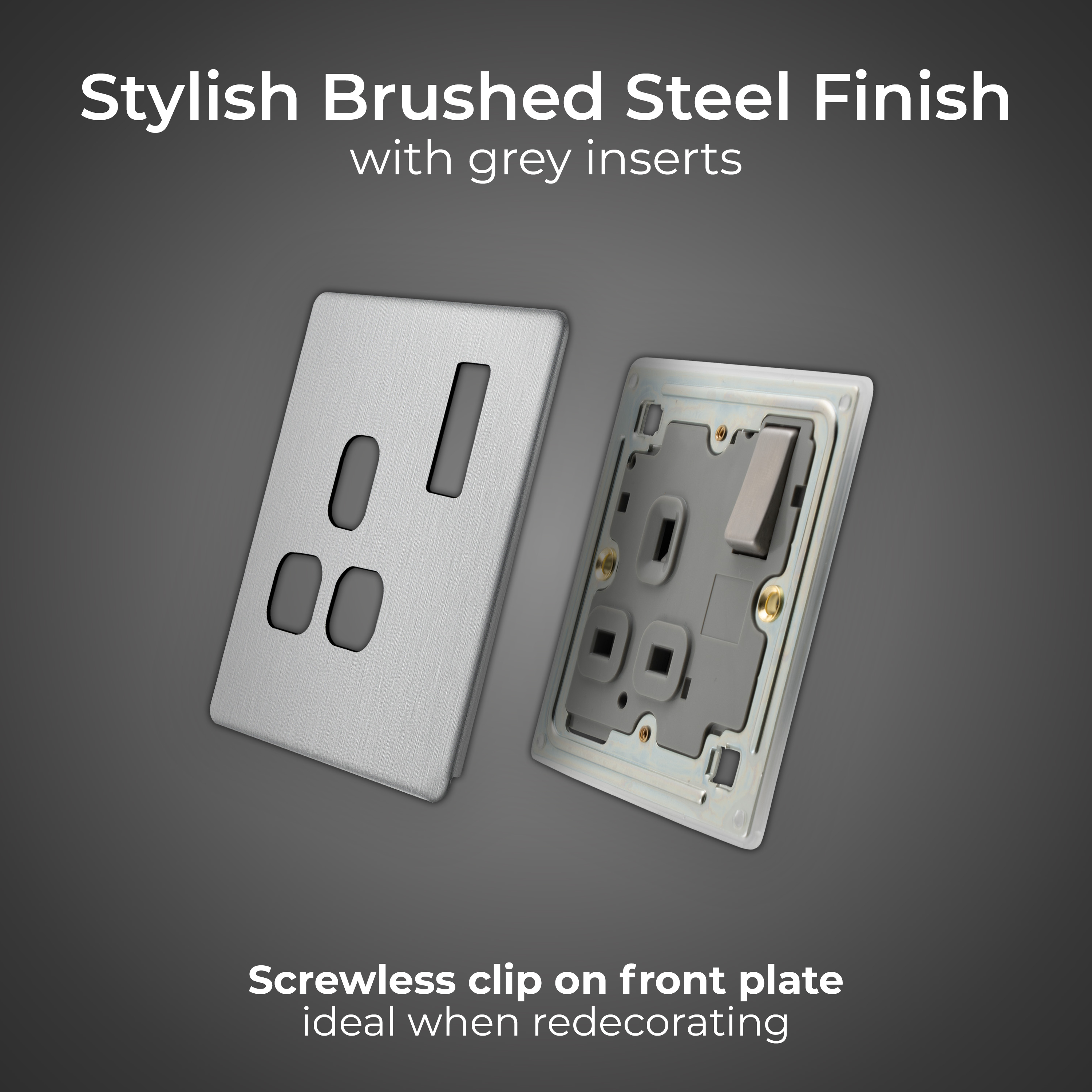

Screwless front plate clips on and off easily and has a sleek flat profile

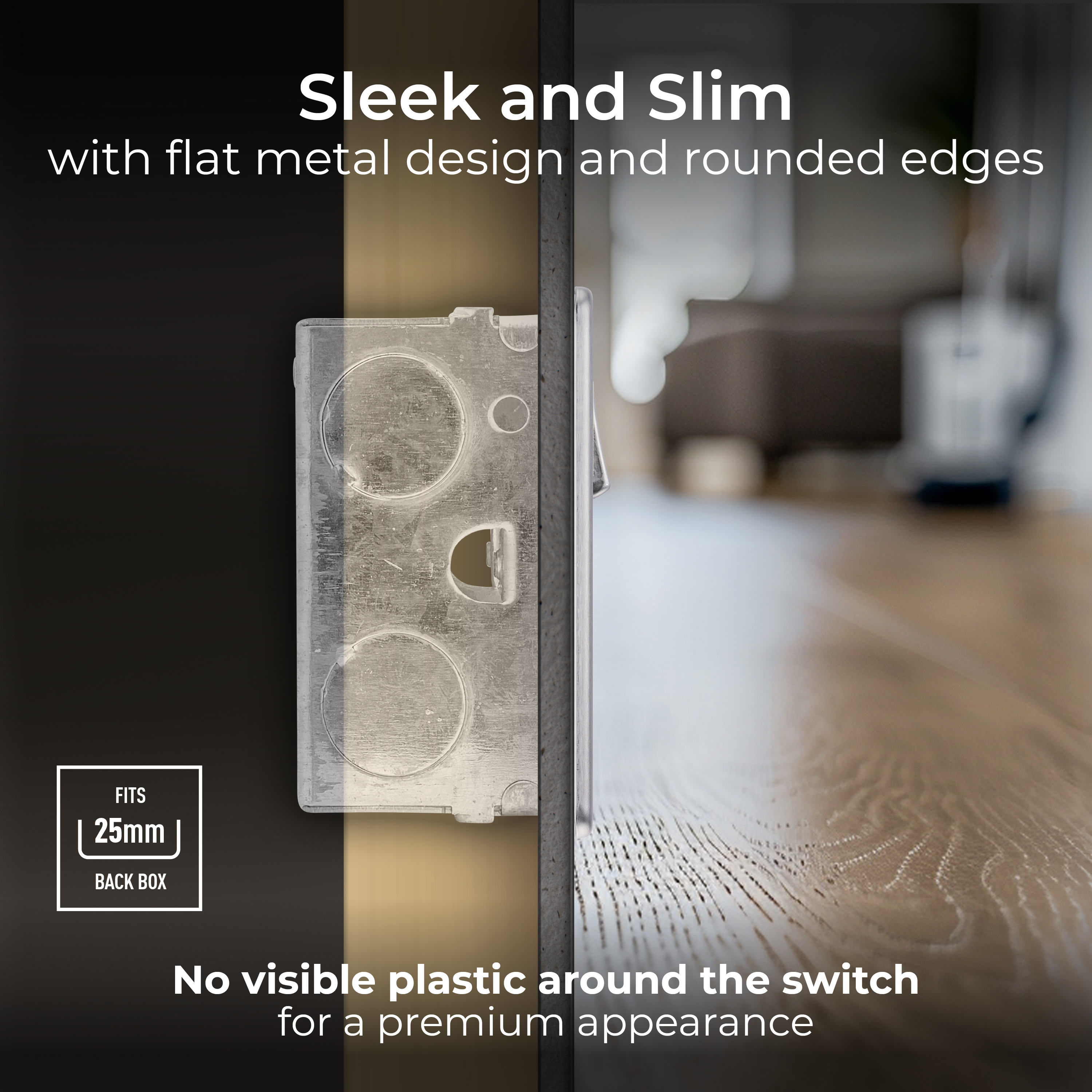

No visible plastic around switch
Moisture control gasket, prevents tarnishing from new plaster
Anti-fingerprint lacquer reduces unsightly fingerprints
Minimum mounting box depth 25mm
BG Electrical are confident in the quality of our workmanship and materials, the guarantee stated applies from the date of delivery. Please see our terms and conditions for more details
Dimensions
| Unpacked Height (mm) | 86 |
| Unpacked Width (mm) | 86 |
| Unpacked Depth (mm) | 29.4 |
| Minimum Box Depth (mm) | 35 |
| Front Plate Material Thickness (mm) | 0.8 |
| Front Plate Height (mm) | 4.3 |
Pack
| Packed Width (mm) | 120 |
| Packed Depth (mm) | 32 |
| Packed Height (mm) | 153 |
| Packed Gross Weight (kg) | 0.159 |
| Package Pack Type | Eco Blister |
| Package Hanging | Yes |
| Package EAN | 5050765006200 |
Case Inner
| Unpacked Height (mm) | 86 |
| Unpacked Width (mm) | 86 |
| Unpacked Depth (mm) | 29.4 |
| Minimum Box Depth (mm) | 35 |
| Front Plate Material Thickness (mm) | 0.8 |
| Front Plate Height (mm) | 4.3 |
Case Outer
| Packed Width (mm) | 120 |
| Packed Depth (mm) | 32 |
| Packed Height (mm) | 153 |
| Packed Gross Weight (kg) | 0.159 |
| Package Pack Type | Eco Blister |
| Package Hanging | Yes |
| Package EAN | 5050765006200 |
Container
| Packed Width (mm) | 120 |
| Packed Depth (mm) | 32 |
| Packed Height (mm) | 153 |
| Packed Gross Weight (kg) | 0.159 |
| Package Pack Type | Eco Blister |
| Package Hanging | Yes |
| Package EAN | 5050765006200 |
