PCDMB15B-01

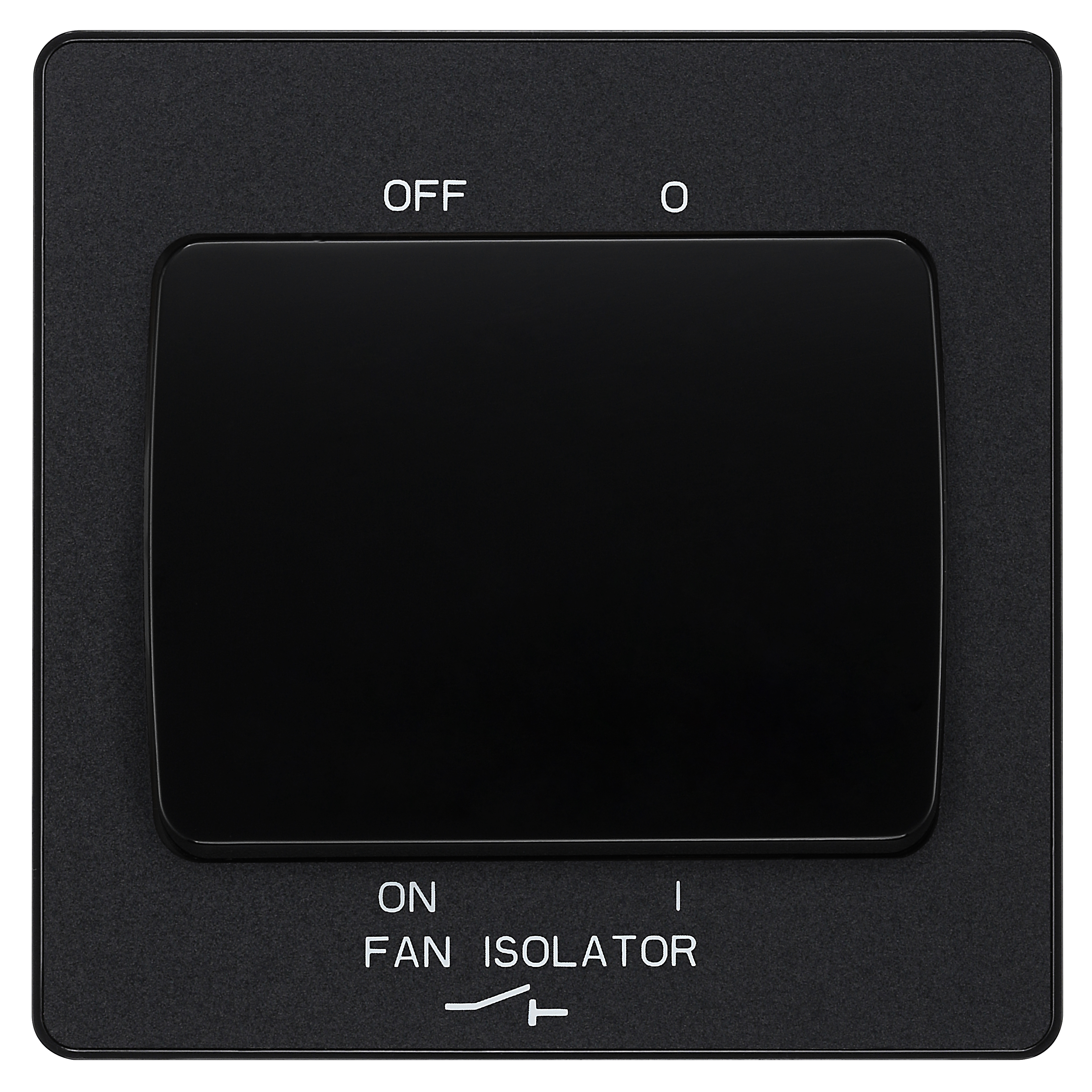

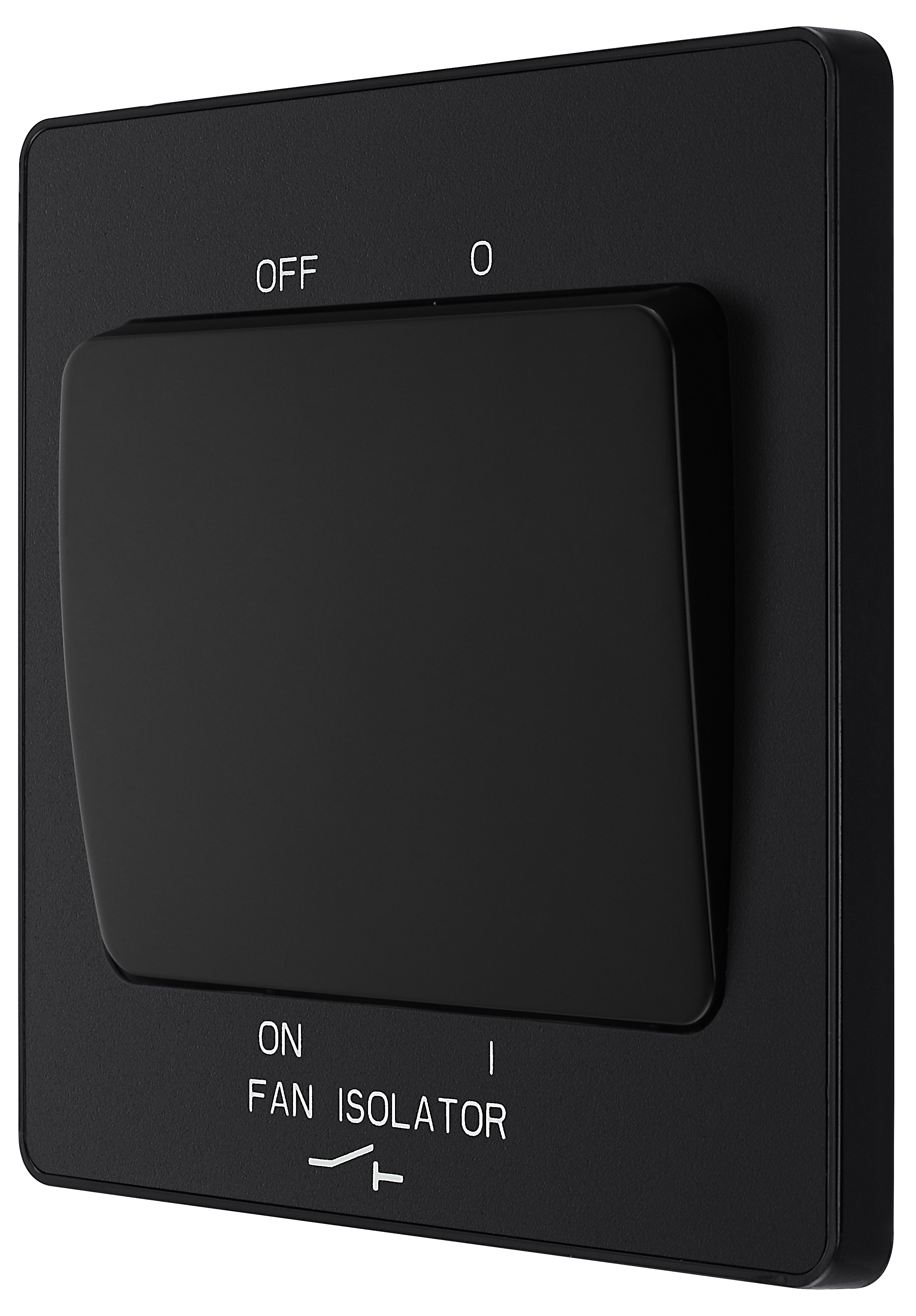

BG Evolve, Matt Black, 10A Triple Pole Fan Isolator Switch
10A Rated
Easy to install supplied with fixing screws and installation instructions
Triple pole switching design however can be used for double pole applications if required

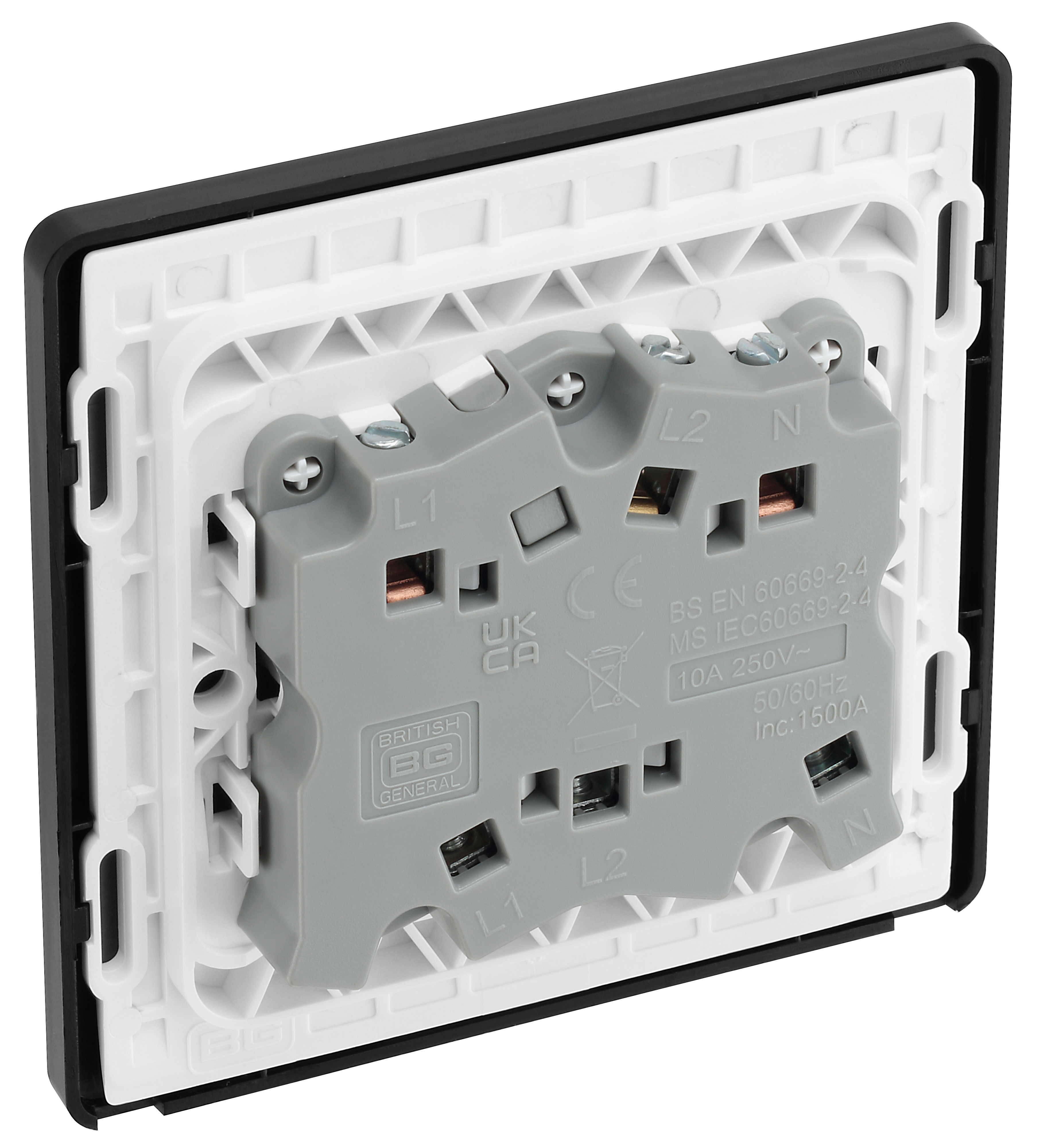

Captive backed out terminal screws for fast installation and to prevent screw loss
Screwless front plate clips on and off easily ideal for redecorating
Minimum mounting box depth 25mm
Certified to BS60669-1
ASTA Licence number 1075
| General Colour | Matt Black |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | 3 Pole |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
