767-01

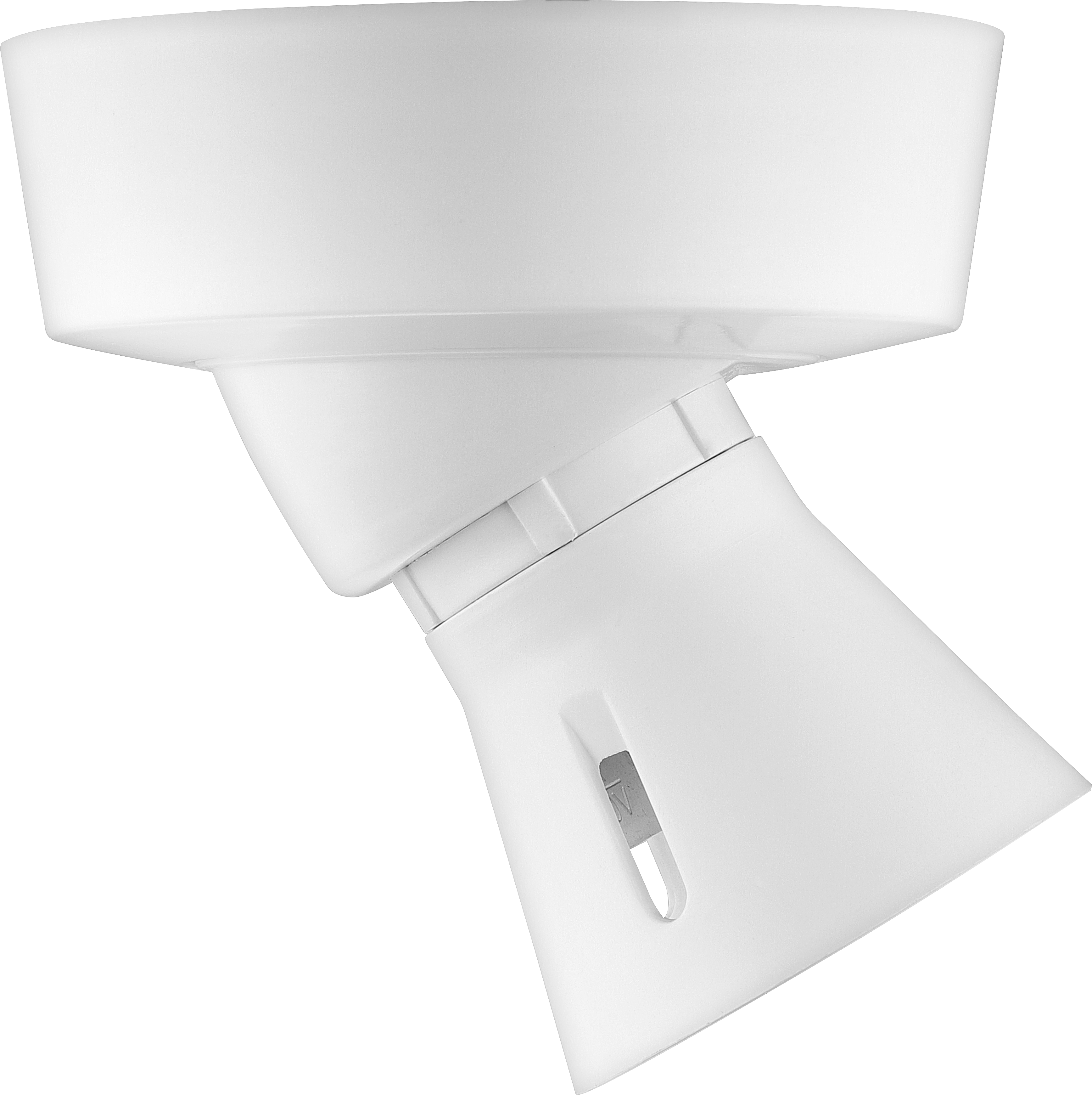

BG Enclosed Angled Batten Holder 2 Terminal, Earth in Base, PVC Tails & HO Skirt
Easy to install, supplied with fixing screws and installation instructions

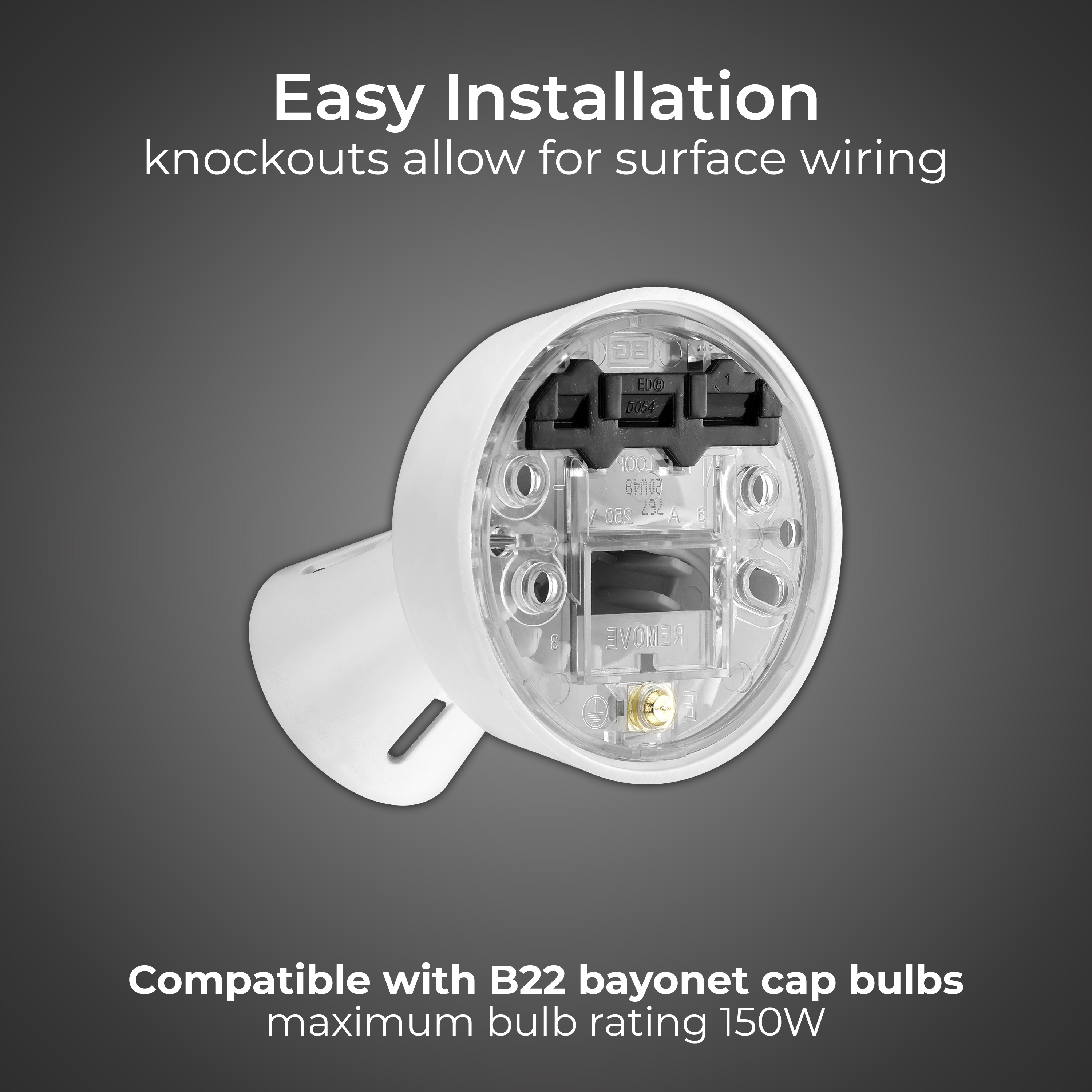

Wiring aperture in base with extra knockout for ease of wiring

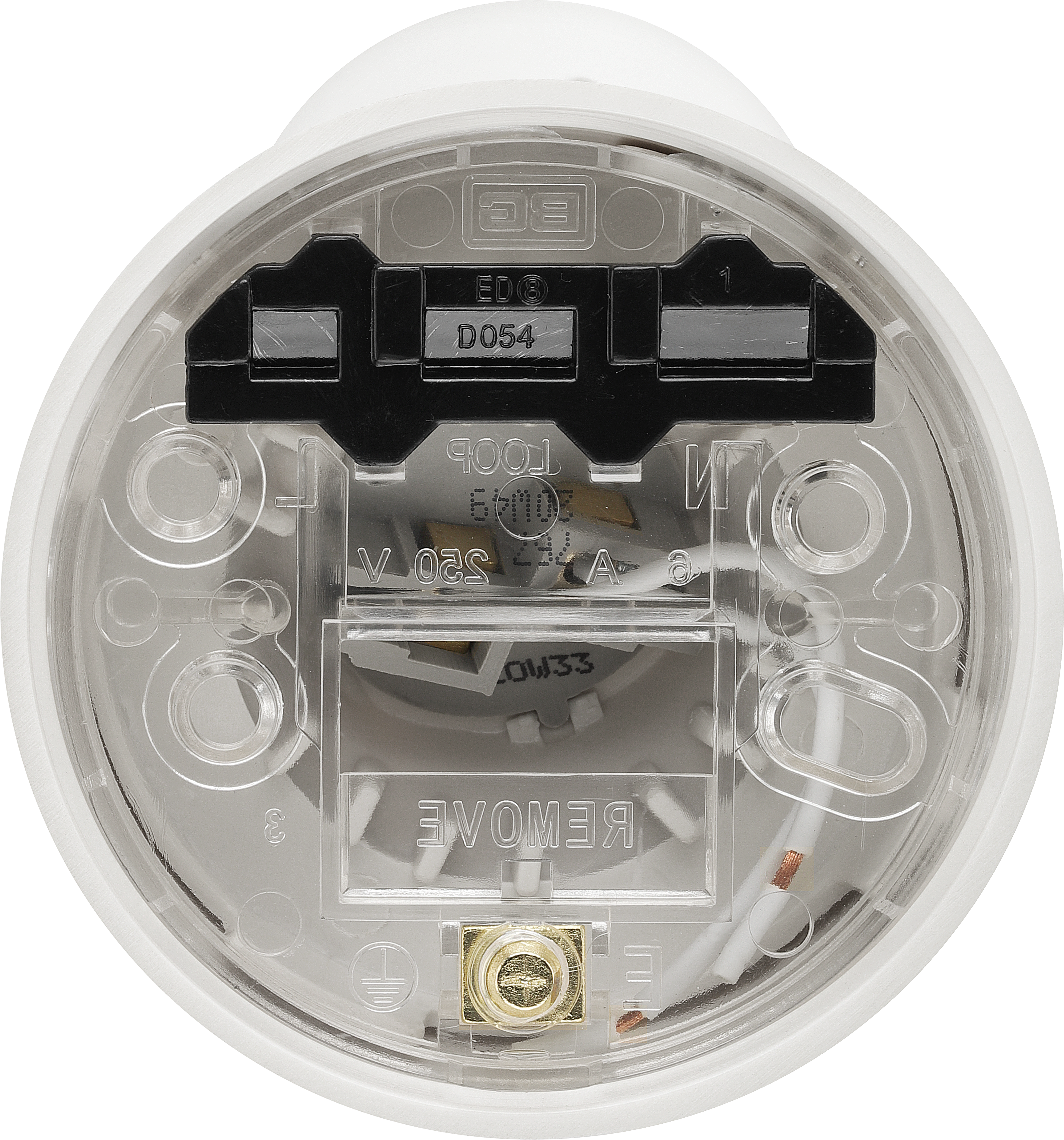

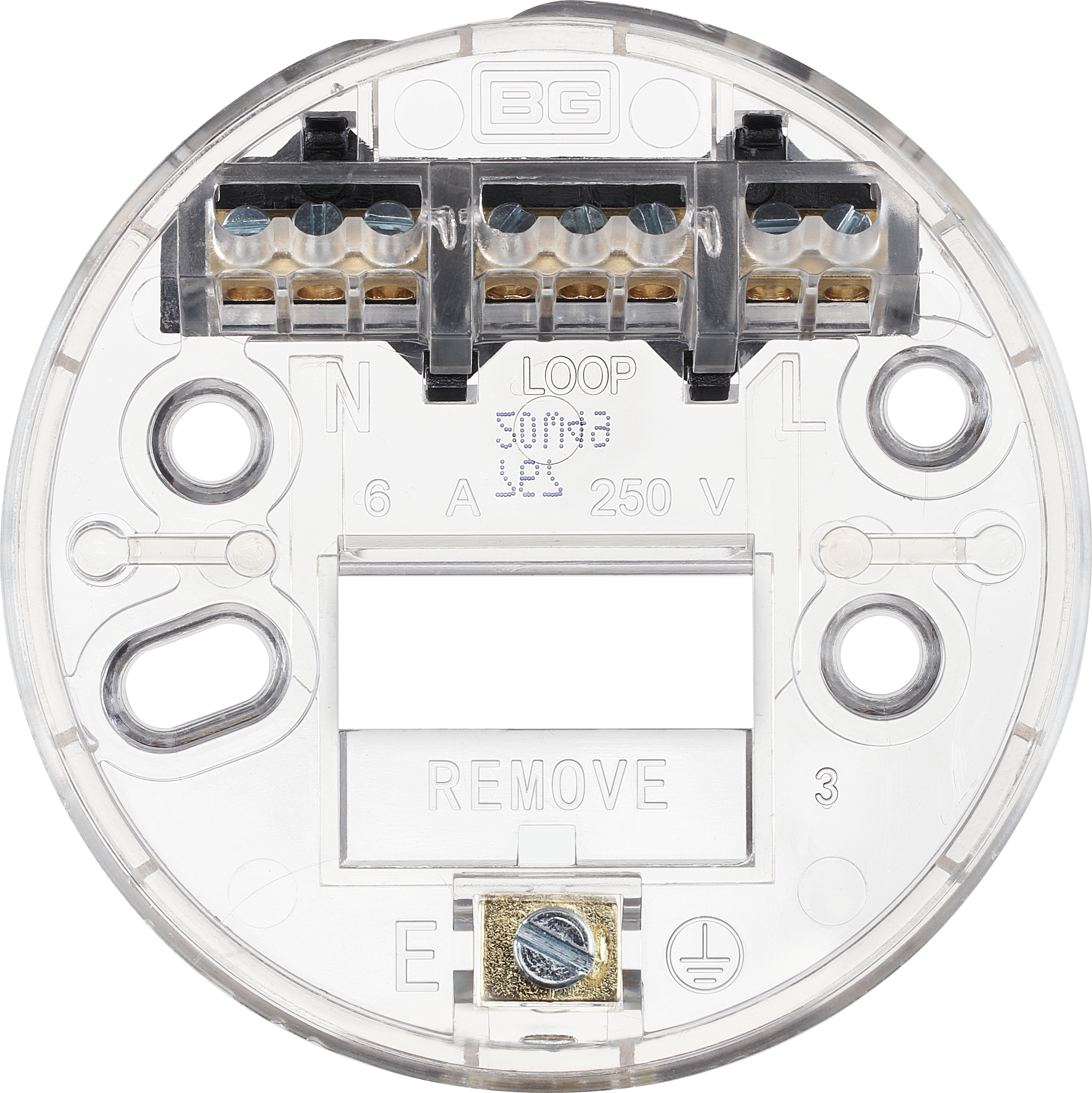

Base incorporates L, N and Loop-in terminals with 8 individual cable entries
large capacity Earth terminal with locking terminal screw.
Wired with heat resistant wire
Base cover can be removed without removing HO skirt
Captive screws prevent screw loss

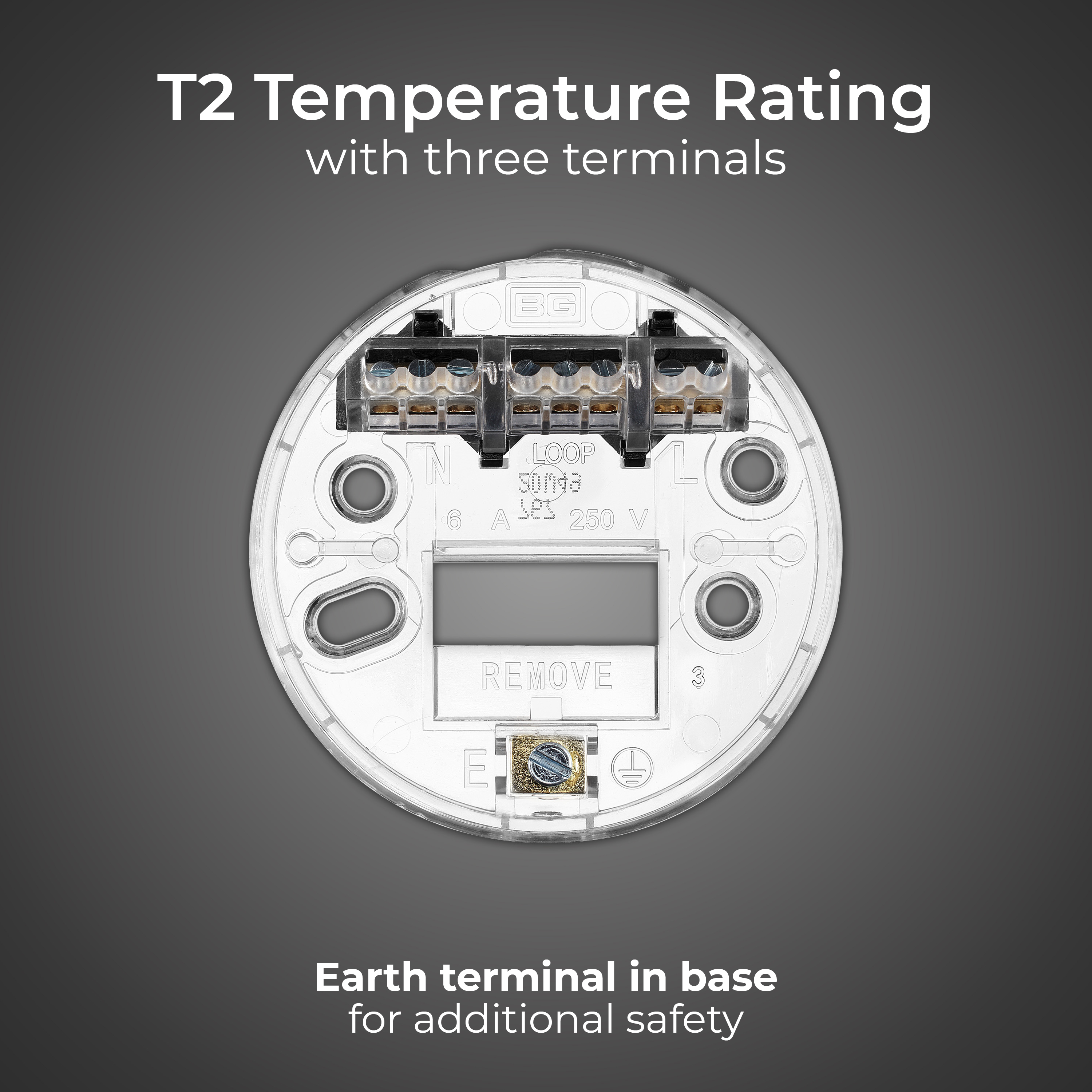

3 Terminal, T2 rated

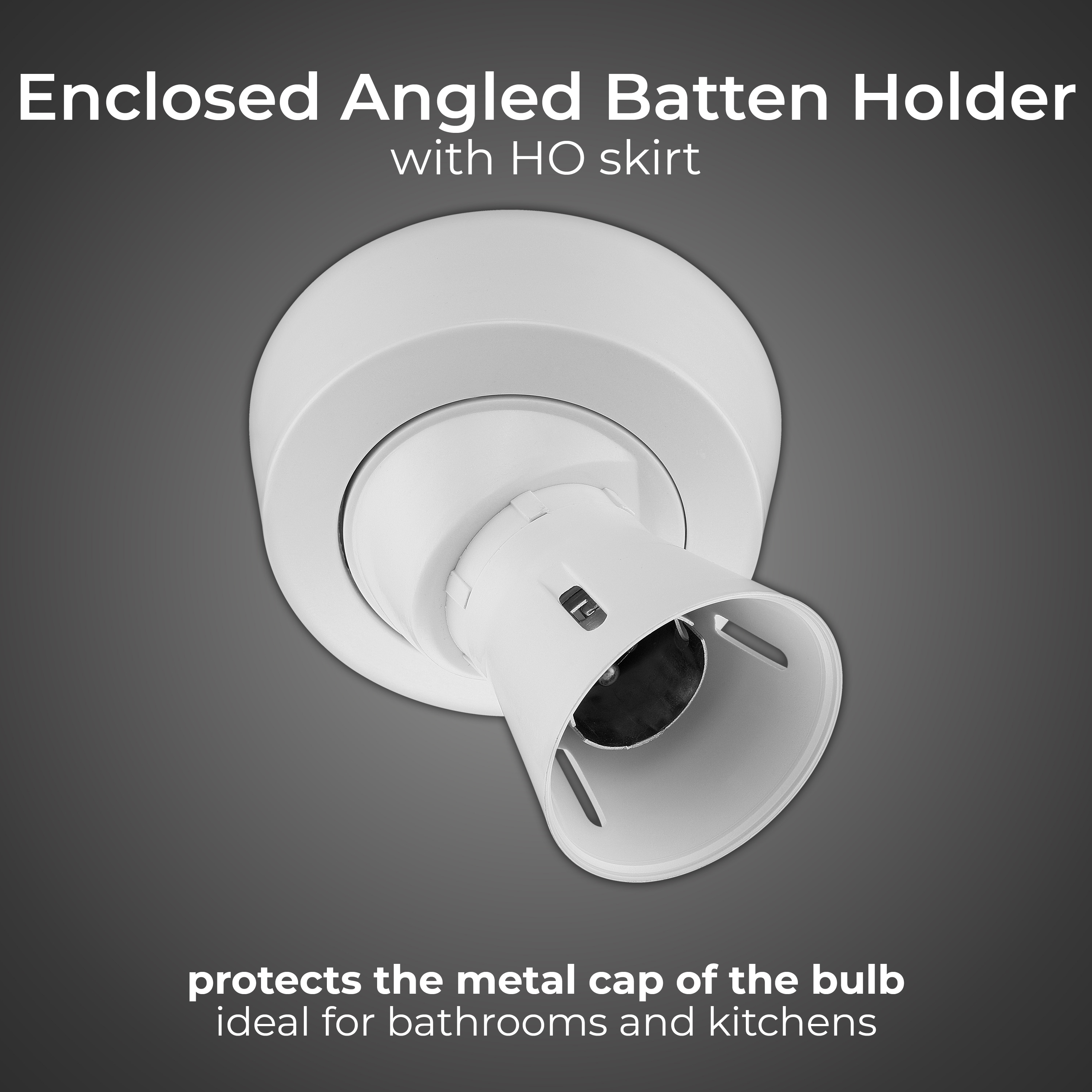

HO skirt ideal for use in damp rooms such as bathrooms and kitchens as it prevents the metal cap of the lamp being touched in damp situations

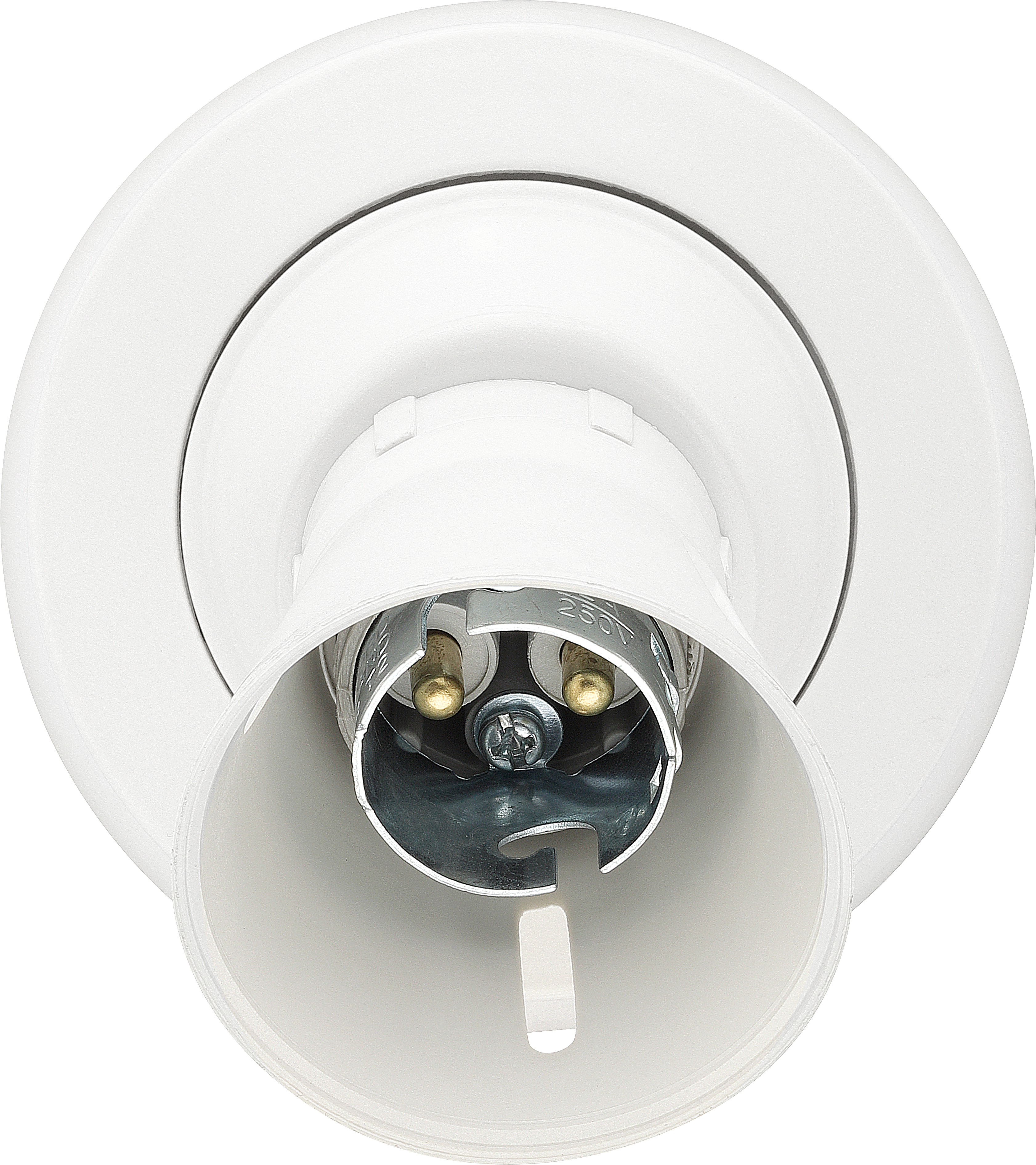

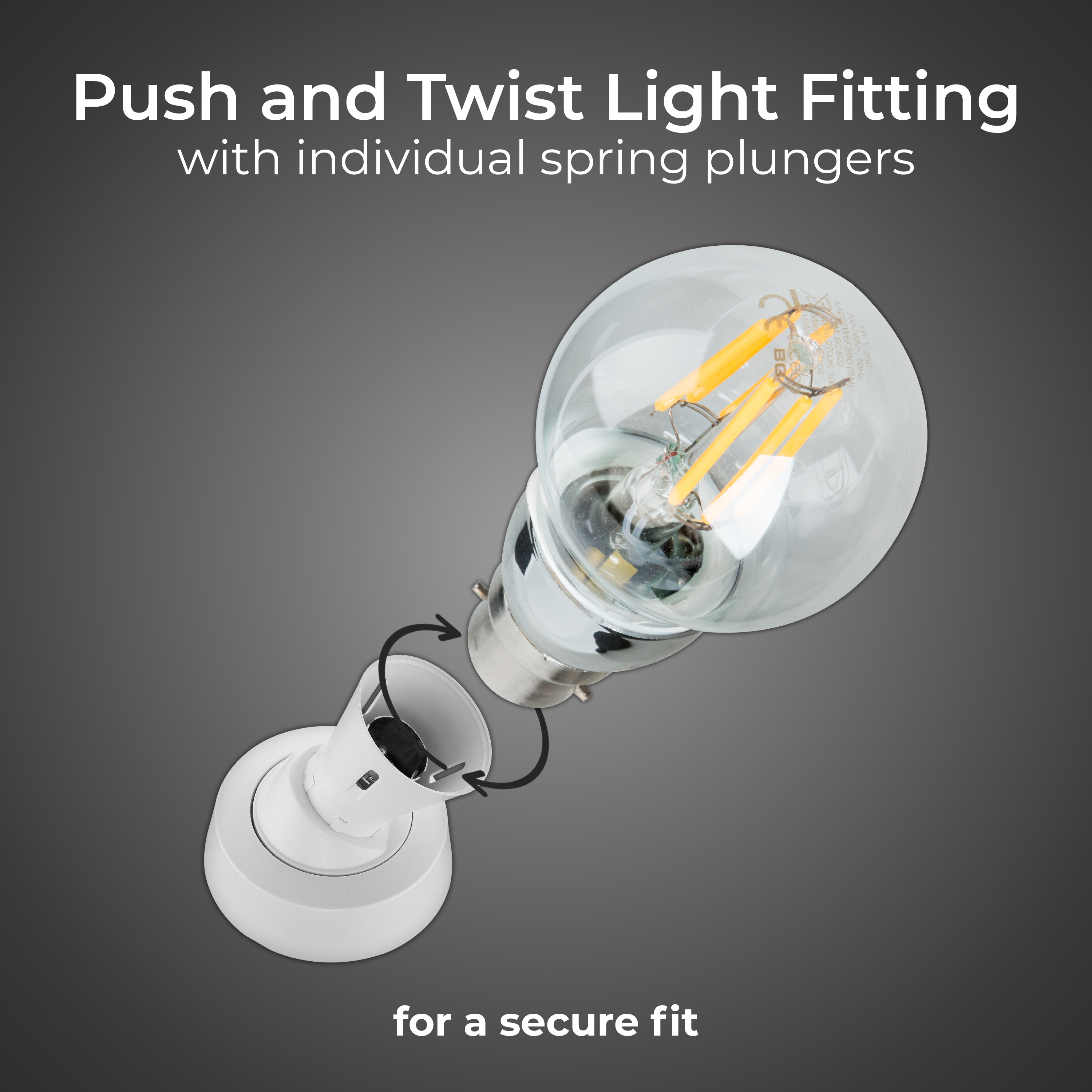

For B22 bayonet cap lamps
| General Colour | White |
| Backed-out Terminal Screws | Yes |
| Terminal Capacity (mm²) | 1 x 1.0mm² |
| Number of Cable Entries | 8 |
| Cable Entry Type | Knockout |
| Screw Caps | N/A |
| Switch Type (Ways & Poles) | N/A |
| Skirt Type | Long (HO) |
| Lamp Holder Type | B22 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
