929-0J

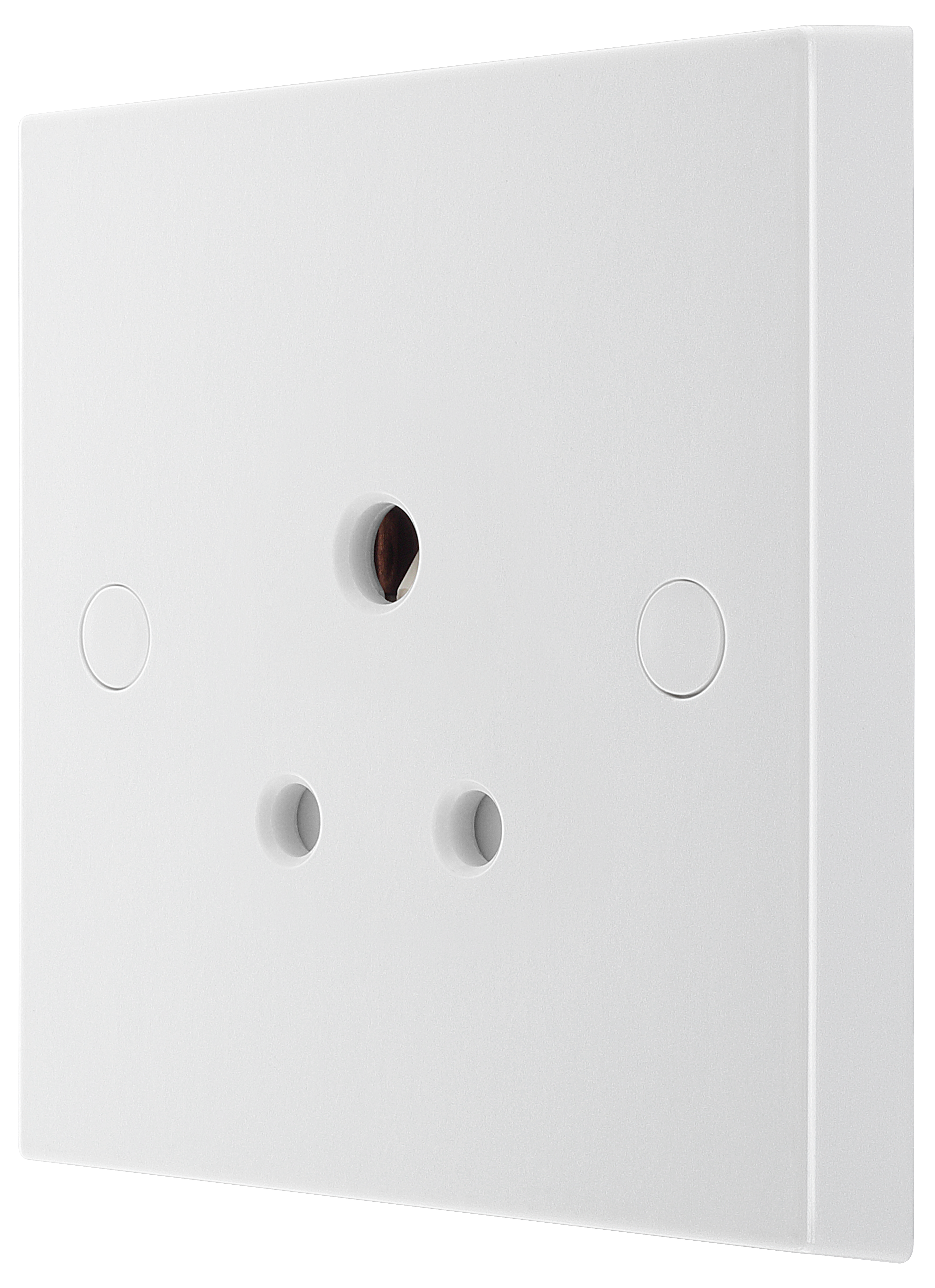

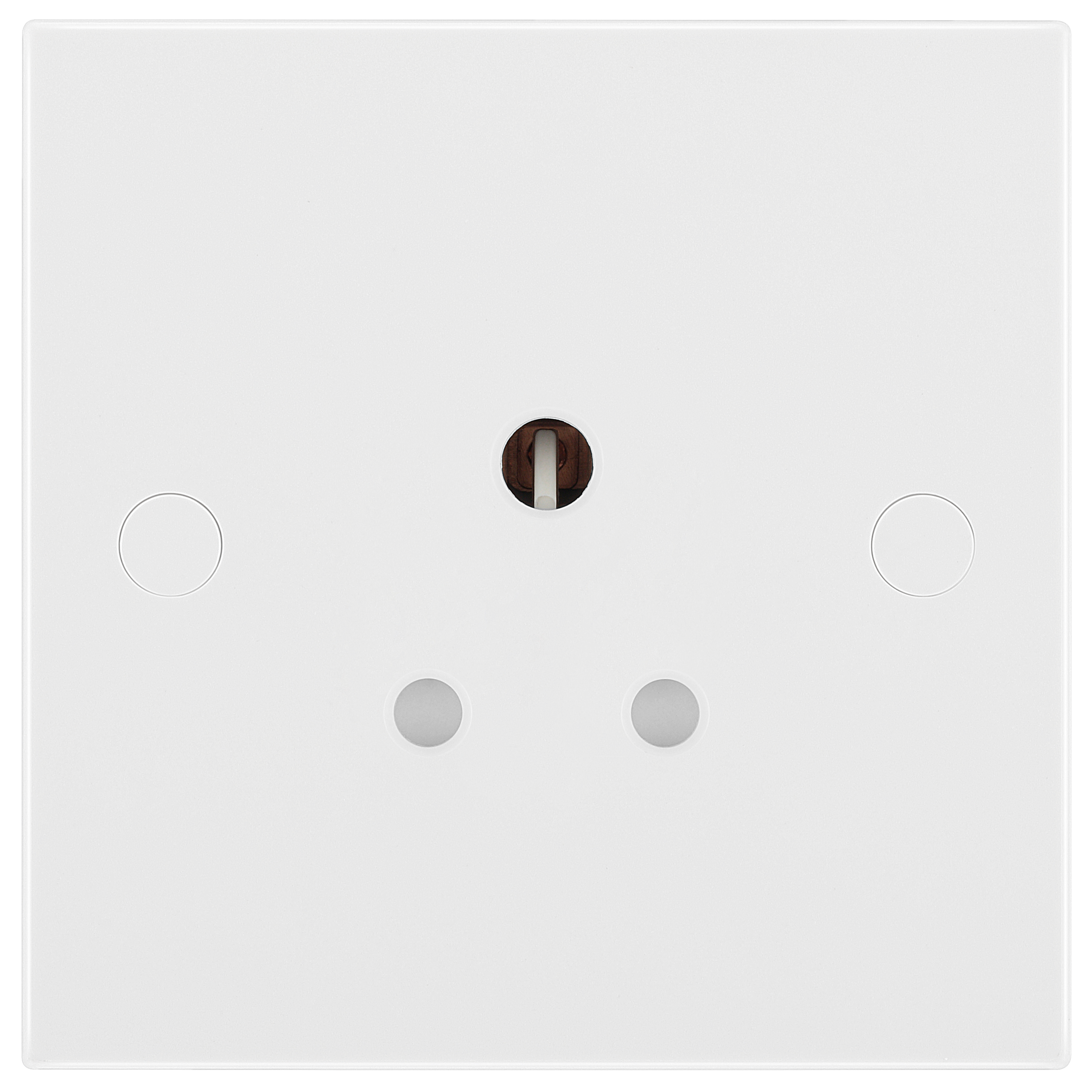

BG White Moulded Square Edge 5A Single Round Pin Unswitched Socket
5A Rated
Easy to install, supplied with fixing screws and installation instructions

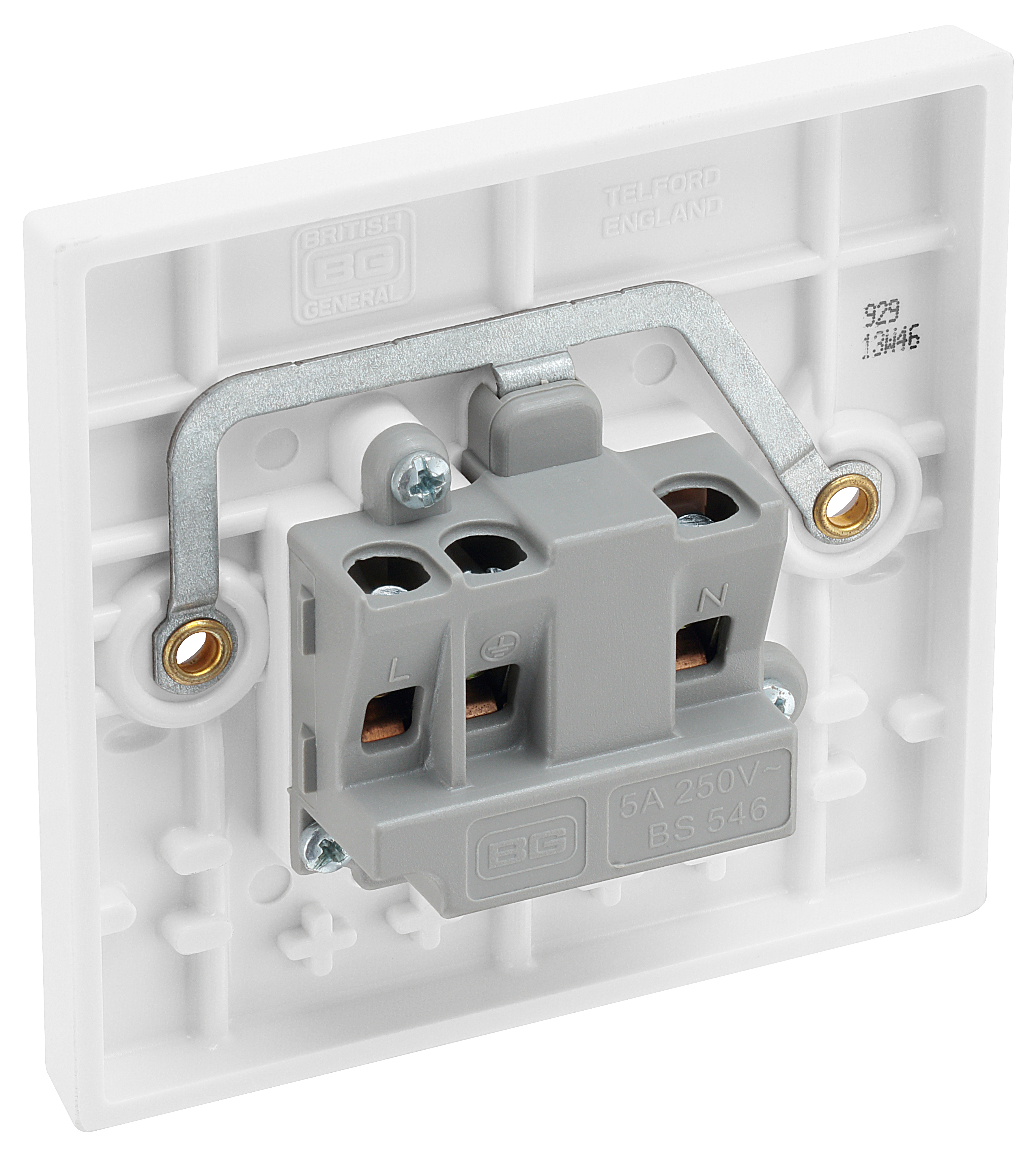

Angled in-line terminals provide easy access for quick installation
Captive screws prevent screw loss
Screw covers for sleek appearance
Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
Minimum mounting box depth 25mm
Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
Certified to BS 546
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 1 x 2.5mm² |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | N/A |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 1 |
| Terminal Arrangement | Angled-in line terminals |
| Terminals with Colour Coding Print | No |
| Number of Sockets | 1 |
| Socket Type | D-3P 5A Round Pin India 220-240V 5A |
| Number of Switches | 0 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
