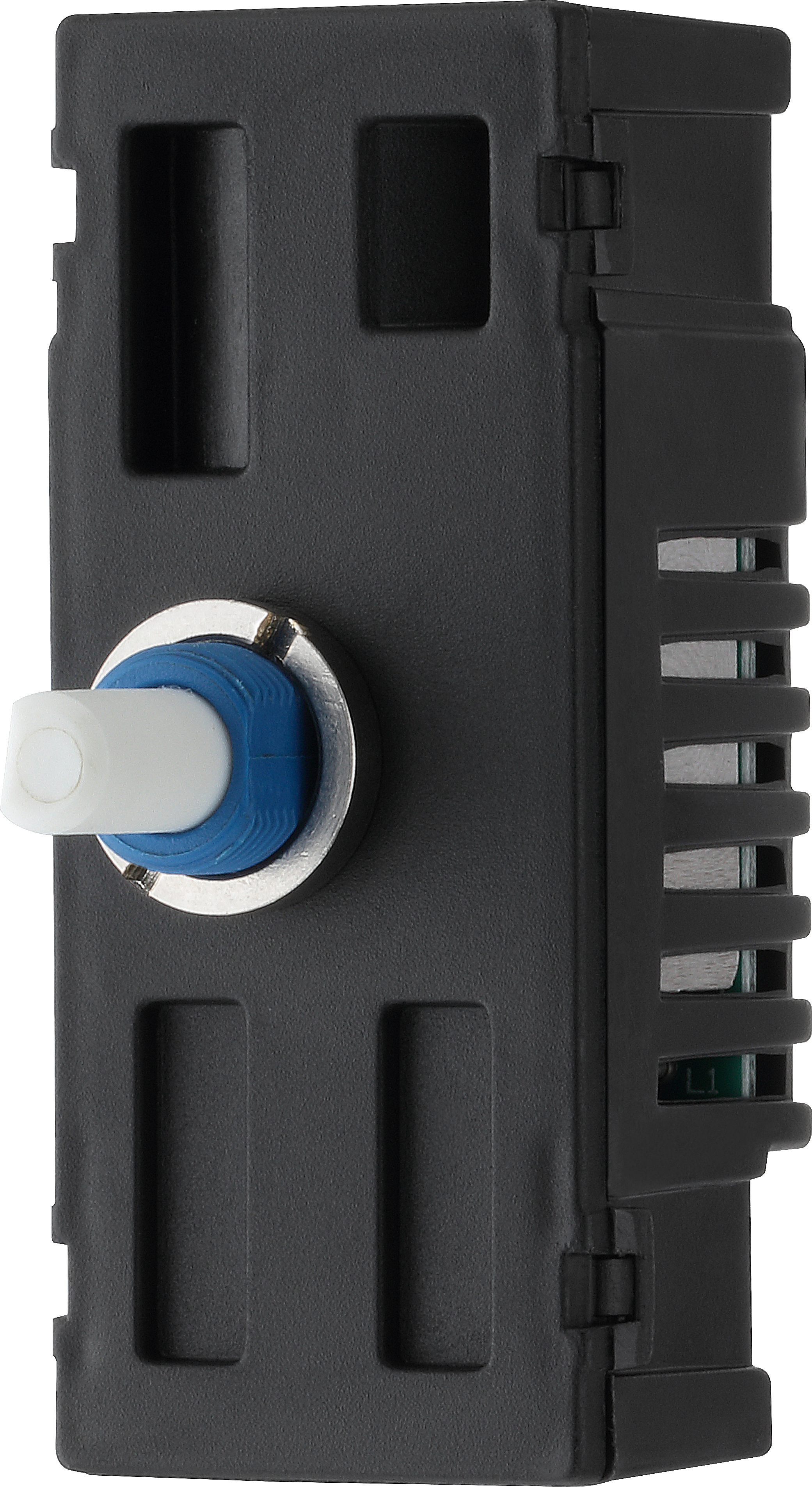

DMTR-05
2 way, 200W, trailing edge replacement dimmer module
200W Rated (100W LED)
Easy to install, supplied with fixing screws and installation instructions
Adjust your light level for mood setting as well as energy saving with 2 way on/off
Trailing edge dimmer suitable for LED, halogen, CFL and incandescent lamps
2 way push on/off with rotary control

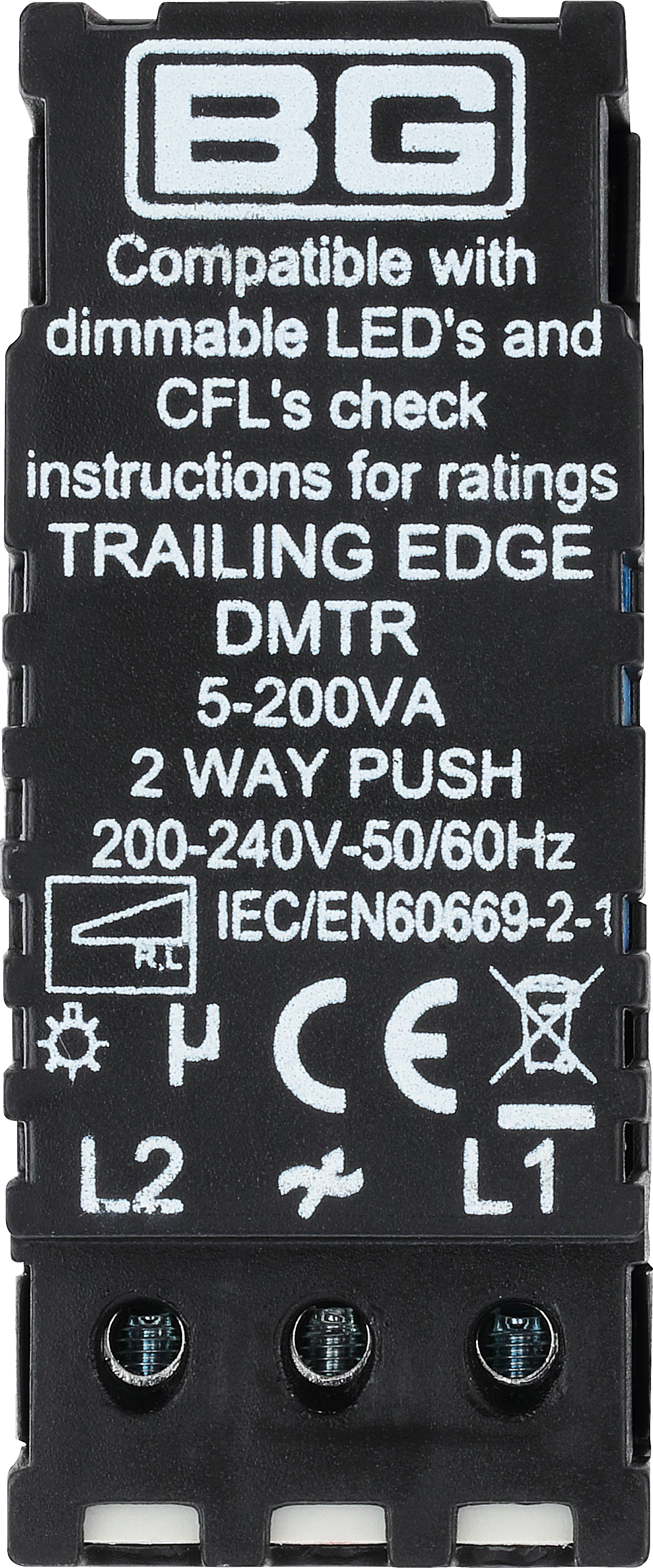

Clearly marked terminals with backed out captive screws for easy installation
Soft start, smooth dimming, silent operation and overload protection
BG Electrical are confident in the quality of our workmanship and materials, the guarantee stated applies from the date of delivery. Please see our terms and conditions for more details
Dimensions
| Unpacked Height (mm) | 62.8 |
| Unpacked Width (mm) | 26.4 |
| Unpacked Depth (mm) | 40.8 |
| Minimum Box Depth (mm) | 25 |
| Front Plate Material Thickness (mm) | N/A |
Pack
| Packed Width (mm) | 120 |
| Packed Depth (mm) | 28 |
| Packed Height (mm) | 135 |
| Packed Gross Weight (kg) | 0.032 |
| Package Pack Type | Printed Bag |
| Package Hanging | No |
| Package EAN | 5050765227032 |
Case Inner
| Unpacked Height (mm) | 62.8 |
| Unpacked Width (mm) | 26.4 |
| Unpacked Depth (mm) | 40.8 |
| Minimum Box Depth (mm) | 25 |
| Front Plate Material Thickness (mm) | N/A |
Case Outer
| Packed Width (mm) | 120 |
| Packed Depth (mm) | 28 |
| Packed Height (mm) | 135 |
| Packed Gross Weight (kg) | 0.032 |
| Package Pack Type | Printed Bag |
| Package Hanging | No |
| Package EAN | 5050765227032 |
Container
| Packed Width (mm) | 120 |
| Packed Depth (mm) | 28 |
| Packed Height (mm) | 135 |
| Packed Gross Weight (kg) | 0.032 |
| Package Pack Type | Printed Bag |
| Package Hanging | No |
| Package EAN | 5050765227032 |
