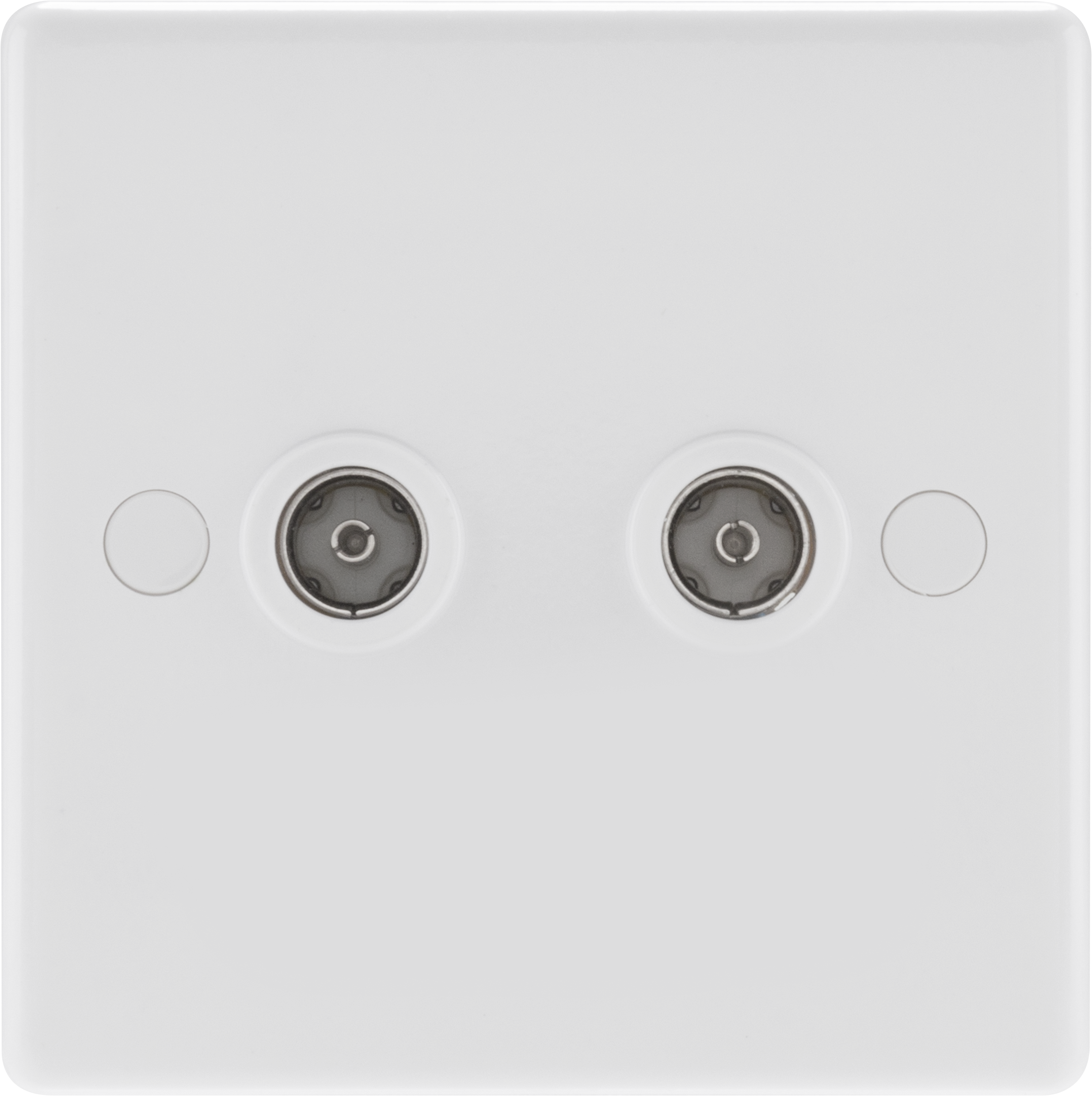

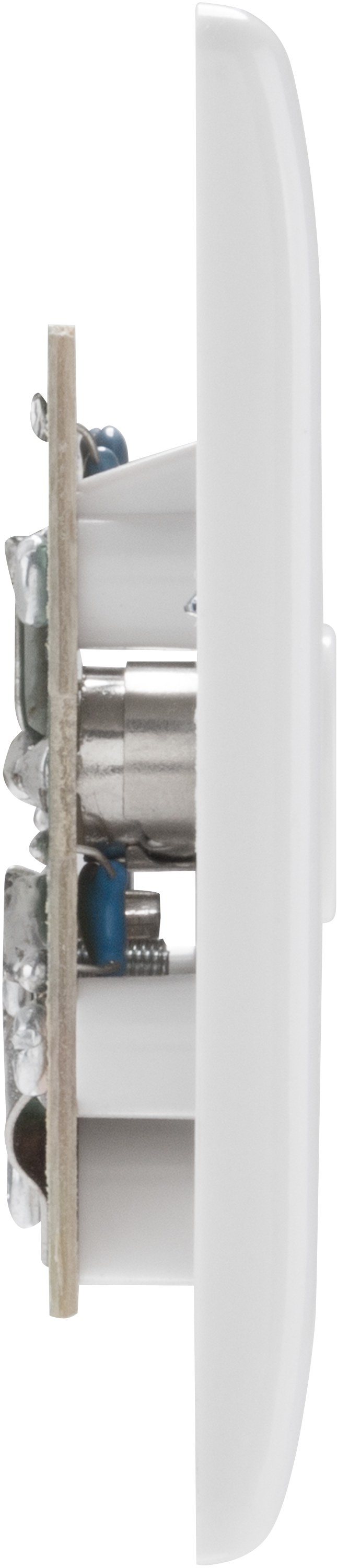

863-01
Double, isolated, co-axial
Screw terminal
Easy to install, supplied with fixing screws and installation instructions
Used for TV or FM co-axial aerial connection
An isolated socket lets the signal through from the aerial/satellite dish but does not allow any kind of return signal/current
Prevents interference from receivers of other users
Screw covers for sleek appearance
Minimum mounting box depth 25mm
Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
Certified to BS3041 and BS5733
BG Electrical are confident in the quality of our workmanship and materials, the guarantee stated applies from the date of delivery. Please see our terms and conditions for more details
Dimensions
| Unpacked Height (mm) | 86 |
| Unpacked Width (mm) | 86 |
| Unpacked Depth (mm) | 86 |
| Minimum Box Depth (mm) | 25 |
| Front Plate Material Thickness (mm) | 3 |
| Front Plate Height (mm) | 6.9 |
Pack
| Packed Width (mm) | 0 |
| Packed Depth (mm) | 0 |
| Packed Height (mm) | 0 |
| Packed Gross Weight (kg) | 0.079 |
| Package Pack Type | Printed Bag |
| Package Hanging | No |
| Package EAN | 5050765002059 |
Case Inner
| Unpacked Height (mm) | 86 |
| Unpacked Width (mm) | 86 |
| Unpacked Depth (mm) | 86 |
| Minimum Box Depth (mm) | 25 |
| Front Plate Material Thickness (mm) | 3 |
| Front Plate Height (mm) | 6.9 |
Case Outer
| Packed Width (mm) | 0 |
| Packed Depth (mm) | 0 |
| Packed Height (mm) | 0 |
| Packed Gross Weight (kg) | 0.079 |
| Package Pack Type | Printed Bag |
| Package Hanging | No |
| Package EAN | 5050765002059 |
Container
| Packed Width (mm) | 0 |
| Packed Depth (mm) | 0 |
| Packed Height (mm) | 0 |
| Packed Gross Weight (kg) | 0.079 |
| Package Pack Type | Printed Bag |
| Package Hanging | No |
| Package EAN | 5050765002059 |
