832WH-01
BG Nexus Series White Moulded 20A Single Water Heater Switch With Flex Outlet
20A Rated
Easy to install, supplied with fixing screws and installation instructions

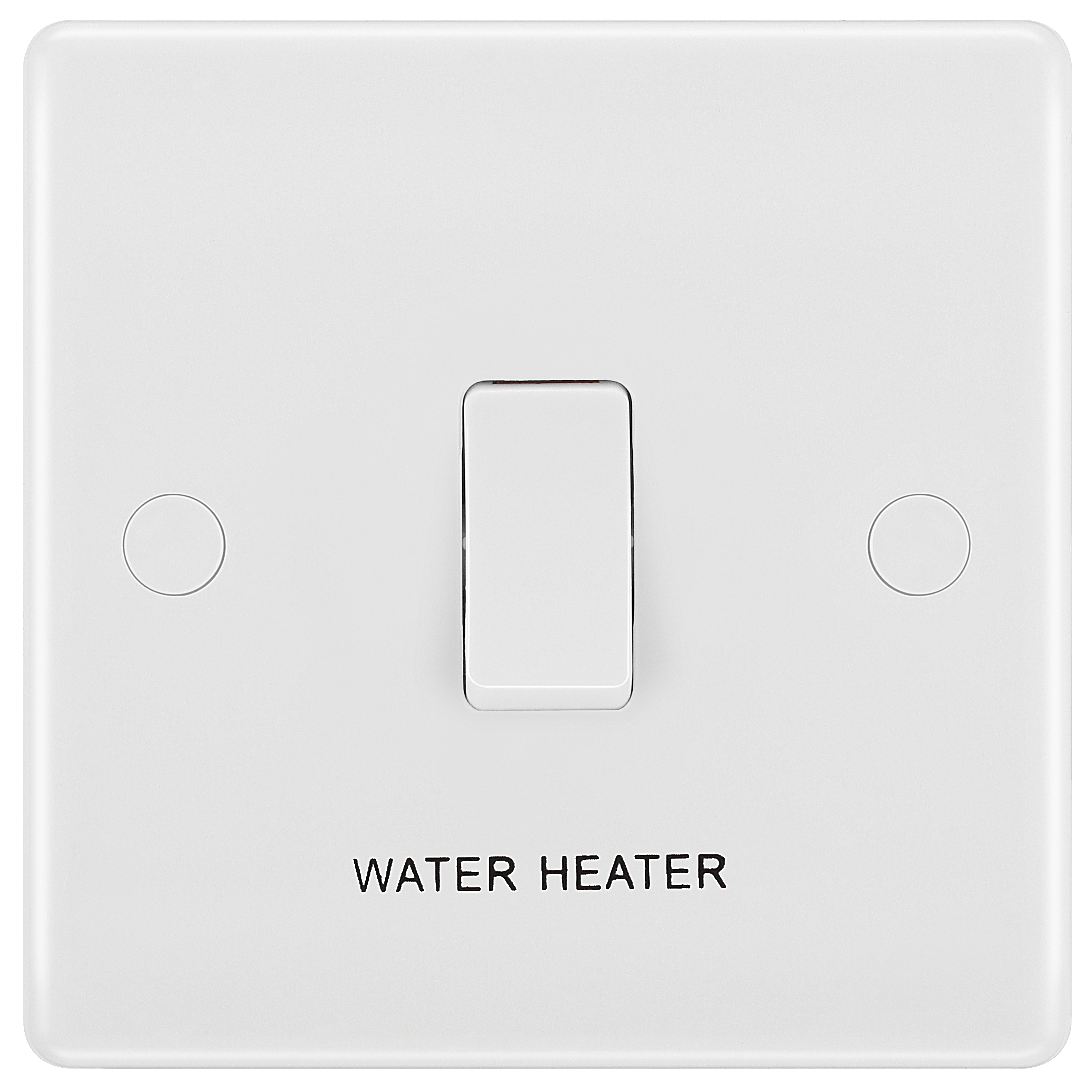

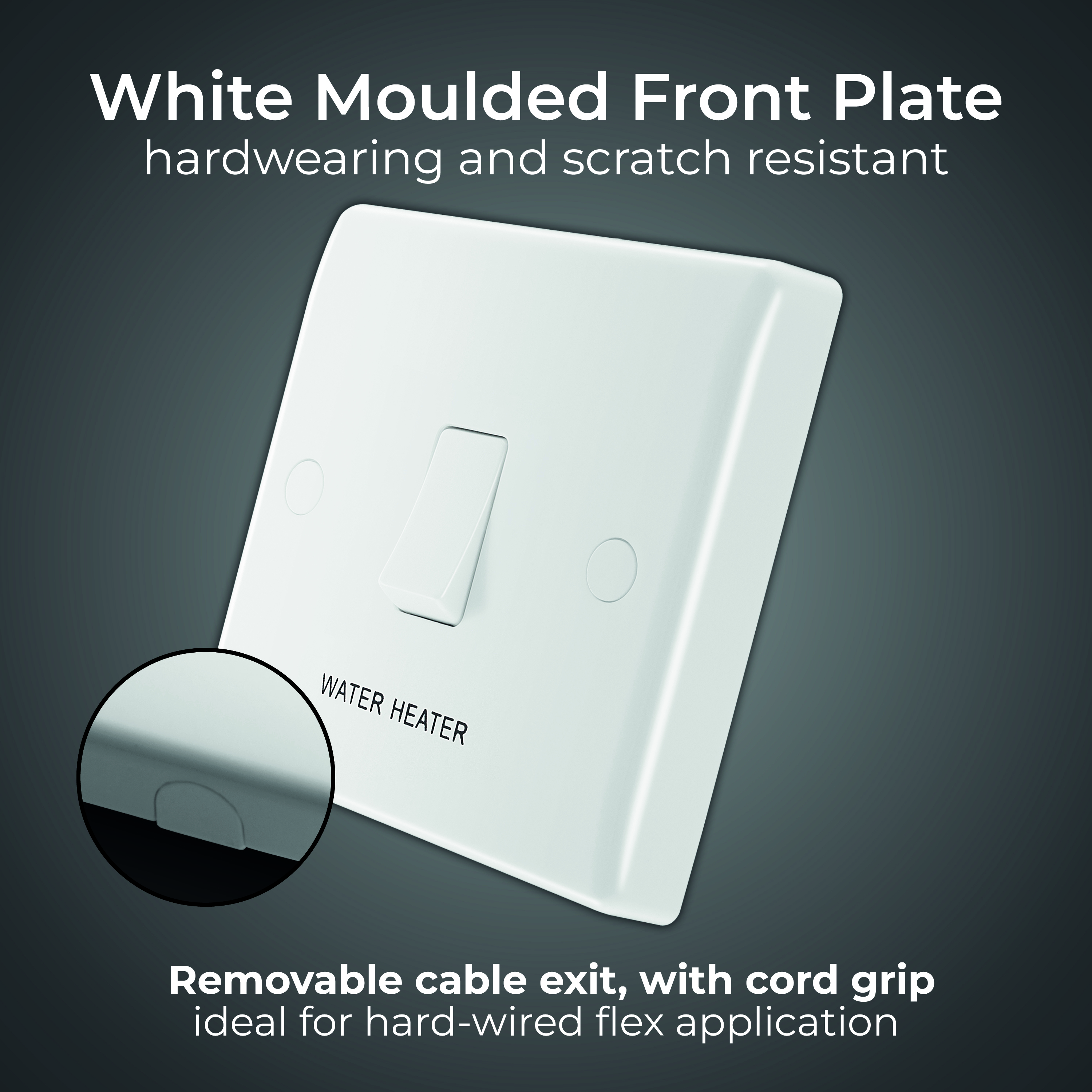

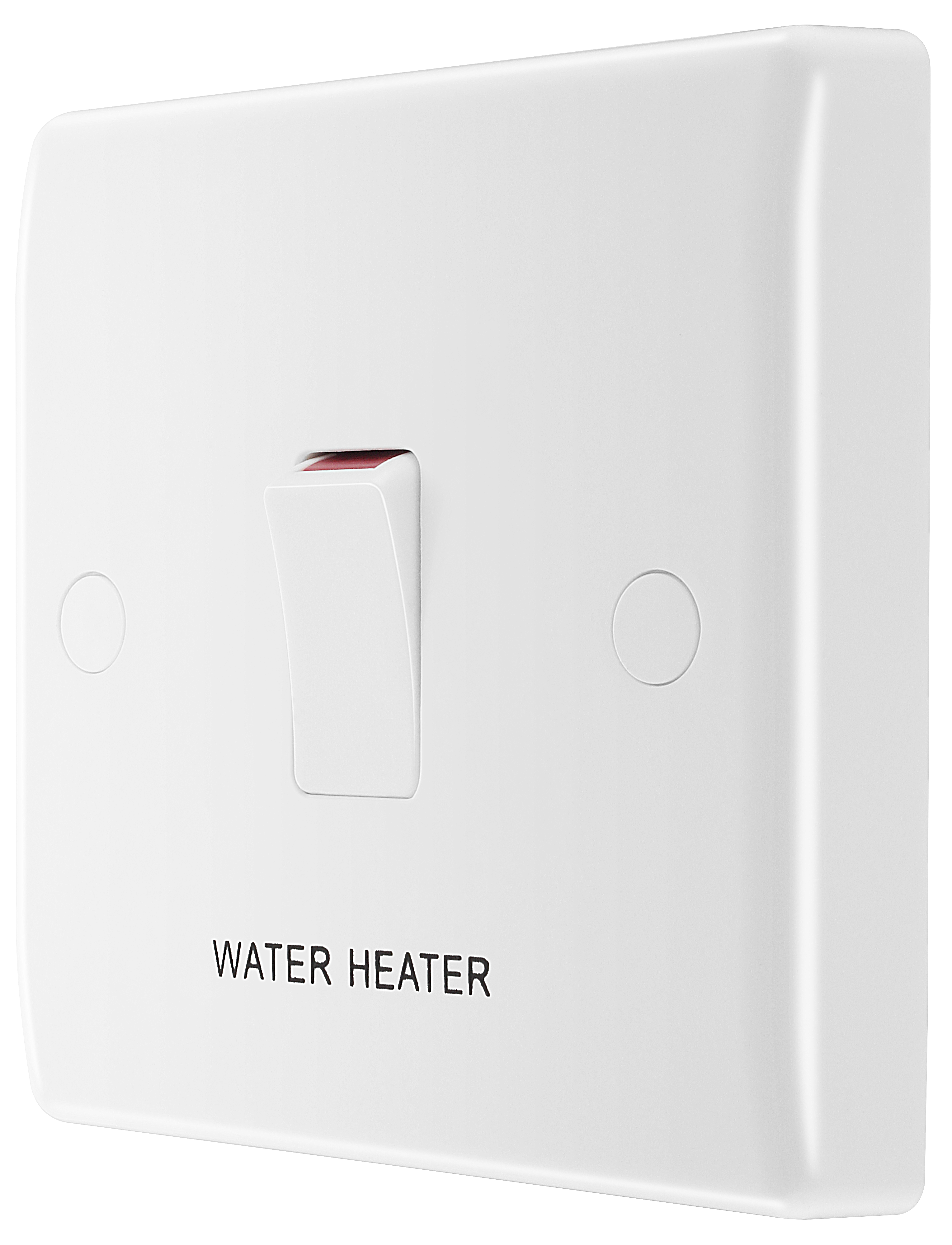

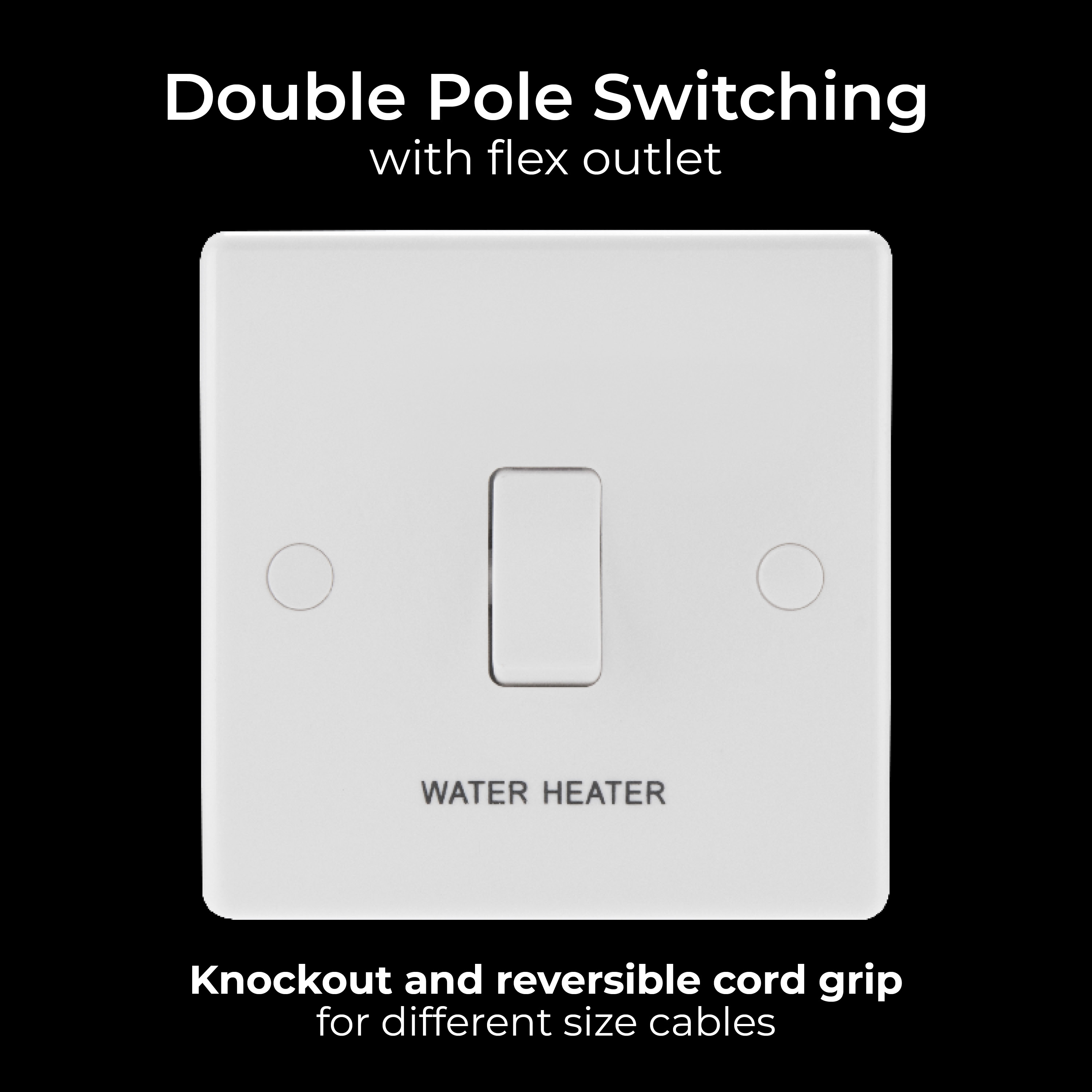

Marked 'water heater' with rounded edge cable entry at lower edge, removable blanking piece and reversible cord-grip

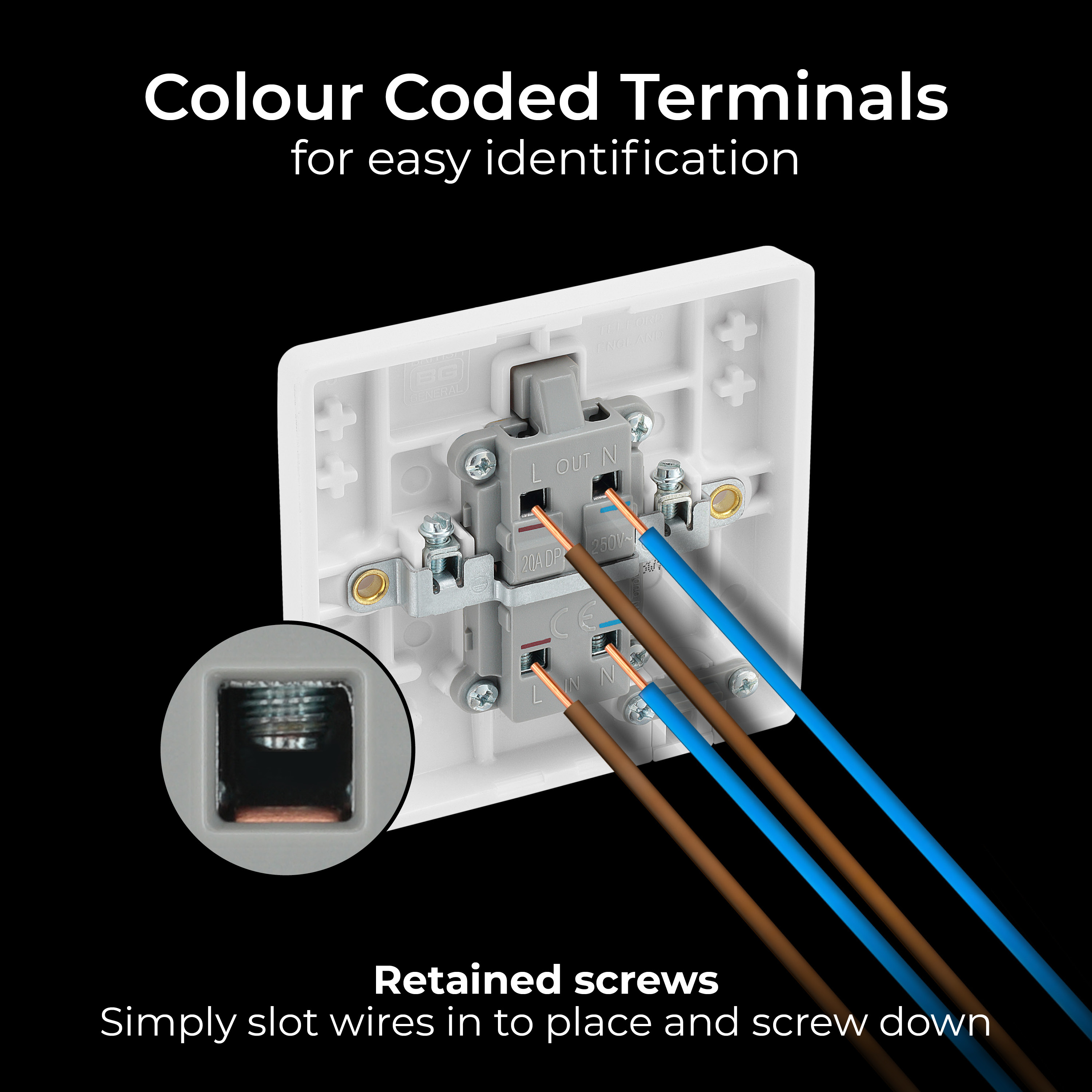

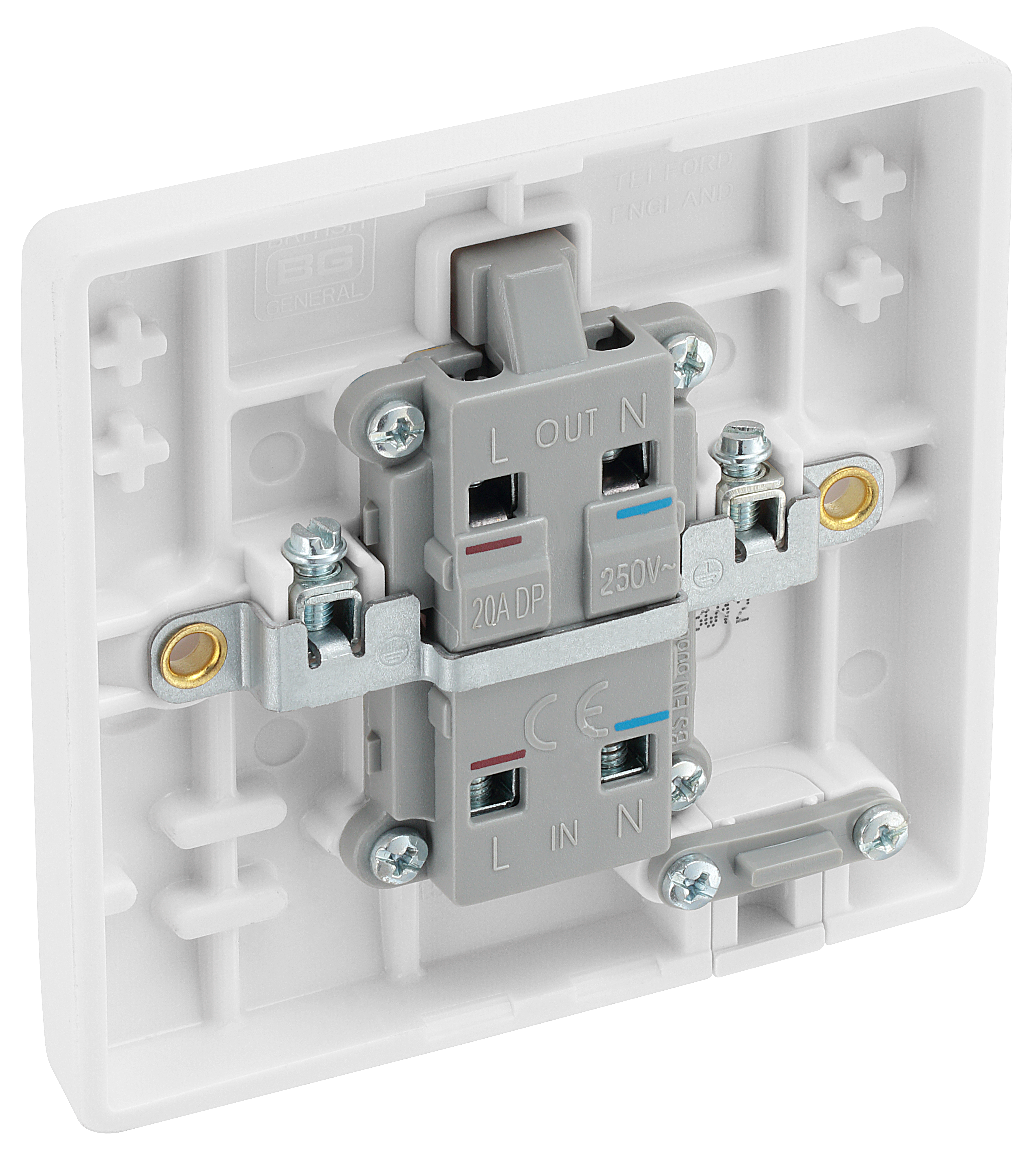

Angled in-line colour coded terminals with captive screws provide easy access for quick installation
Screw covers for sleek appearance
Double Pole switching for the peace of mind of a safer installation

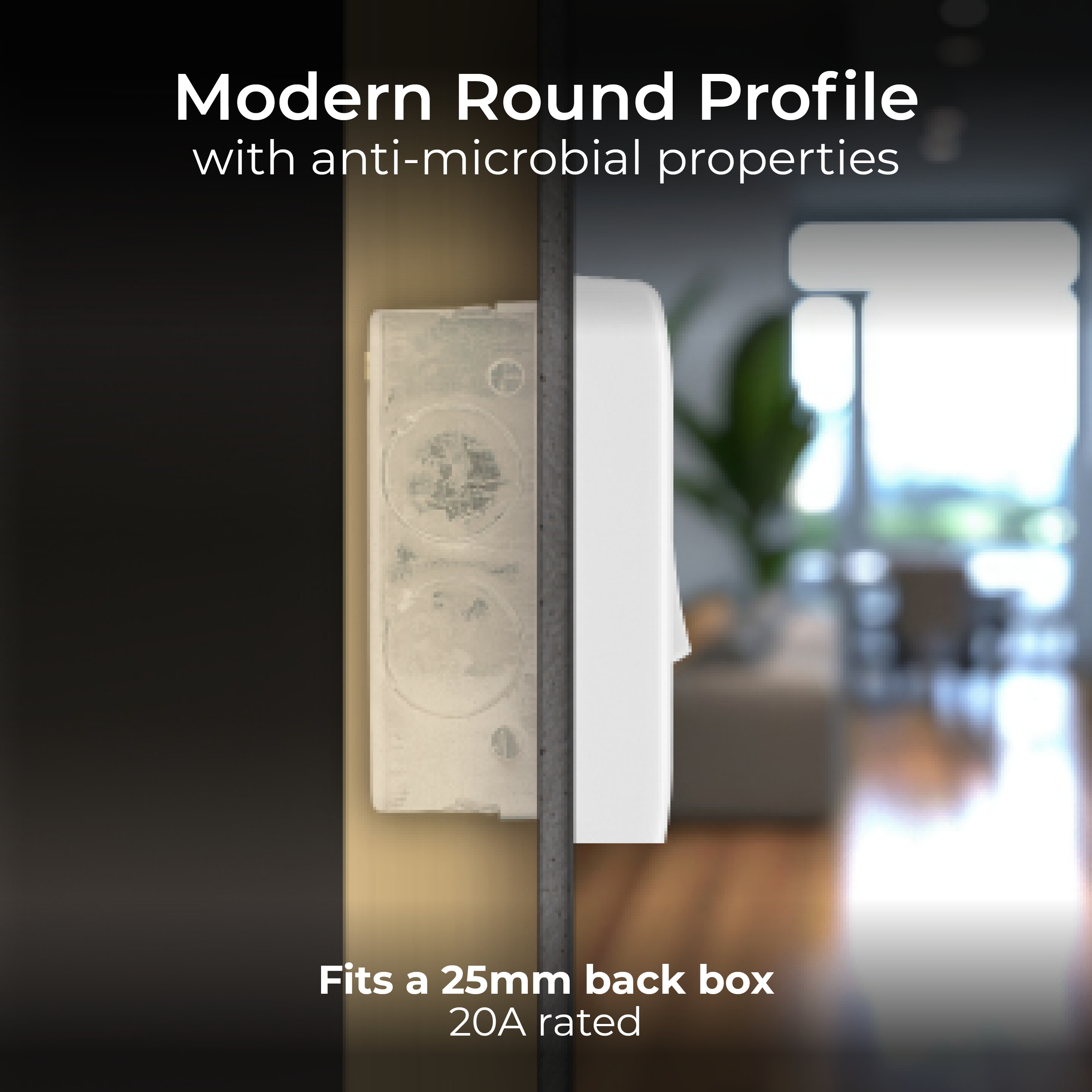

Minimum mounting box depth 25mm
Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
Certified to BS EN 60669-1
ASTA Licence number 1074
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 2 x 2.5mm², 1 x 4mm², 1 x 6mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 1 |
| Screw Caps | Yes |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Double Pole |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 30 |
