83112-01

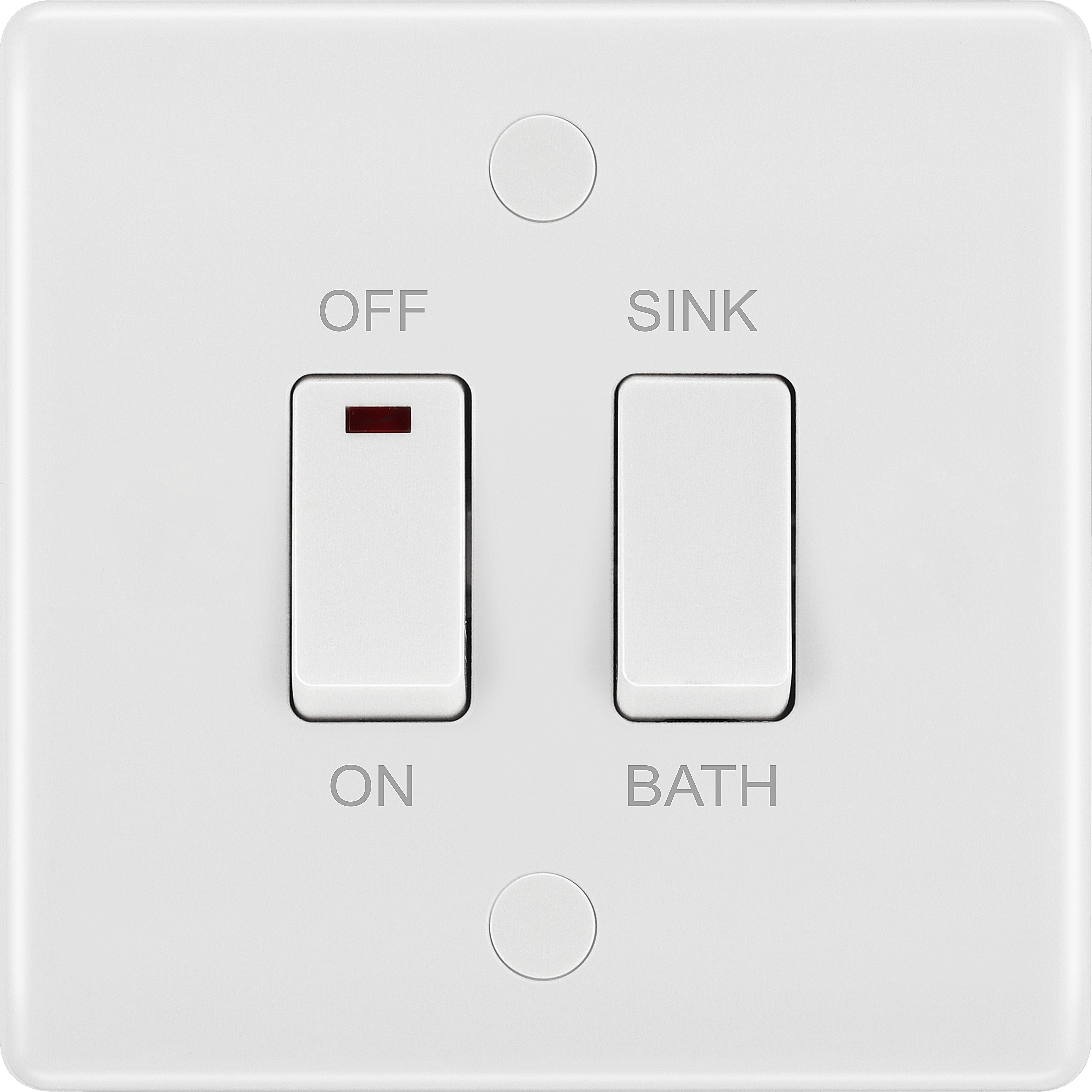

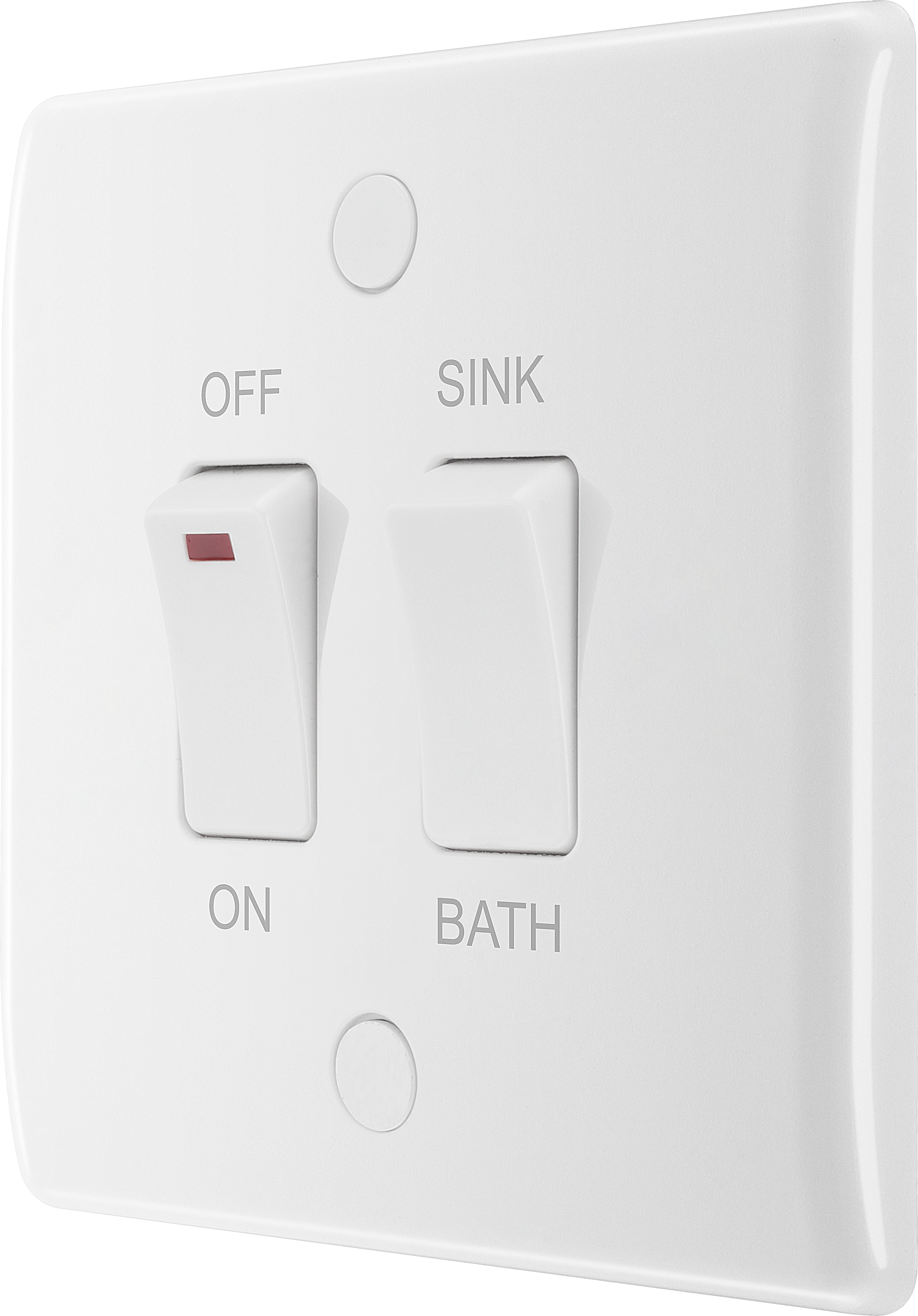

20A, double pole, immersion switch, marked "sink/bath"
20A Rated
Easy to install, supplied with fixing screws and installation instructions
Ideal for use with dual immersion heaters - switch to 'bath' with off peak electricity to heat a full tank of water cheaply, and switch to 'sink' to heat a small amount of water on expensive electricity if necessary as a top up

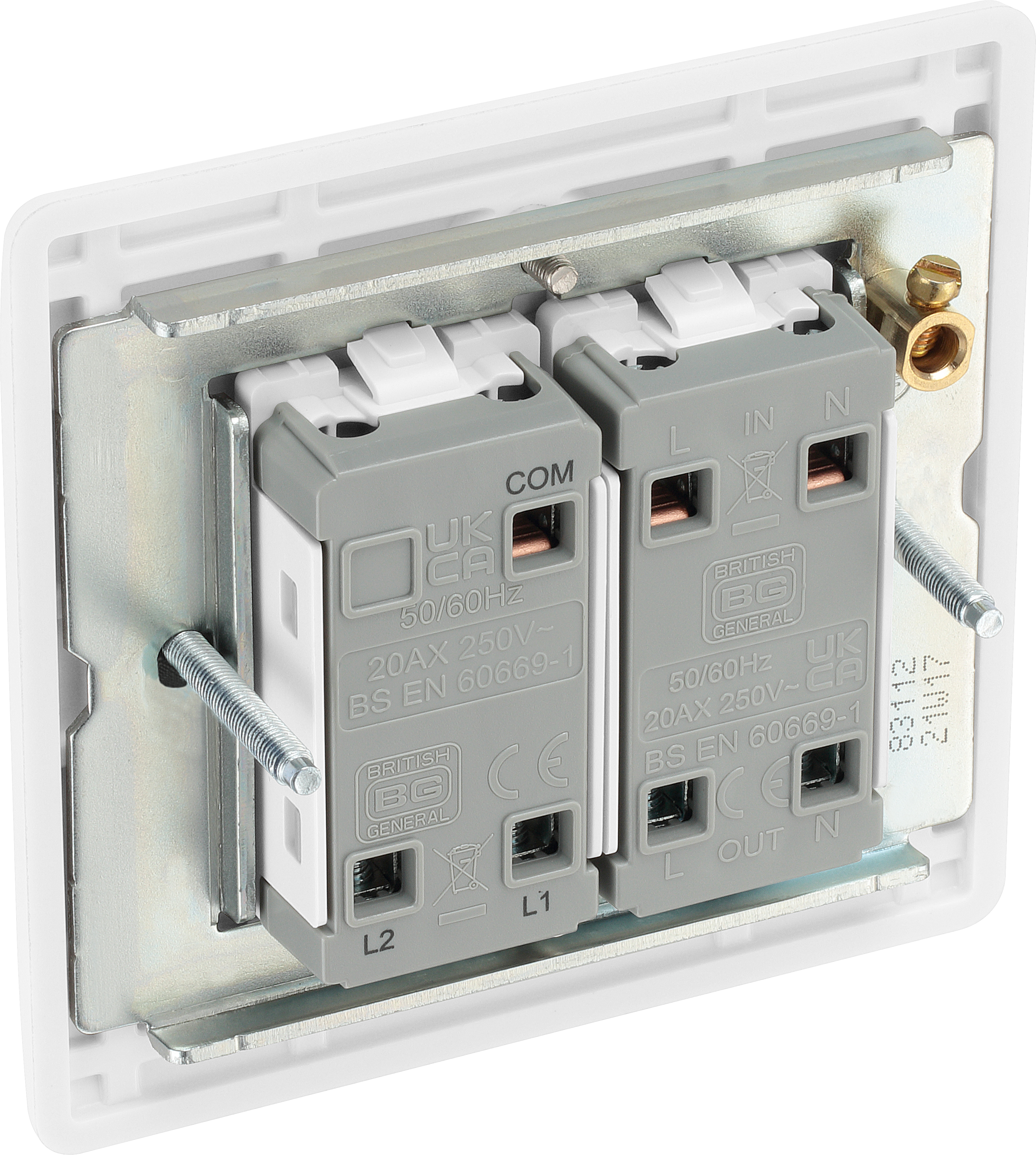

Angled in-line terminals with captive screws provide easy access for quick installation
Screw covers for sleek appearance
LED power Indicator, reliable and low power
Double Pole switching for the peace of mind of a safer installation

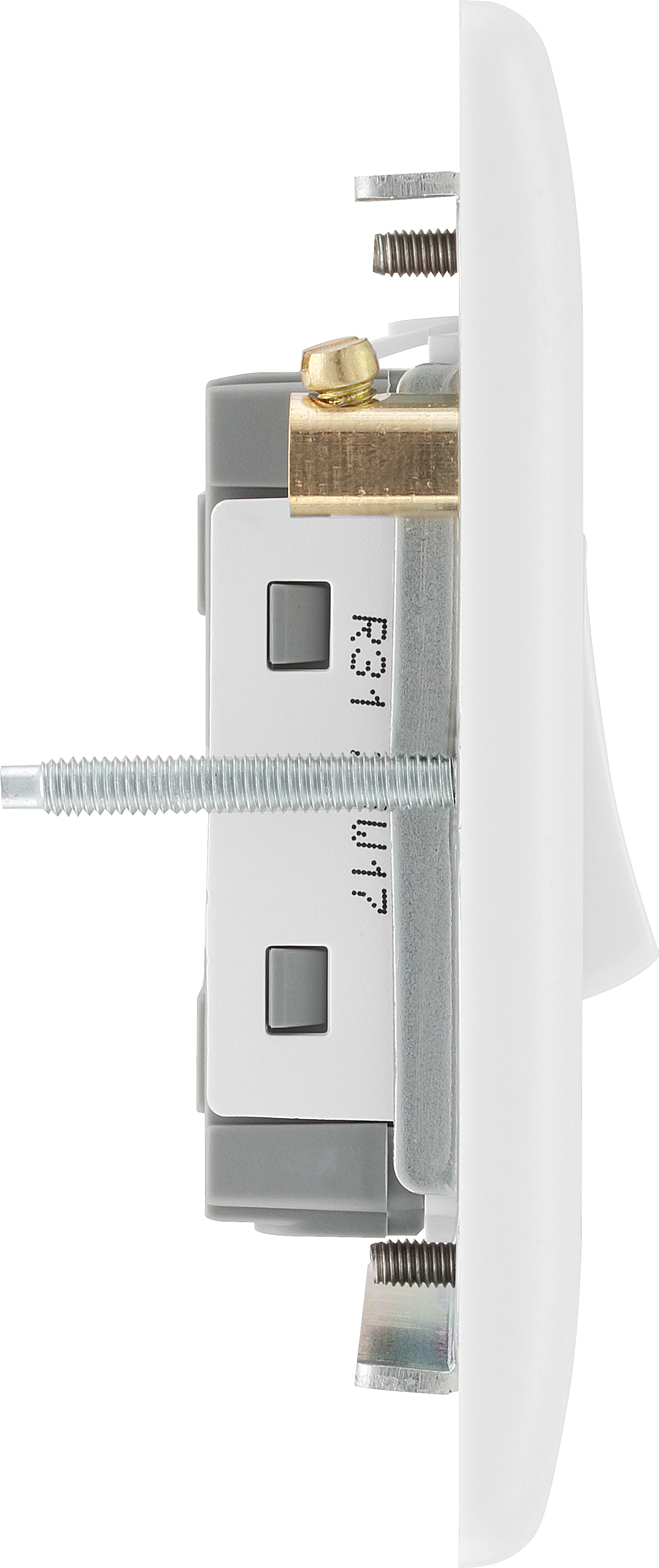

Minimum mounting box depth 25mm
Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
ASTA Licence number 1074
BG Electrical are confident in the quality of our workmanship and materials, the guarantee stated applies from the date of delivery. Please see our terms and conditions for more details
Dimensions
| Unpacked Height (mm) | 86 |
| Unpacked Width (mm) | 86 |
| Unpacked Depth (mm) | 30 |
| Front Plate Material Thickness (mm) | 3 |
| Front Plate Height (mm) | 6.9 |
Pack
| Packed Width (mm) | 120 |
| Packed Depth (mm) | 37 |
| Packed Height (mm) | 170 |
| Packed Gross Weight (kg) | 0.135 |
| Package Pack Type | Printed Bag |
| Package Hanging | Yes |
| Package EAN | 5050765175920 |
Case Inner
| Unpacked Height (mm) | 86 |
| Unpacked Width (mm) | 86 |
| Unpacked Depth (mm) | 30 |
| Front Plate Material Thickness (mm) | 3 |
| Front Plate Height (mm) | 6.9 |
Case Outer
| Packed Width (mm) | 120 |
| Packed Depth (mm) | 37 |
| Packed Height (mm) | 170 |
| Packed Gross Weight (kg) | 0.135 |
| Package Pack Type | Printed Bag |
| Package Hanging | Yes |
| Package EAN | 5050765175920 |
Container
| Packed Width (mm) | 120 |
| Packed Depth (mm) | 37 |
| Packed Height (mm) | 170 |
| Packed Gross Weight (kg) | 0.135 |
| Package Pack Type | Printed Bag |
| Package Hanging | Yes |
| Package EAN | 5050765175920 |
