830-01

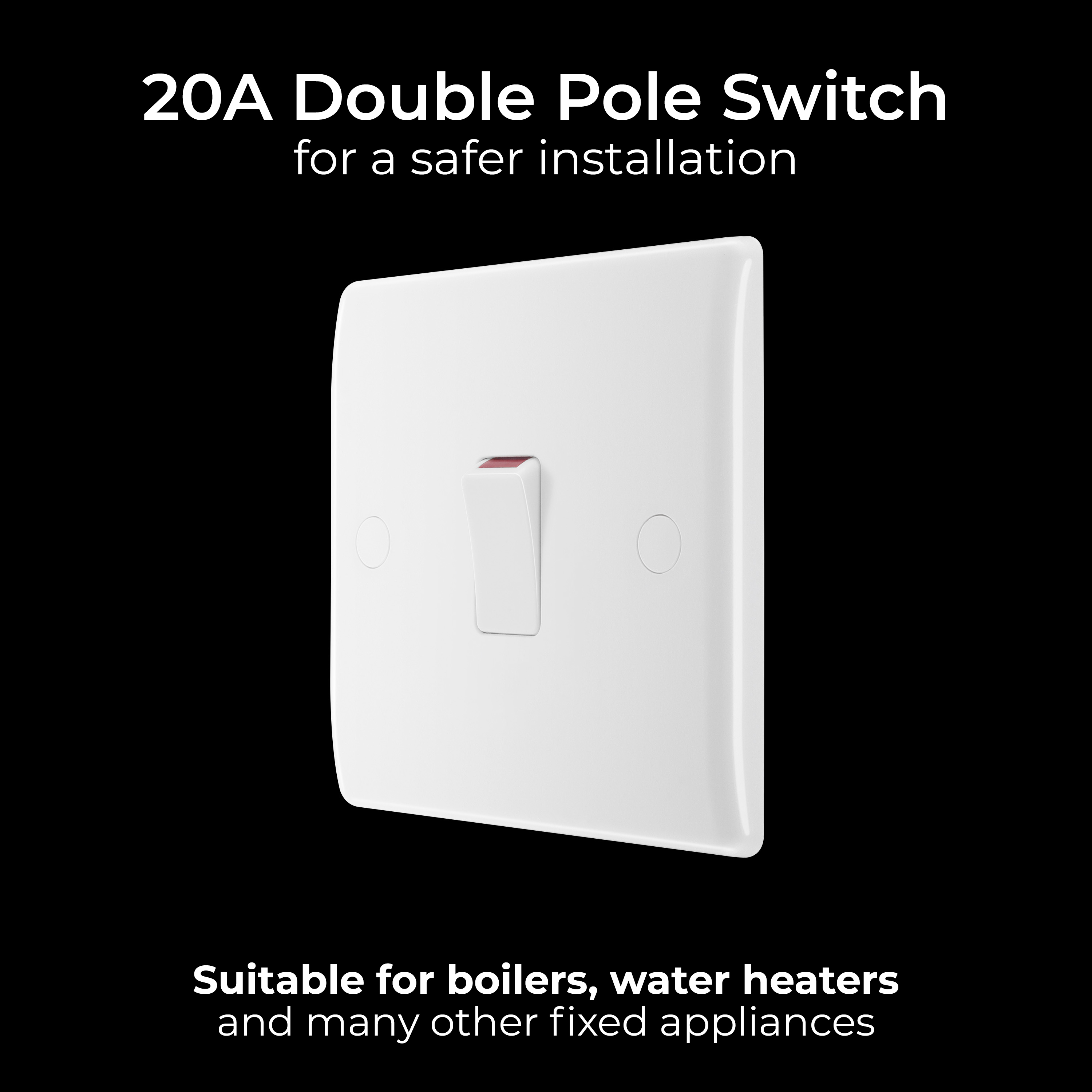

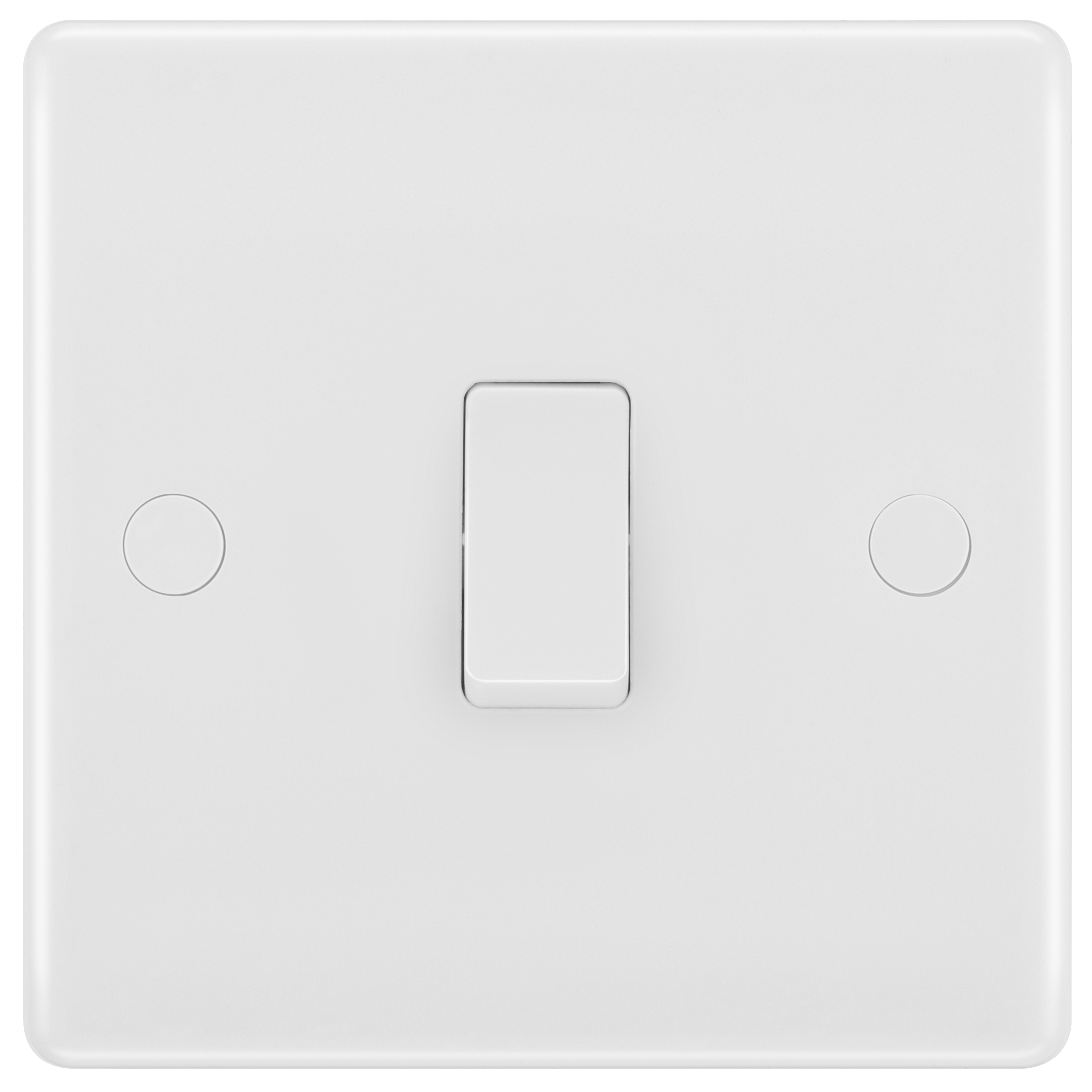

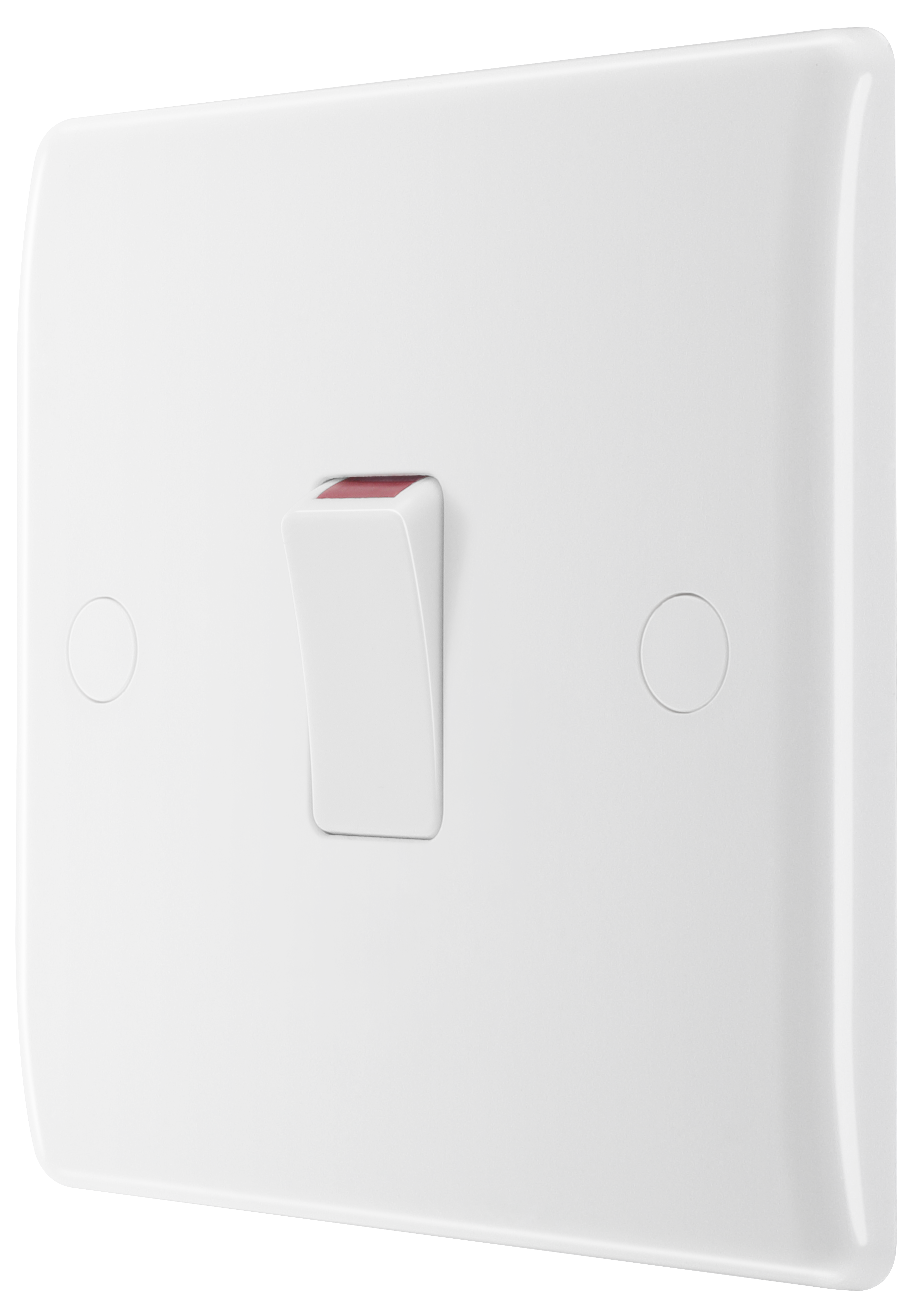

BG Nexus Series White Moulded 20A Double Pole Switch
20A Rated
Easy to install, supplied with fixing screws and installation instructions
Suitable for use with refrigerators, water heaters, central heating boilers and many other fixed appliances

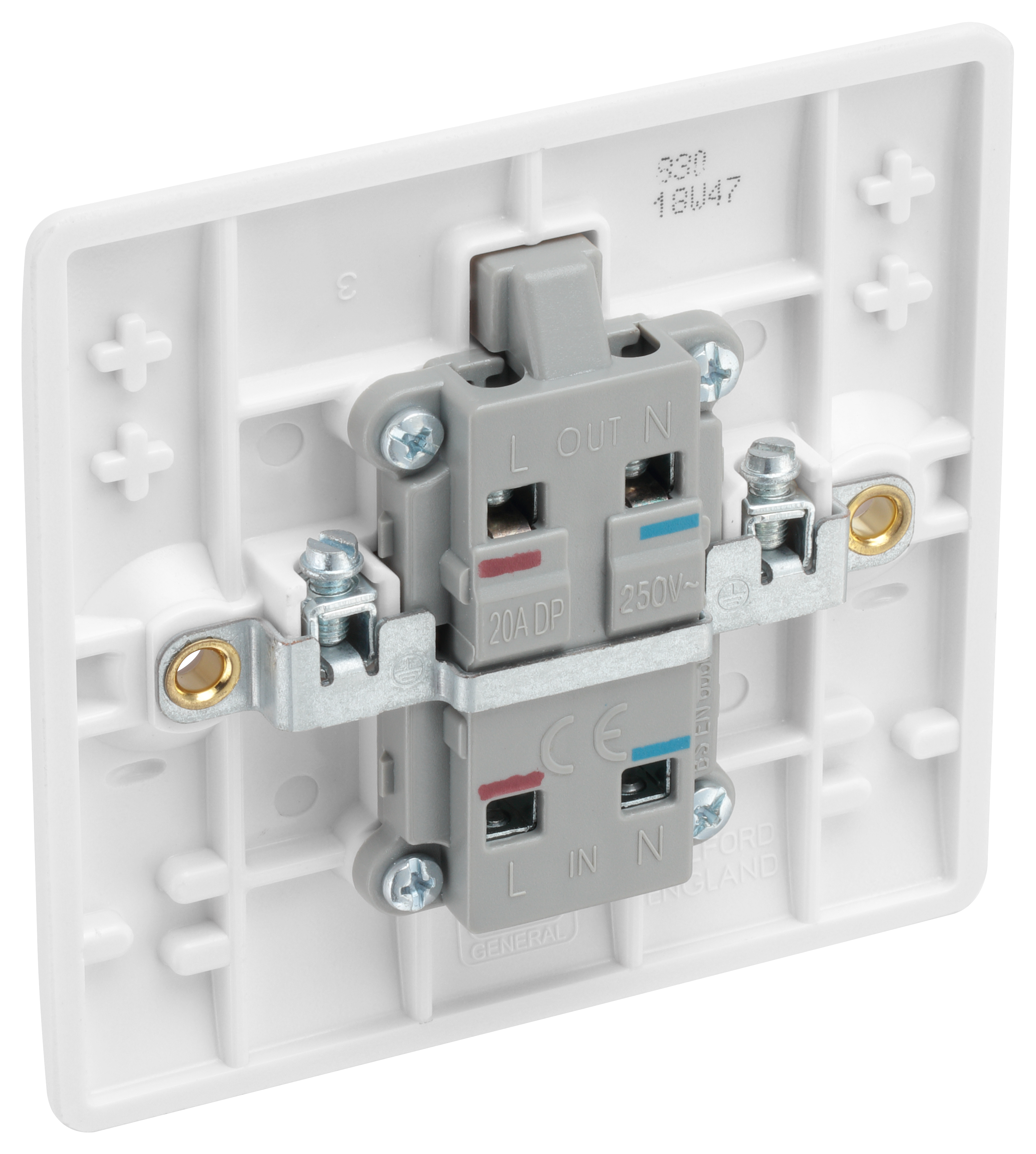

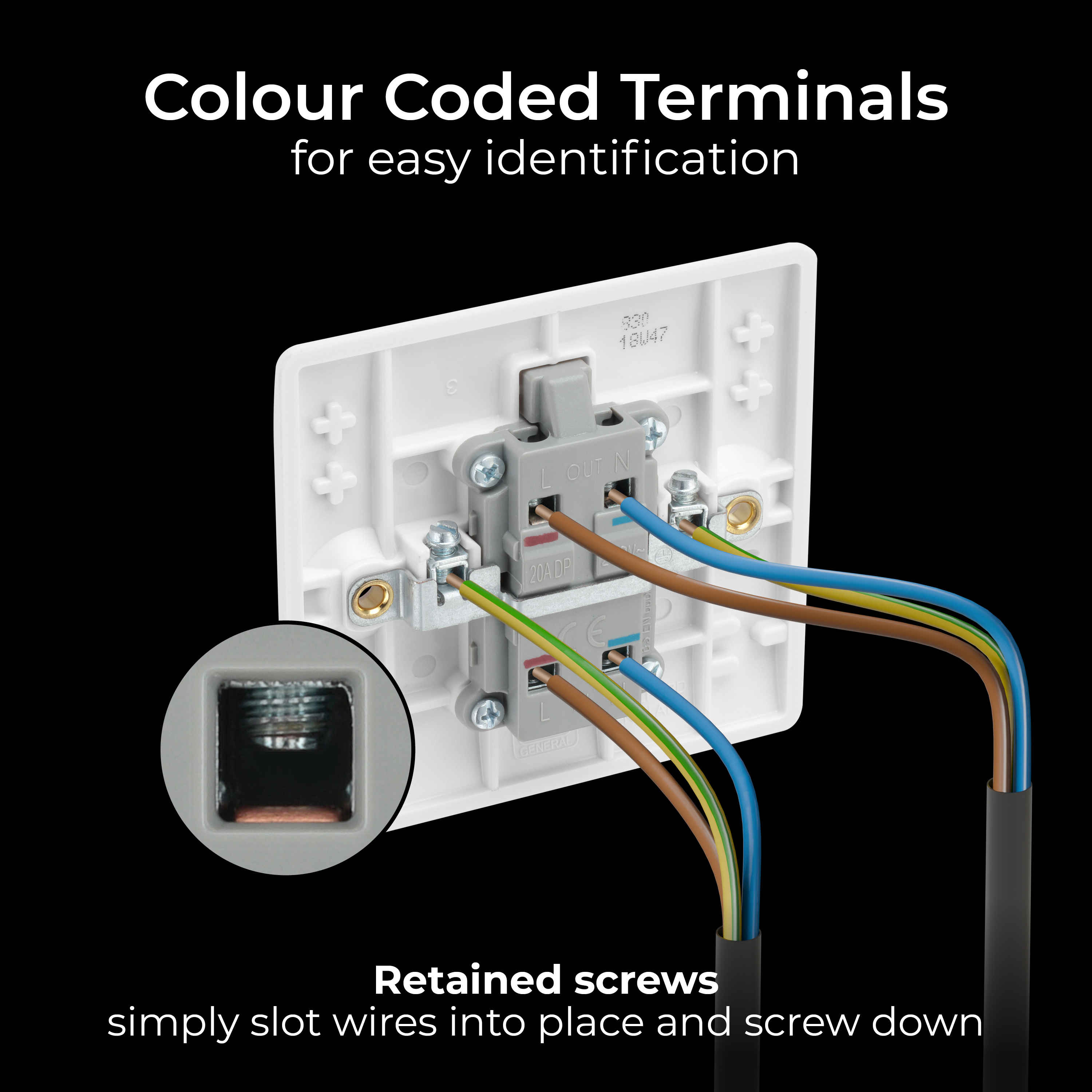

Colour coded terminals for easy identification and quick installation
Captive screws prevent screw loss

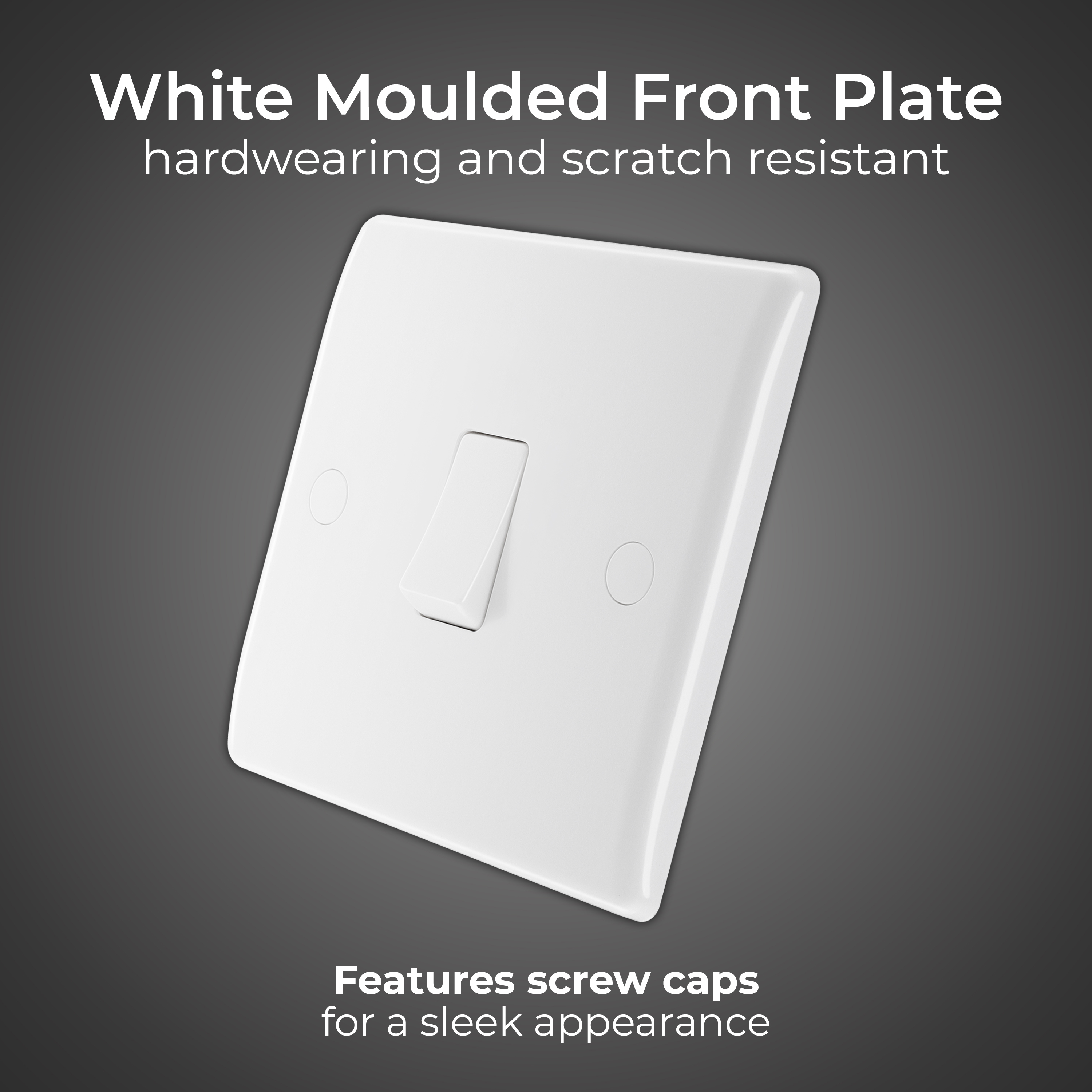

Screw covers for sleek appearance
Double Pole switching for the peace of mind of a safer installation

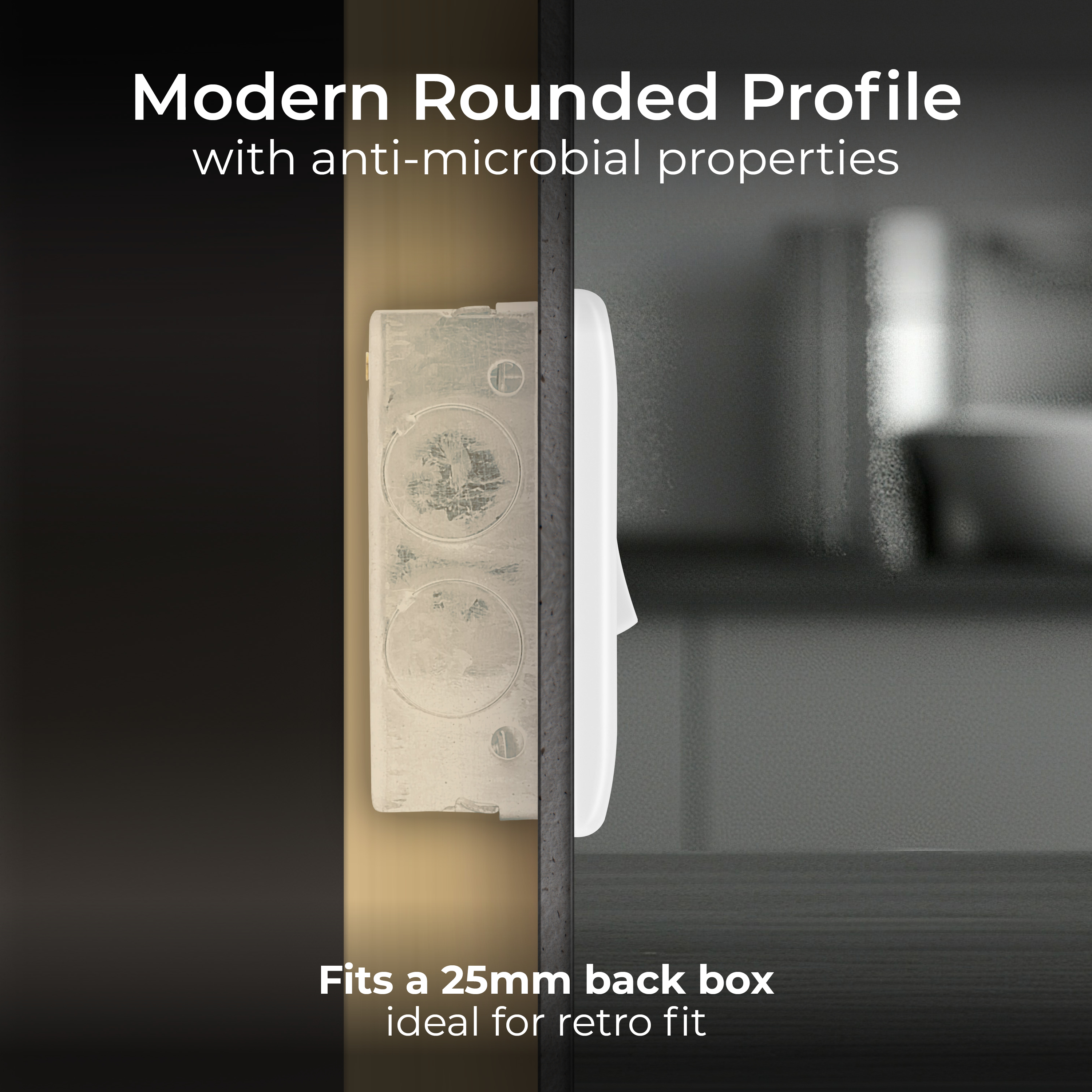

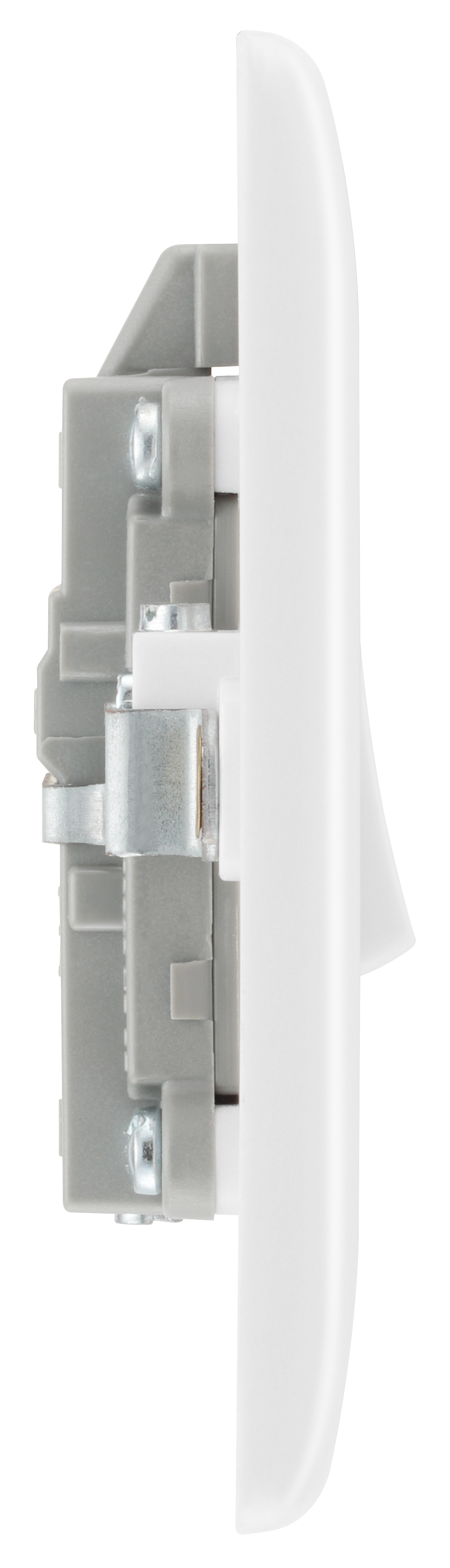

Minimum mounting box depth 25mm
Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
ASTA Licence number 1074
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 2 x 2.5mm², 1 x 4mm², 1 x 6mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 1 |
| Screw Caps | Yes |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Double Pole |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 30 |
