822BELL-01

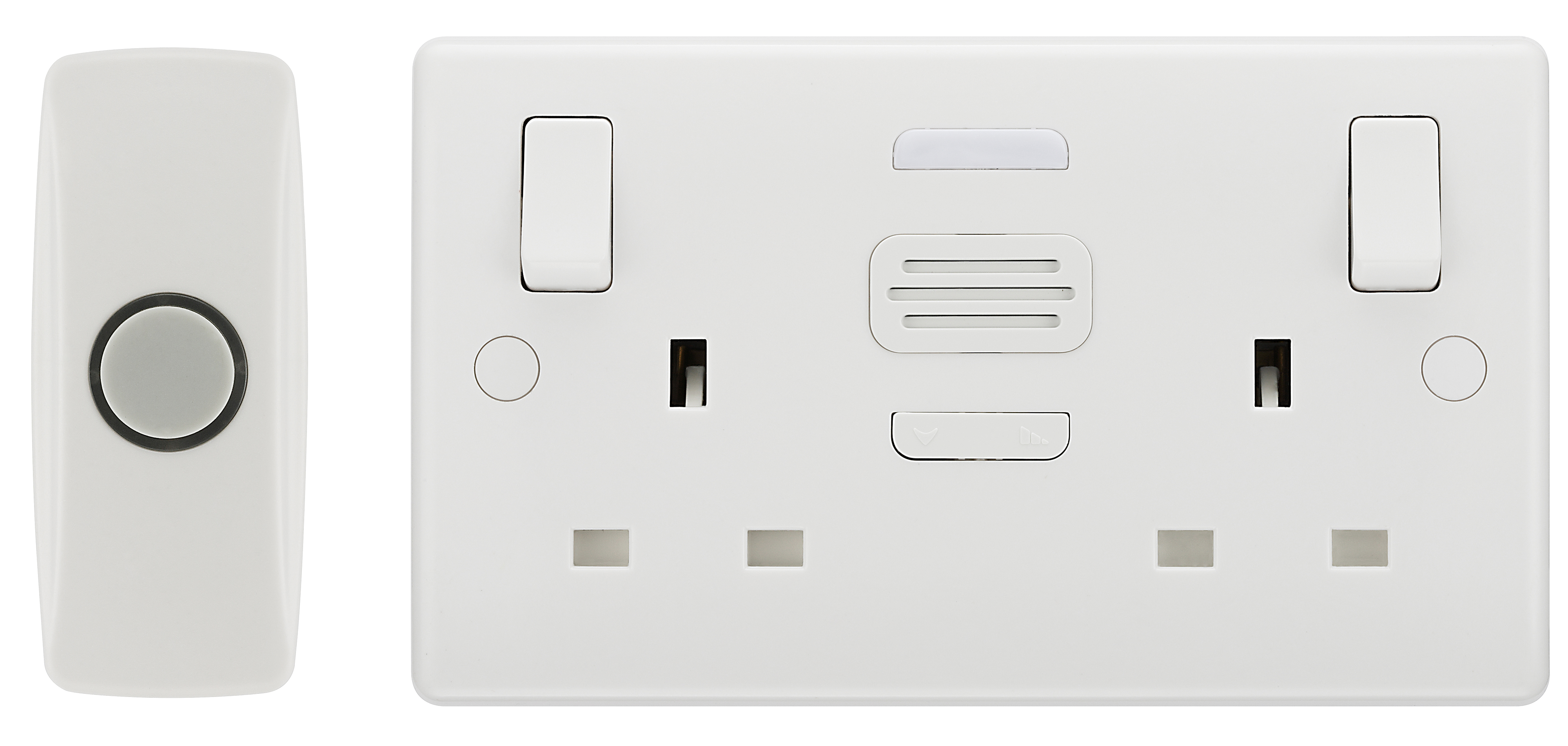

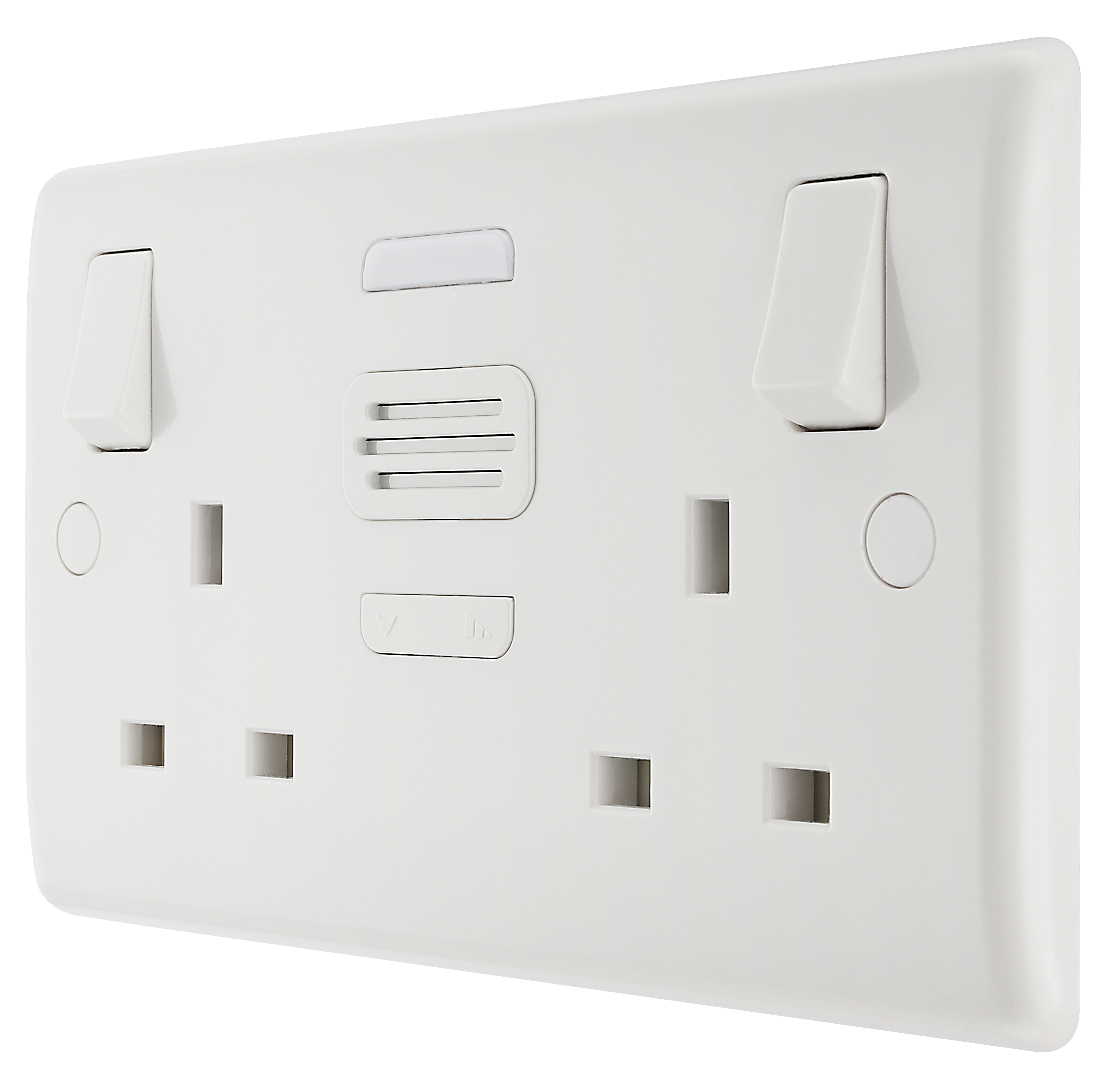

BG Nexus Series White Moulded 13A Double Switched Socket with Door Chime
Integrated door chime keeps sockets free

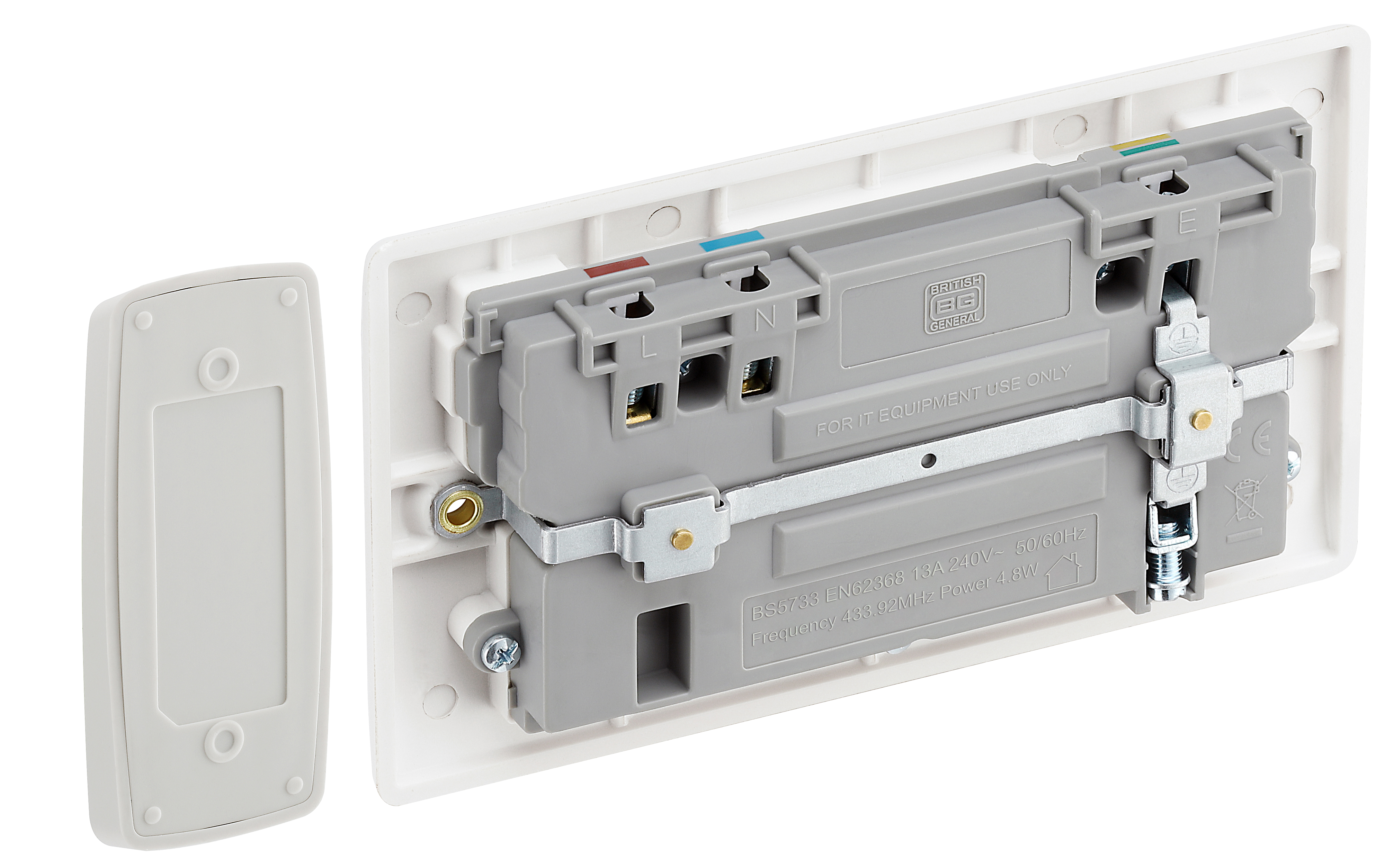

Angled in-line terminals with captive screws provide easy access for quick installation
100m (open air) wireless range and ability to pair multiple sockets and push buttons, make this ideal for larger homes
1 in a million random code ensures no interference with neighbouring door chimes
Volume can be adjusted from mute up to 80dB to suit the location of the socket
LED indicator provides visual indication of door chime activation, ideal for mute mode, noisy households and the hard of hearing
Battery powered IP44 rated push button supplied with CR2032 battery
6 melodies - a choice of 4 x 'Ding Dong' and 2 x 'Westminster'
Minimum mounting box depth 25mm
Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled-in line terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 2 |
| Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
| Number of Switches | 2 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | Single Pole |
| Fixing Centres (mm) | W-120.6 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 10 |
