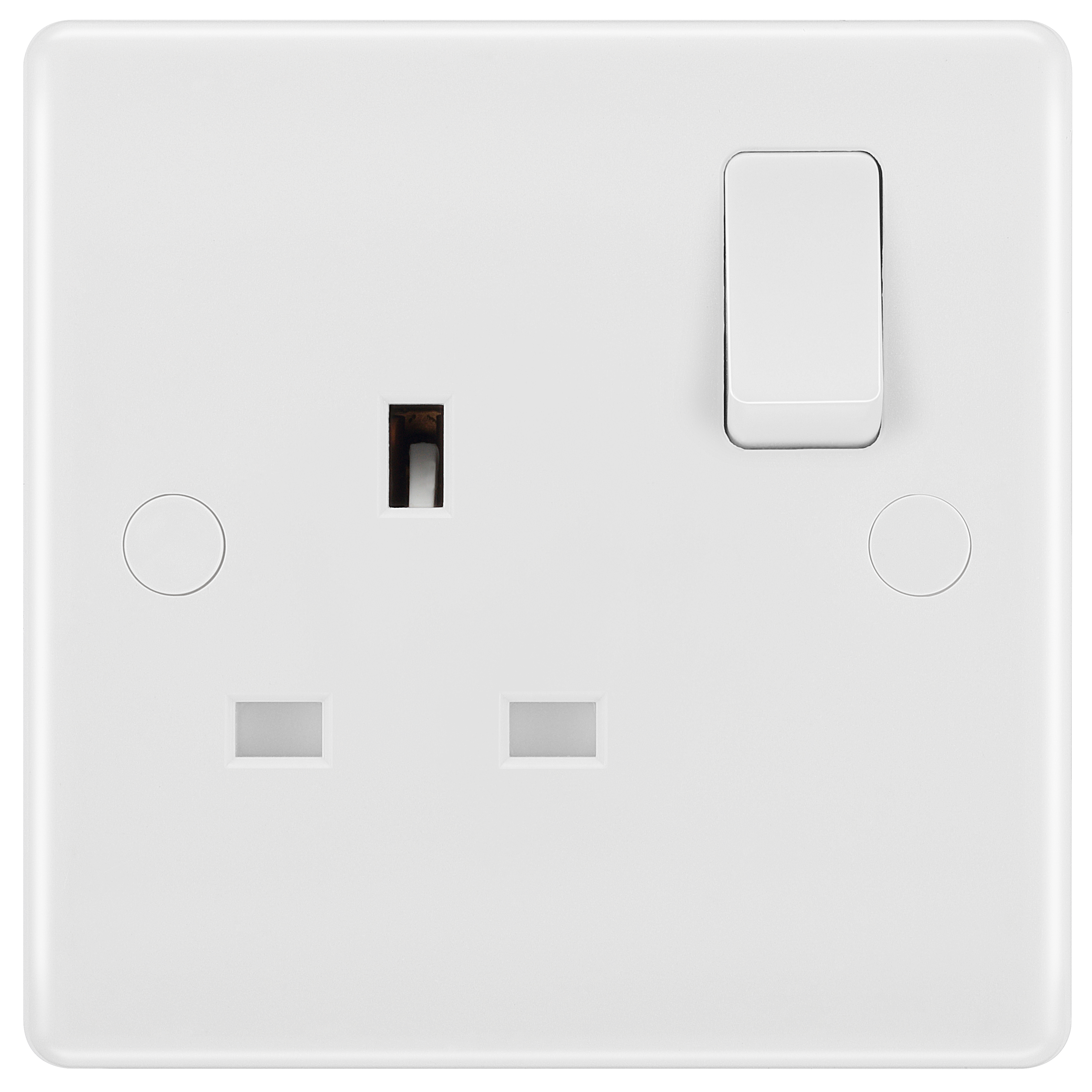

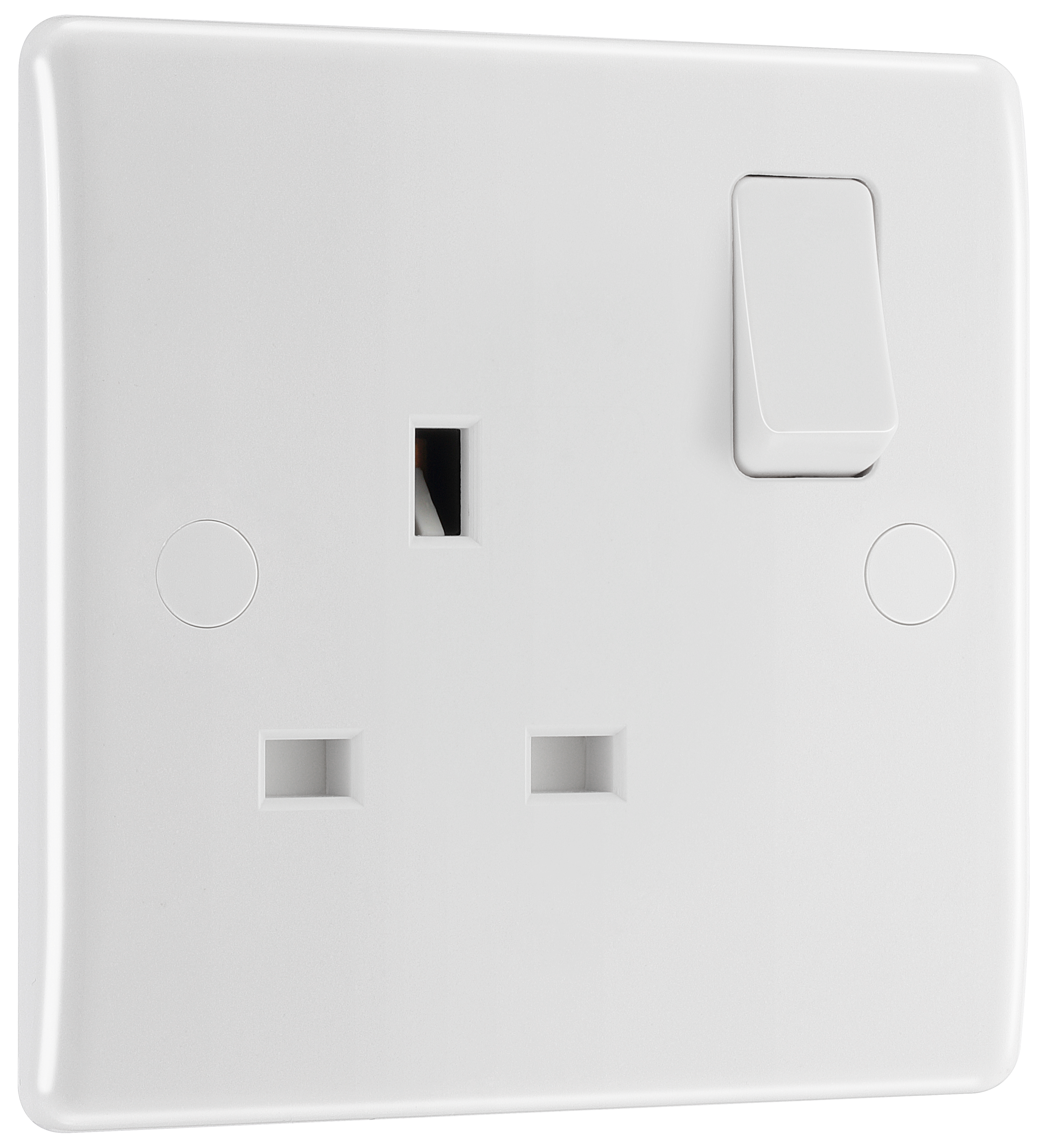

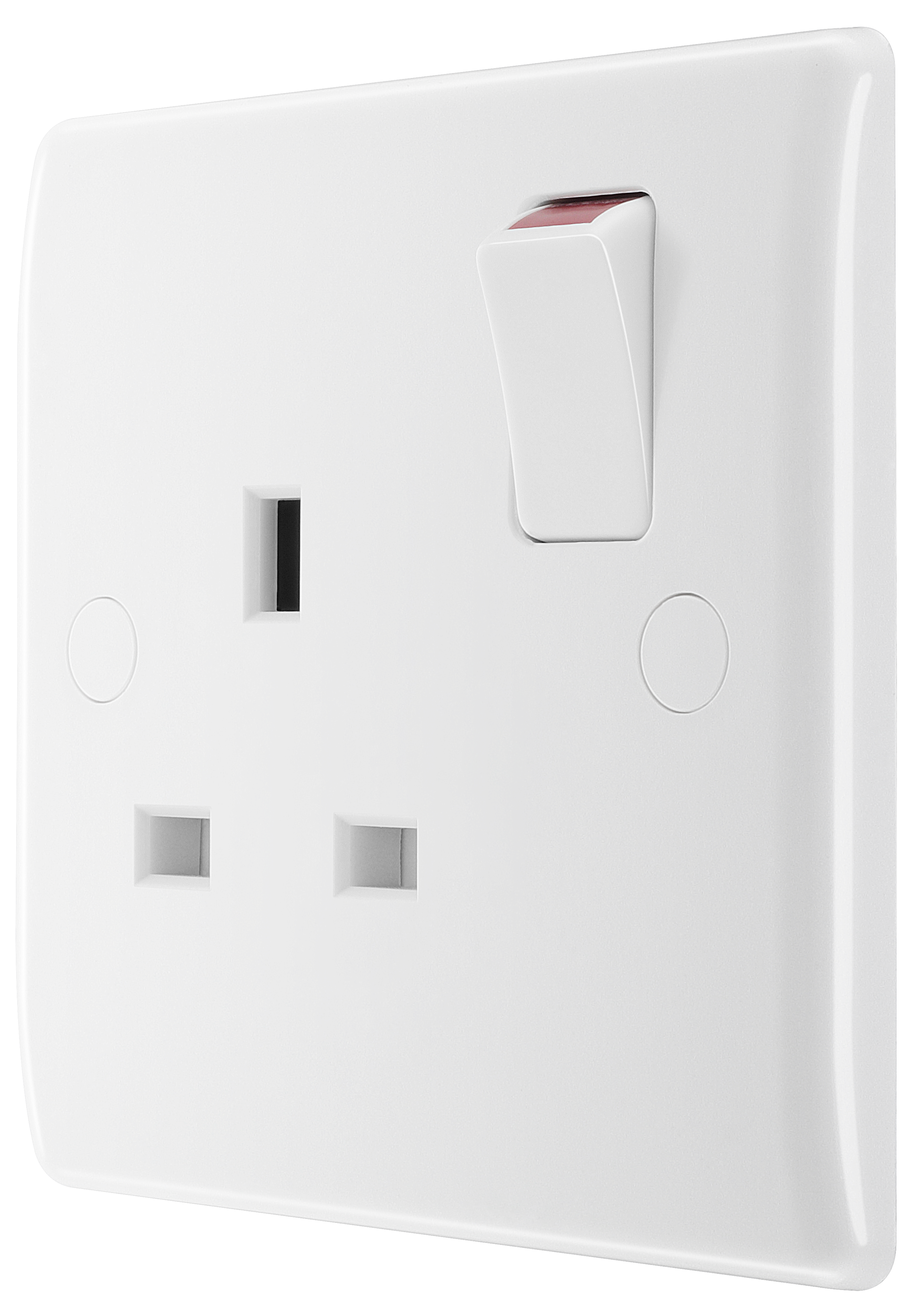

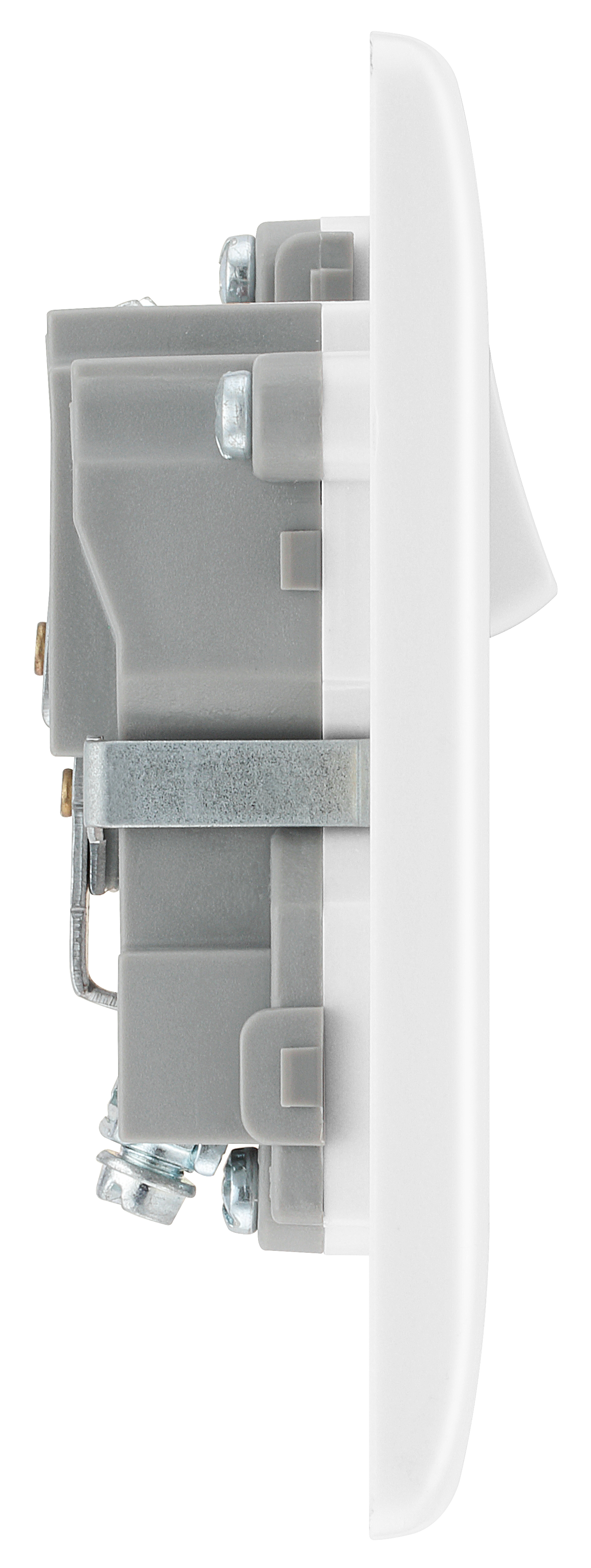

821-01
Single, switched, single pole
13A Rated
Easy to install, supplied with fixing screws and installation instructions

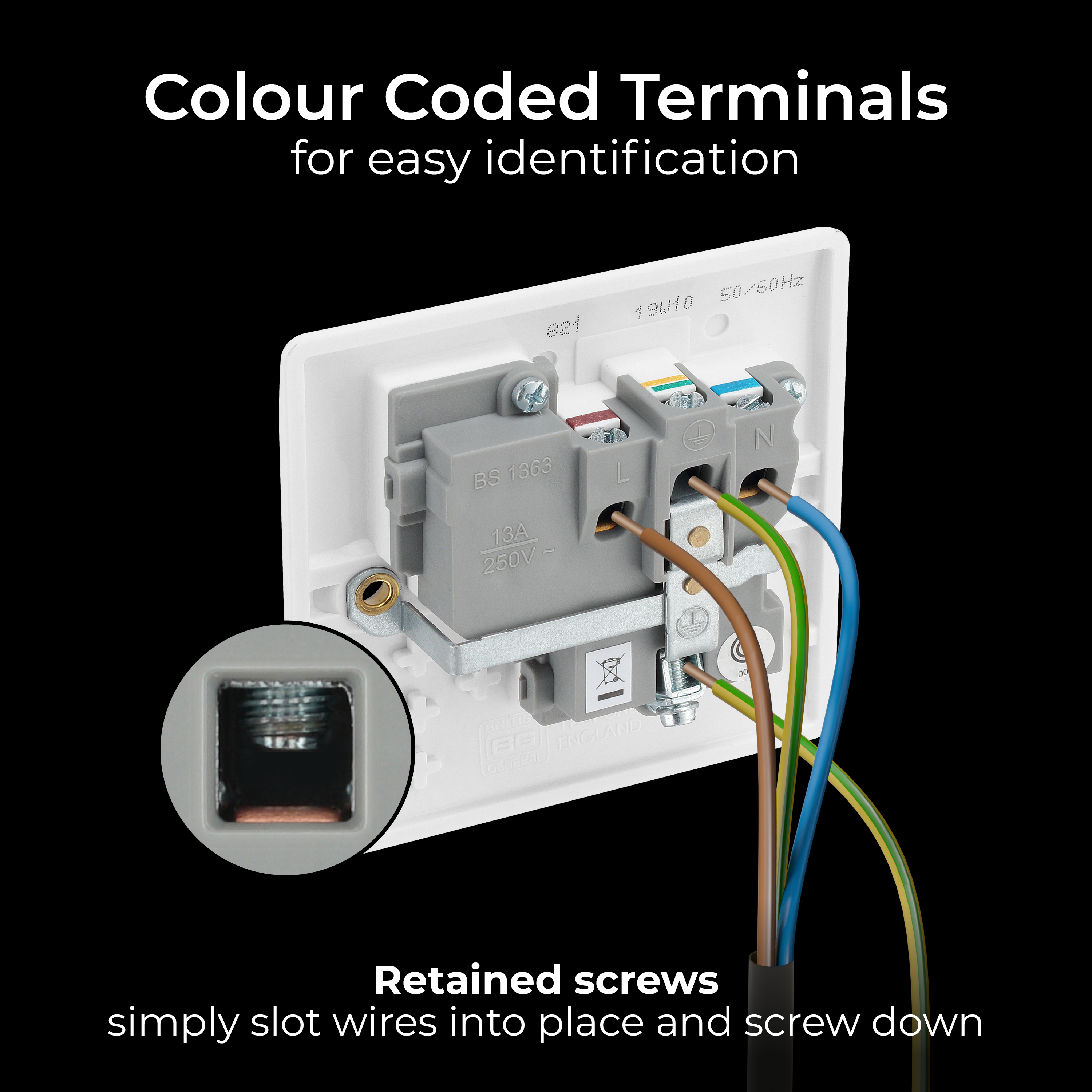

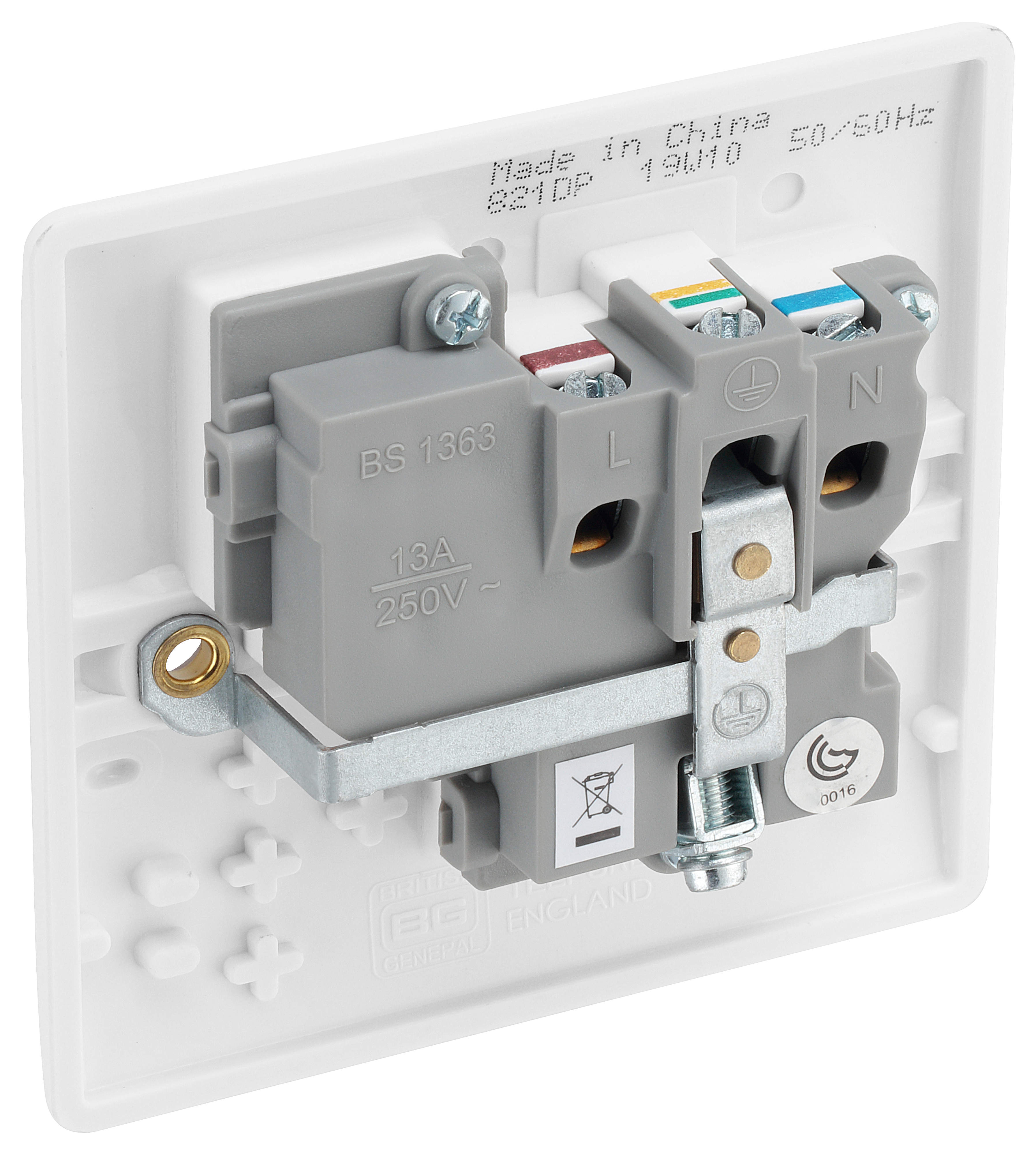

Angled in-line colour coded terminals provide easy access for quick installation
Captive screws prevent screw loss

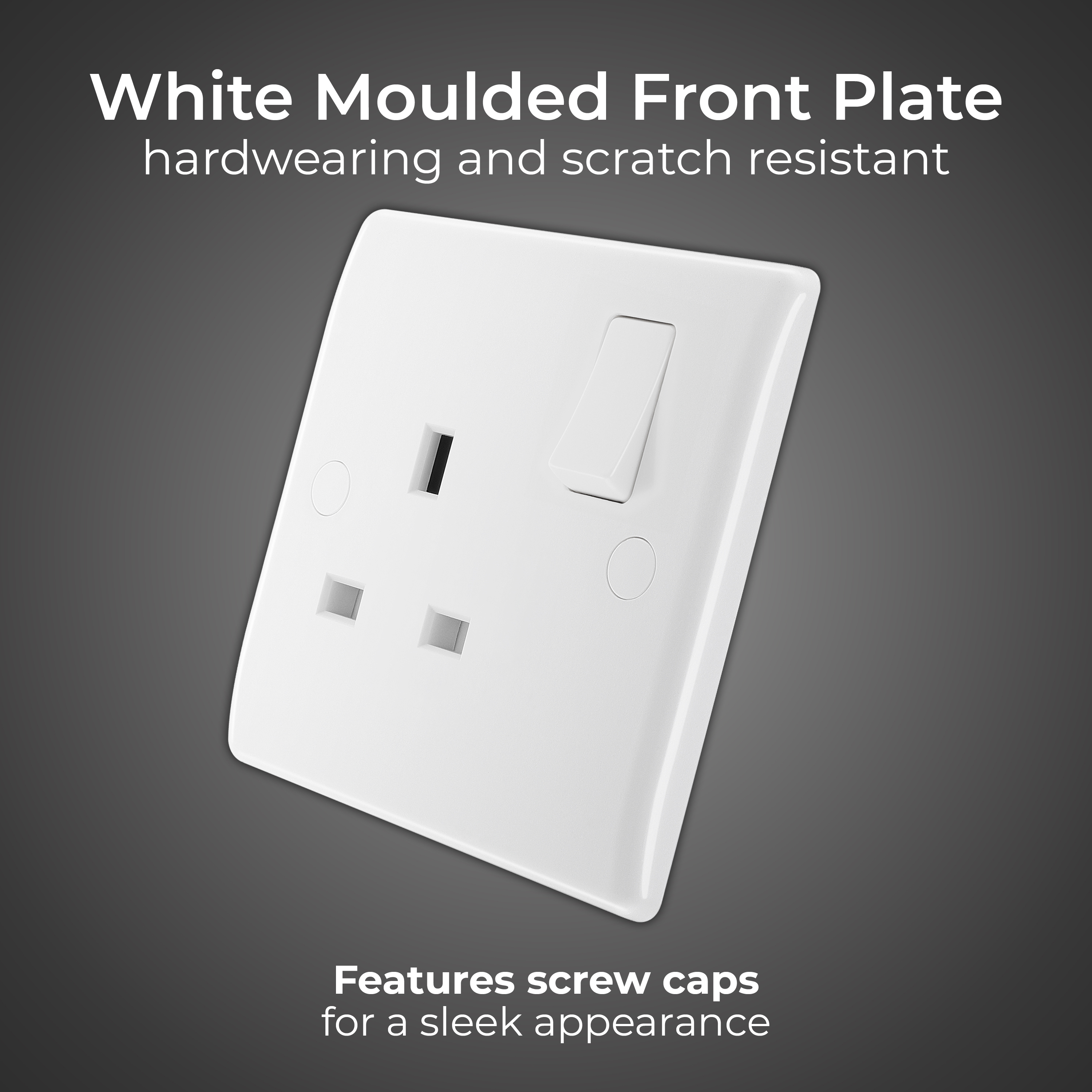

Screw covers for sleek appearance
Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008

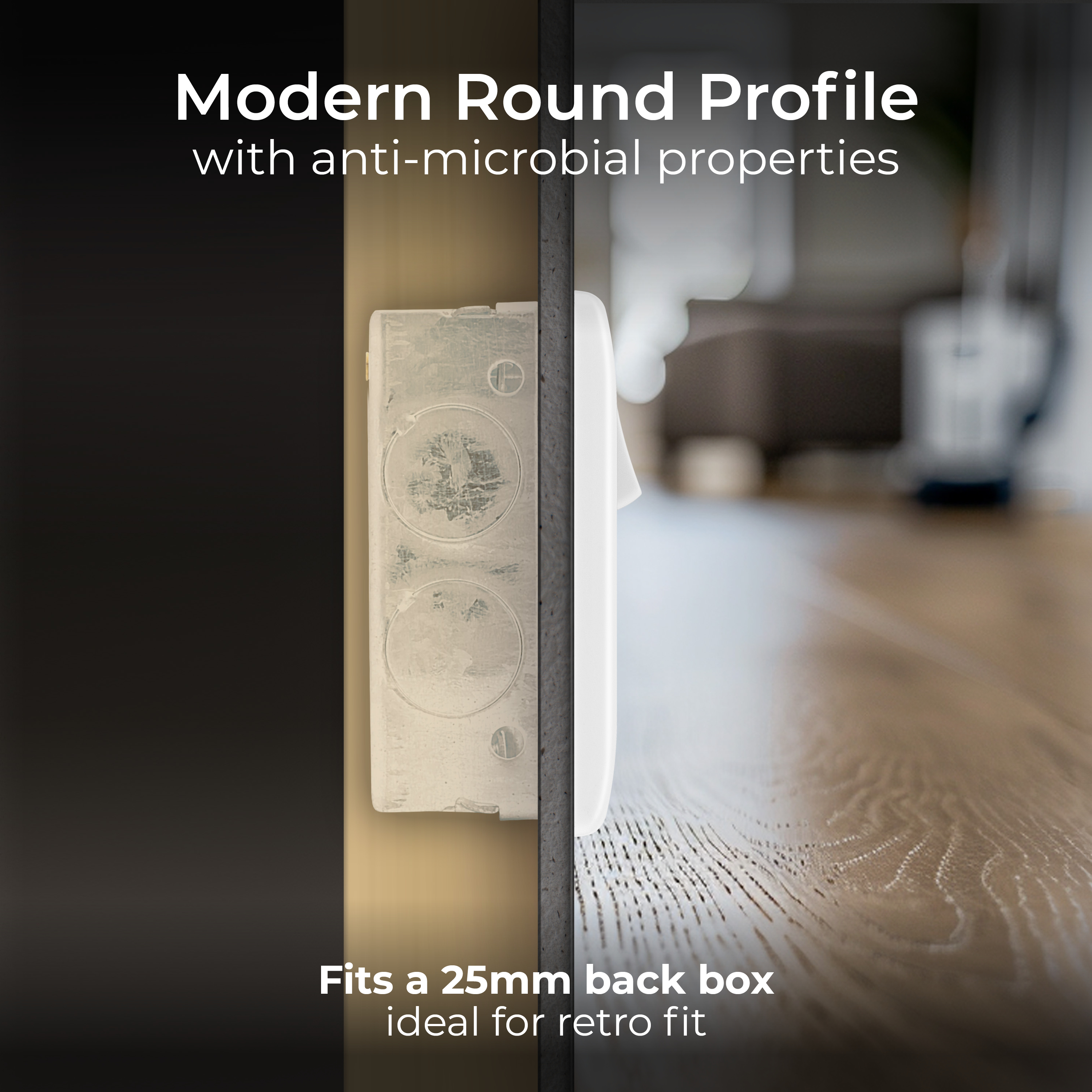

Minimum mounting box depth 25mm
Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
Certified to BS1363-2
ASTA Licence number 1013
BG Electrical are confident in the quality of our workmanship and materials, the guarantee stated applies from the date of delivery. Please see our terms and conditions for more details
Dimensions
| Unpacked Height (mm) | 86 |
| Unpacked Width (mm) | 86 |
| Unpacked Depth (mm) | 31.7 |
| Minimum Box Depth (mm) | 25 |
| Front Plate Material Thickness (mm) | 3 |
| Front Plate Height (mm) | 6.9 |
Pack
| Packed Width (mm) | 110 |
| Packed Depth (mm) | 34 |
| Packed Height (mm) | 165 |
| Packed Gross Weight (kg) | 0.098 |
| Package Pack Type | Printed Bag |
| Package Hanging | Yes |
| Package EAN | 5050765000550 |
Case Inner
| Unpacked Height (mm) | 86 |
| Unpacked Width (mm) | 86 |
| Unpacked Depth (mm) | 31.7 |
| Minimum Box Depth (mm) | 25 |
| Front Plate Material Thickness (mm) | 3 |
| Front Plate Height (mm) | 6.9 |
Case Outer
| Packed Width (mm) | 110 |
| Packed Depth (mm) | 34 |
| Packed Height (mm) | 165 |
| Packed Gross Weight (kg) | 0.098 |
| Package Pack Type | Printed Bag |
| Package Hanging | Yes |
| Package EAN | 5050765000550 |
Container
| Packed Width (mm) | 110 |
| Packed Depth (mm) | 34 |
| Packed Height (mm) | 165 |
| Packed Gross Weight (kg) | 0.098 |
| Package Pack Type | Printed Bag |
| Package Hanging | Yes |
| Package EAN | 5050765000550 |
