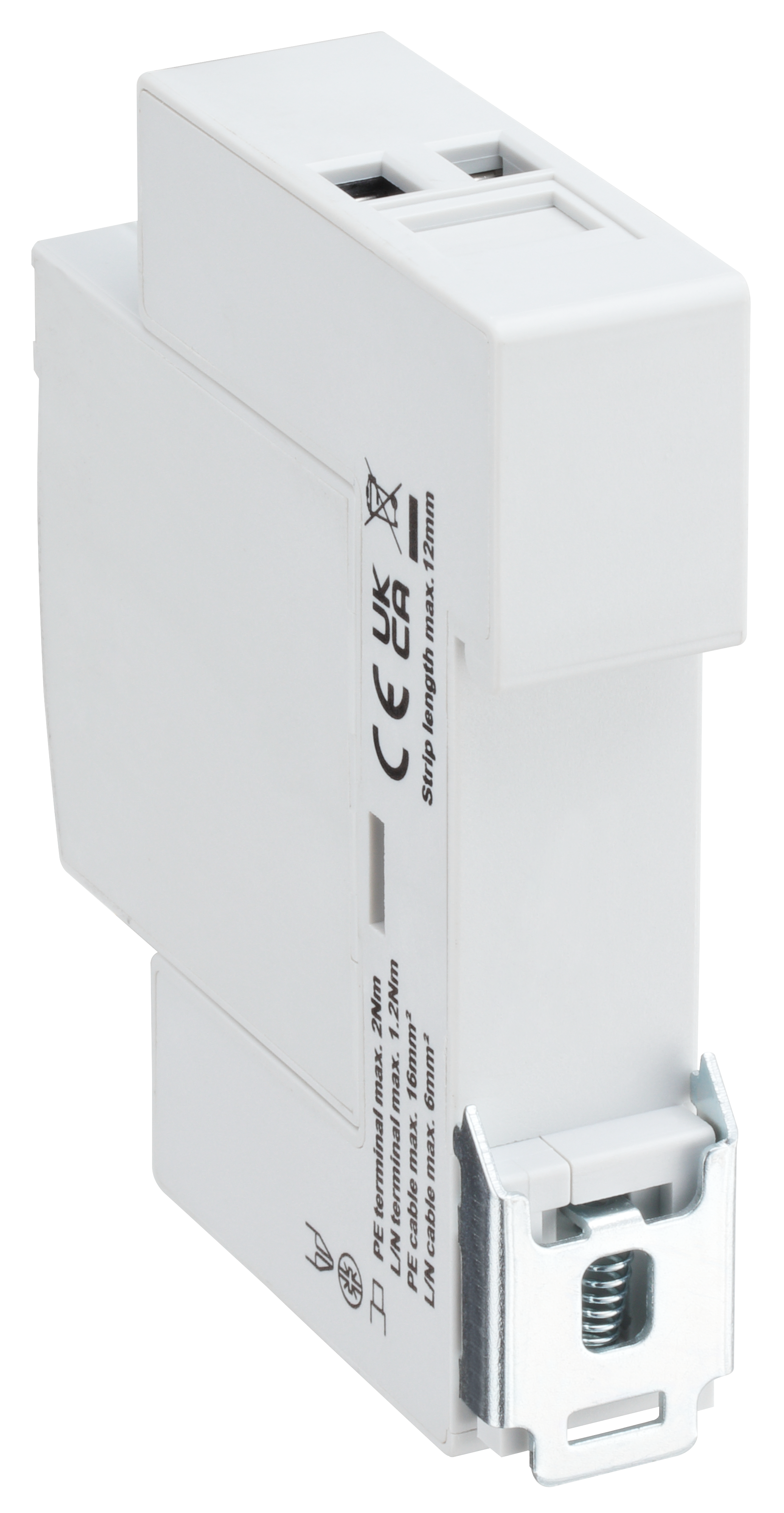

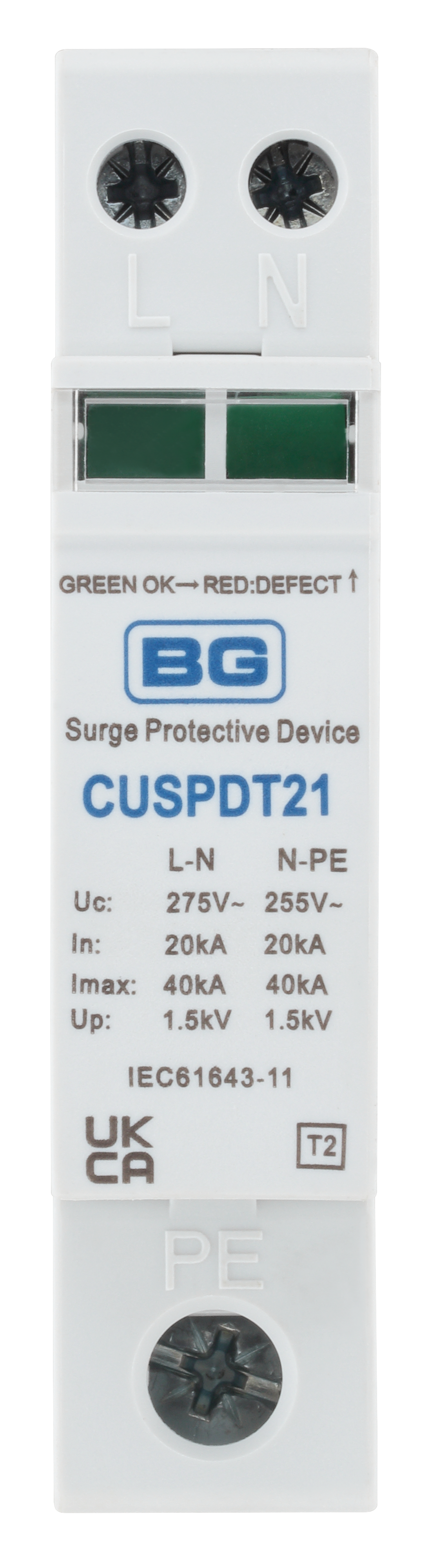

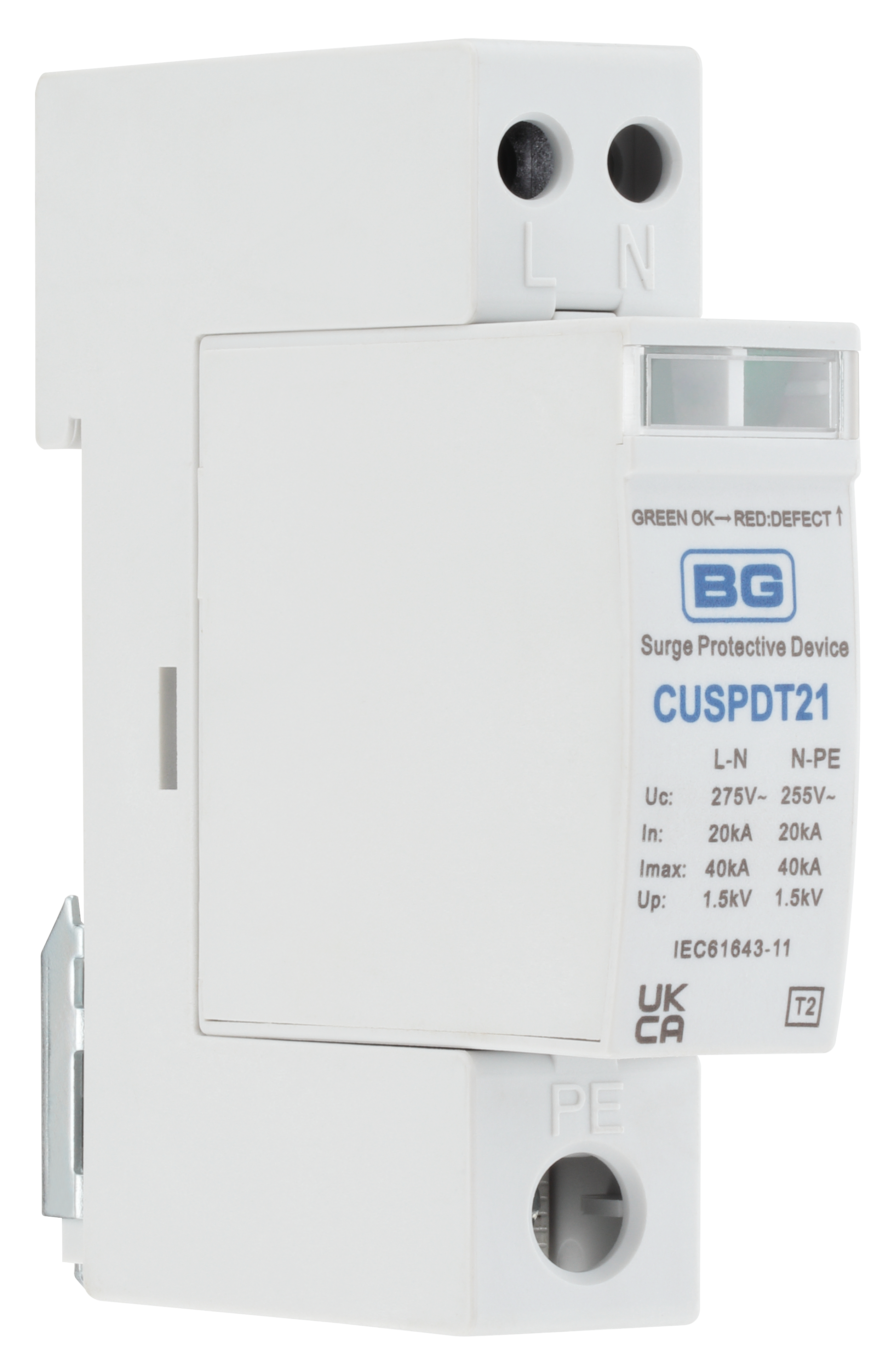

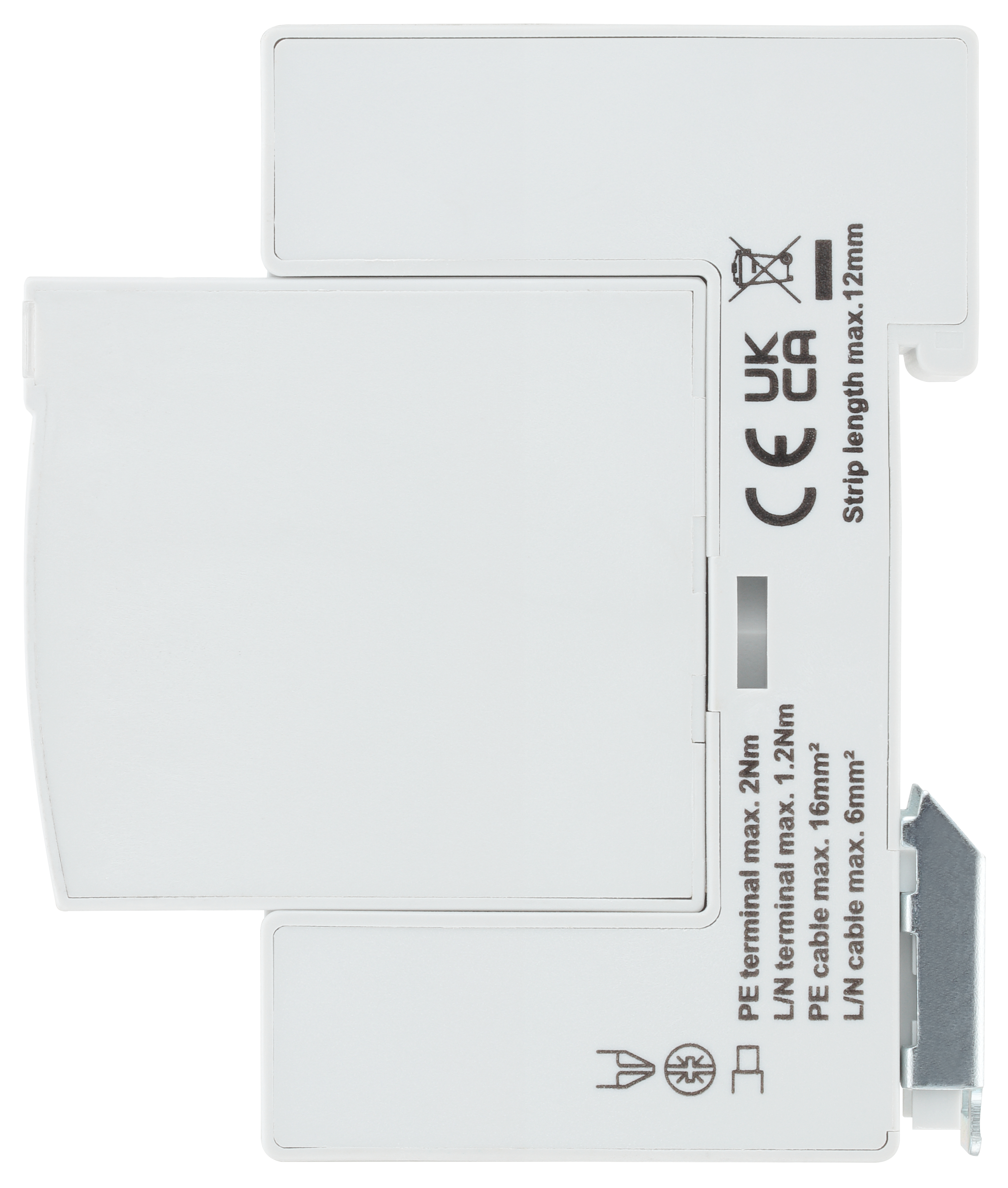

CUSPDT21-02
BG Type 2 40kA Surge Protection Device
Type 2
40kA
Single module
Status indicator
TNCS,PME & TT systems
| General Colour | Light Grey |
| Timer Override | N/A |
| Timer Type | N/A |
| Endurance Operations - Electrical | 0 |
| Endurance Operations - Mechanical | 0 |
| Reponse Time (nS) | 25 |
| Surge Rating (kV) | 1.5 |
| Surge Uc | 275 |
| Surge Uoc | N/A |
| Surge Up | L/N Up=1.5kV |
| Rated Sensitivity (mA) | N/A |
| RCD Mechanism Type | N/A |
| Trip Speed (mS) | <25ns |
| RCD Type | N/A |
| Device | SPD Type 2 |
| Operating Voltage (V) | 275 |
| Current Rating (A) | N/A |
| Operating Temperature (C) | -25°C to +40°C |
| Rated Trip Current (mA) | N/A |
| Switch State | N/A |
| Surge Device | Yes |
| Warranty (years) | 10 |
