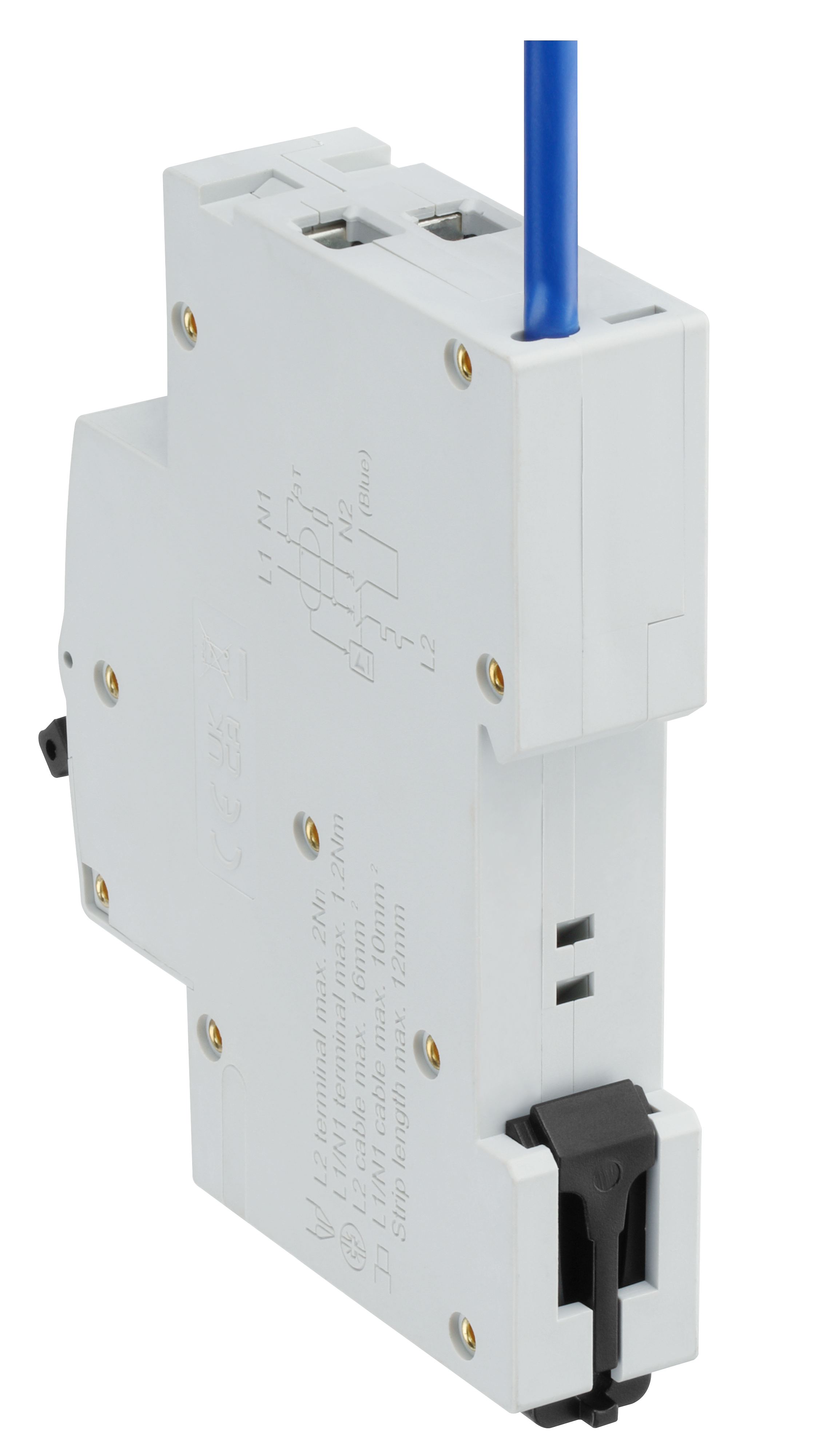

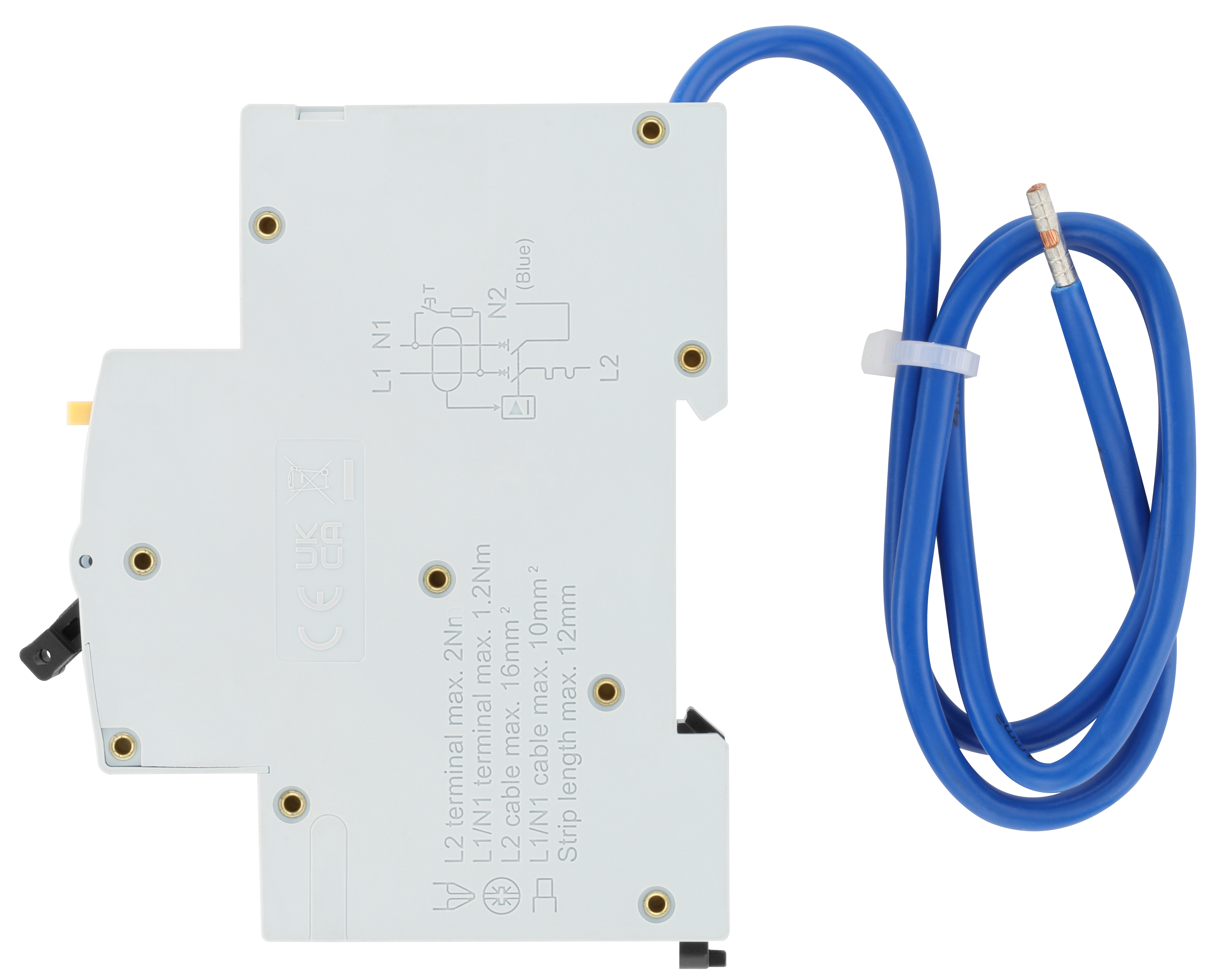

CUCRB20DPA-01
Bidirectional 20A B Curve Compact RCBO 30mA Type A 2 Pole RCBO Single Module
Bidirectional
-25°C to + 40 operating temperature
B curve
Type A
2 Pole
Single Module
6kA breaking capacity
Manual test button
Integrated neutral lead
Can be used in BG consumer units and enclosures
| General Colour | Light Grey |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| Operating Voltage (V) | 230 |
| Current Rating (A) | 20 |
